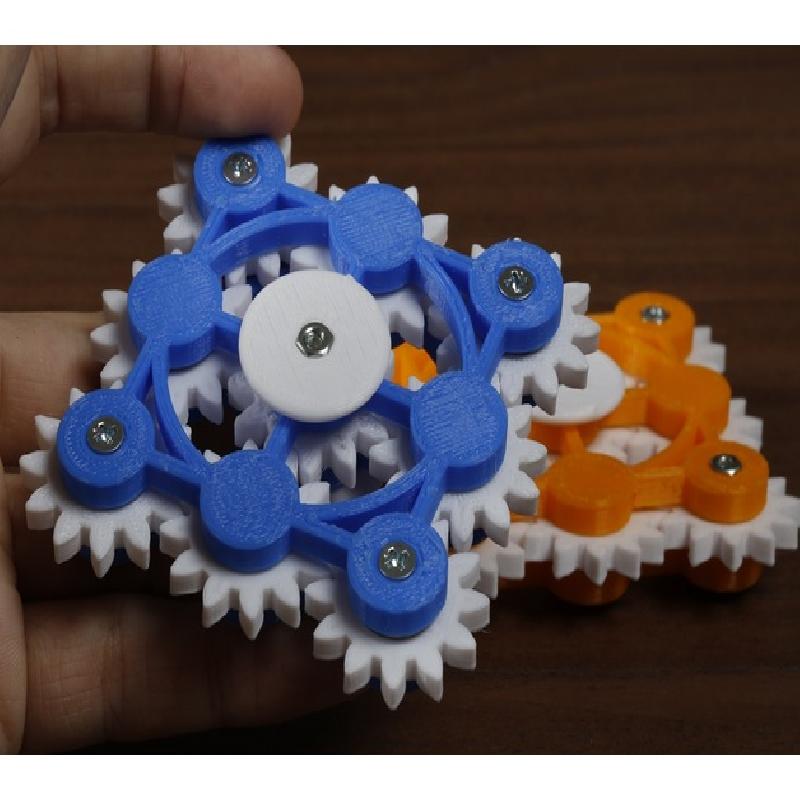

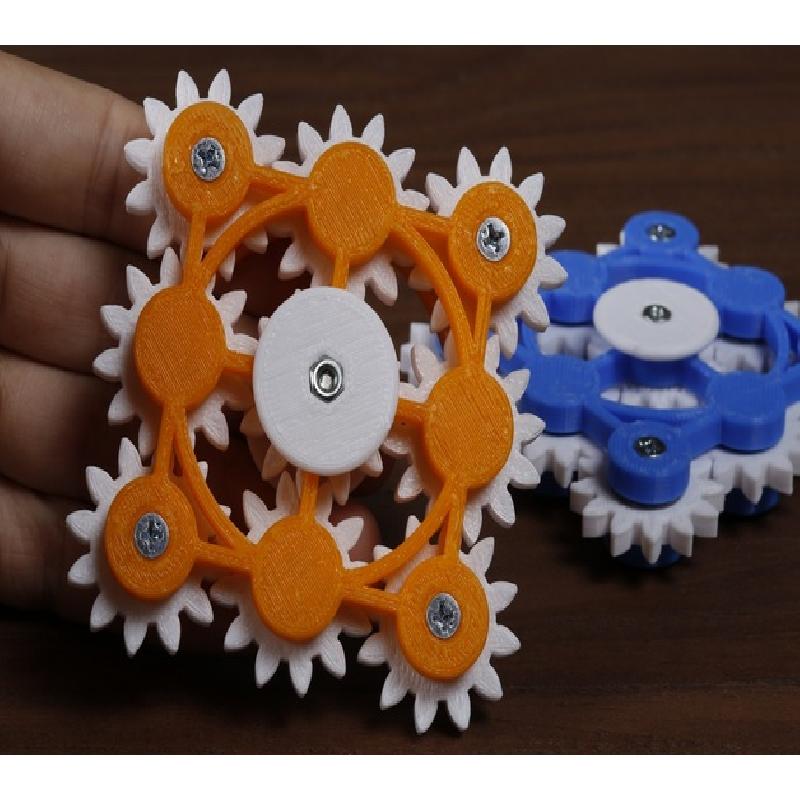

This is an attempt to make a 3D printed version of the 9 Gear Fidget Spinner. I'm sure the machined fidget spinner will spin better, but we want to print our own, right?
I offer 2 bearing options: 695 bearing (ID = 5mm, OD = 13mm, t = 4mm) or 1150ZZ (ID = 5mm, OD = 11mm, t = 4mm) bearing. I recommend the 695 bearing; the bearing used or the video is also 695. I have uploaded the files for the 1150ZZ version as well, since my first prototype was based on 1150ZZ.
Items to print:

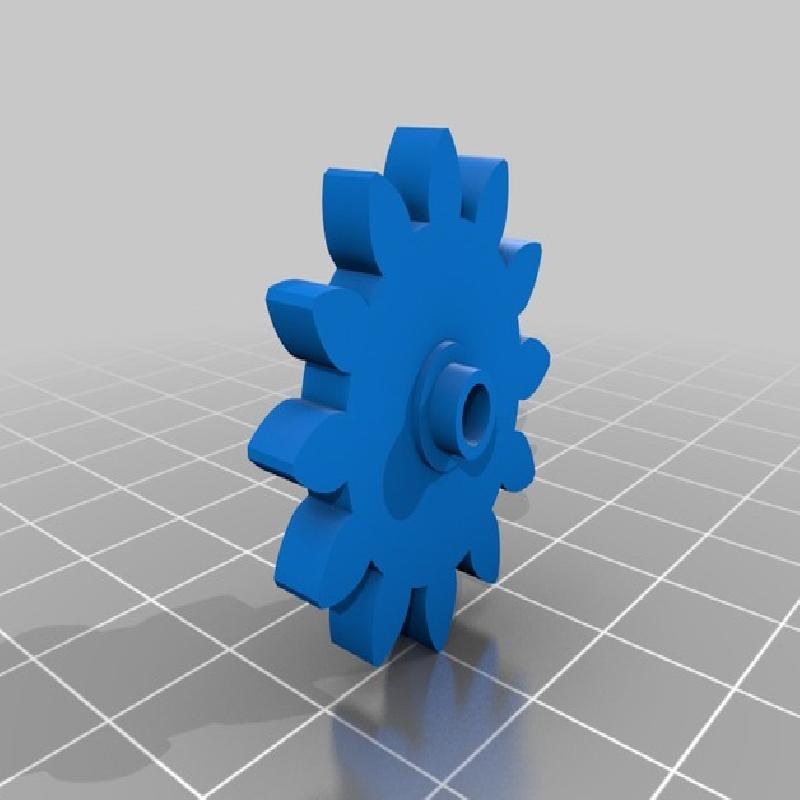

1x Center Gear

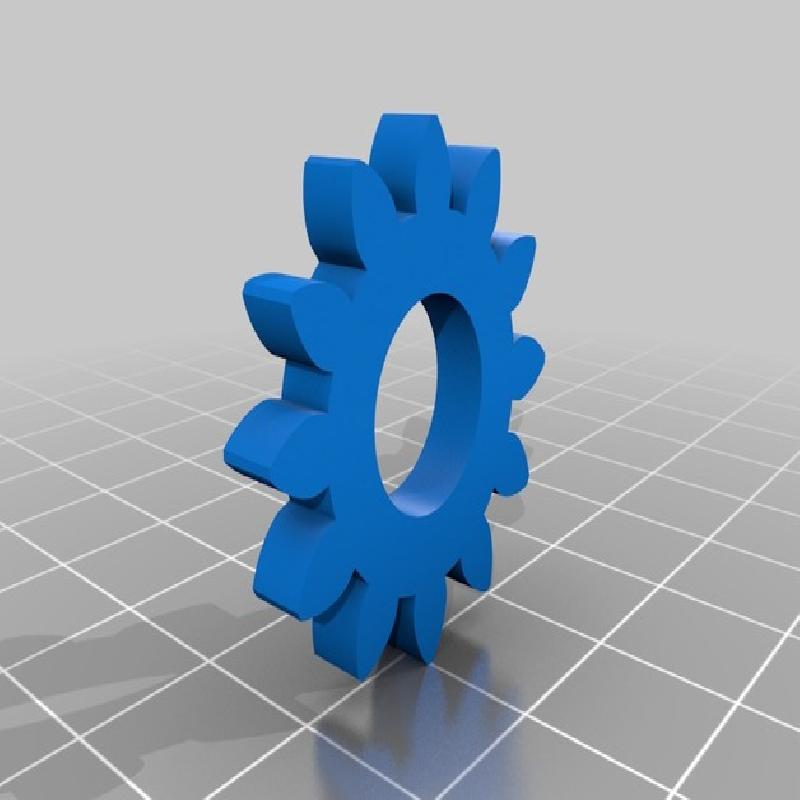

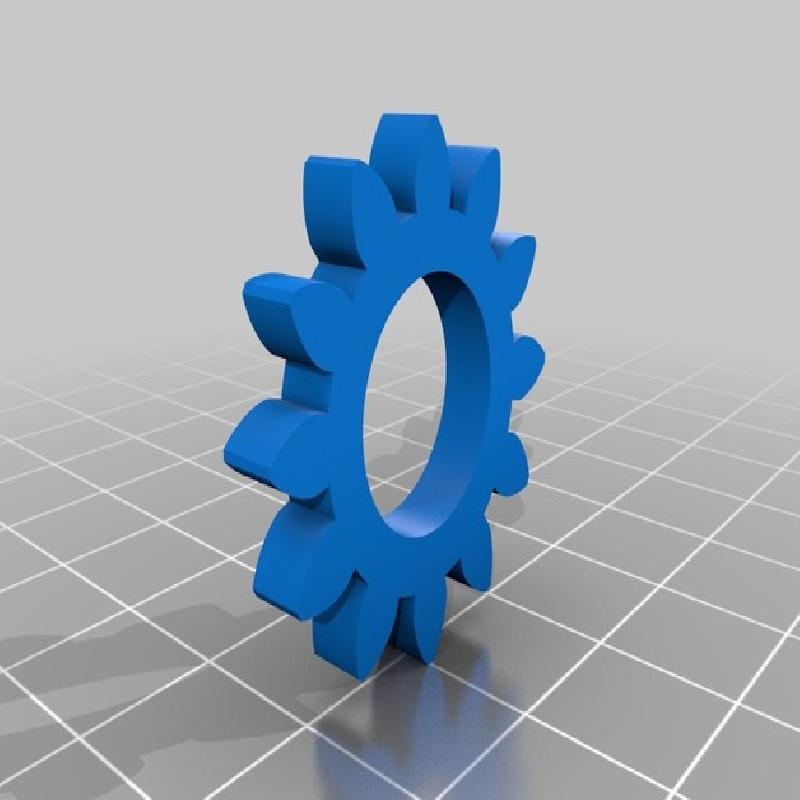

8x Gear (Choose from 695 or 1150 version)

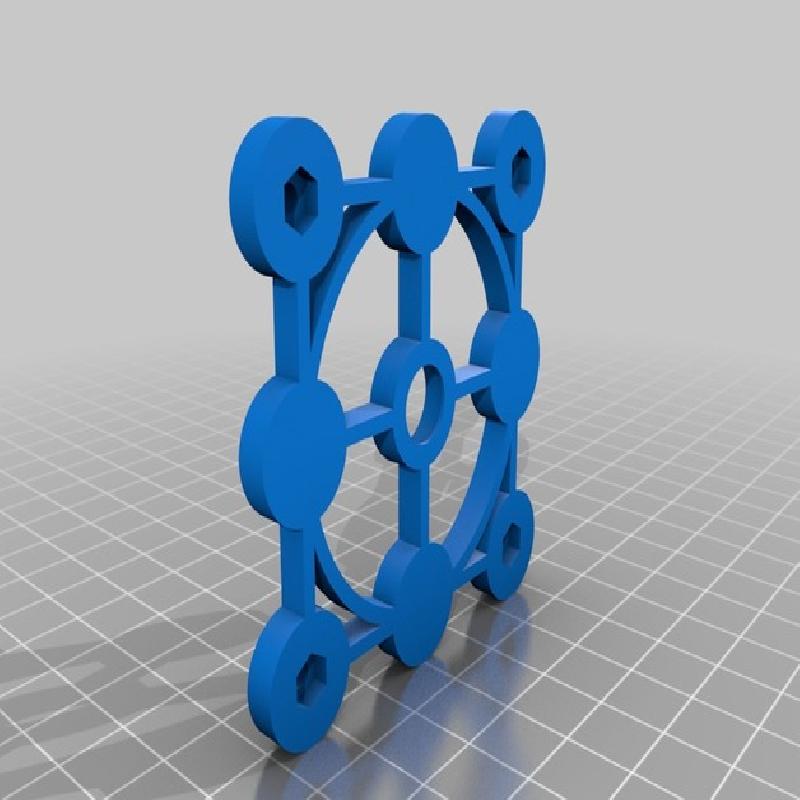

1x Top Gear Frame (Choose from 695 or 1150 version)
1x Bottom Gear Frame (Choose from 695 or 1150 version)

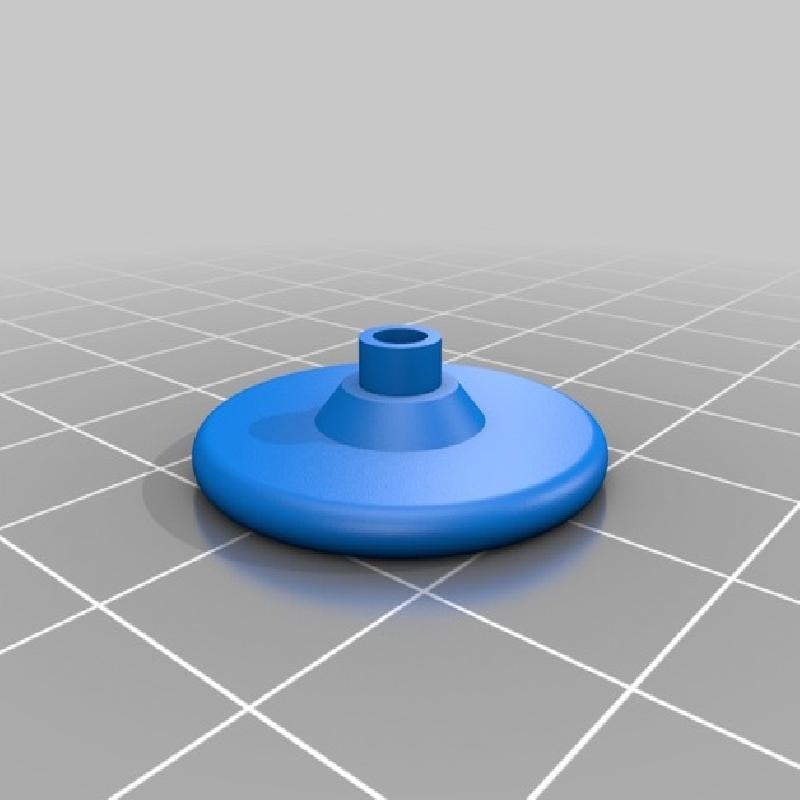

1x Top End Cap
1x Bottom End Cap
Items to Purchase:
10x 695 bearing or 1150ZZ bearing
4x 15mm M3 Flat Head Counter Sunk bolt
1x 20mm M3 Flat Head Counter Sunk bolt
5x M3 Nut

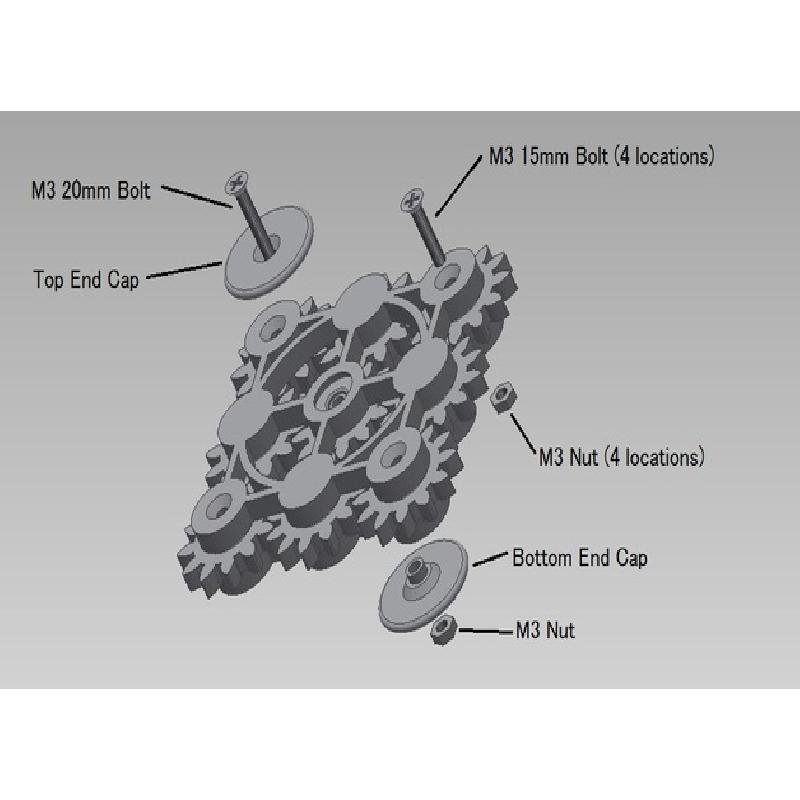

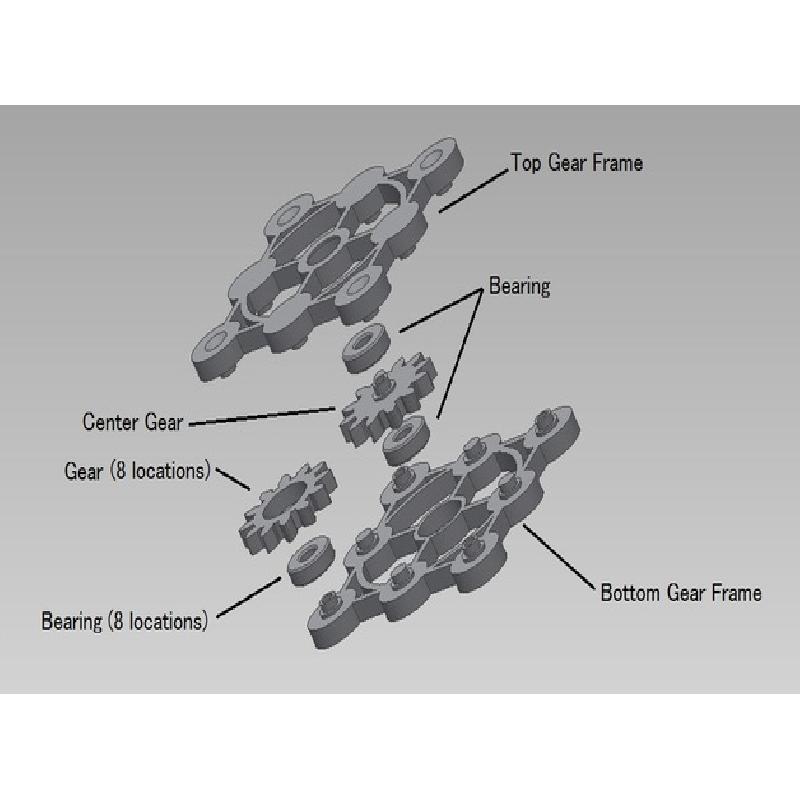

For assembly, refer to the assembly image or follow the assembly video at https://youtu.be/73aq4J0pjIE.
