Hi all!
Im back again!

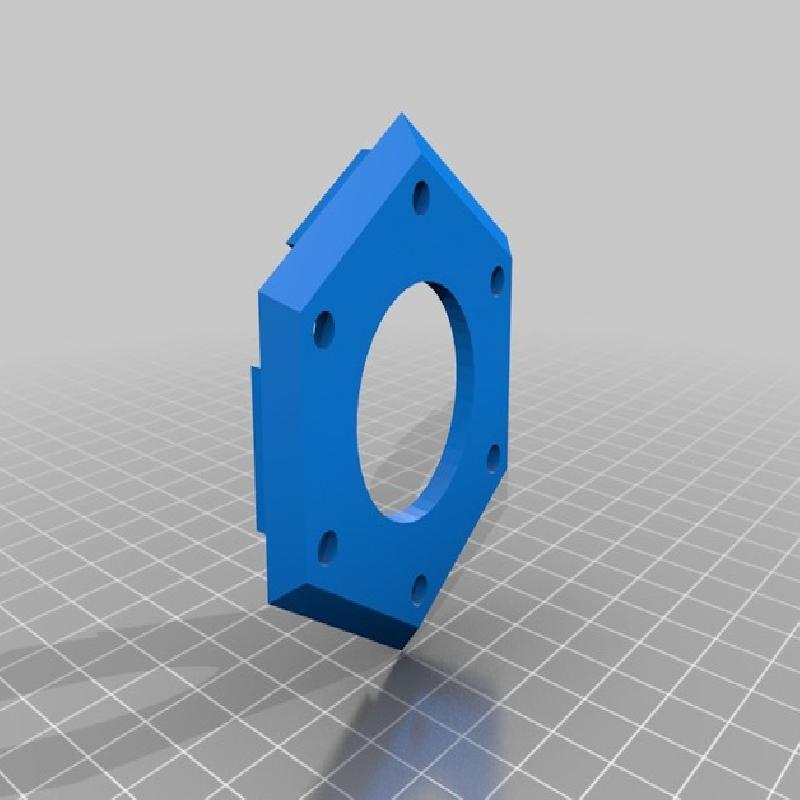

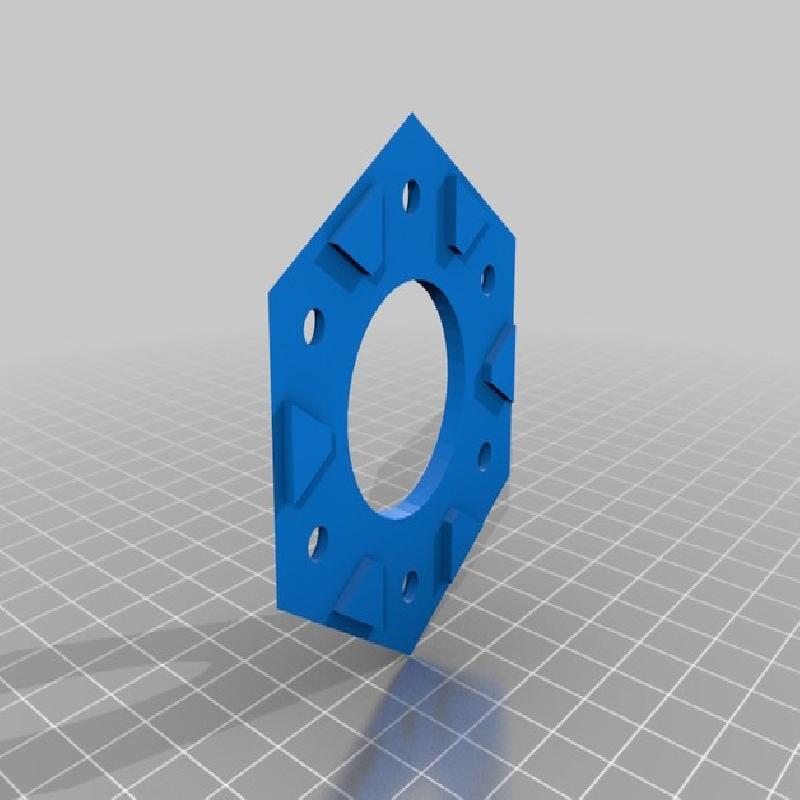

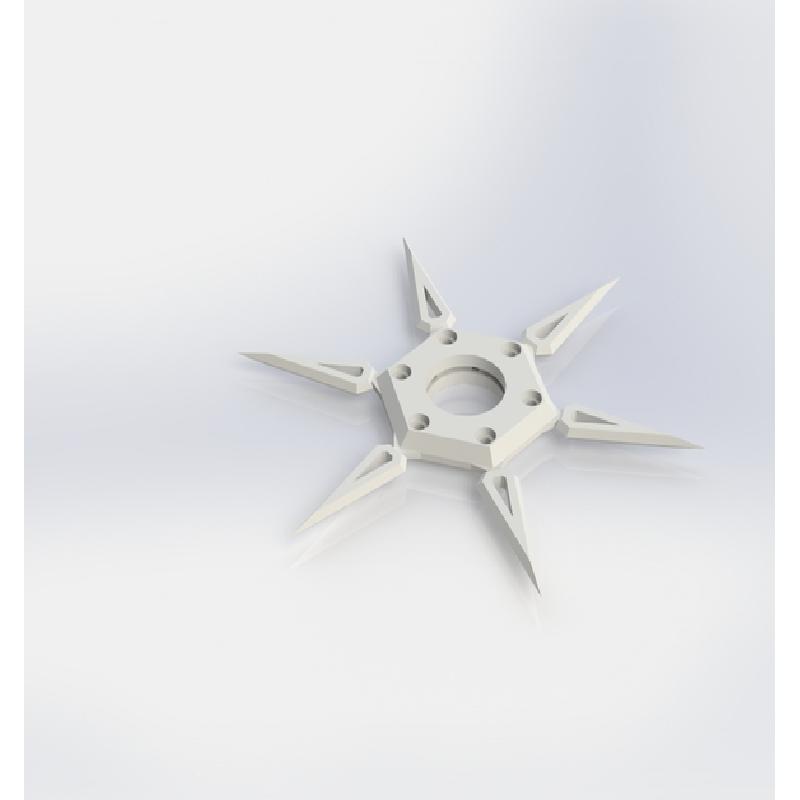

After the fidget spinner design, I thought it'd be a brilliant to make a modular throwing star that takes many different types of dart designs. I made the main base that locks the entire assembly together with 6 M4*8 screws. The base can take up to 6 darts on the edge.

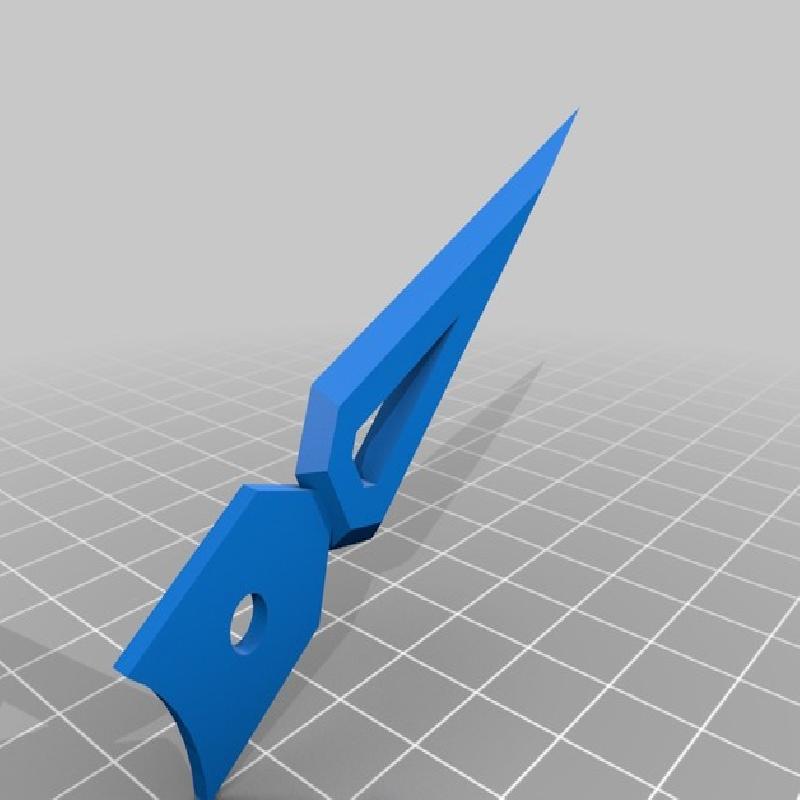

I am working on other design for the dart module, to offer a better variety of design and customization for throwing star!
Cheers!
Printer:
Dremel 3D20
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
50-100 Microns
Infill:
40%
Notes:
50-100 Microns is recommended, the higher the resolution, the less likely that the chamfer lines will show. since it is a toy and will probably suffer a lot of abuse, square or hexagon support is recommended.
