Made this lift based on the real one (from Twin-Busch), although some dimensions were slightly modified to be printable or more stable. But sizing matches 1:18.
Most of the parts were printed in PETG, but I printed the base from near-solid PLA as the PETG was too flexible on that point.
You can bend it a little by applying heat (use hair-dryer).
The lifting structure can be reinforced by 2 metal wires, I used RVS welding wire. Off-course, use infill to keep it strong and steady under car's weight.
Height can be adjusted.
You'll need scalpel, files, glue and sanding paper to get this thing together.
You might have to sand down some parts to get them fit together, but as a model builder this shouldn't be to hard.

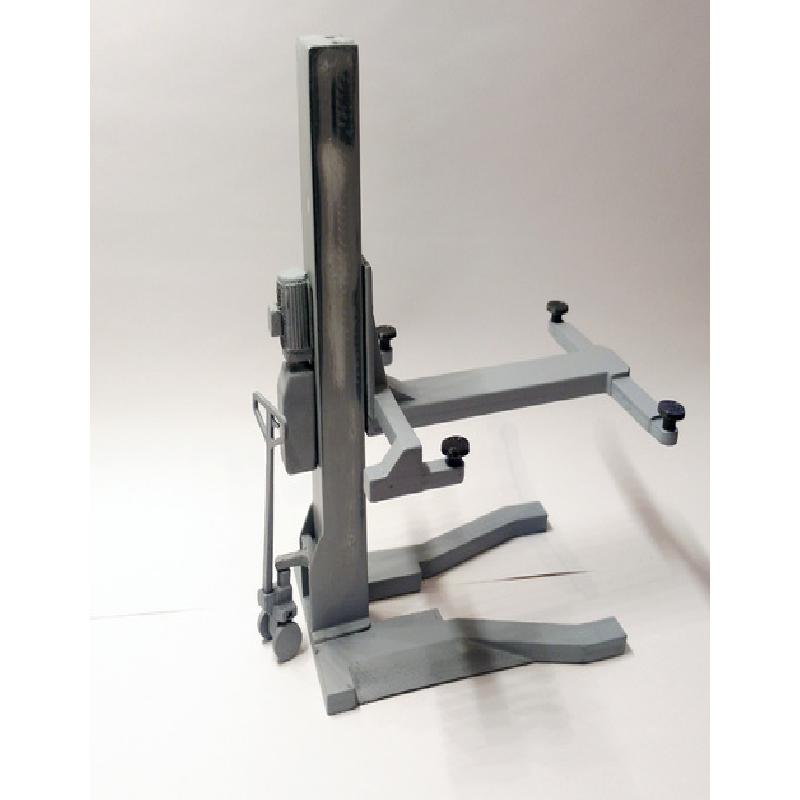

On the image I only sprayed some primer. Will airbrush it later on, add wires, stickers etc.
Hope you like it!
Will add more diorama parts in the future.
Printer Brand:
Prusa
Printer:
Prusa Clone
Rafts:
Doesn't Matter
Supports:
No
Resolution:
0.2
Infill:
high
Notes:
Used PETG and PLA, PLA was a bit stiffer, but tends to bend a little more in the long-run.
Most parts need to be rotated before printing.
Was able to print without supports.
