by ctrlV, published

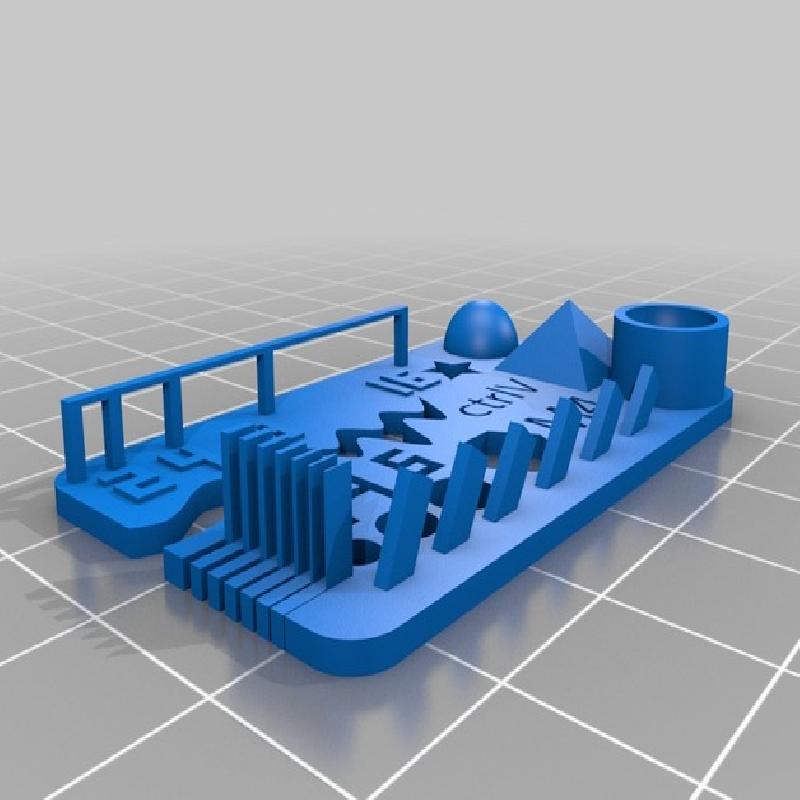

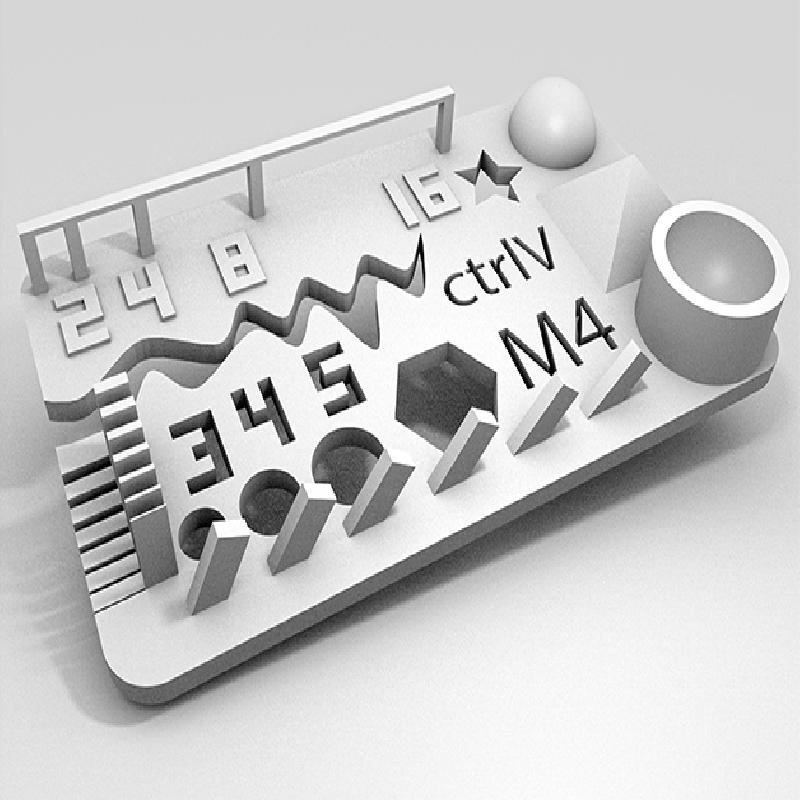

after a lot of wishes we present the new smaller Test your 3D printer! version 2.
new version 3 here: http://www.thingiverse.com/thing:1363023
check out the forum for more help
http://www.whoote.com
new features
saving 75% volume compared to version 1
only 2.52cm3. (Version 1, 2mm baseplate: 3.16cm3)
optimized 3D print font
higher resolution
wall thickness
this version is for 0.48mm extrusion width (more to come)
This is a hard to print testfile!
often you don't know if your printer is ready for complex files. with this file you have an easy option to check problematic printing/slicing stuff.
does your printer challenge this ultimative part?
check it out and get (almost) instant results.

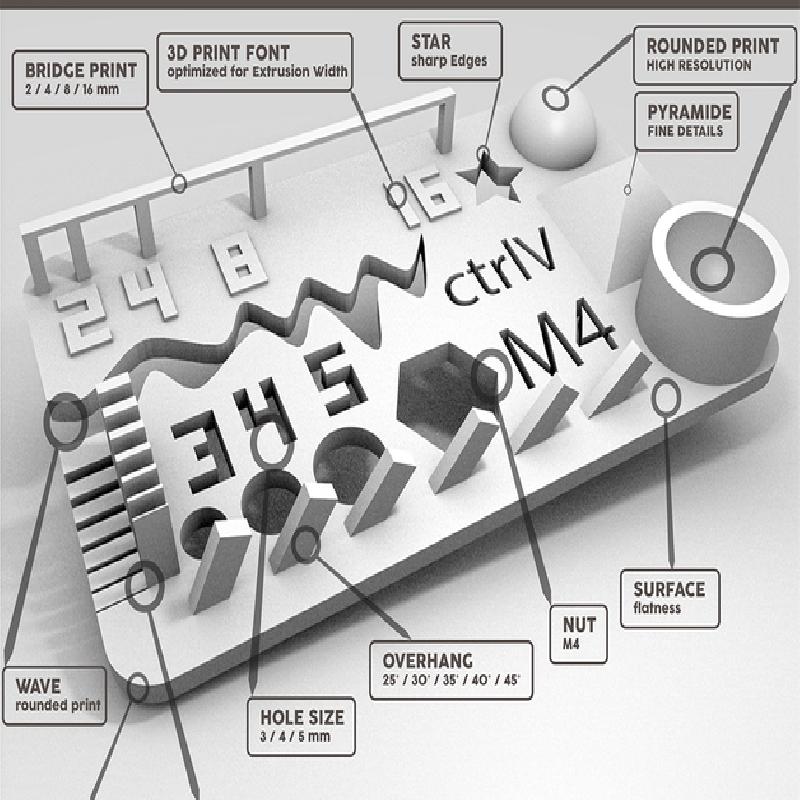

these test are included in this very tiny file:
size: the object is 2x50x30mm (baseplate)
hole size: 3 holes (3/4/5mm)
Nut size: M4 Nut should fit perfectly
fine details: pyramide, cone, all numbers
rounded print: wave, half sphere
minimum distance & walls: 0.1/0.2/0.3/0.4/0.5/0.6/0.7mm
overhang: 25°/30°/35°/40°/45°
bridge print: 2/4/8/16/mm
surface: all the flat parts
version 1 http://www.thingiverse.com/thing:704409
infill: 33% infill or similar
extrusion width: 0.48mm
layerheight: 0.1mm
print time: about 30 minutes, depending on your printer & settings
raft: you can use a raft
The Version 1 has the correct Baseplate with 2mm height, the older has 1.5mm
