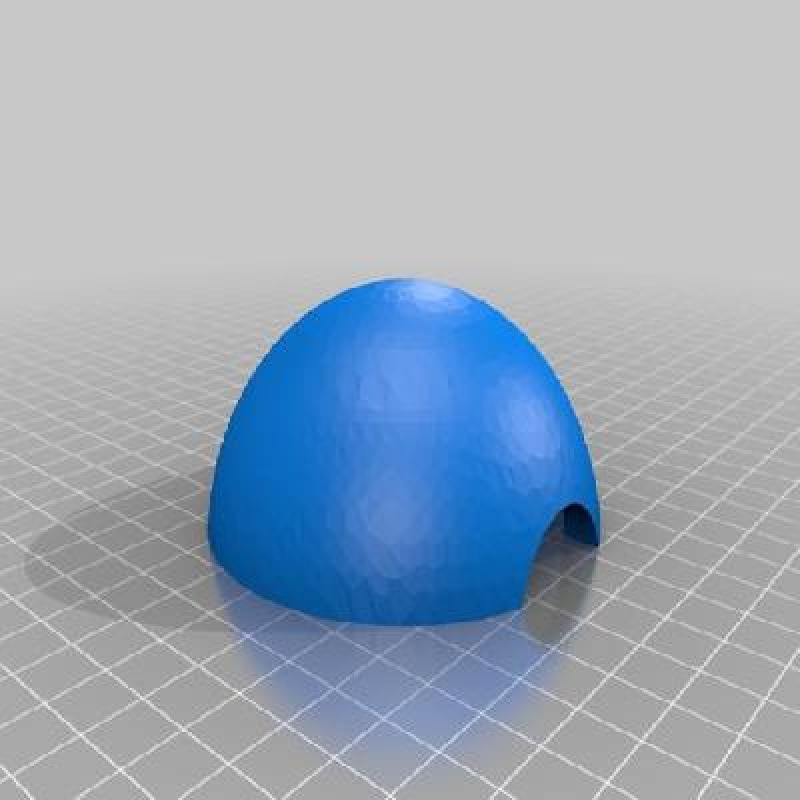

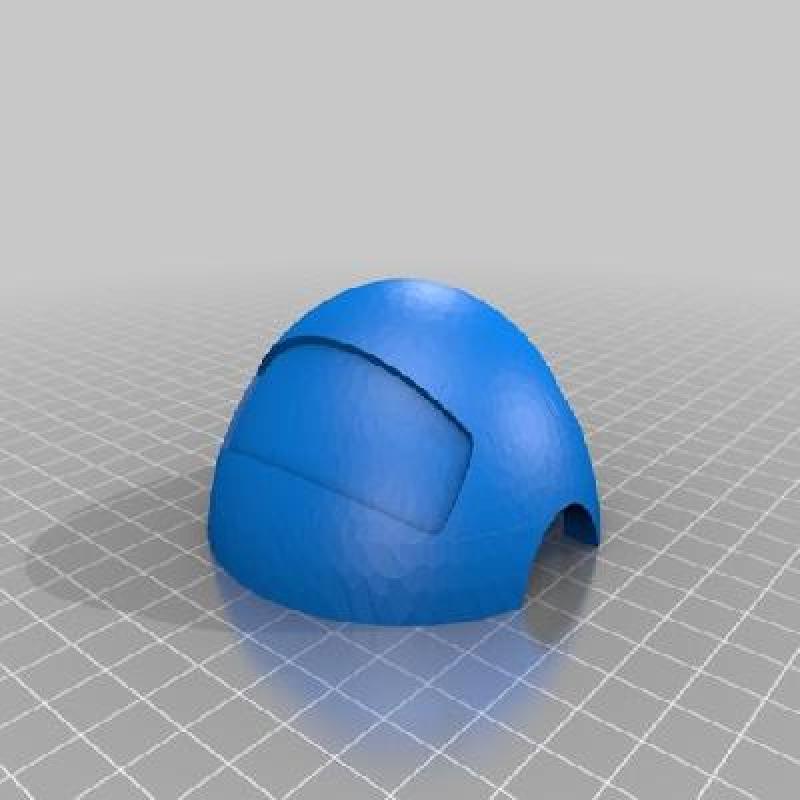

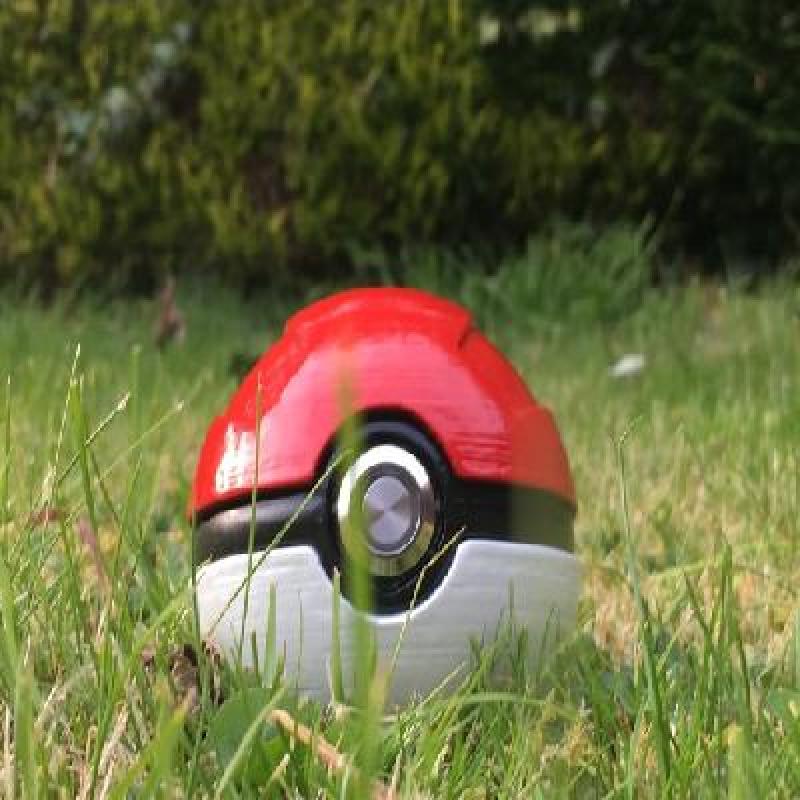

This is a remix of the 'Pokeball (with button-release lid)' by Intentional3D, so credit to them for the model.

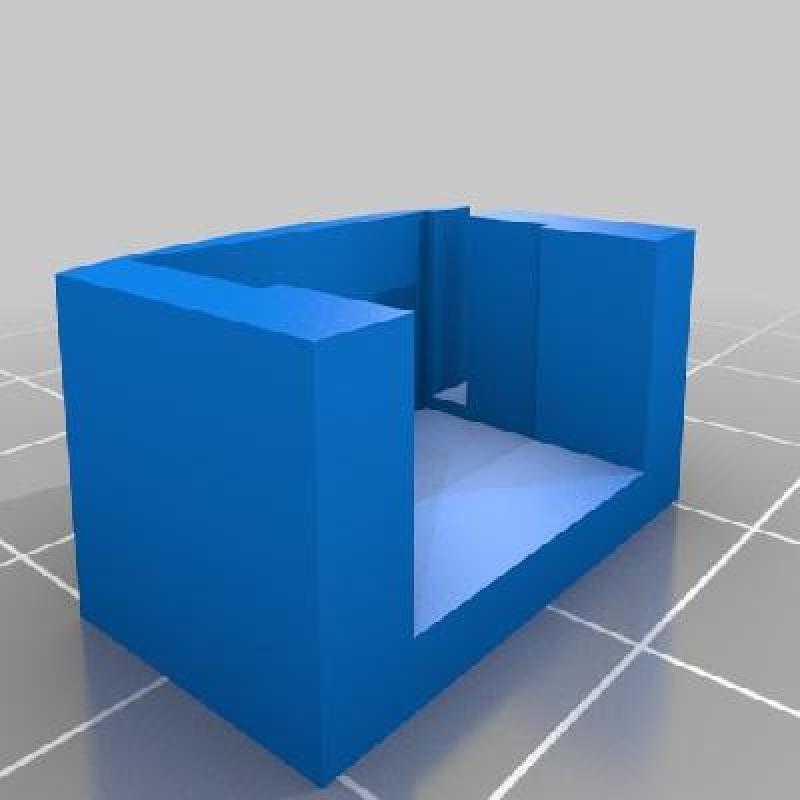

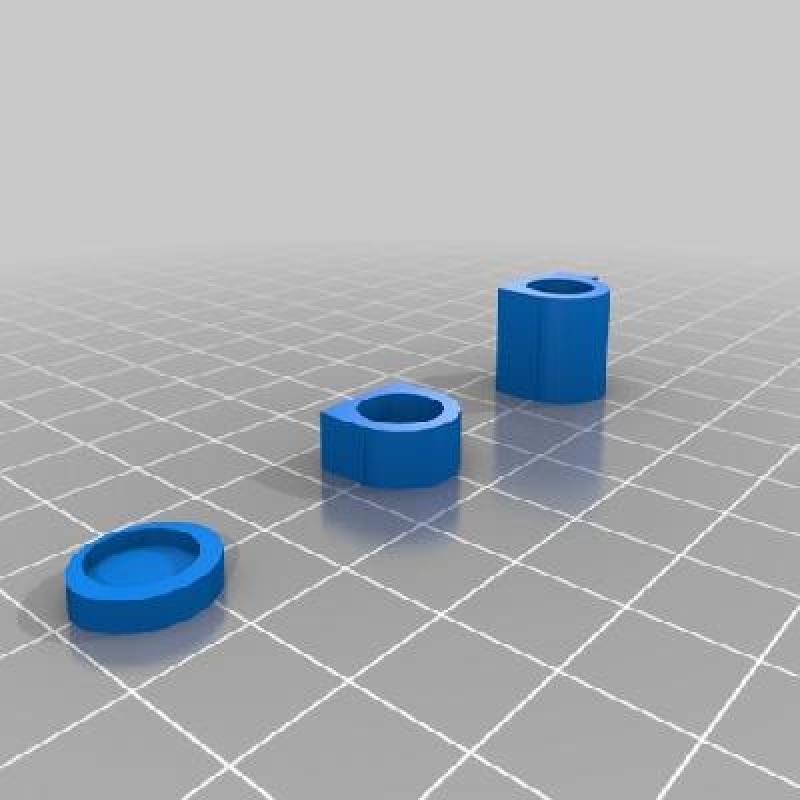

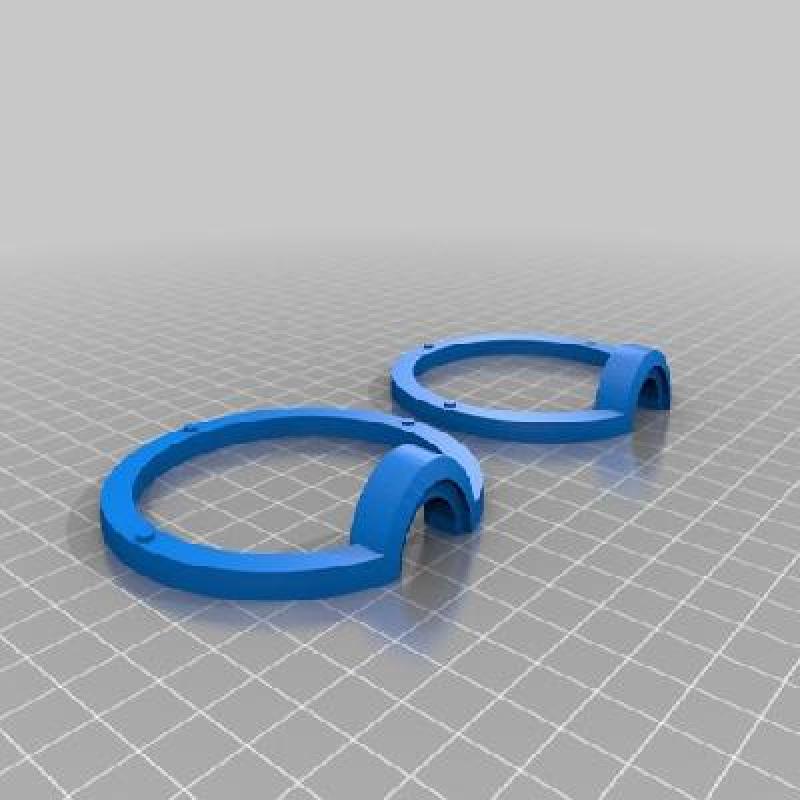

This is based on the 80% scale version to make it more life-size, I modified the front button section to incorporate a switch, removed the exposed hinges and added a bunch of electronics to add some special effects. These include the following:
Front button to activate the Pokeball
Front red LED

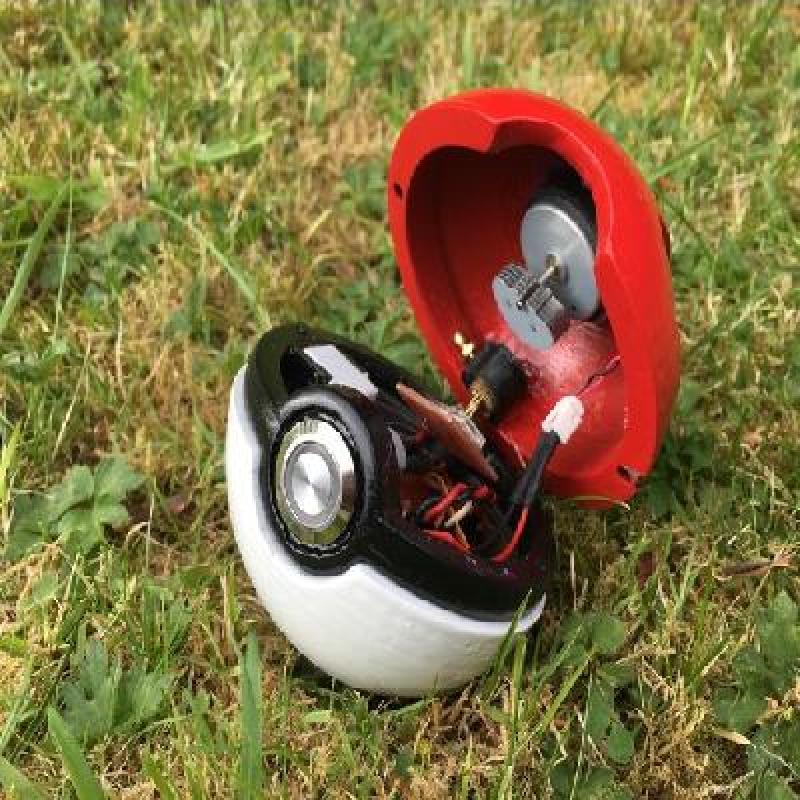

Rumble motor to simulate the Pokeball vibrating as the Pokemon try to 'break-out'

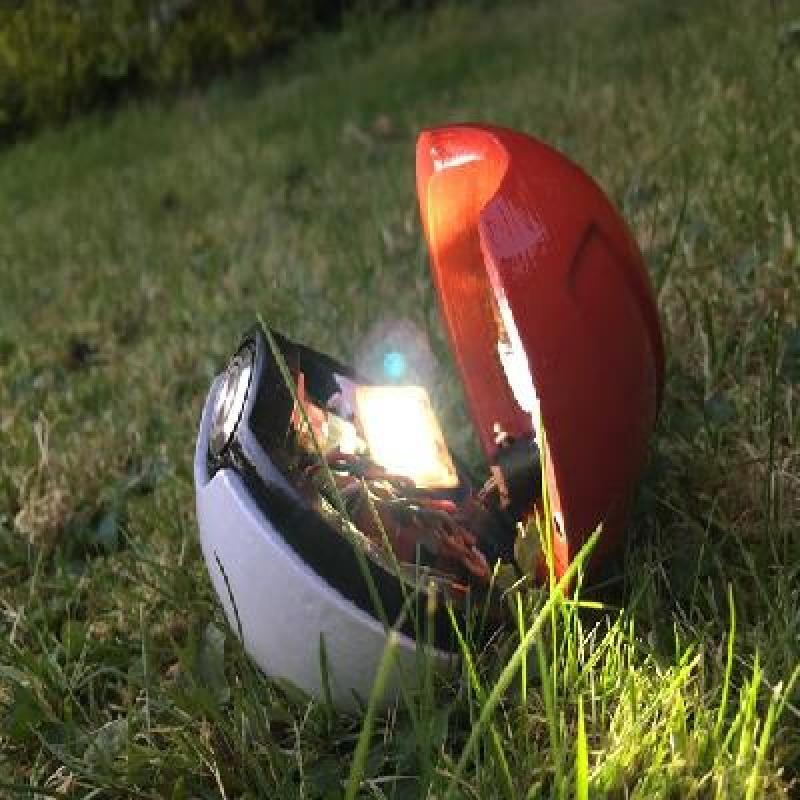

Superbright internal LED to simulate catching Pokemon
Opening lid, with the potential to be automated via the use of the servo
Everything is controlled by a PICAXE microcontroller and it is powered by 3x 1.5v N batteries.
For more information, including a step-by-step guide to re-create the Pokeball check out my Instructable
Printer:
DaVinci 1.0
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
50%
Post finishing included sanding, the use of XTC-3D print smoothing kit and painting.
