I have been looking for an original author of the model (For god sakes - I can't remember where i found it), if anyone has got a clue, please let me know to give appropriate credits. (Thanks & Sorry in advance)

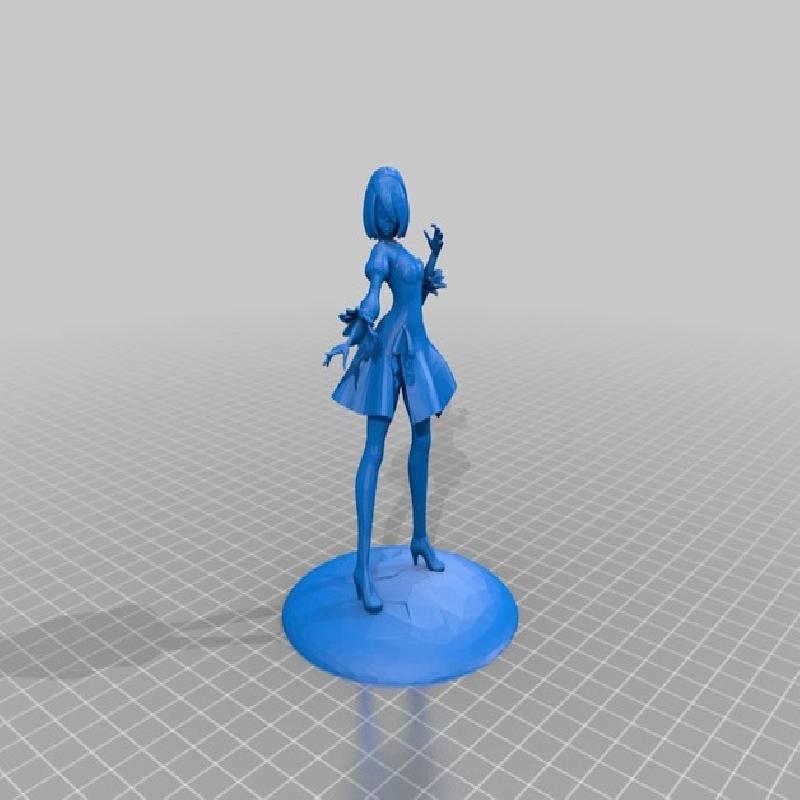

Converted model from obj to stl, partially fixed skirt in SketchUP and then finished repairing (making the object solid) with MS 3D Builder (Simplification and model Repair done by 3D Builder is easy to use with superb results)

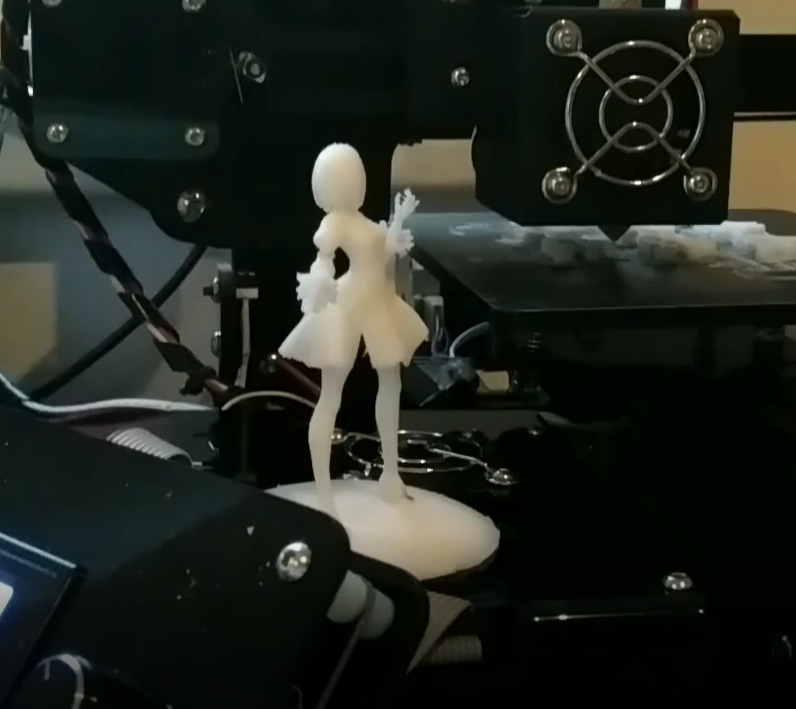

Printer:
DMS DP2 (Tronxy X1 clone)
Rafts:
Yes
Supports:
Yes
Resolution:
scale 0.7 (~70mm height)
Infill:
15%
Notes:
Sliced with CuraEngine, Supports everywhere (removing supports was a real pain - it took around 1h to clean model of expandable structures.

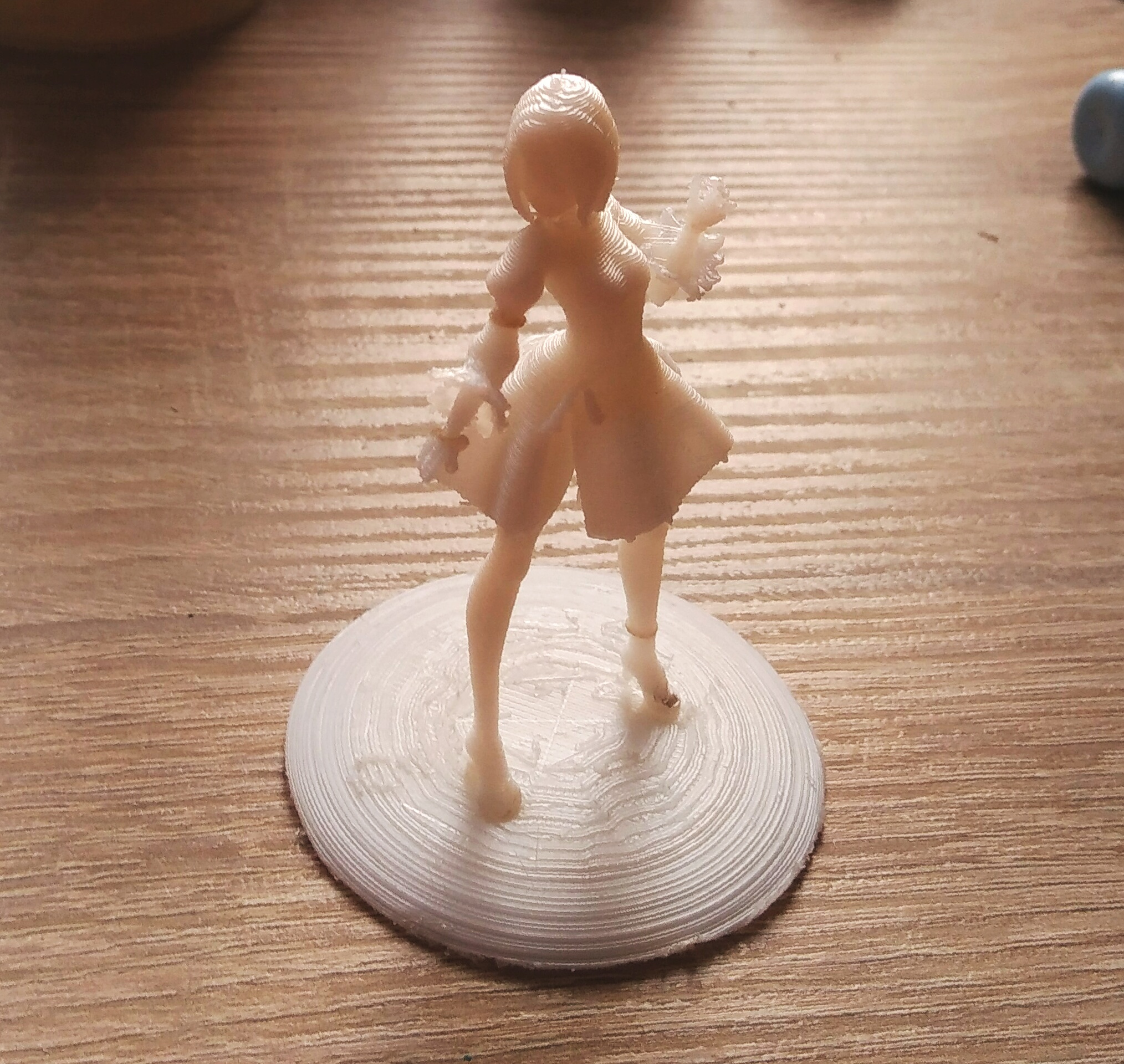

On 0.7 scale i have accidentally torn of 2B's arm, foot and stand base (reattached by heating torn parts)
0.3mm First Layer
0.19mm layer height
1.5mm shell thickness
CuraEngine - Supports Everywhere
~40mm/s speed
Although DMS DP2 is probably Tronxy X1 Clone, the build quality seems overally better than Tronxy X1
