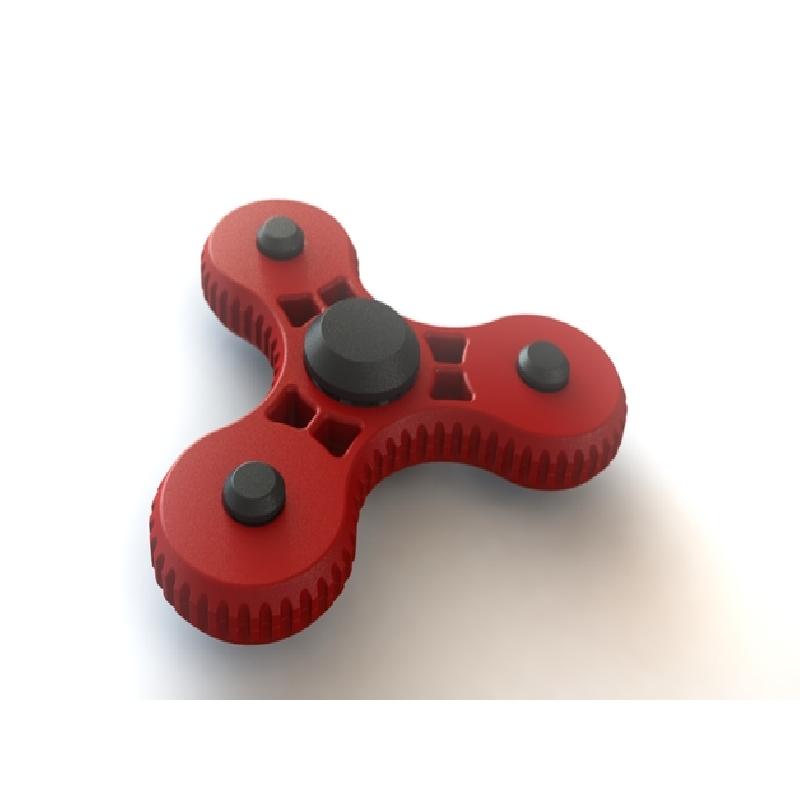

I designed the new tri-spinner. In this time, it's very nice balanced, thanks to new construction.
Easy to print, easy to assembly. Without supports, with small infill (I used 15%).

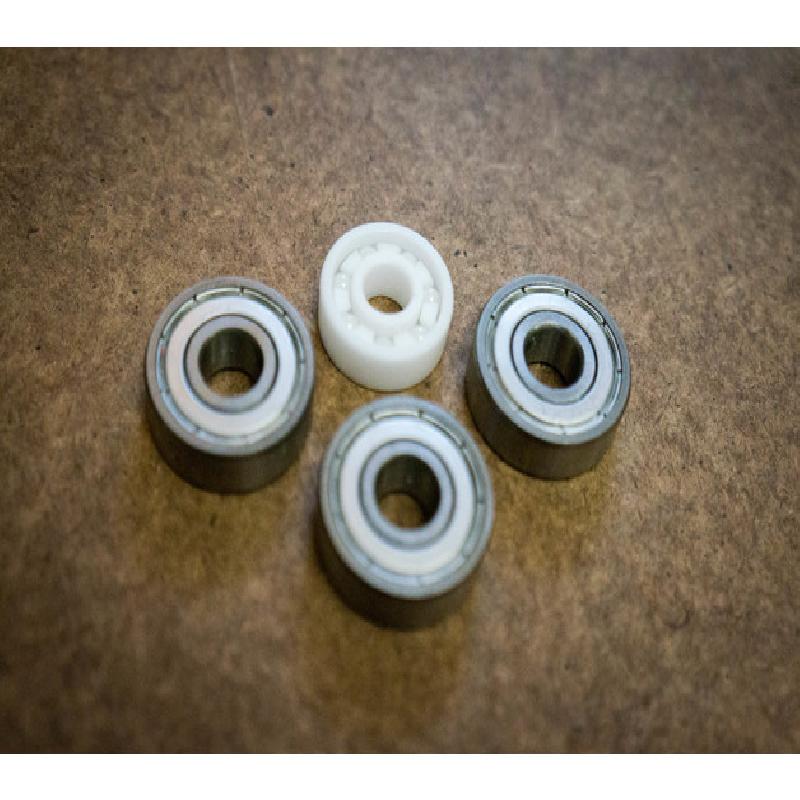

1 pcs, full ceramic bearing (awesome!!!) with sizes 8x22x7. I bought it here, pretty fast delivery.
3 pcs, any bearing with sizes 9x26x8 (like this)

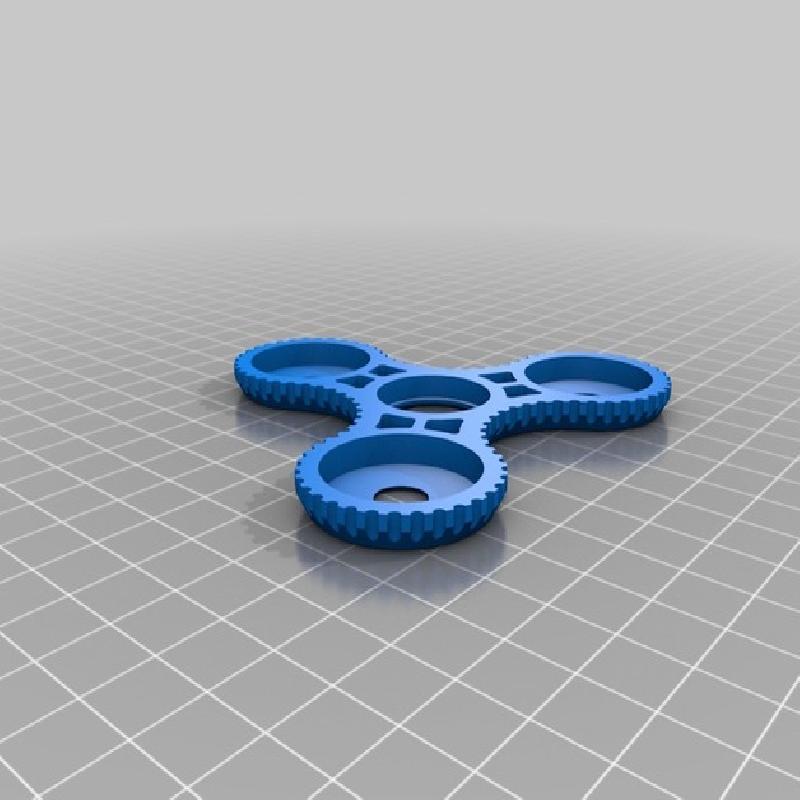

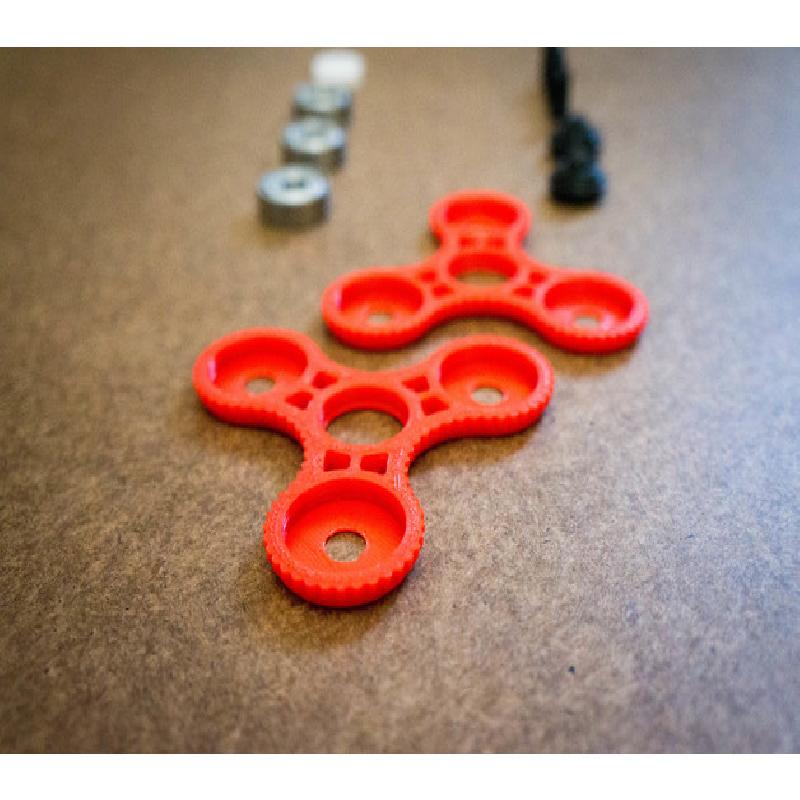

2 pcs, main parts are "spinner3_base_(x2).STL"

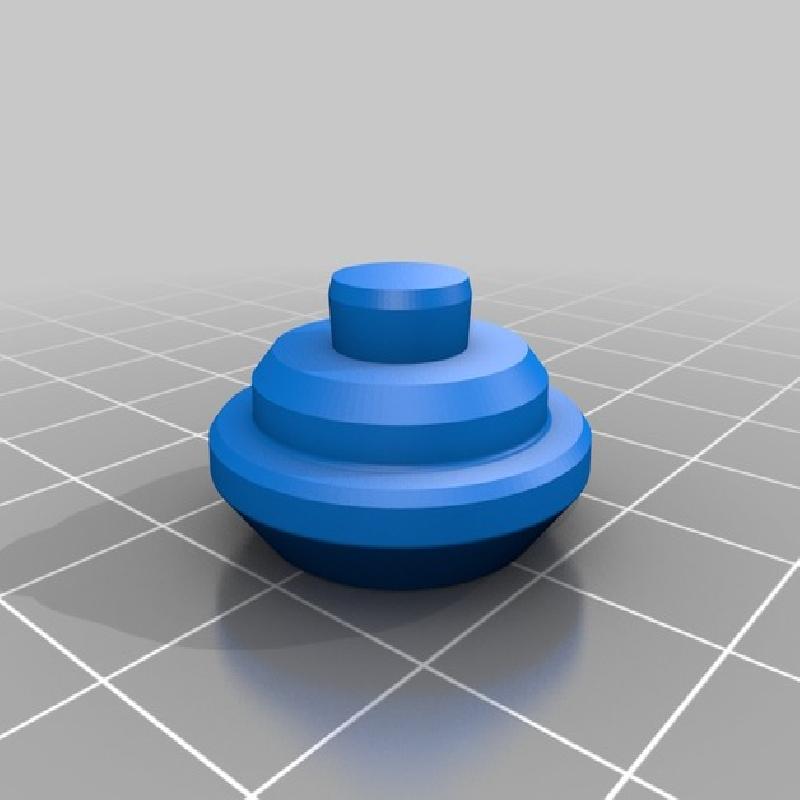

2 pcs, caps for hold "spinner3_cap_(x2).STL"

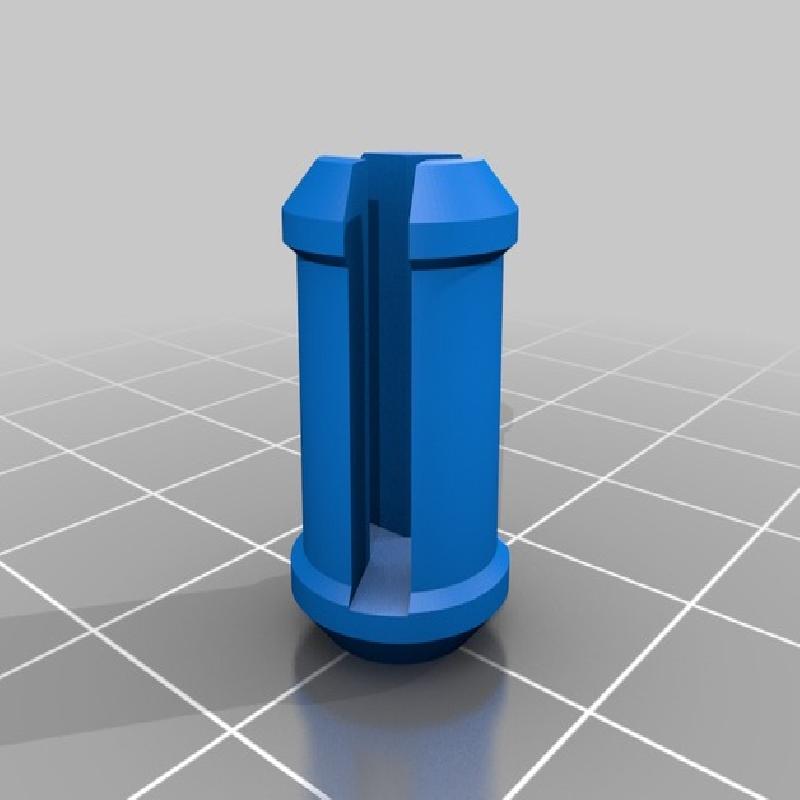

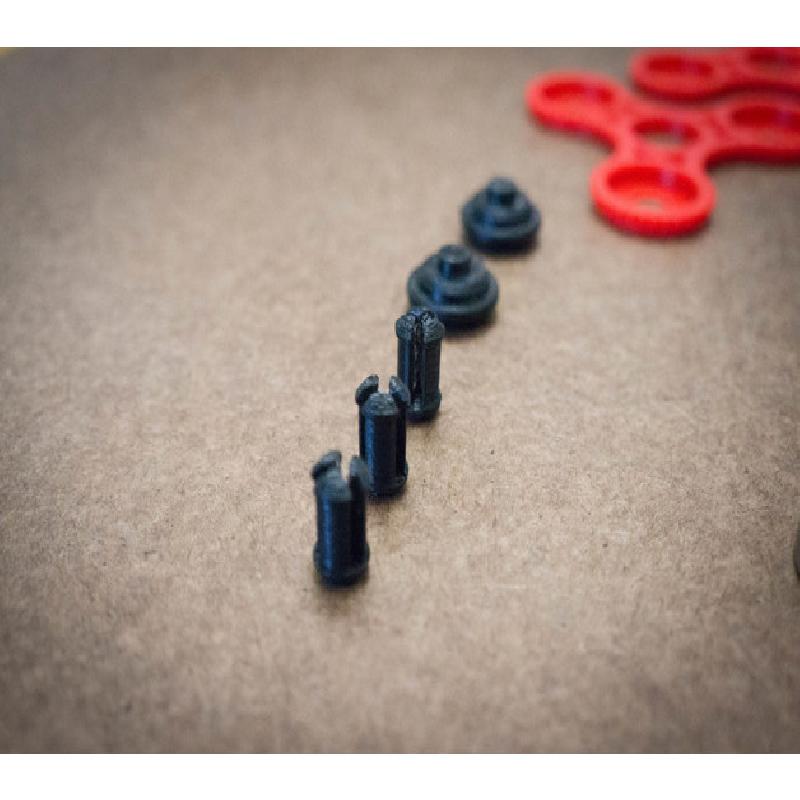

3 pcs, not necessary, but helpful "spinner3_pin_(x3).STL" for lock main parts

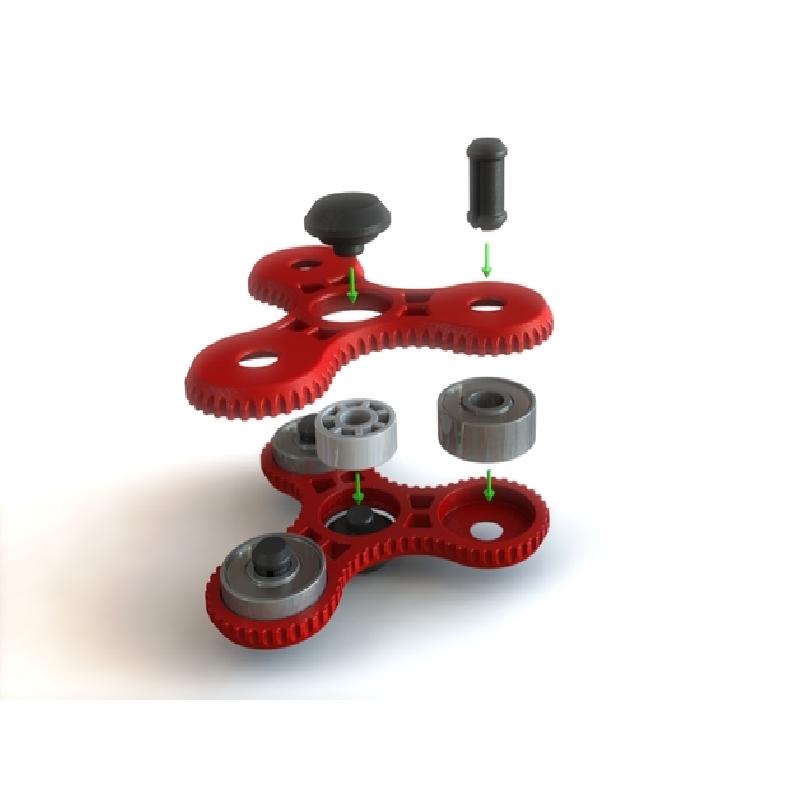

How I assembly this model (https://youtu.be/ezZiRLc3DsY)
And how it works (https://youtu.be/pYVn_7gkqLo)
Printer:
Re-D-Bot
Rafts:
No
Supports:
No
Resolution:
0.2 mm
Infill:
15%
