Introduction

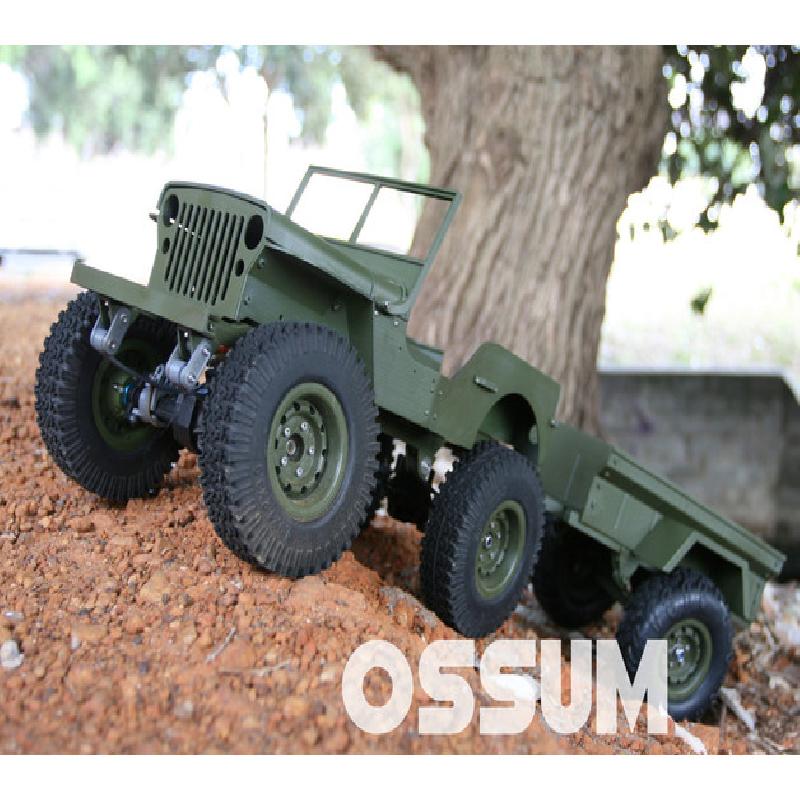

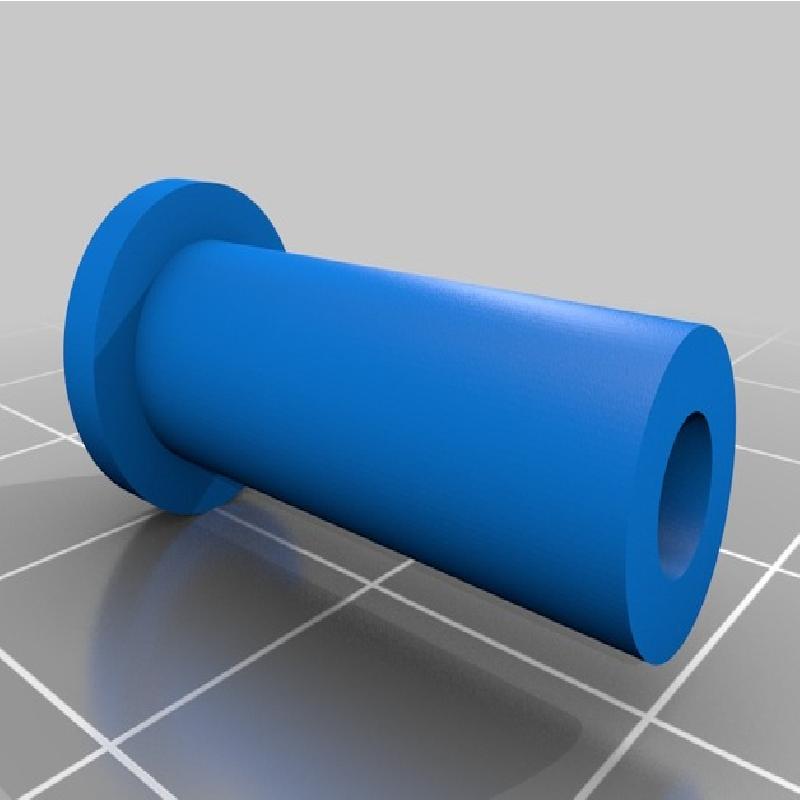

This is an accurately scaled 1:10 MB jeep which makes use of affordable drivetrain parts off of a 1:18 scale Kulak crawler.

The tyres are quite obviously not to scale. I think these would be perfect, but they are too pricey for me.

Video

https://www.youtube.com/watch?v=FmGmvtKJsiY&feature=youtu.be

Build Instructions

Full instructions on my Instructable

Updates

These are a list of updates as they happen, so that you know if there are improvements/fixes since you last downloaded.

2017/01/25

• Added hitch mounting holes to rear bumper

• Increased wheel hex hole to 12.4mm for easier fitment

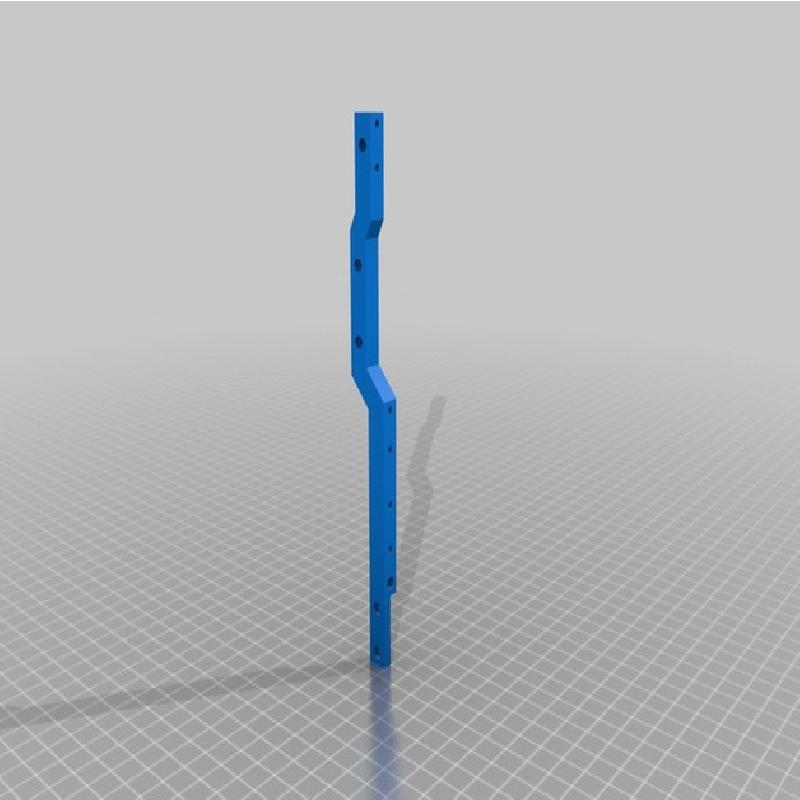

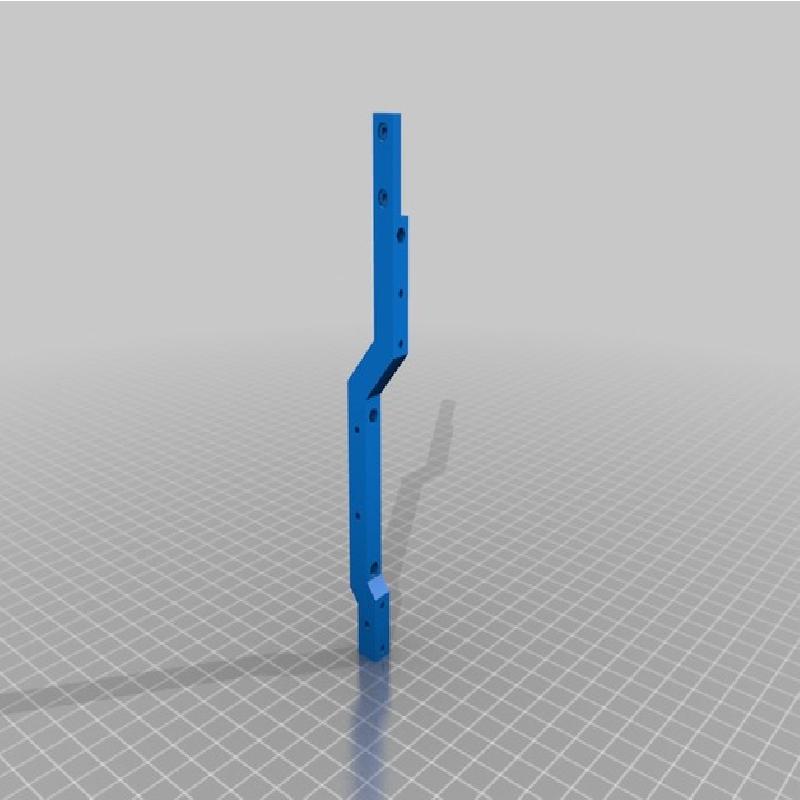

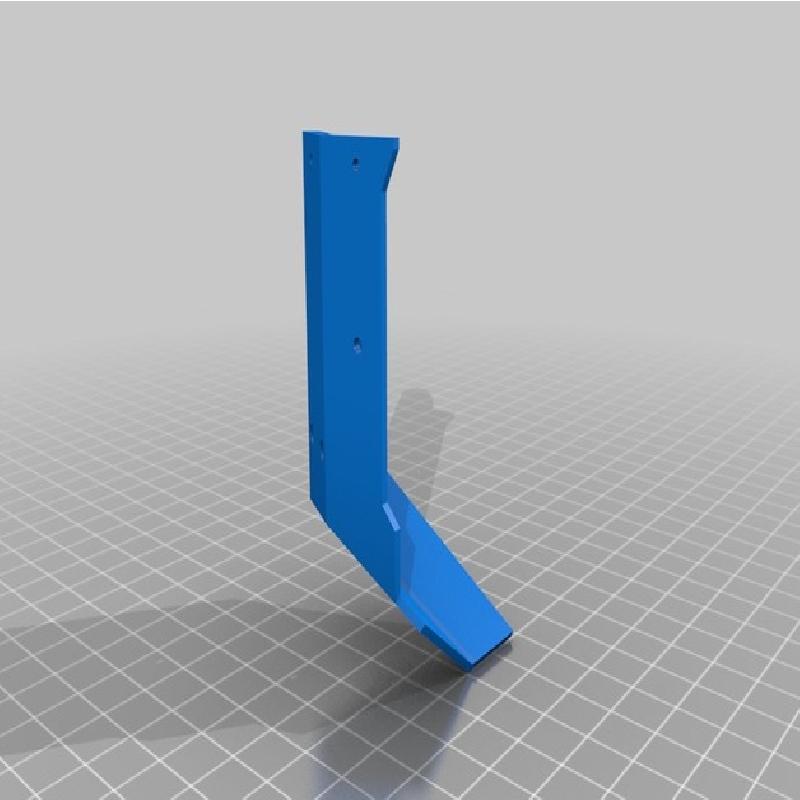

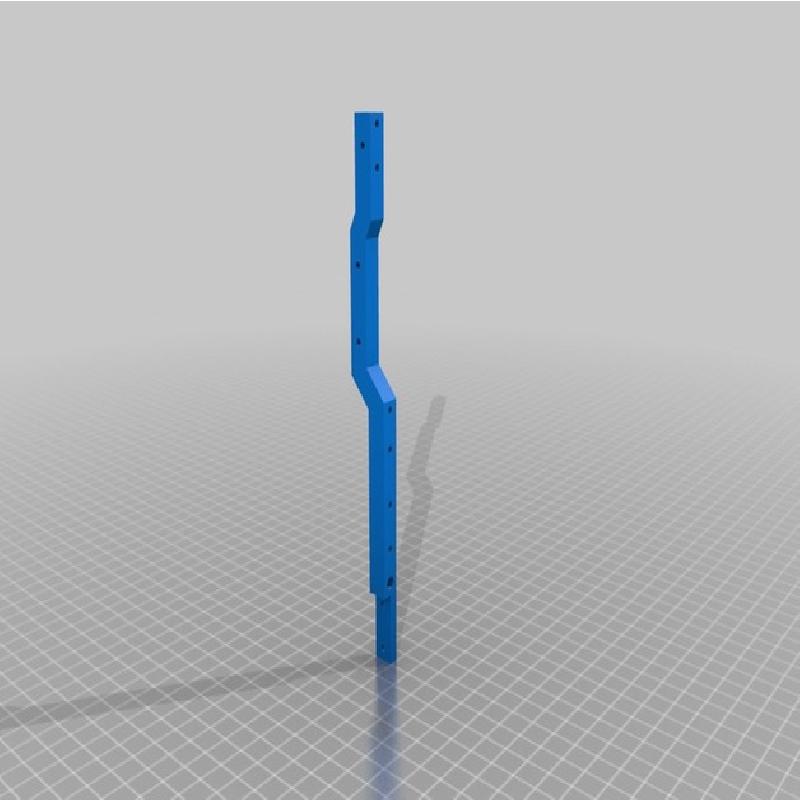

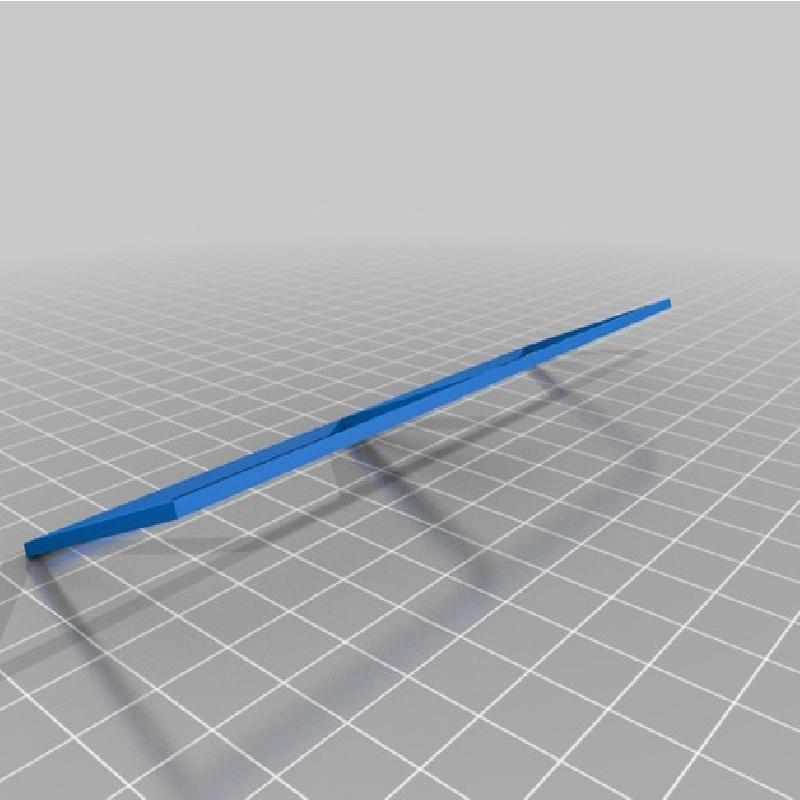

• Uploaded corrected frame rails

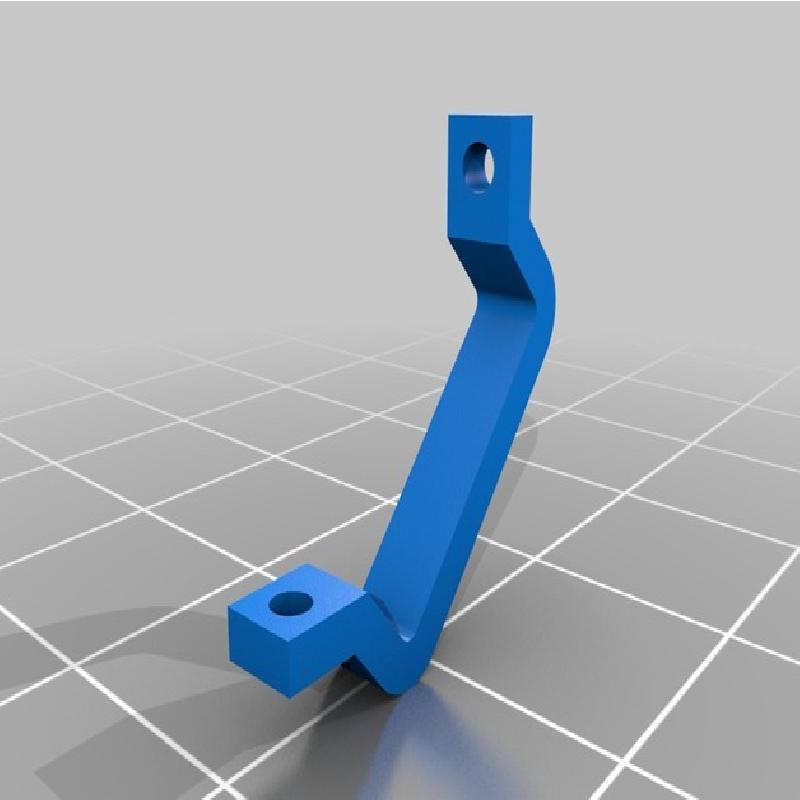

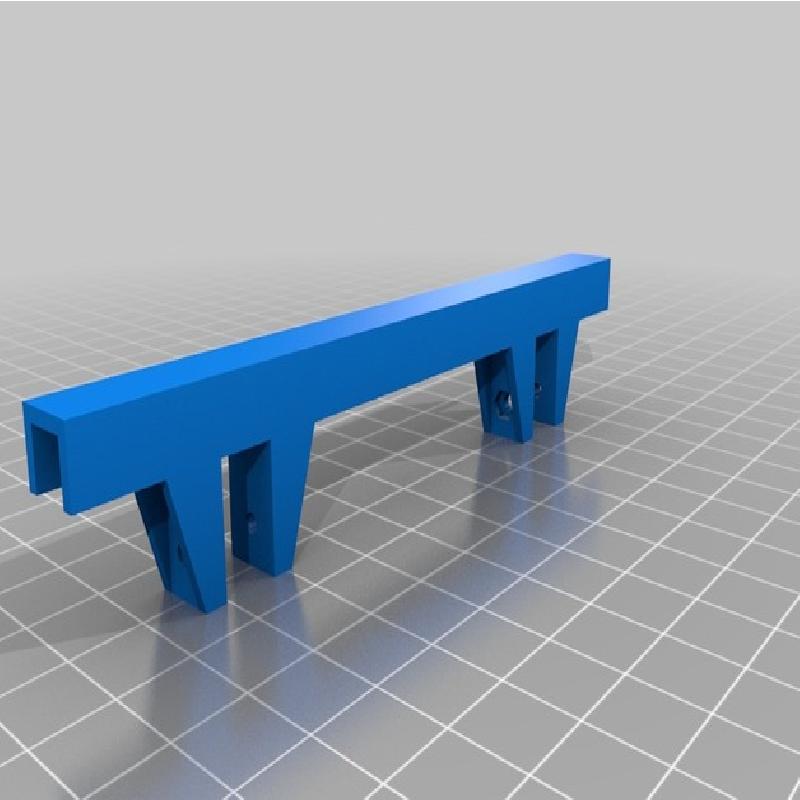

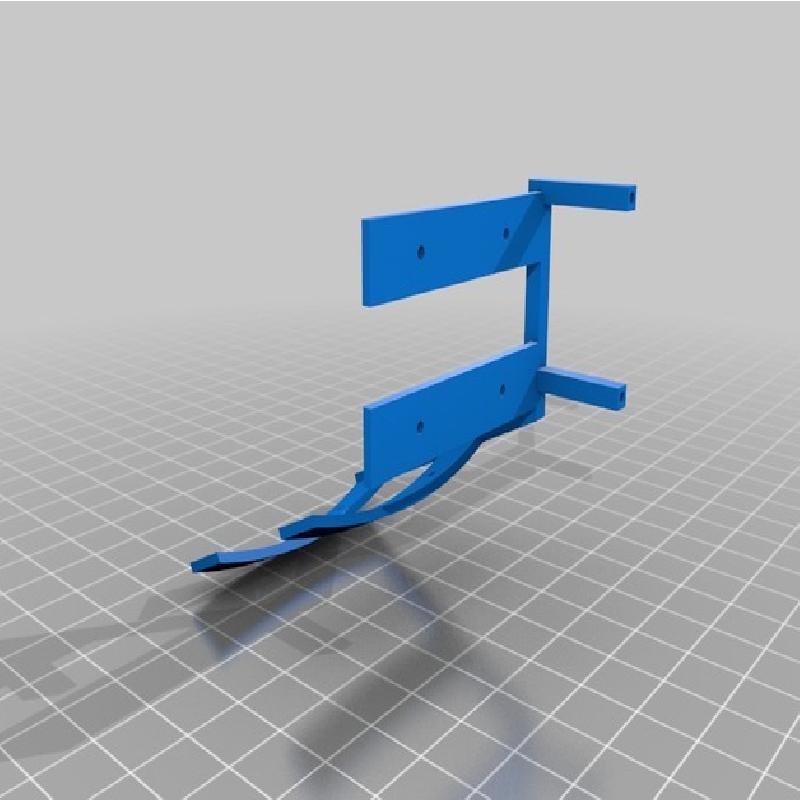

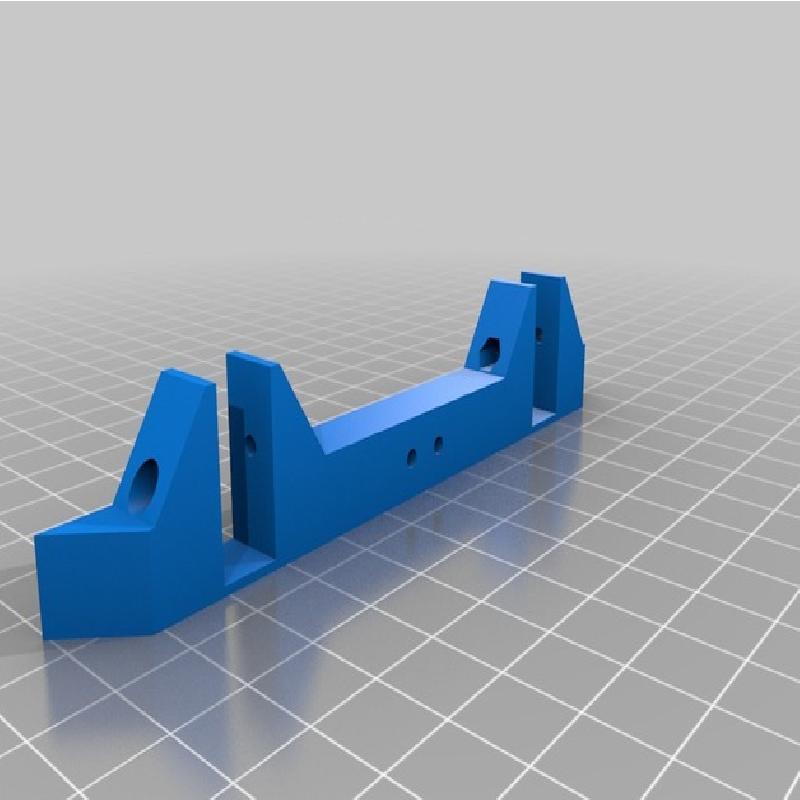

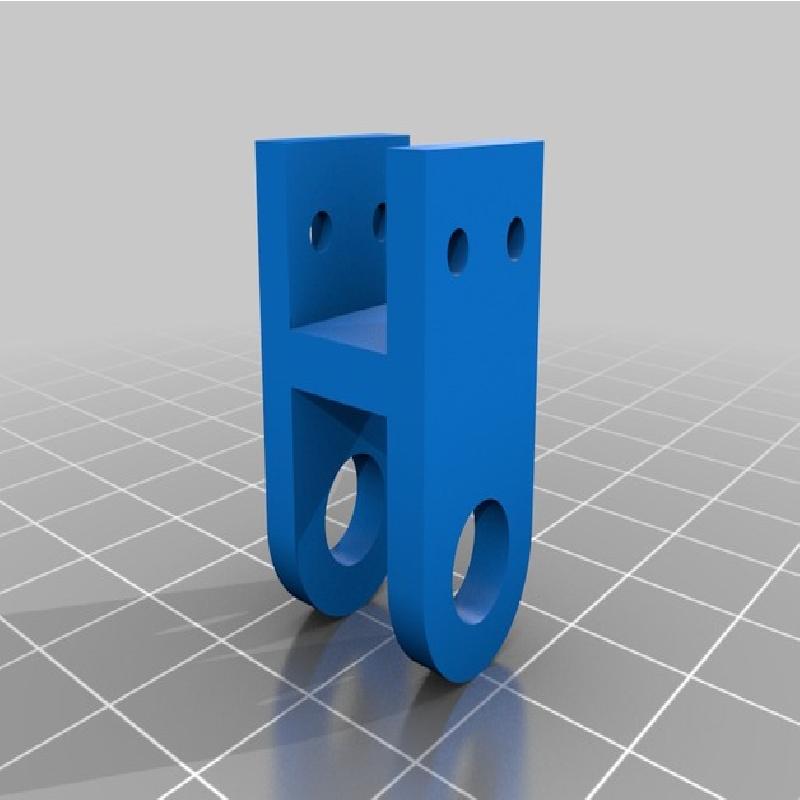

• Added servo bracket/shock mount

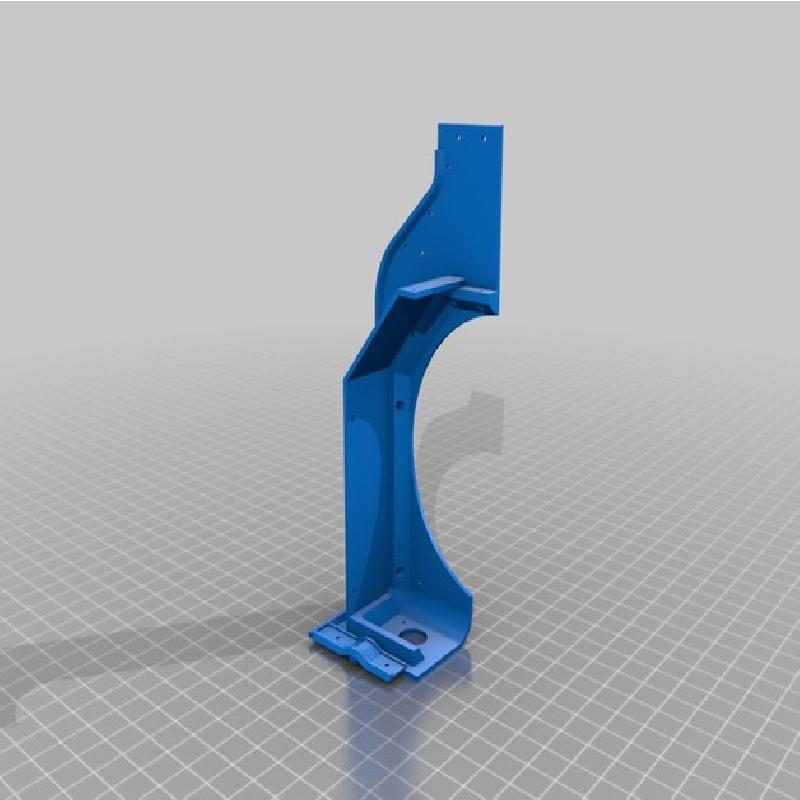

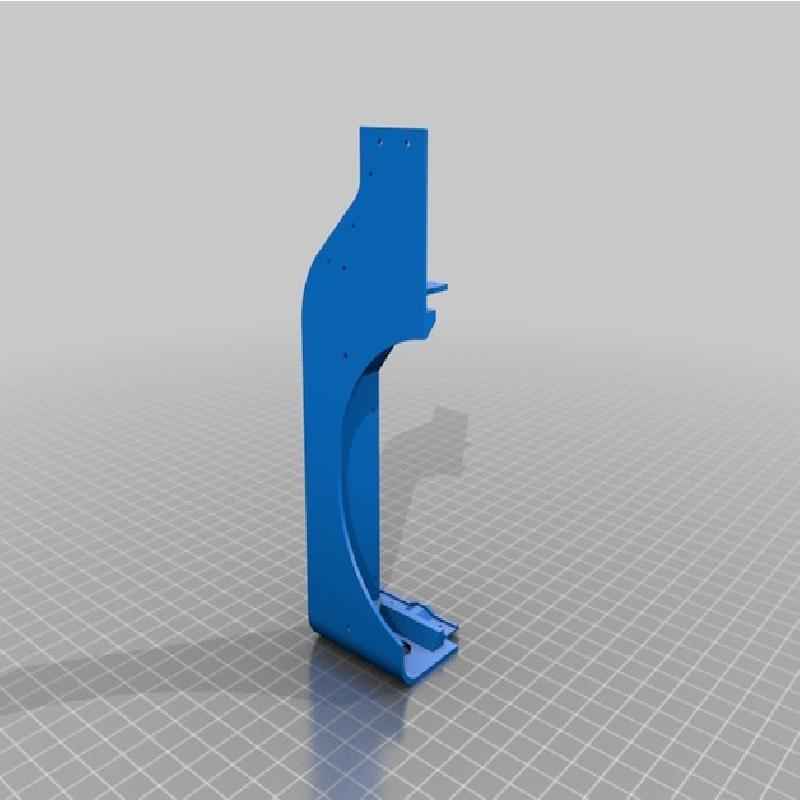

• Added holes to front fenders for shock mount

2017/01/27

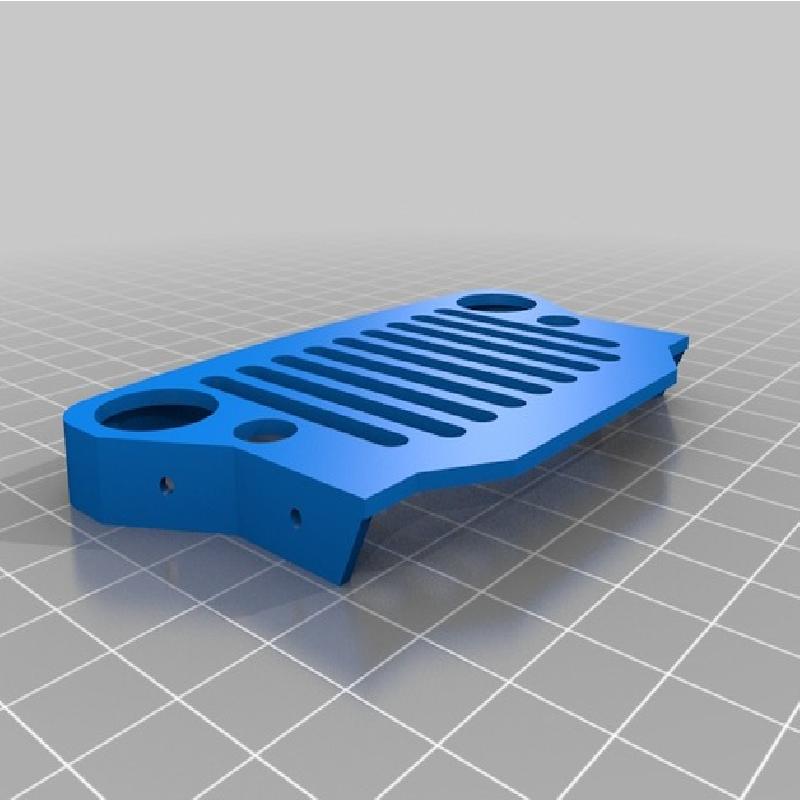

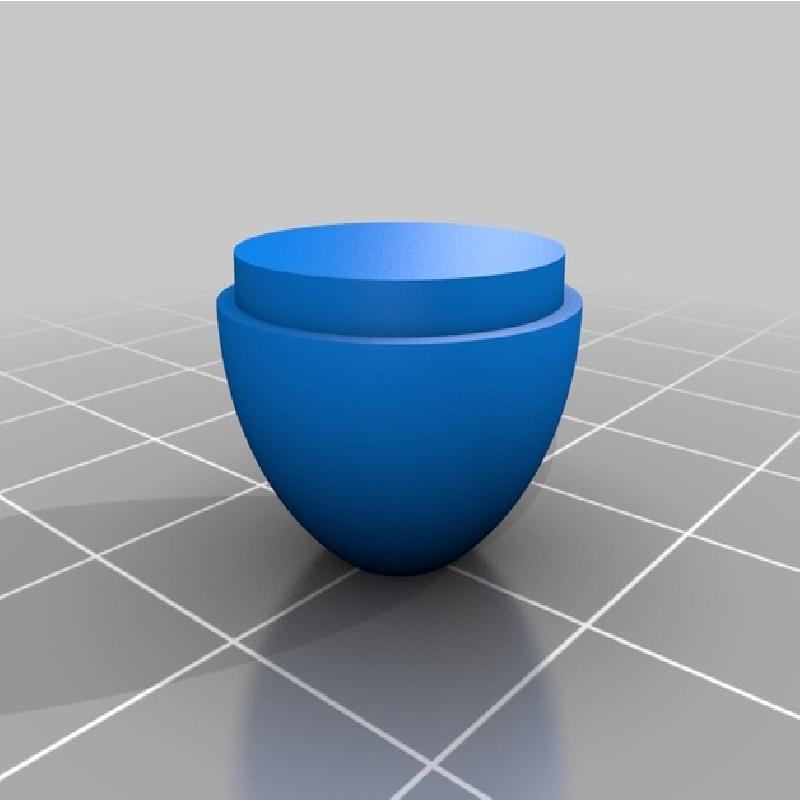

• Added headlights

2017/01/30

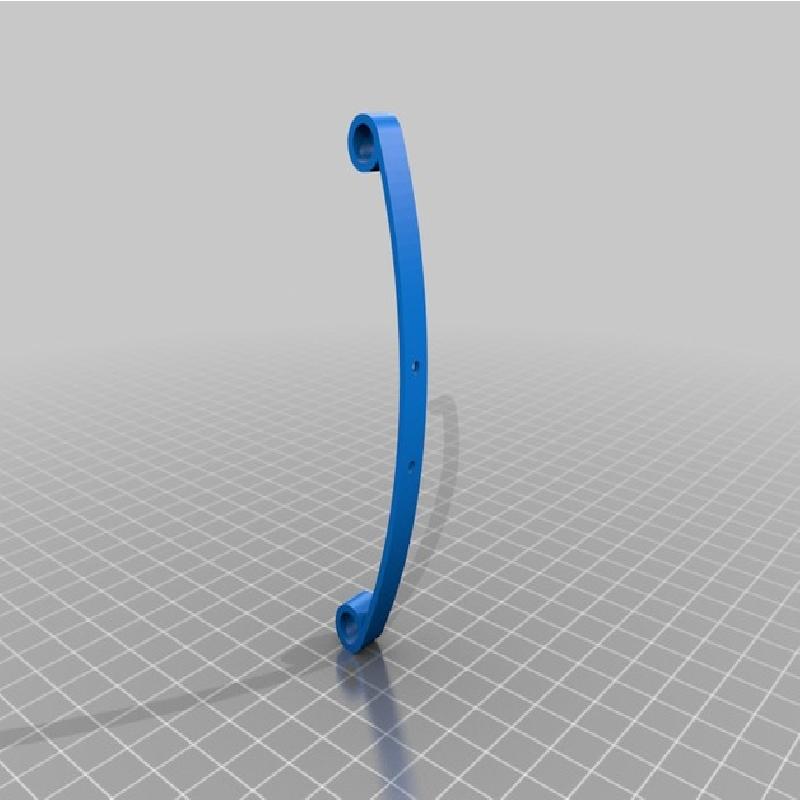

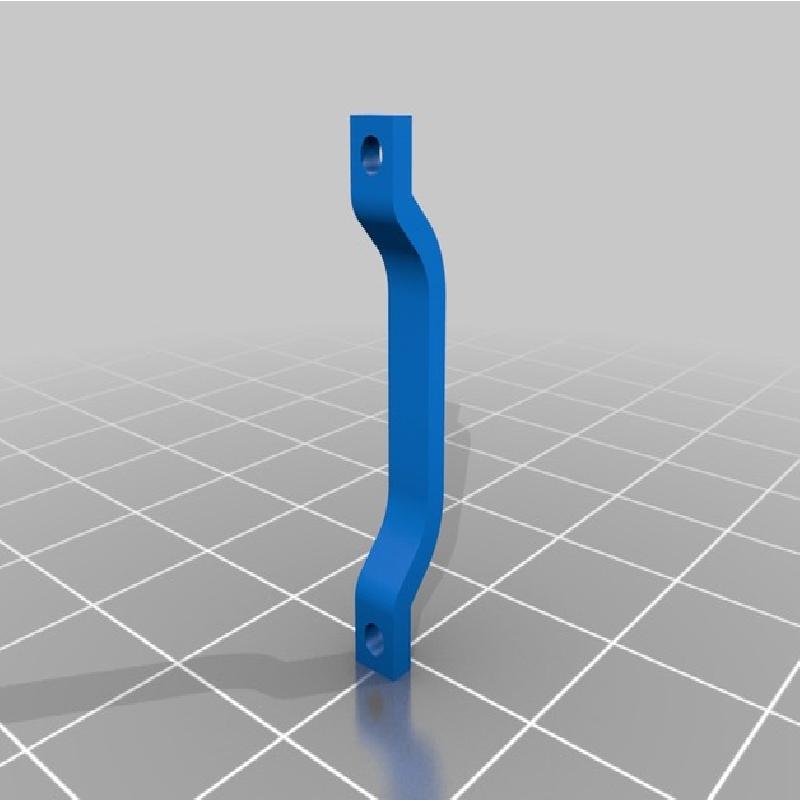

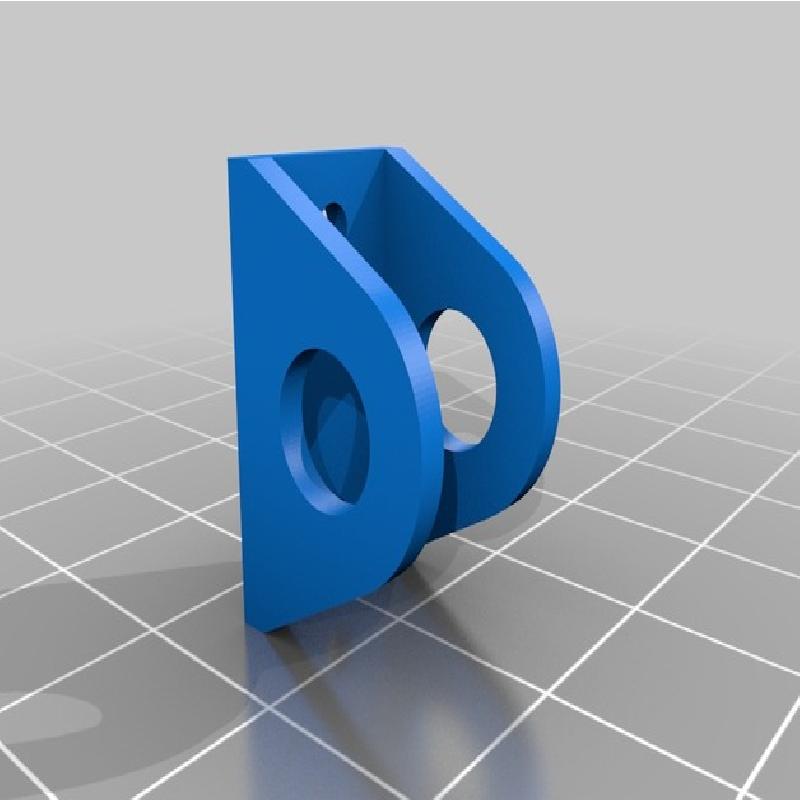

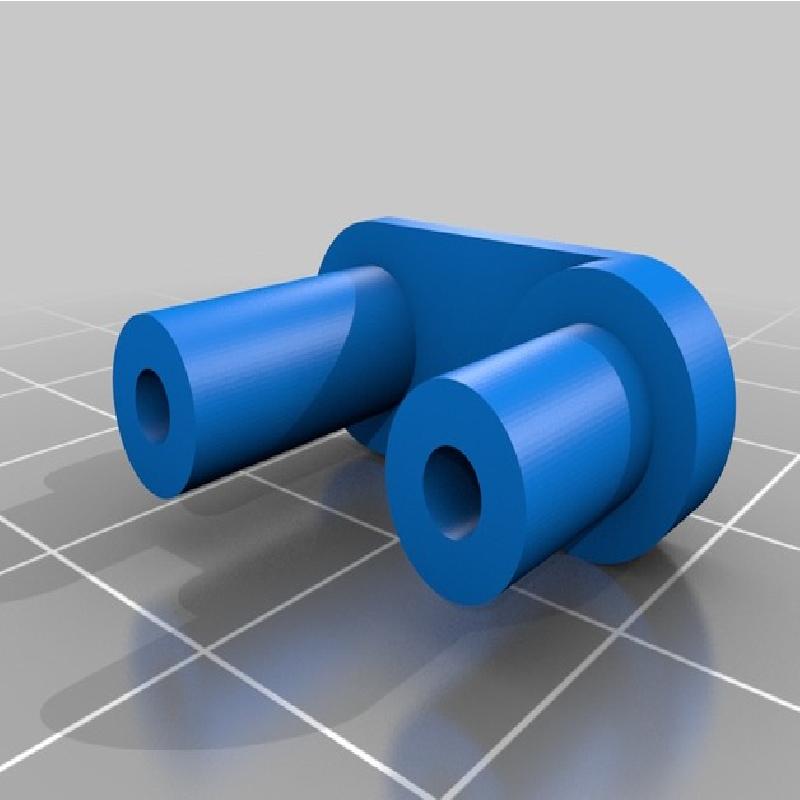

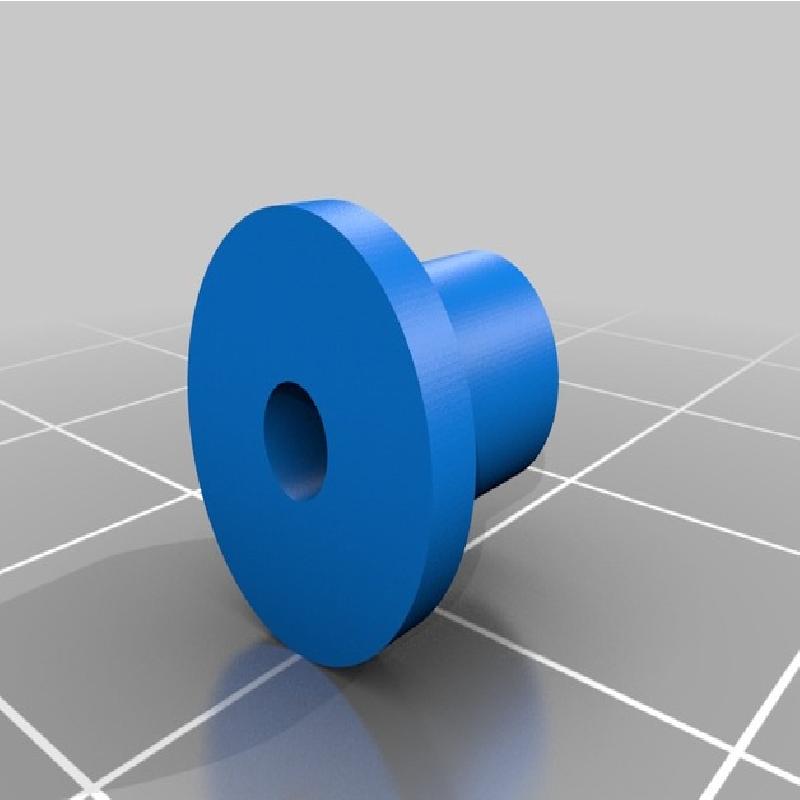

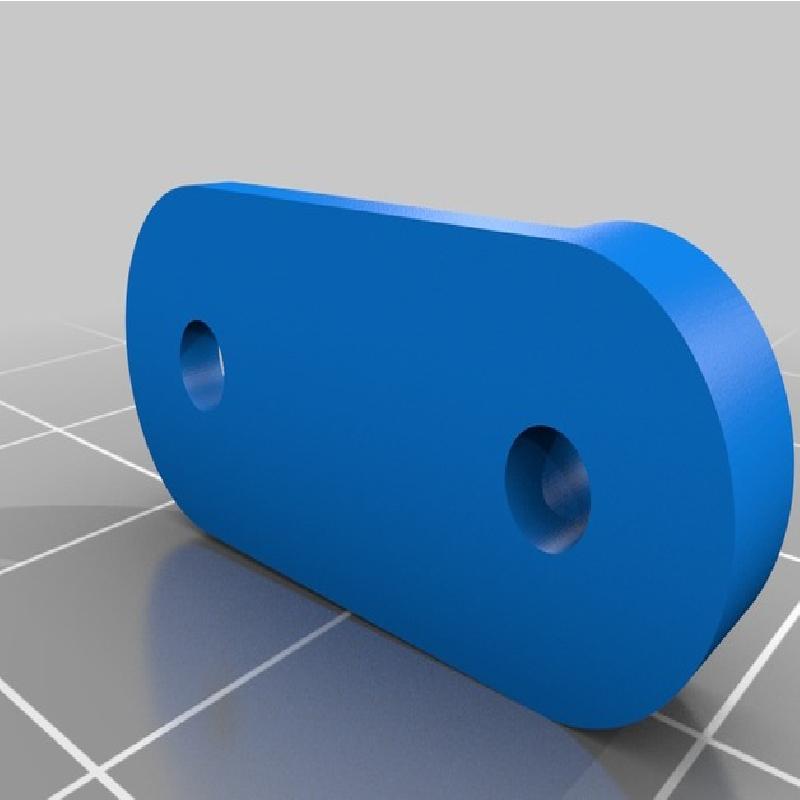

• Tightened tolerances on leaf shackle_a and shackle_b to reduce side-to-side movement

• Added seats (and updated "front_floor_and_tub" with matching mounting holes)

2017/02/07

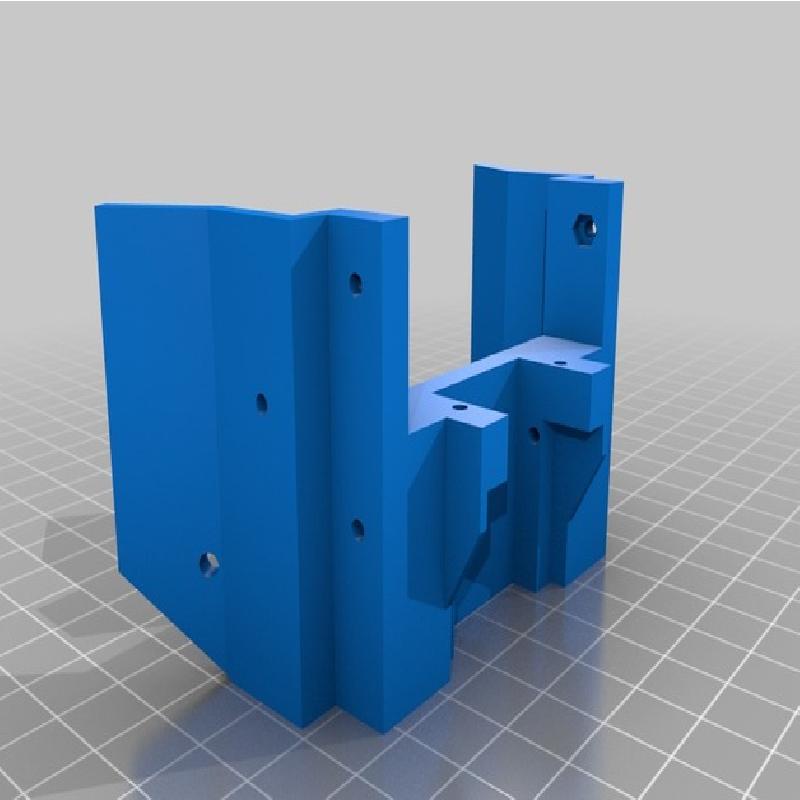

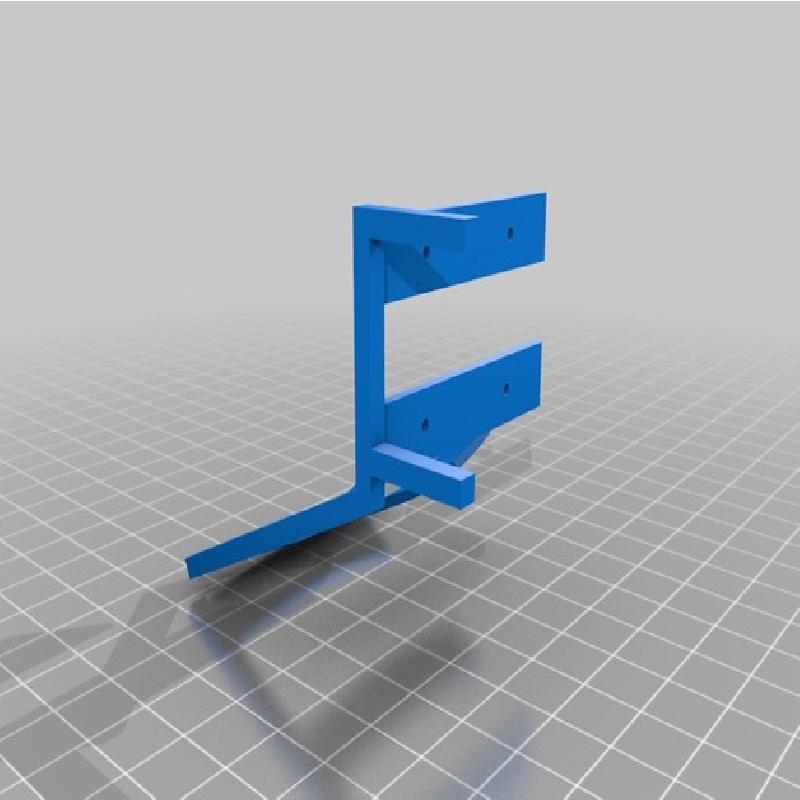

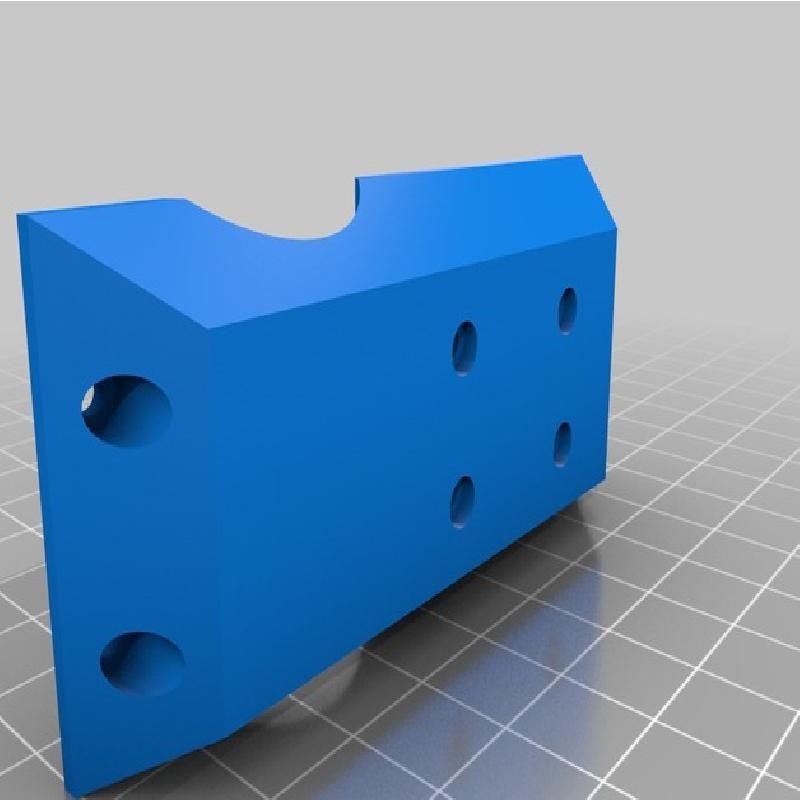

• Shortened flanges on motor mount for clearance

• Added missing mounting hole for rear bumper in frame

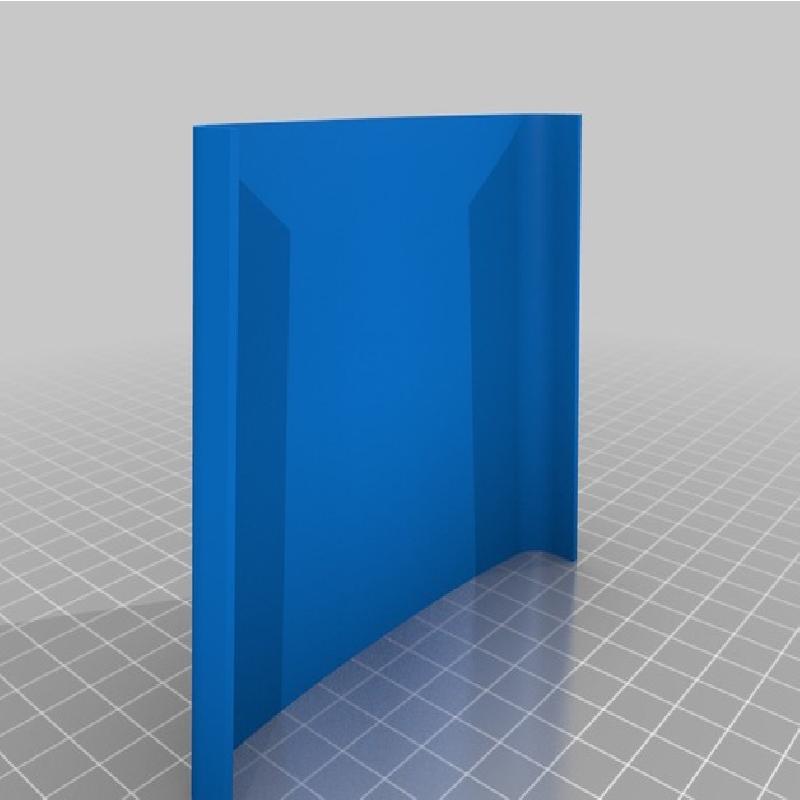

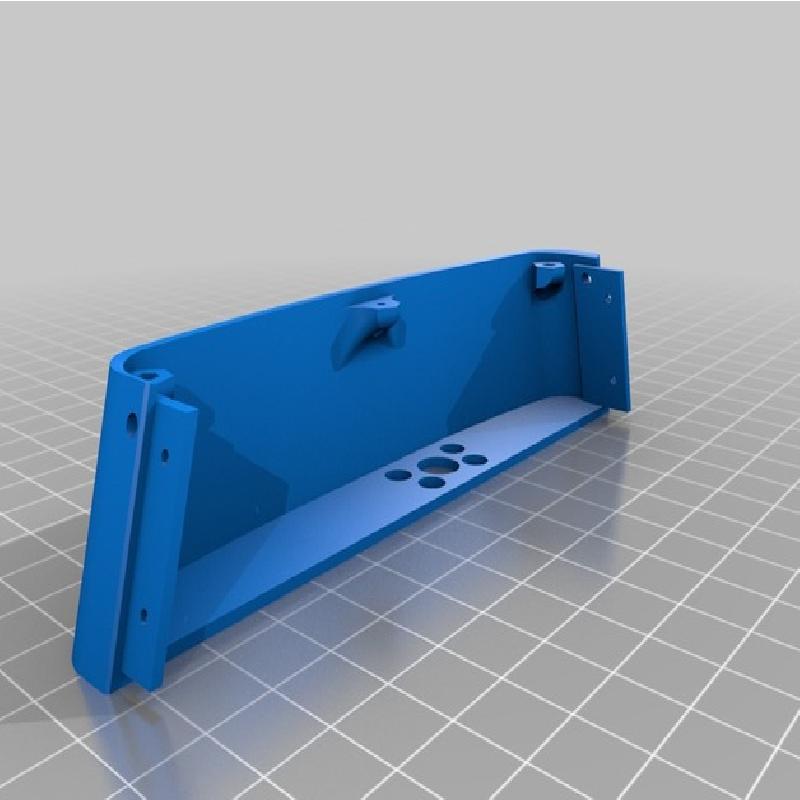

• Strengthened tailgate vertical-rib

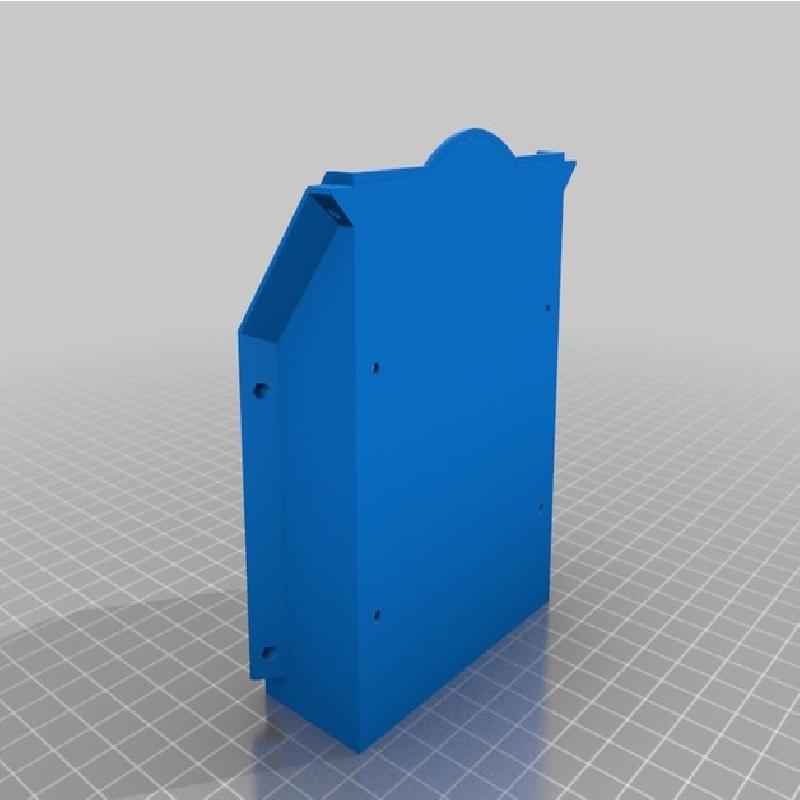

• Fixed gap in rear tub left and right

2017/02/10

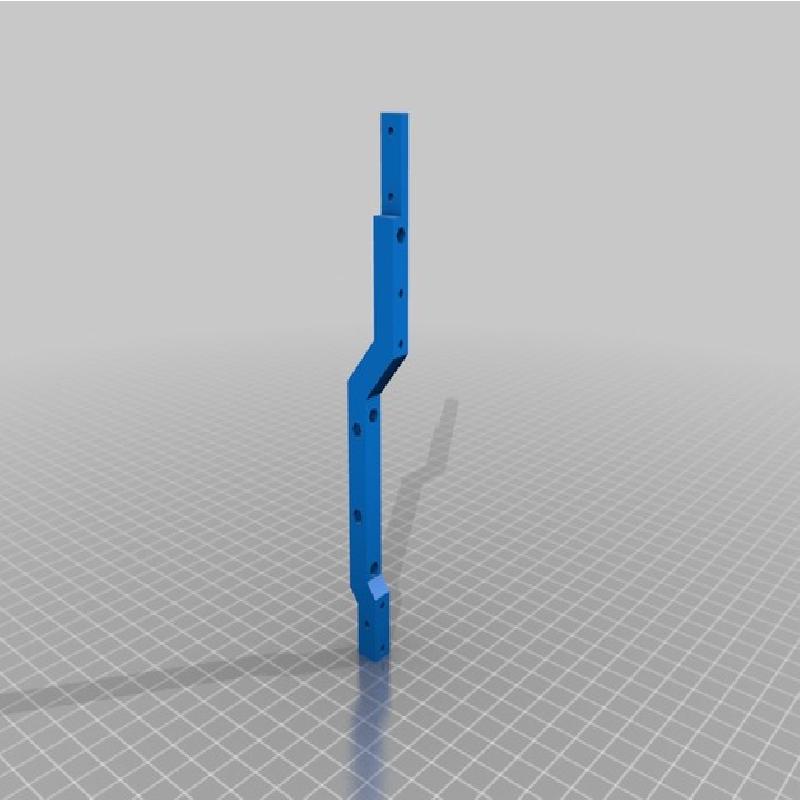

• Corrected offset nut recess in rear frame rails

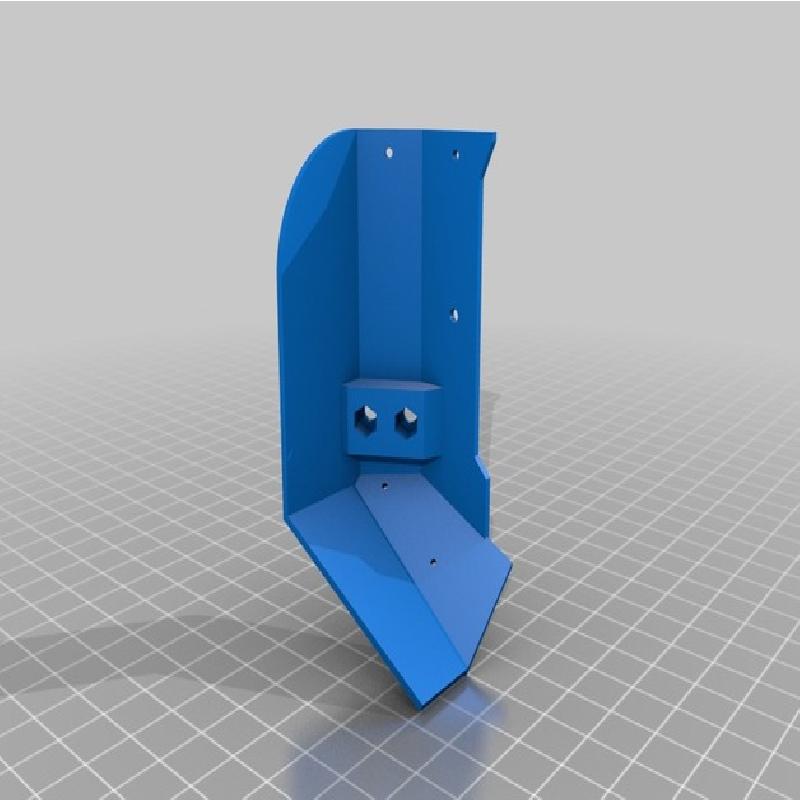

• Added shock support points to fenders

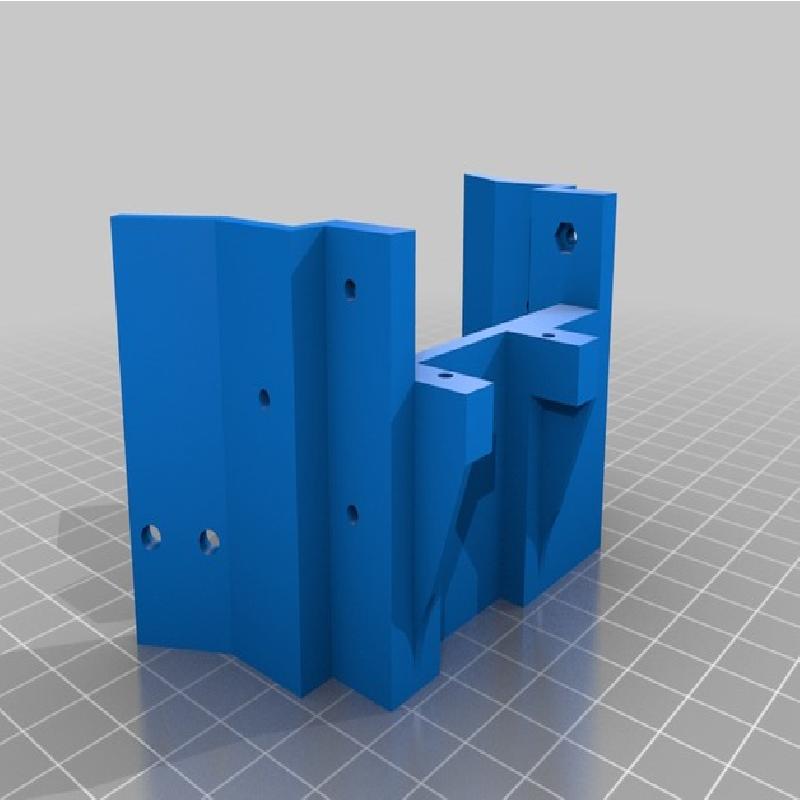

• Added option for offset servo mount "servo_mount_offset_option"

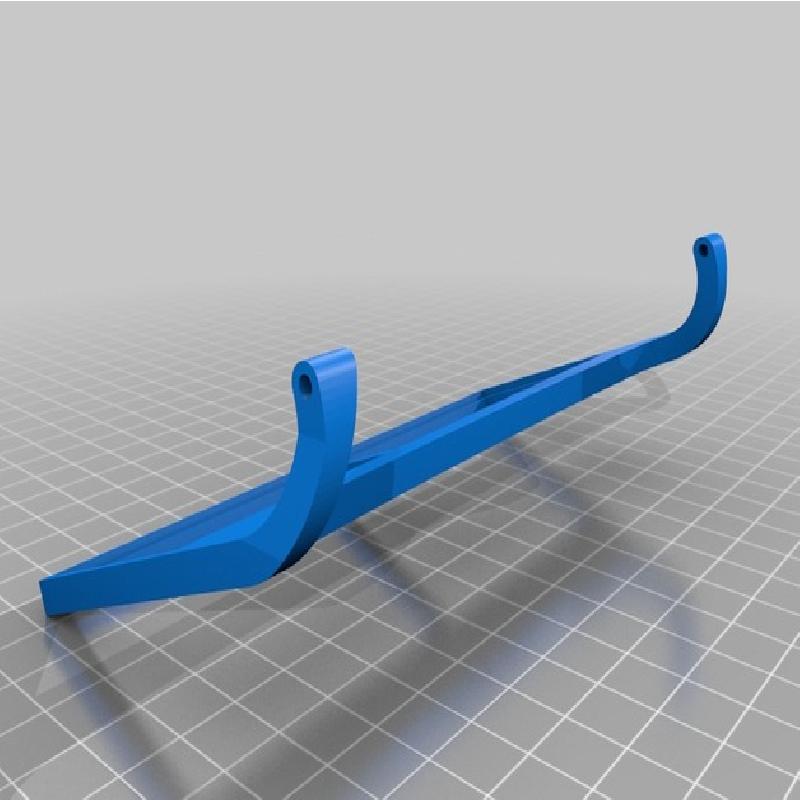

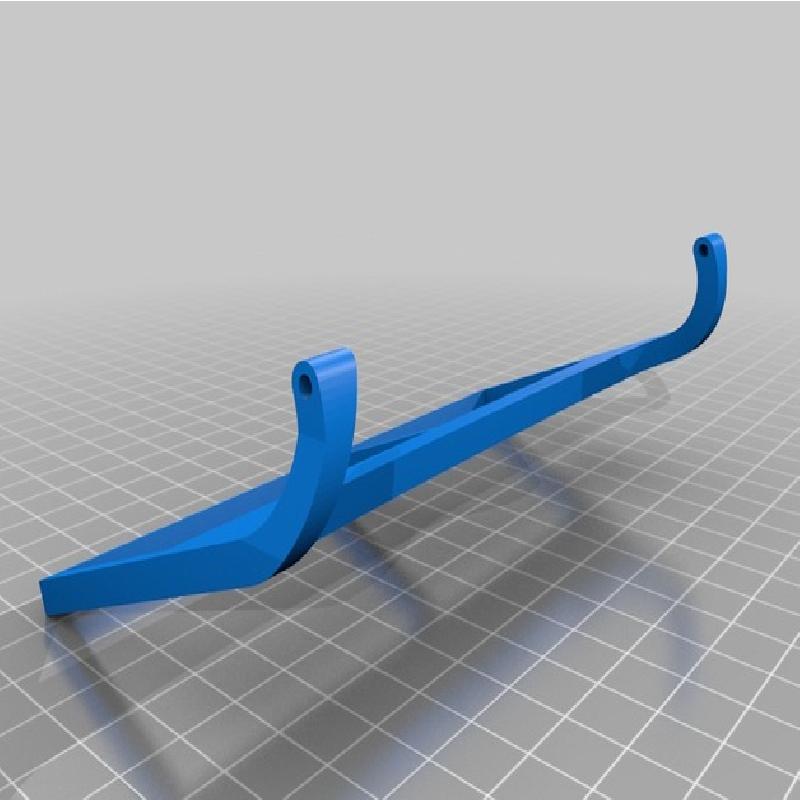

• Camaelion added a Sidestep that also adds some clearance for the transmission

2017/02/13

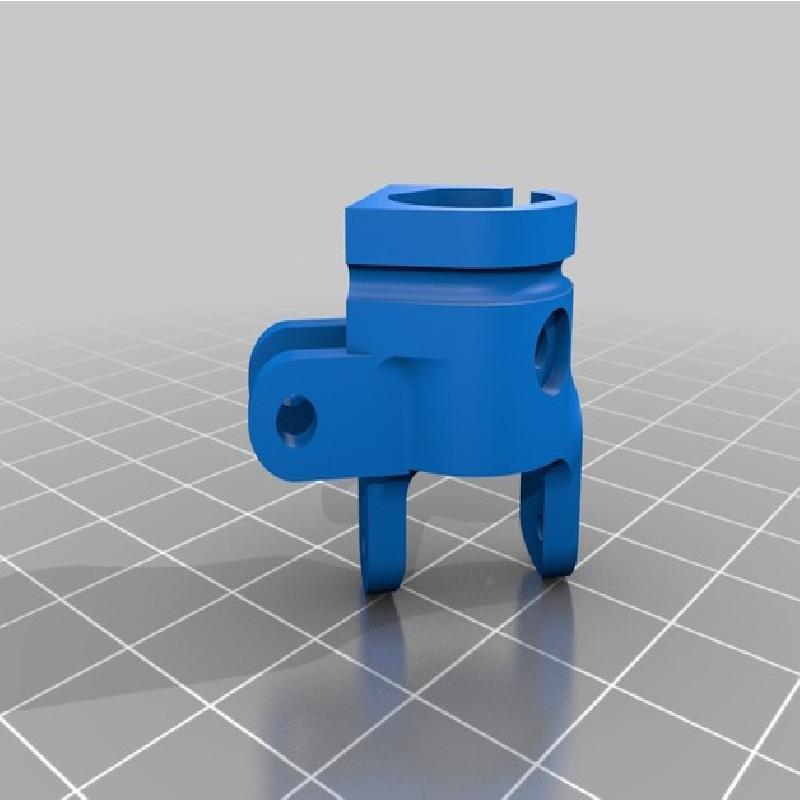

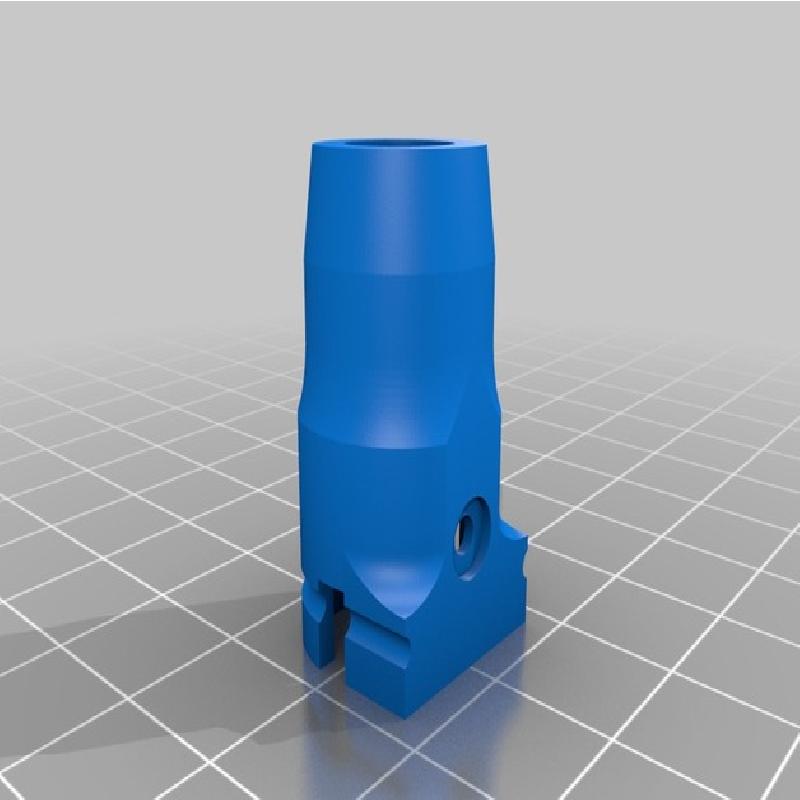

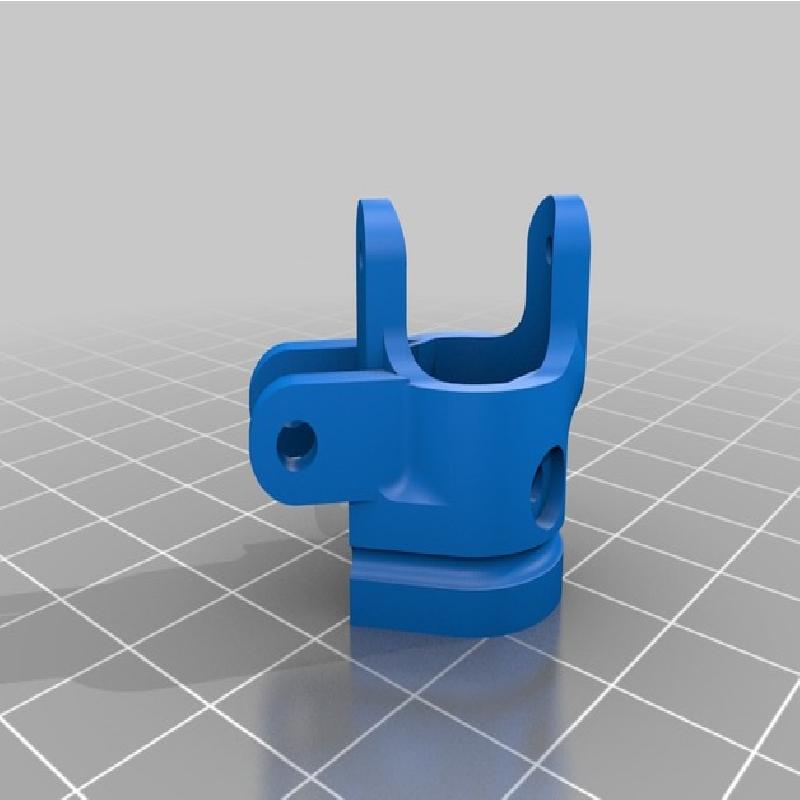

• Added prototype alternative knuckles to mount the axles on top of the leaf springs

2017/02/17

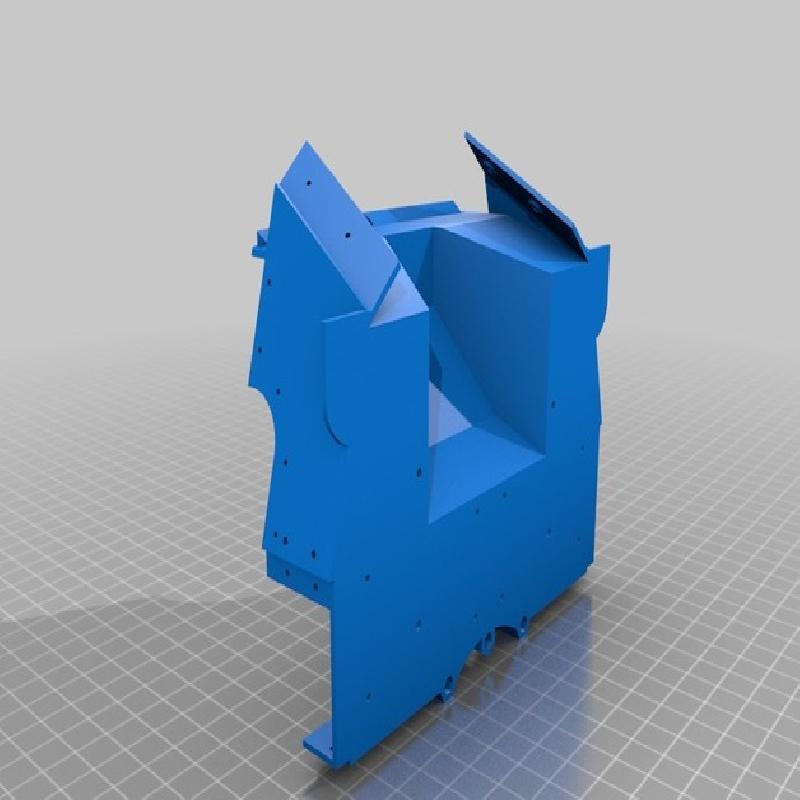

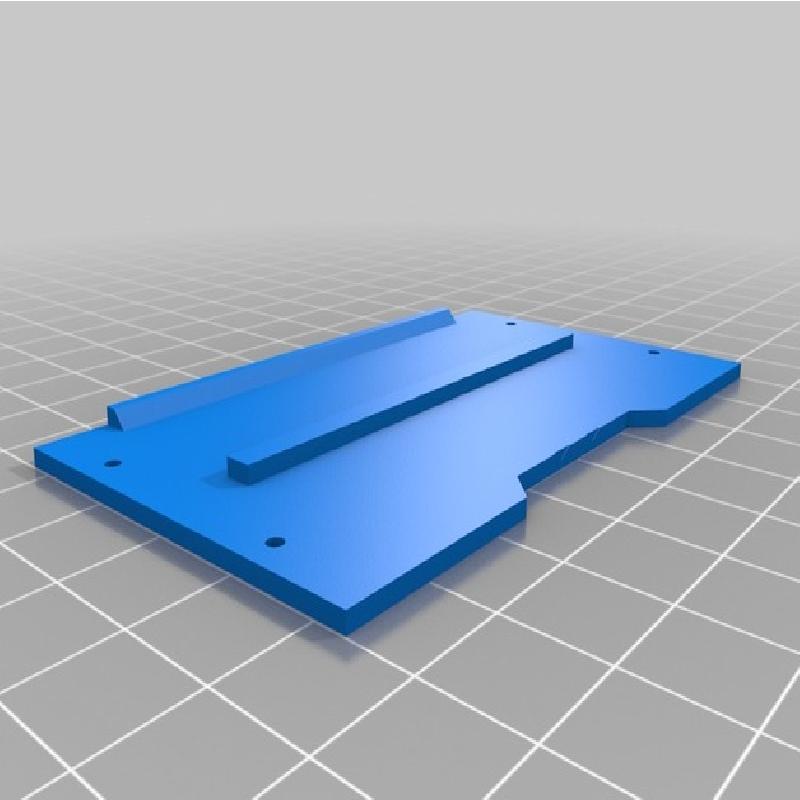

• New front_floor_and_tub corrects hex recesses and adds steps/footplates behind fenders

2017/03/07

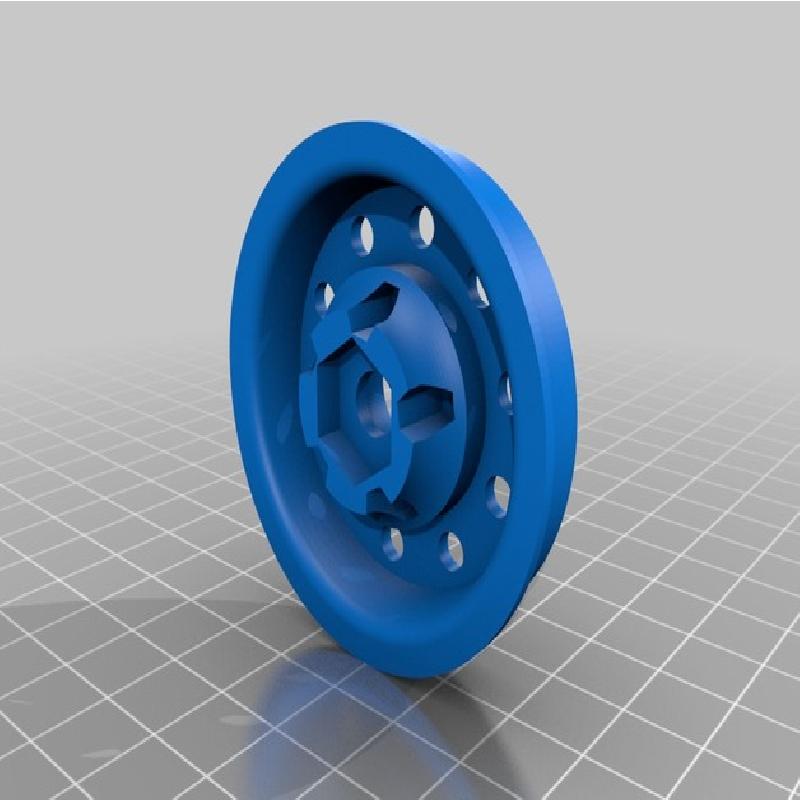

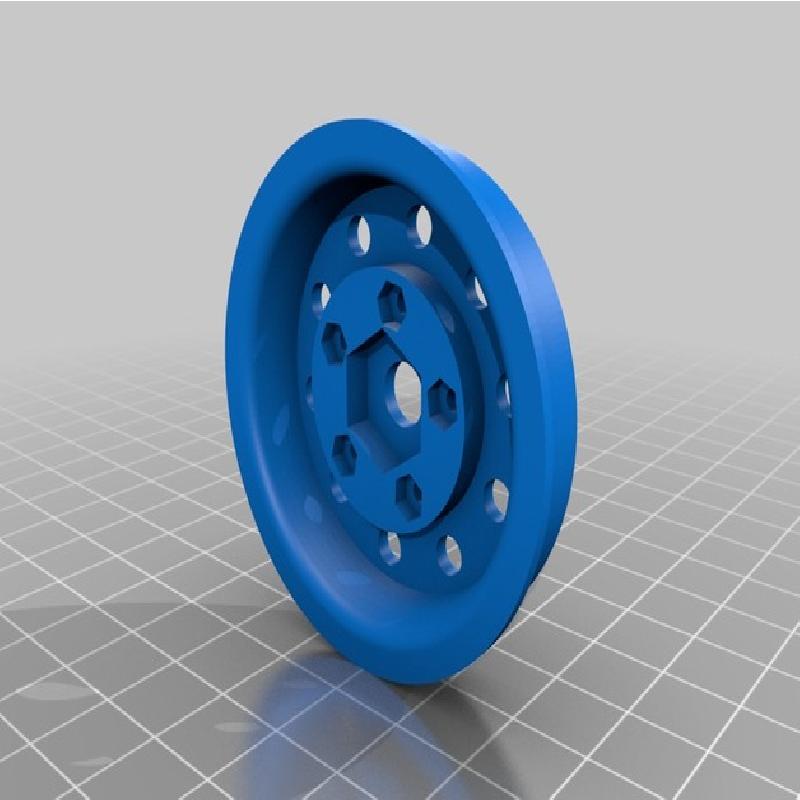

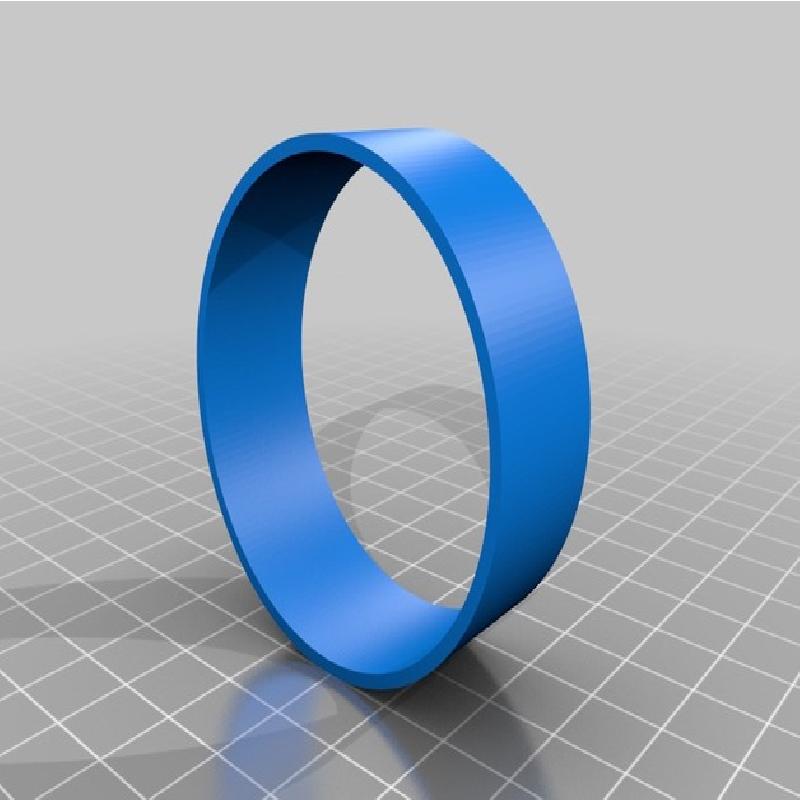

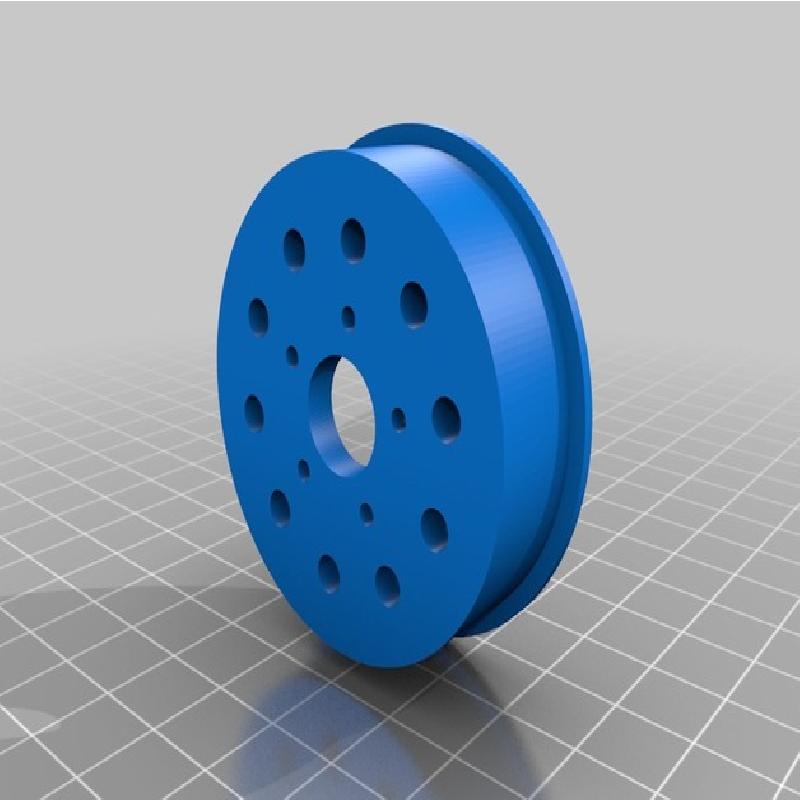

• ataylor60 released some wheels that fit 44mm truck tyres, giving a much more stock scaled wheel.

2017/03/09

• kmhatton discovered that not all Kulak axles are the same and released an alternative version of the knuckles that fix the clearance issues.

Roadmap

I am marking this project as "in progress" since there are still a number of improvements/fixes that I would like to make, I will list them here and tick them off in the update list as they are done. If you wanted to be kept abreast of developments, follow Ossum on facebook

• Add a hinge for the hood

• Add steering wheel
