UPDATE-
2/17/17: Check out my Esty Store http://etsy.com/shop/MrFidgetByMark

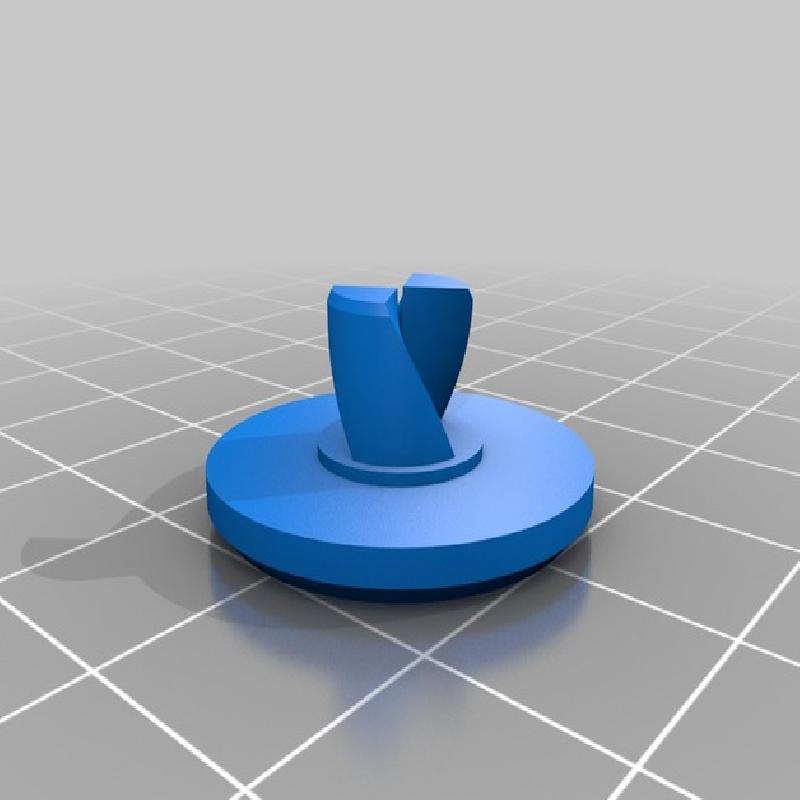

2/17/17: Finger Pad V2 Twisted Pins Added
2/16/17: Free contest to Win these Fidget Spinners https://youtu.be/kn49MOOfuHg

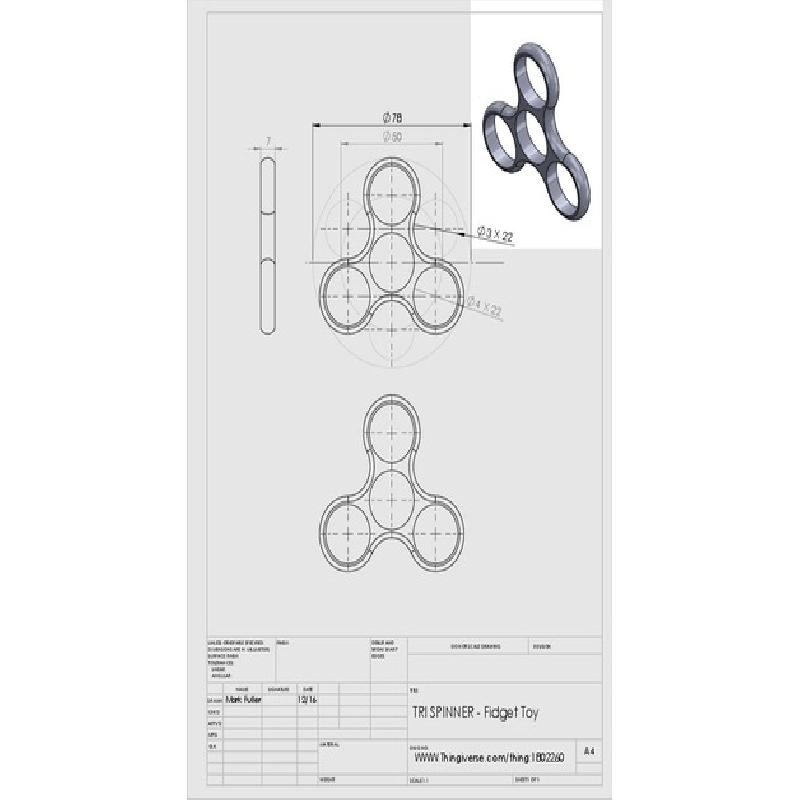

12/15/2016: By request 2D drawings have been added
11/112015 Version 2 released : Smoother edges

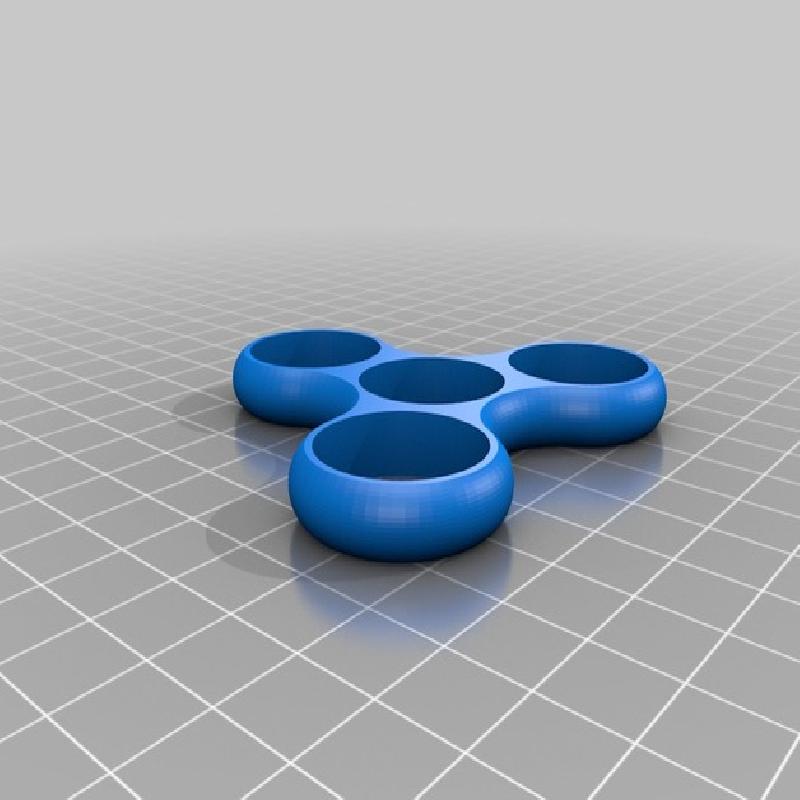

10/20/2016 Added a ready to print stl with all 3 parts.
Do you like this design and want more great projects? Donate a dollar or two to help order future supplies :-) http://bit.ly/2kbP40C
Want to mail me something? It may show up in a future unboxing video (include note)
Mark Fuller - PMB 163
463 Pooler Parkway
Pooler, Ga 31322
Video :https://youtu.be/NOGPQmb8KG8

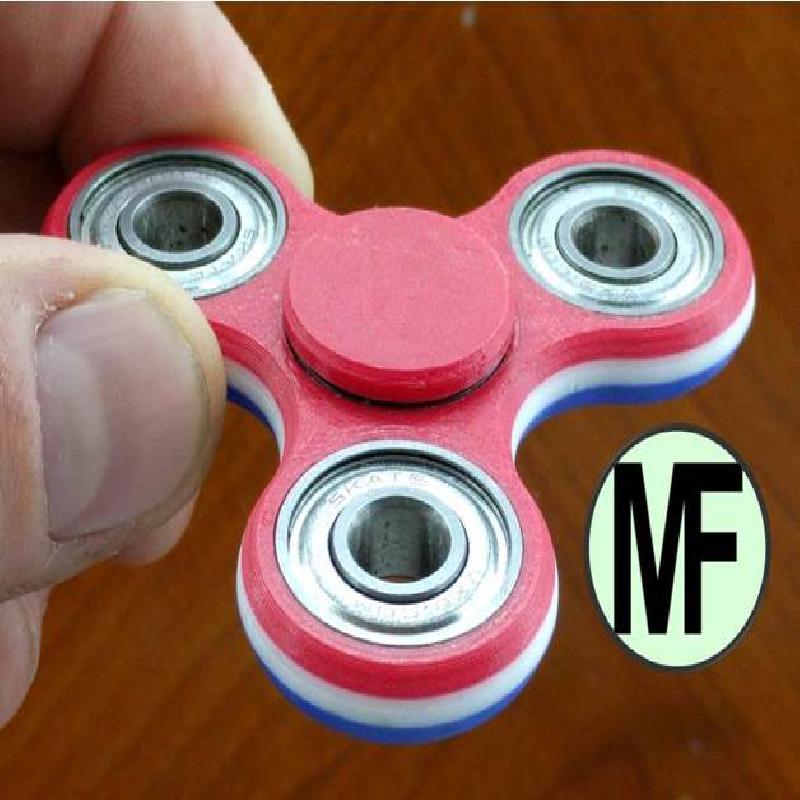

All tolerances are exact and ball bearings need to be press fit in with a vise or equivalent device. If plastic cracks, increase stl model by 1-2 percent and print again. Standard 608ZZ Shielded 8x22x7 Miniature Ball Bearings used in this model. The center Bearing can be switched for a 608ZZ/C Ceramic Ball Bearing for increase spin time.
Spin on!
Rafts:
No
Supports:
No
Resolution:
0.15mm
Infill:
100%
Notes:

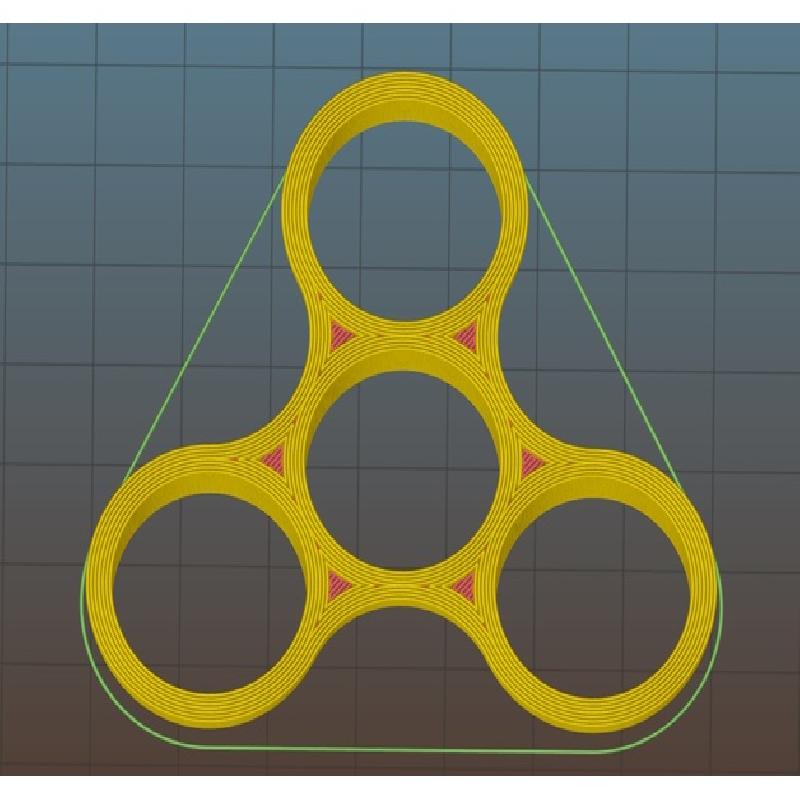

For great results print this model at 0.15mm layers, 6 shells and 100% infill
