I was asked by a friend to help him with a prop of Sly Cooper's cane. Here is a printable head for his cane, modelled in Fusion 360. The model is approximately 36cm tall when printed at 100% scale.
Reference image for modelling sourced from http://slycooper.wikia.com/wiki/File:Slycane.png
(included in the model images)

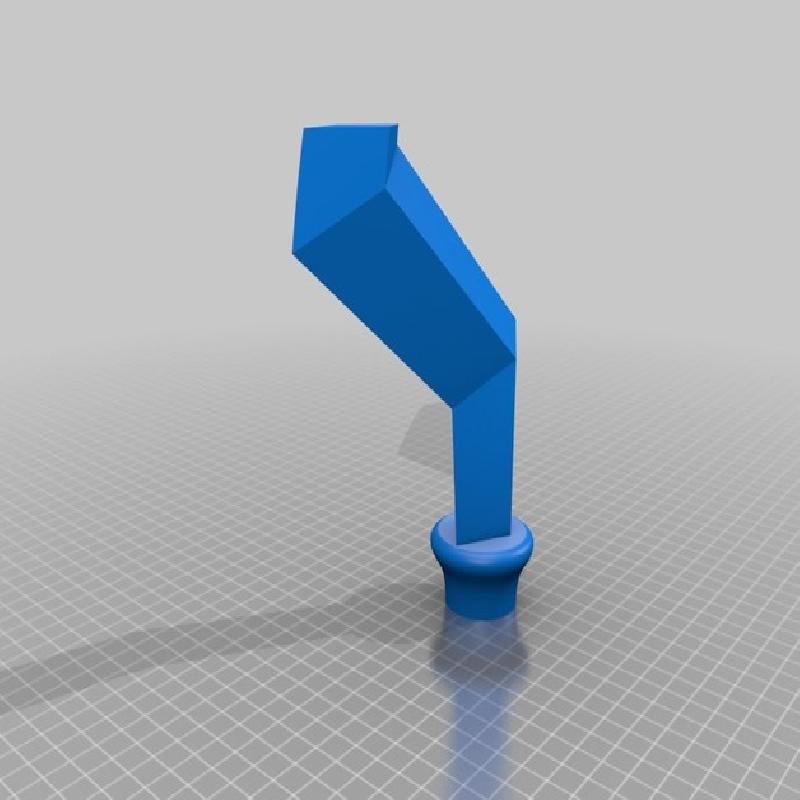

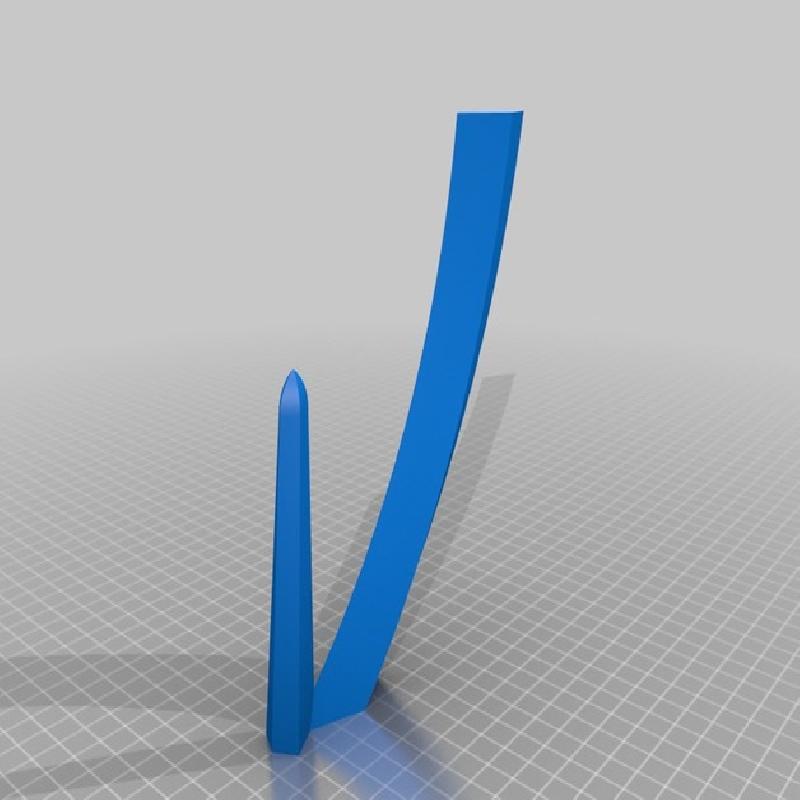

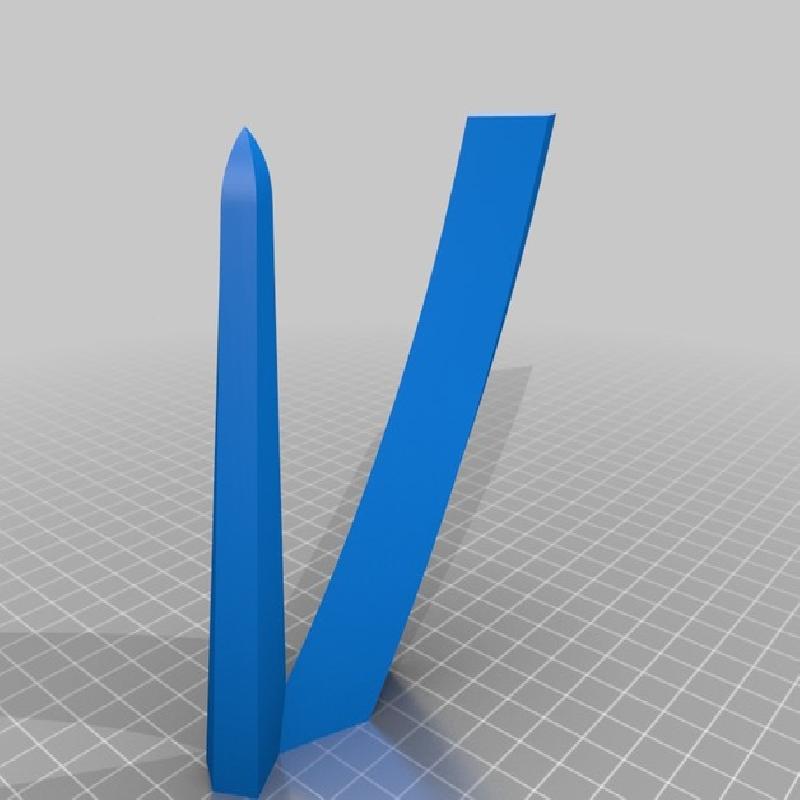

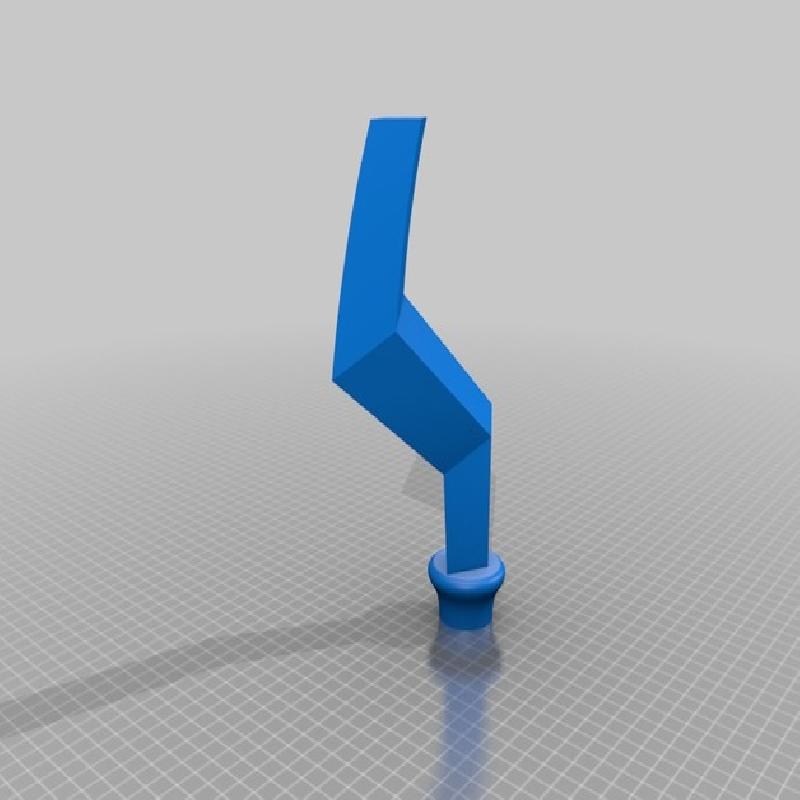

The model prints in 3 pieces. Print in orientations given, with pieces 1 and 3 upright and piece two upside down. I've included two versions of the parts 1 & 2 each with a different location of the division between them. Part 3 is the same for both versions. The first version is what I printed and what is shown in the images. The cut is in line wit the tip of the downward point. The largest piece is ~218mm tall, which the Tinkerine Ditto+ printer I used could accommodate. For smaller printers, use version two. It has the cut placed at the midpoint between the bottom of part 1 and the bottom of part 3. Parts one and two are both ~158mm tall in this version. If you still can't accommodate this size, you will have to make different divisions. A full, uncut version of the model has been included for this purpose.

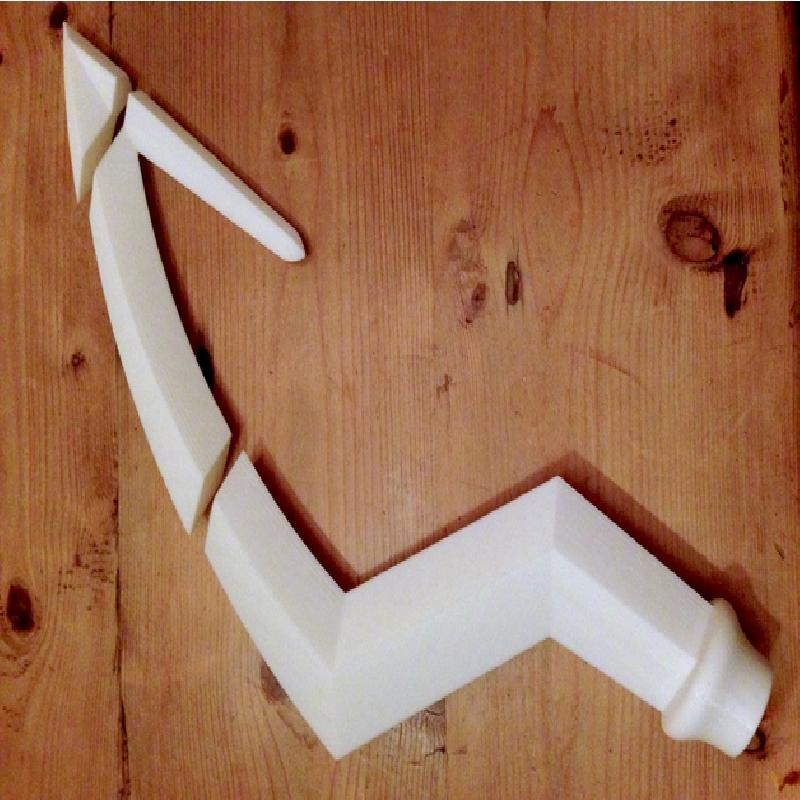

I used white PLA and connected the parts with superglue, which my friend will most likely spray paint.
Metal fill material or acetone-smoothed and painted ABS would suit this model well.
Printer Brand:
Tinkertine Studio
Printer:
Ditto +
Rafts:
No
Supports:
No
Resolution:
0.2mm
Infill:
20%
I connected the 3 parts with superglue. Some sanding of the connecting surfaces helps the superglue bond the parts in my experience.
