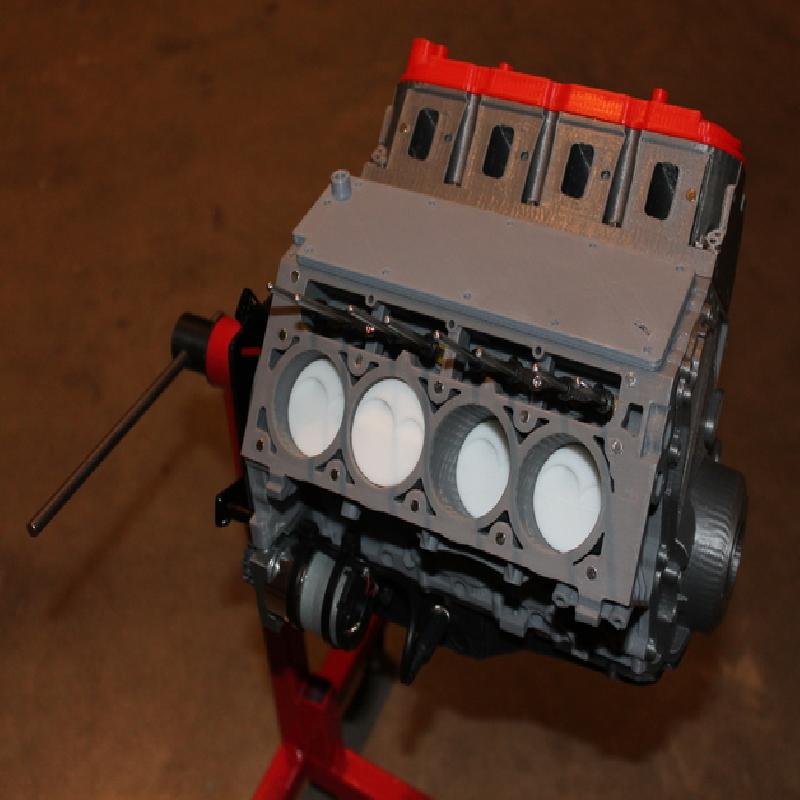

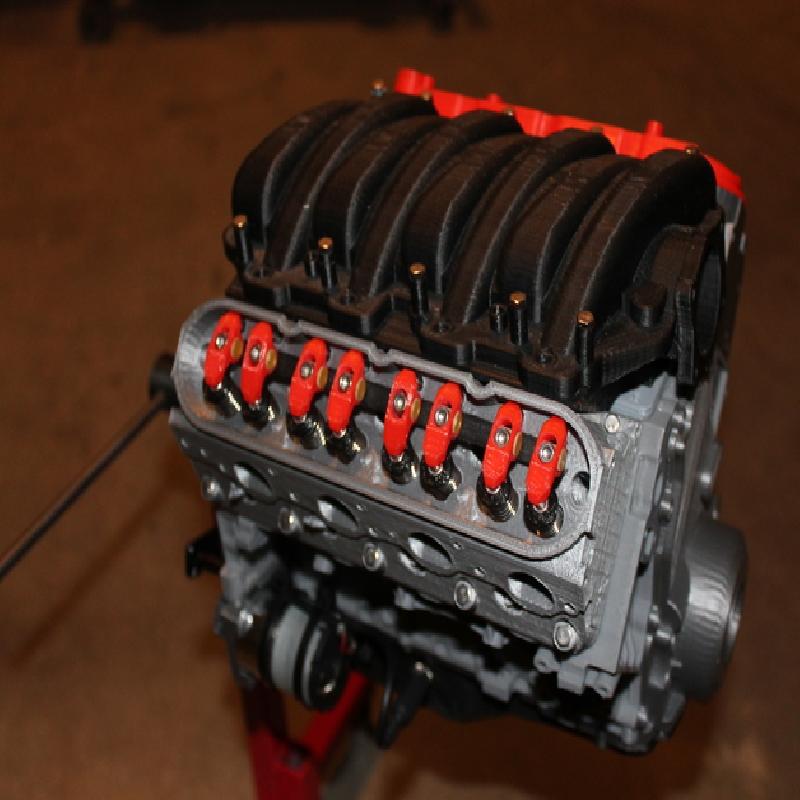

Working model of a Chevy Camaro LS3 V8 engine.
Over 200 hours of printing!!! Engine block alone was 72 hours.
Modeled from cad files, pictures, specs, and service diagrams of the engine. I did not have the actual engine for this one.
It assembles just like the real thing!!!
https://youtu.be/iAkzb1nXzwU

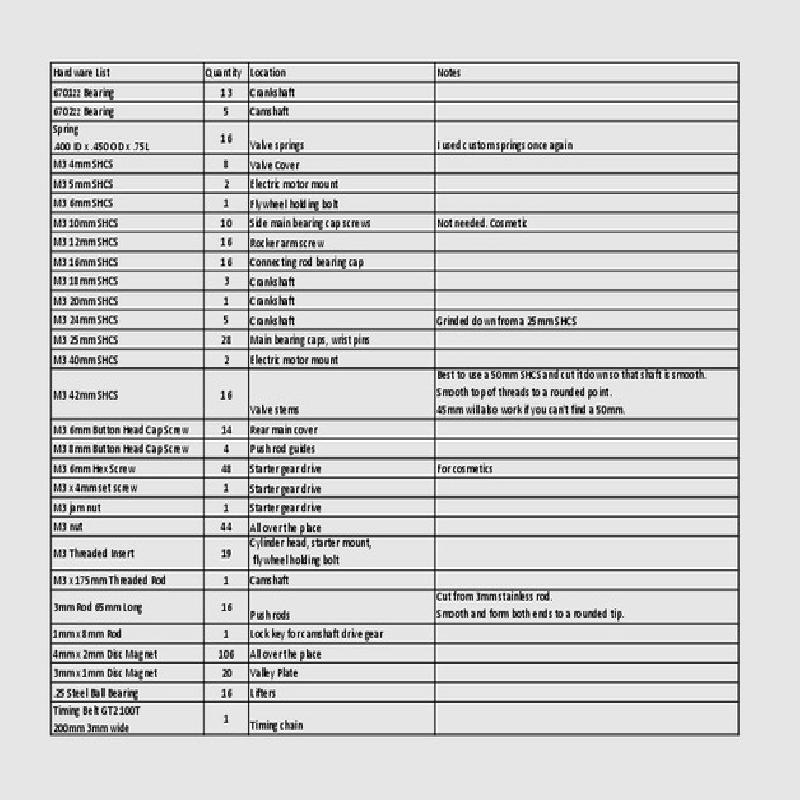

I have a few hardware kits available for this model as well as my other engines and transmissions. The hardware kits include all the bearings, rods, springs, and fasteners. Working on getting a price and more materials now.

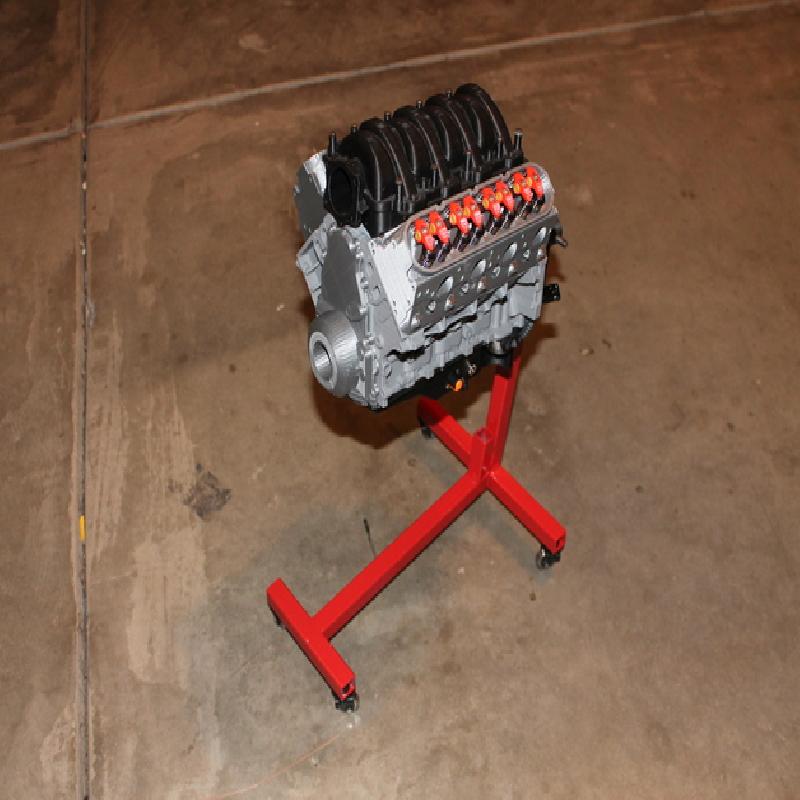

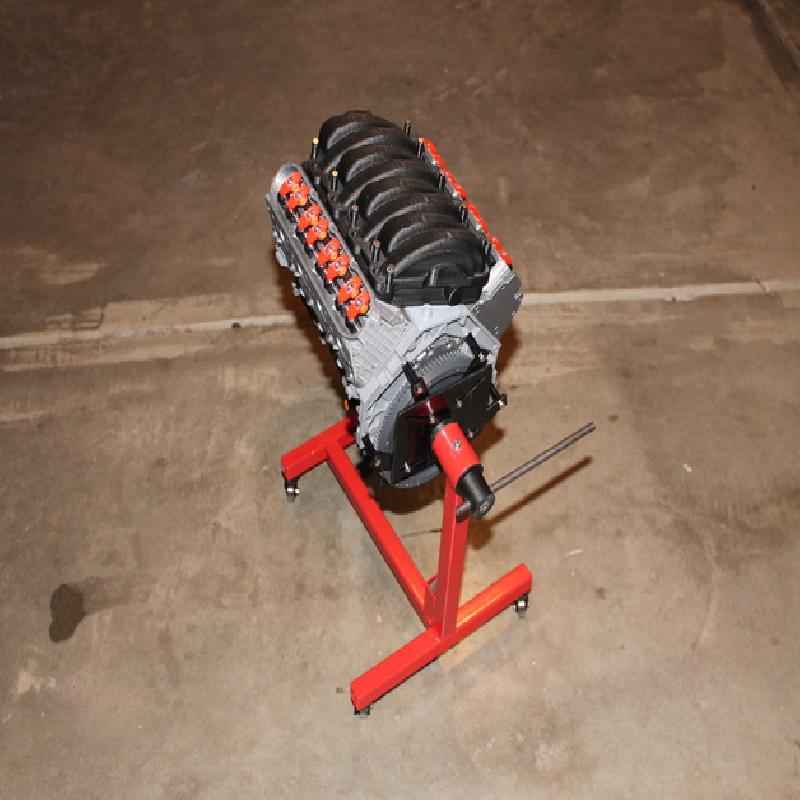

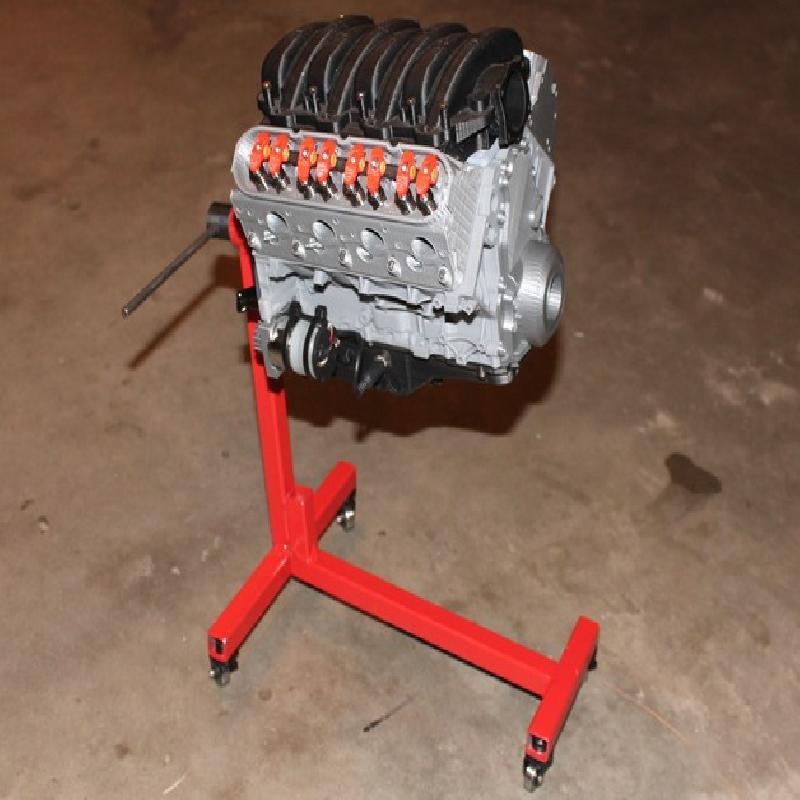

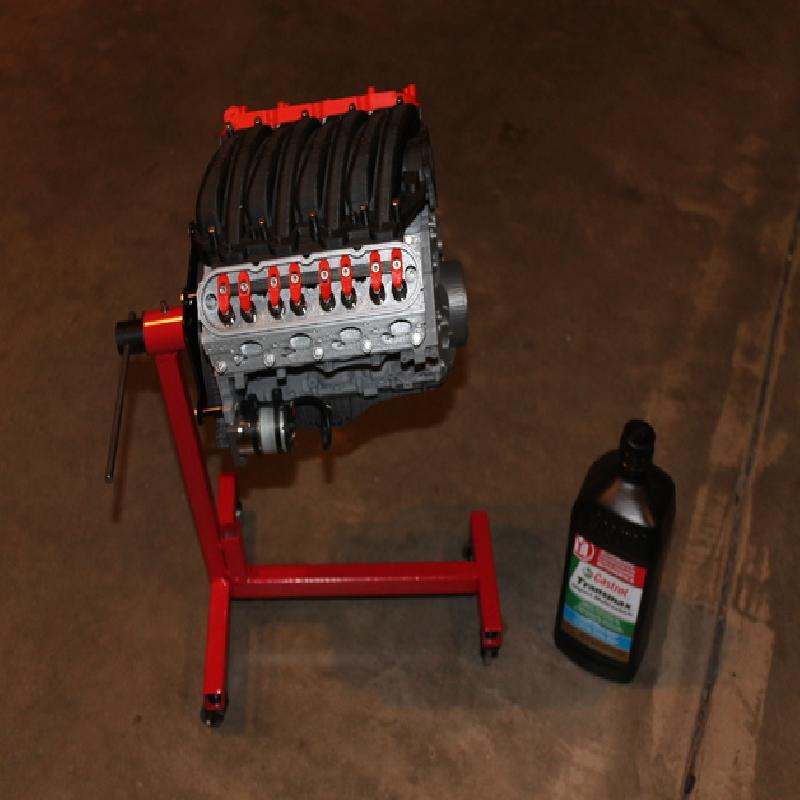

Also the engine stand will be available for sale soon, if enough people are interested.
It fits my other engines too.

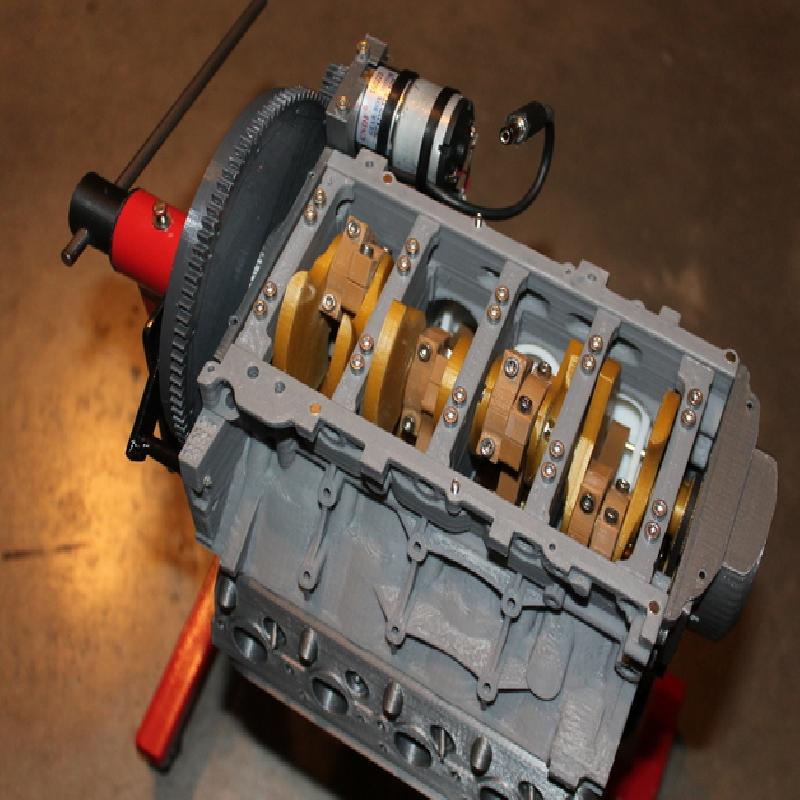

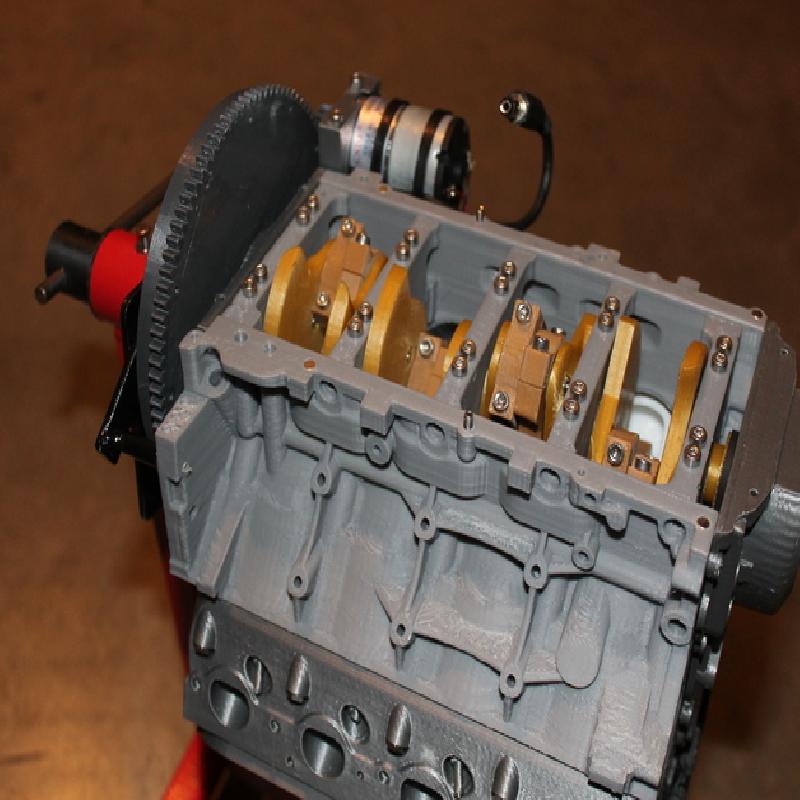

The electric motor that powers it is a 12V 500rpm geared motor.
Shaft Size : 15 x 6mm/0.6" x 0.24" (L*D)
Motor Body Length : 43mm/1.7";Motor Body Diameter : 33mm/1.3";Thread Diameter : 2.5mm/0.1"
The motor housing will need to be filed down slightly to fit the starter mount.
Printer Brand:
RepRap
Printer:
Prusa i3
Rafts:
Doesn't Matter
Supports:
Doesn't Matter
Resolution:
.2mm
Infill:
20%
Notes:
Recommended print settings can be found on the printed parts list.

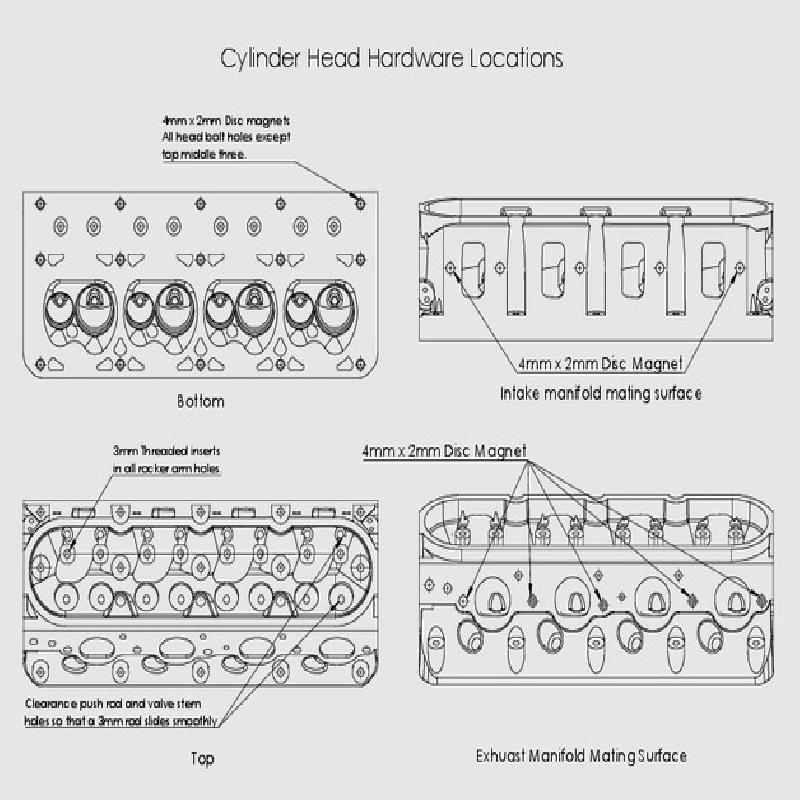

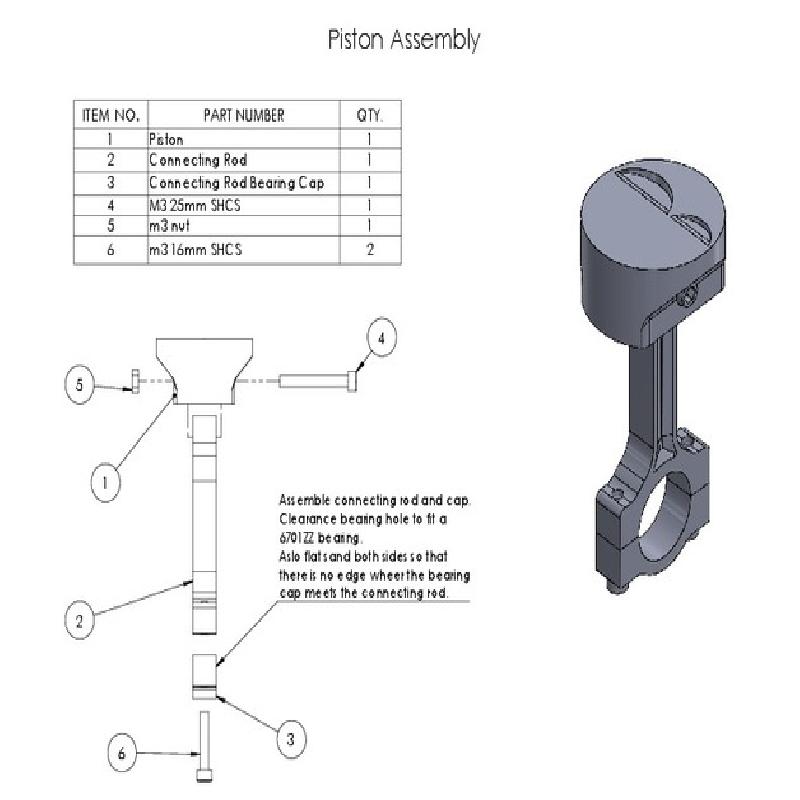

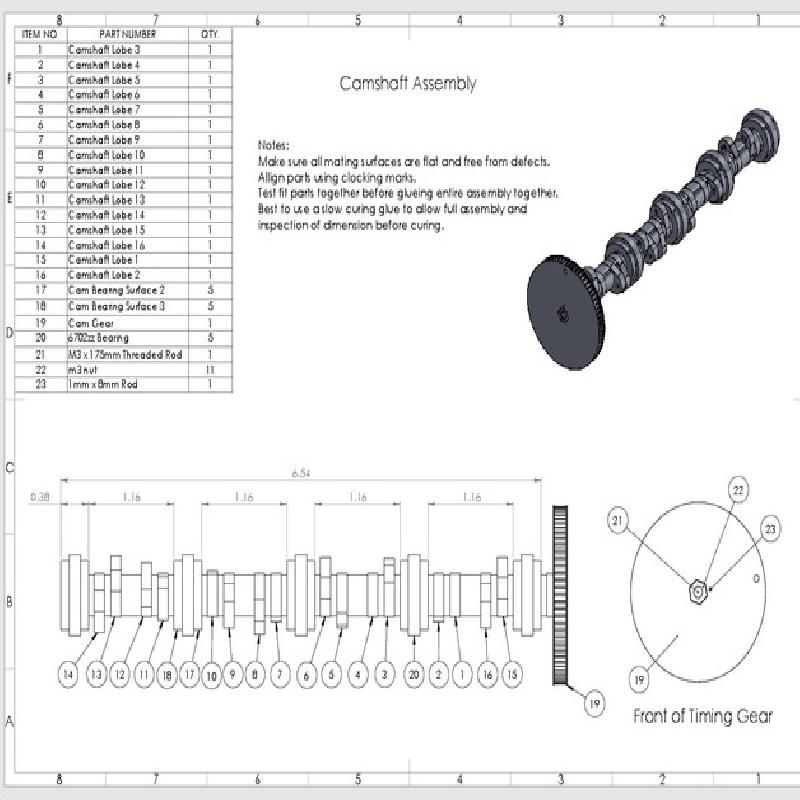

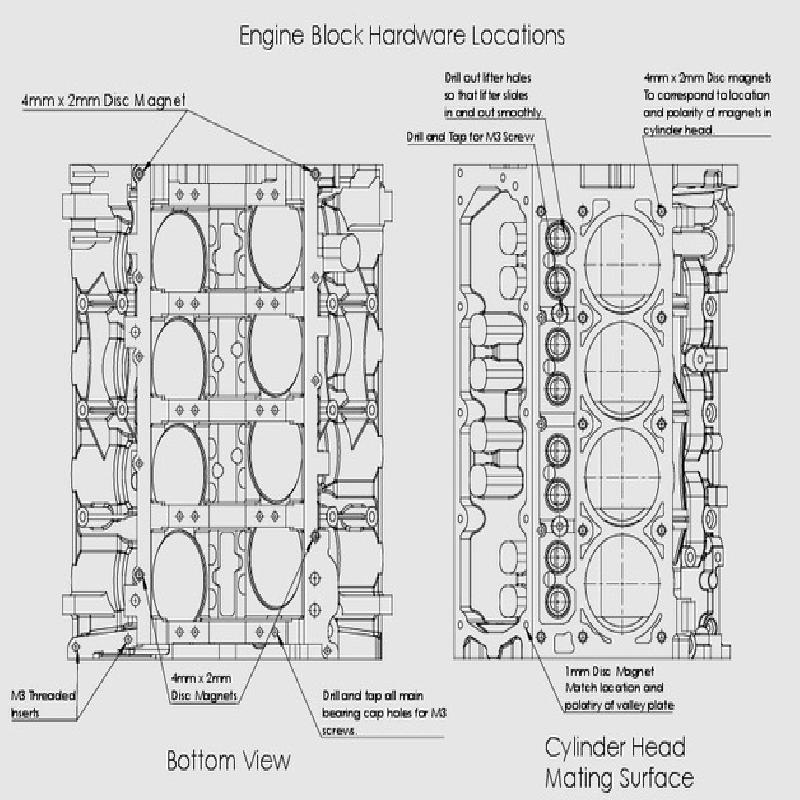

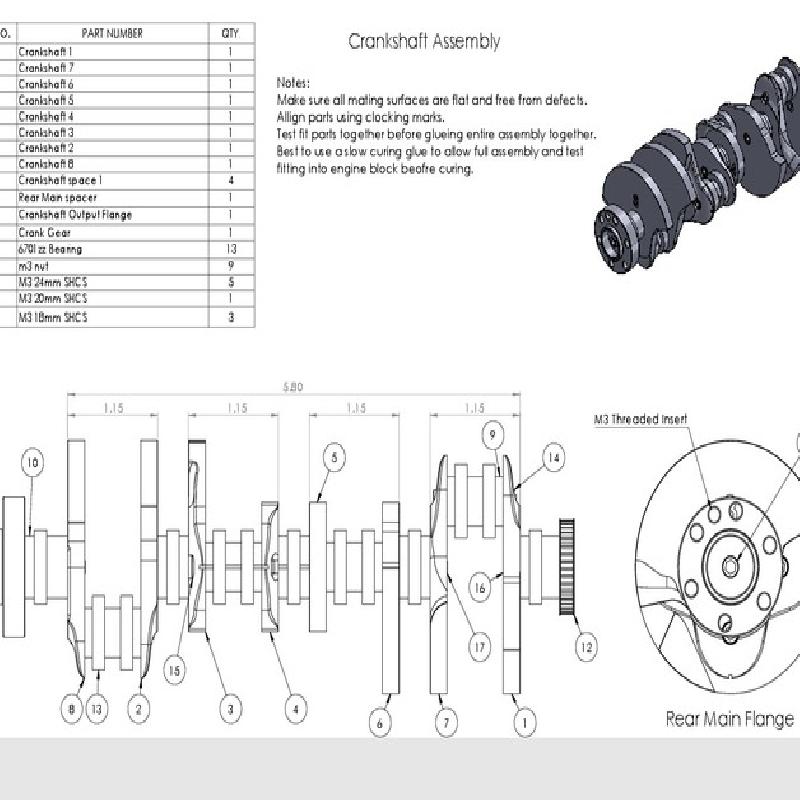

Look at printed parts list and assembly drawings to see notes about post processing parts.
Designed using some CAD file floating around the internet as well as pictures, diagrams, and specifications of the engine.
