by Apex_Props
this is as faithful a replica to the gun found in the animated show that I could create! this was modelled in fusion 360 and was designed to split apart easy and not require any tricky to remove support that would affect the visible finish. BE WARNED, this may not be scaled properly for you, as it is the first model I actively tried to scale.
Print Settings
Printer brand:
Anycubic
Printer:
Large Size Chiron
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
0.2
Infill:
10%
Filament brand:
Hatchbox
Filament color:
Grey
Filament material:
ABS
Notes:
ABS is easier to sand but much trickier to print with, PLA would work fine or PETG would be worth a shot!
Post-Printing
Quite simple shapes, required sanding and some slight filling due to my printer being a bit strange with its layers. joints in between pieces will most likely need to be sanded for the parts to fit, as there is no tolerance modelled in.
PICTURES COMING SOON
How I Designed This

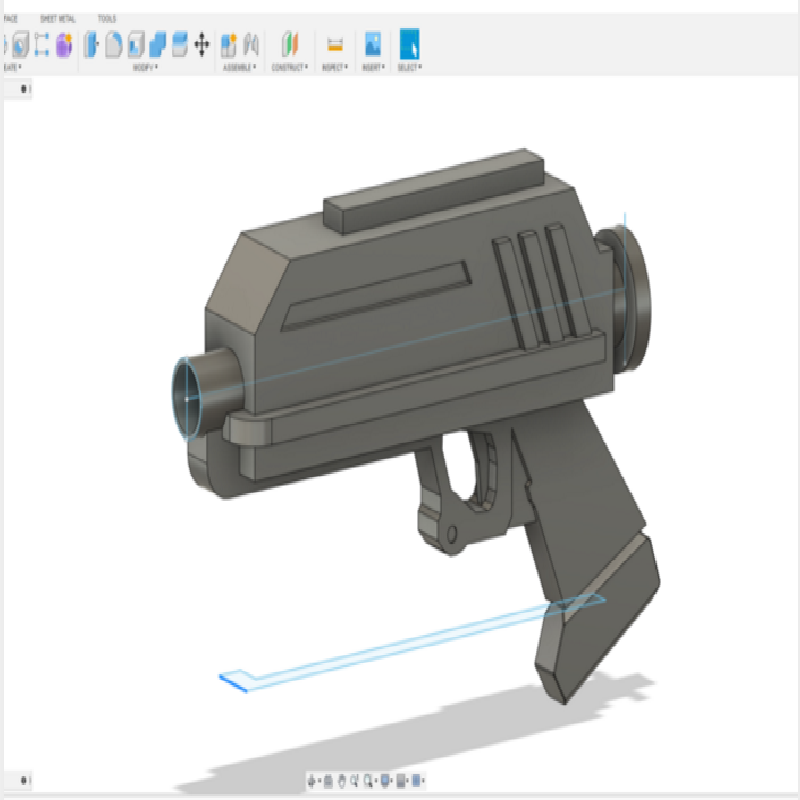

This was modelled in fusion 360 with simple sketches and extrusions. parts were sketched and then used as cutting tools to make a mark in the body of the gun, before being re-extruded and set as a new part for separate printing.
