by StandardOfUr

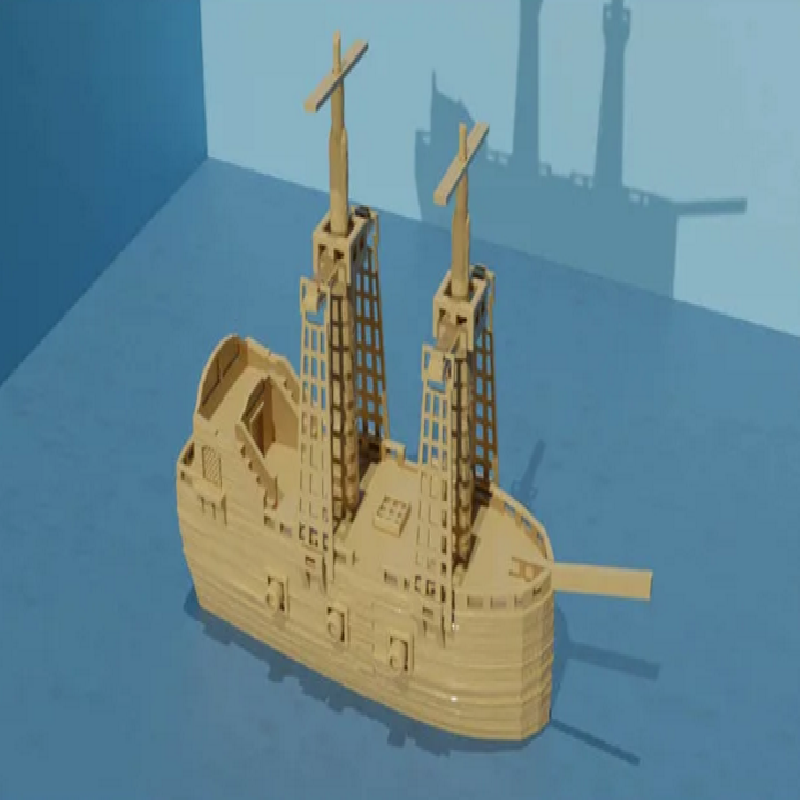

Pirate ship model to 3d print. Print both parts, the PS_Ship, and PS_Accessories. It is designed so that all the accessories can snap onto the ship without any glue, but glue will help the parts stick better.

PS_Ship: The main ship file. Print this file.

PS_Accessories: The accesories, masts, ropes, and cannons.

At the top left are two crow's nests with yards, one of these slides on each mast. There are notches on the inside that will click in with the parts on the mast.

Moving right there are 6 cannons, these can click into the cannon holes, but can be glued in for added stability.

Right of the 6 cannons is the bowsprit, the two prongs can be inserted into the holes at the bow of the ship.

Furthest right on the are the two smaller yards, that connect to the top part of the mast.

Below that are the four ropes. The two larger ones go to the larger mast, and the two smaller ones to the smaller mast. Put the bottom of these on the hooks and then lift it up above the two rectangles on the yardarm. Once between them, lower it down and it will rest comfortably.

I used a 20% infill, but lighter will be fine to give the boat a lighter weight.

Print Settings

Printer brand:

Creality

Printer:

Ender 3 Pro

Rafts:

No

Supports:

No

Resolution:

0.12

Infill:

20%

Filament brand:

Inland

Filament color:

Grey

Filament material:

PC

Notes:

Any material does the trick.
