by Cornflake
This is a remix from https://www.thingiverse.com/thing:398515 It has been scaled down 15% from the original so that all of the parts will fit on an Ender 3 (may have to turn off skirts/brims for some pieces).

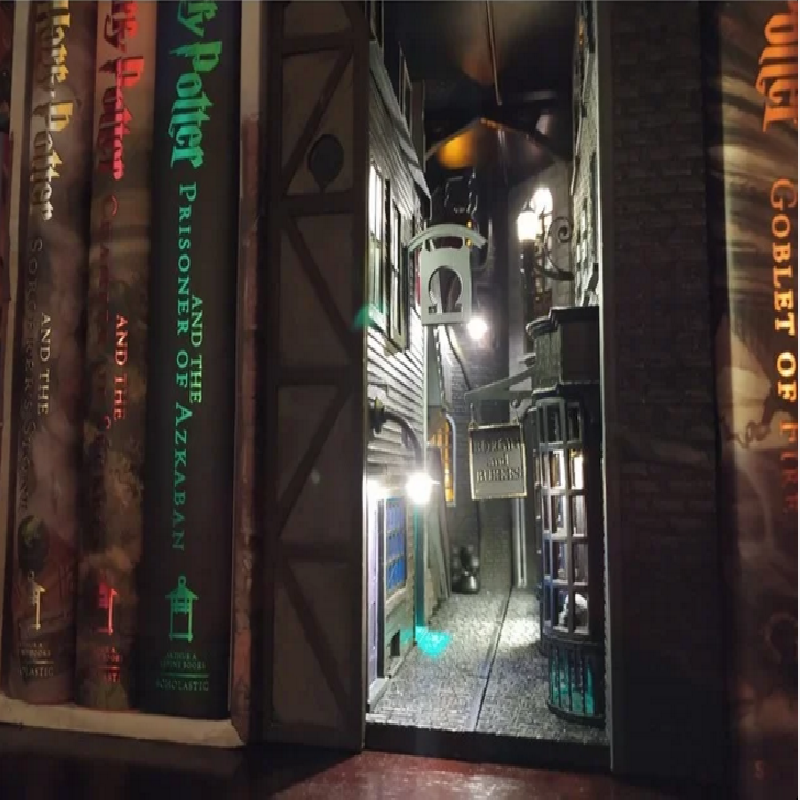

Approximate completed size is 240mm deep, 200mm tall, and 120mm wide. Picture at top is the full size version. It's the same as this one, just, y'know, bigger.
Hardware:
Mostly assembled with glue. M4 screws(6-8 mm in length) to attach sides and back panels. All screw holes are appropriate size to be tapped with an M4 tap, but tapping isn't entirely necessary. Made to use a 1 1/16" piano hinge on the back, cut to length, also attached with M4 screws. "Bars" below bowed windows are just straightened paperclips cut to length. Acrylic mirror (cut to 47mm x 90mm) needed for "Facade 5."
Printing orientation:
Most parts will print best laying flat on their "back." Turn on "Ironing" in Cura for any pieces with brick work for best results.
Assembly instructions to come.
Print Settings
Printer brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
20%
