by rkxone

Thought this would be a nice thing to design and put my own twists on, so yet another buttery knife design is here. The original was an excellent build but I wanted to make a few changes to the original design and create my own handles and blades.

I have rebuilt all the parts here, new blades (more coming) new handles (more designs coming) and changed the handle lock to be a tighter fit.

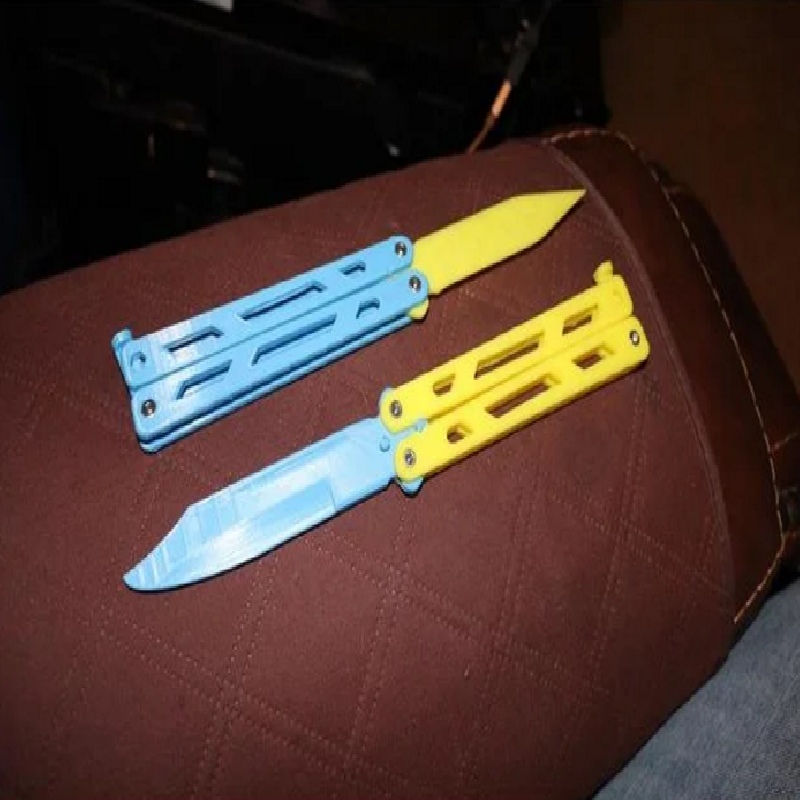

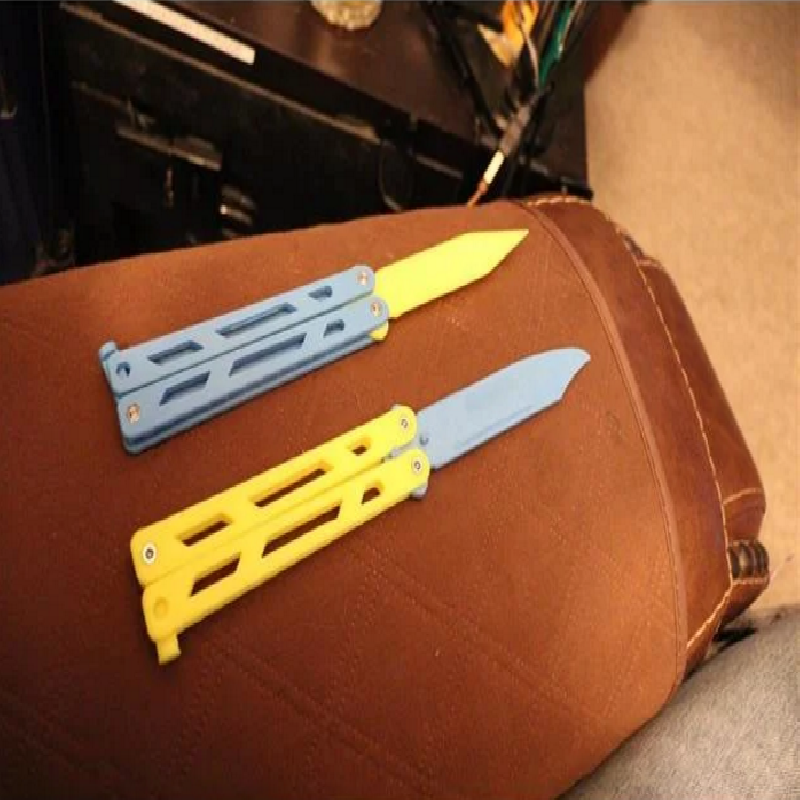

Blades Included:

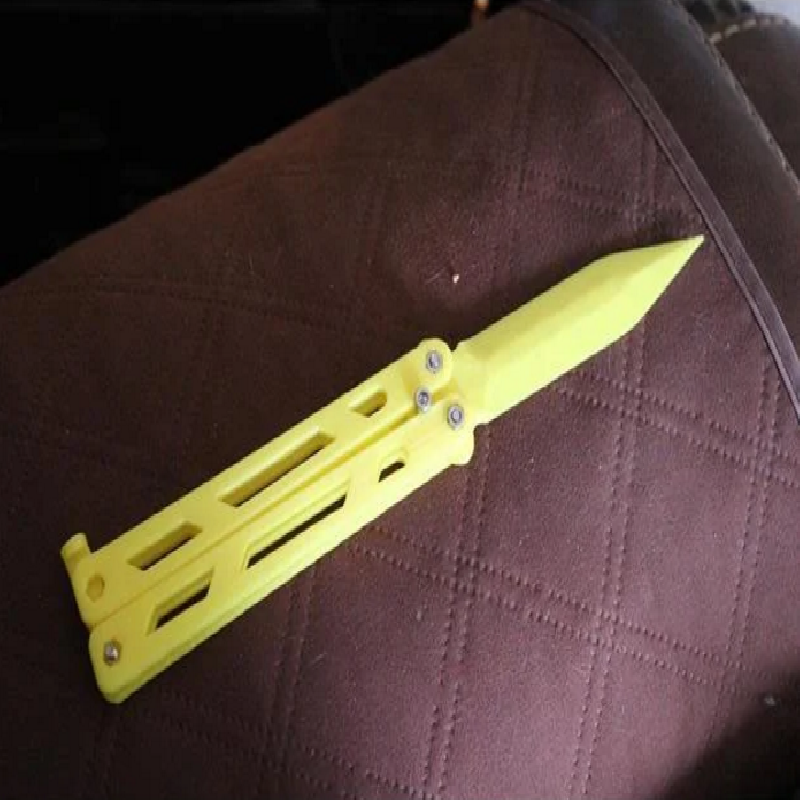

• I lengthened the original straight point blade and included built in stop pins

• I made my own curved tip blade

• Training blade (thick and rounded with holes)

• Training blade Tapered and rounded with holes

• Comb Blade (currently experimental)

• No support needed (future blades may require it)

Handles included:

• Original angular cut (Lengthened)

• Solid handles

• Holy handles (batman) lol.

• I found it's best to use a mini round file to get the exact fit to the pins on the blades as that will vary for everyone and by how your printed is tuned up

• The handles have an extra set of hex cut outs in the base to add m3 nuts for weighting they are press fit (pliers help) but due to the velocities you can hit with this glue those nuts in people! you don't want them flying out.

• Print with supports (they come out nice and easily)

Assembly:

• To put this together you will need 3 m3x8 bolts with nuts (m6 might work with some effort) then just work it in.

• Handle lock can mount on either side depending on your use

Optional:

• I added a dab of hot glue to the end of the nuts after they were installed so they don't work themselves off (since they are threaded they will) then I can easily remove that to change blades or handles)

What's coming soon:

• other whimsical blade designs

• different handle designs

Enjoy! If you enjoy my prints or remixes please consider donating, even a dollar helps :)
