by SAIGA3D

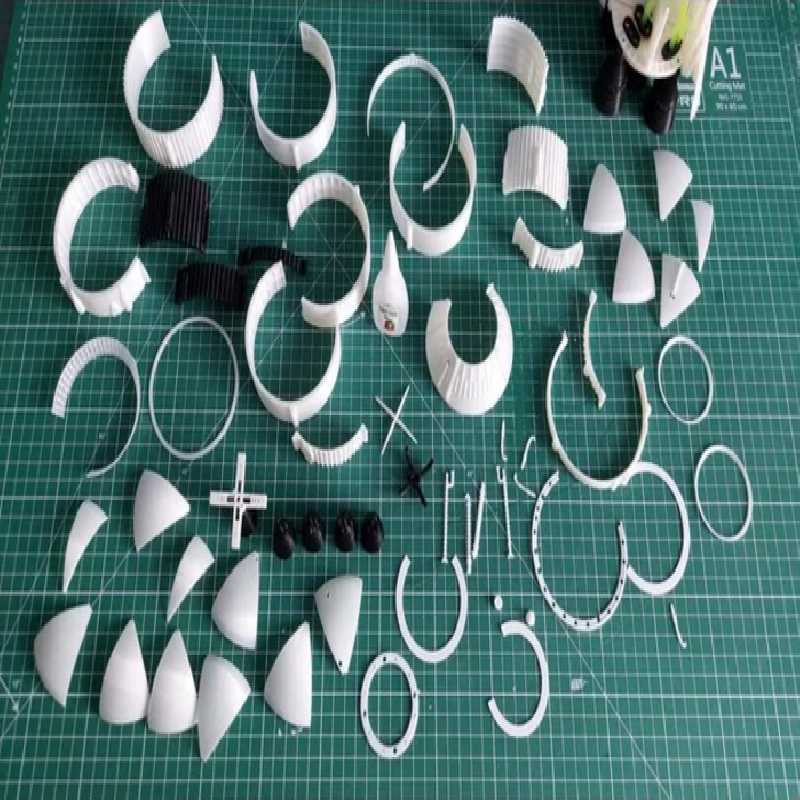

One month full time designing and one week printing and assembling just for 2nd stage. So, only printing and assembling for you.
Need super glue.

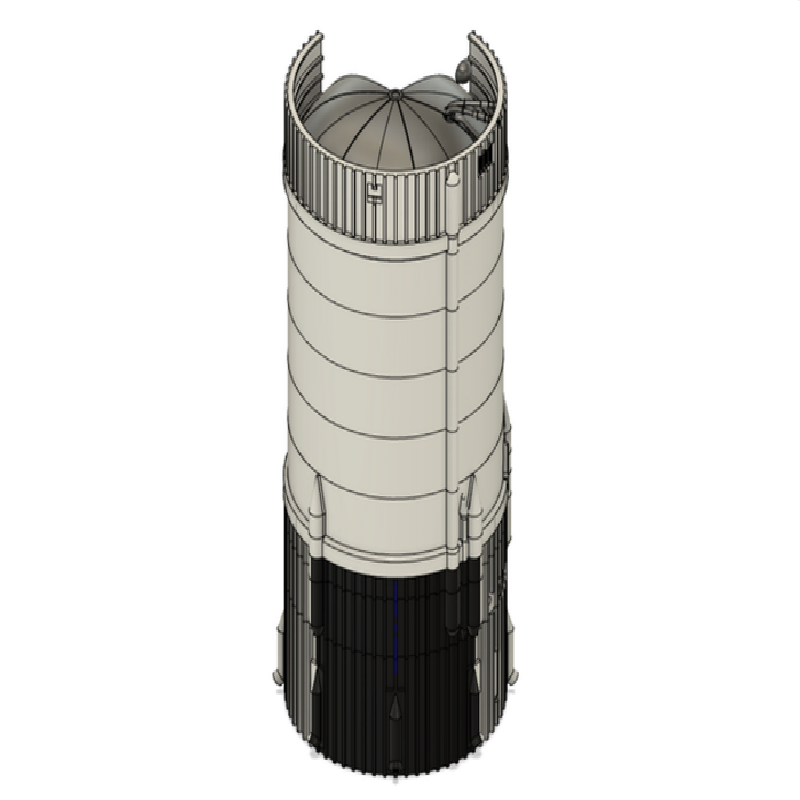

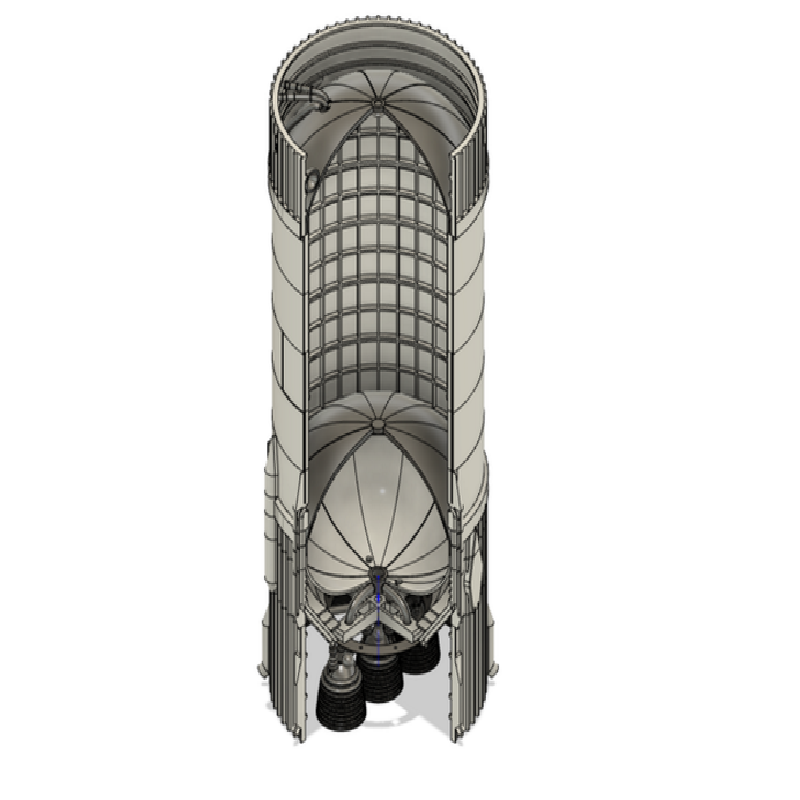

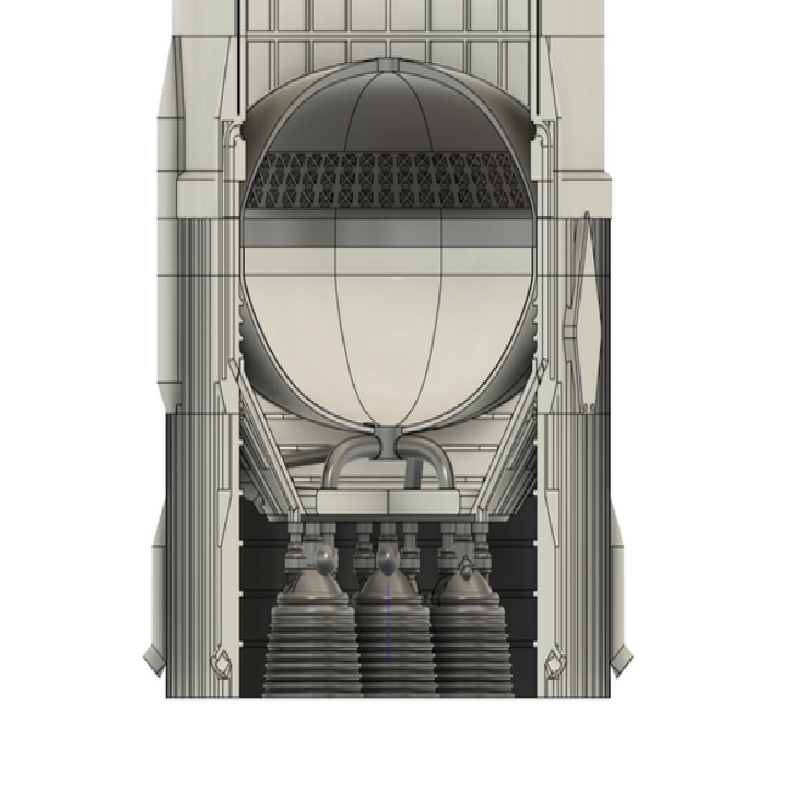

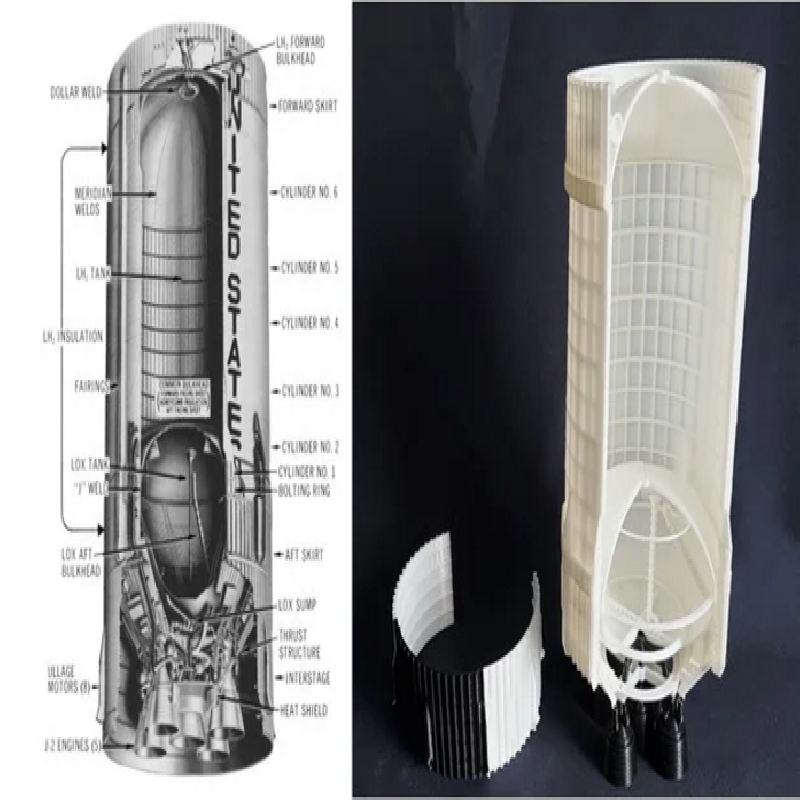

Model simulates pressure and structural systems of the stage. No electrical system concerned. Also good for education purpose.

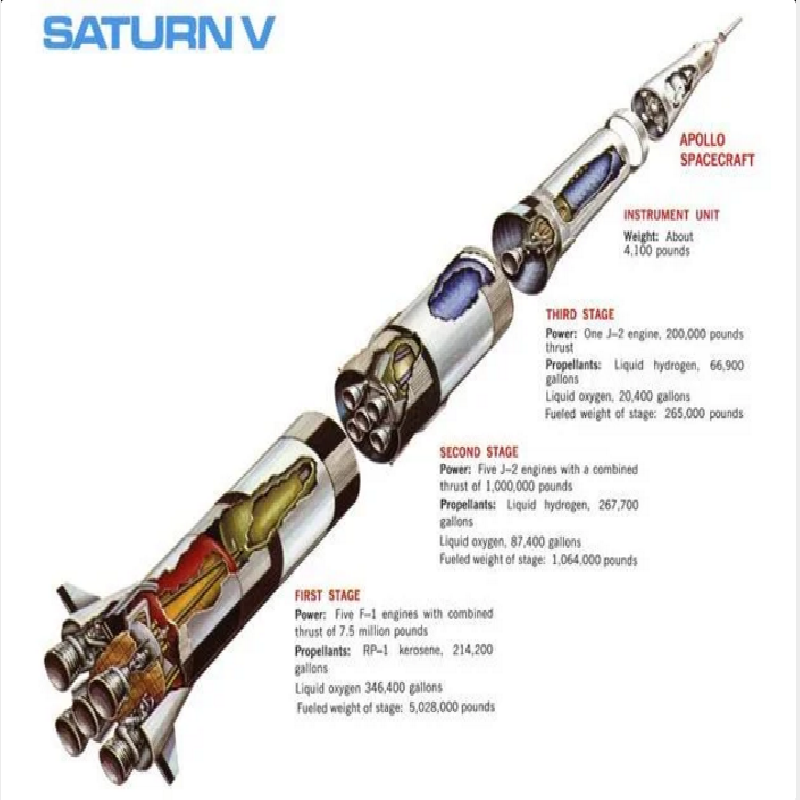

First stage and third stage with lunar module and spacecraft are comming (see design time above).
In the archive file all files divided with propelly named folders for easy navigation.
Youtube assembling video: https://www.youtube.com/watch?v=zlT_IEgpCgE&t=6s&ab_channel=SAIGA3D
Enjoy it!
Print Settings
Printer brand:
Creality
Printer:
Ender 3 Pro
Rafts:
No
Supports:
No
Resolution:
0.12
Infill:
100%
Filament_brand:
Esun
Filament_color:
White, Black
Filament_material:
PLA PLUS & PLA
Notes:

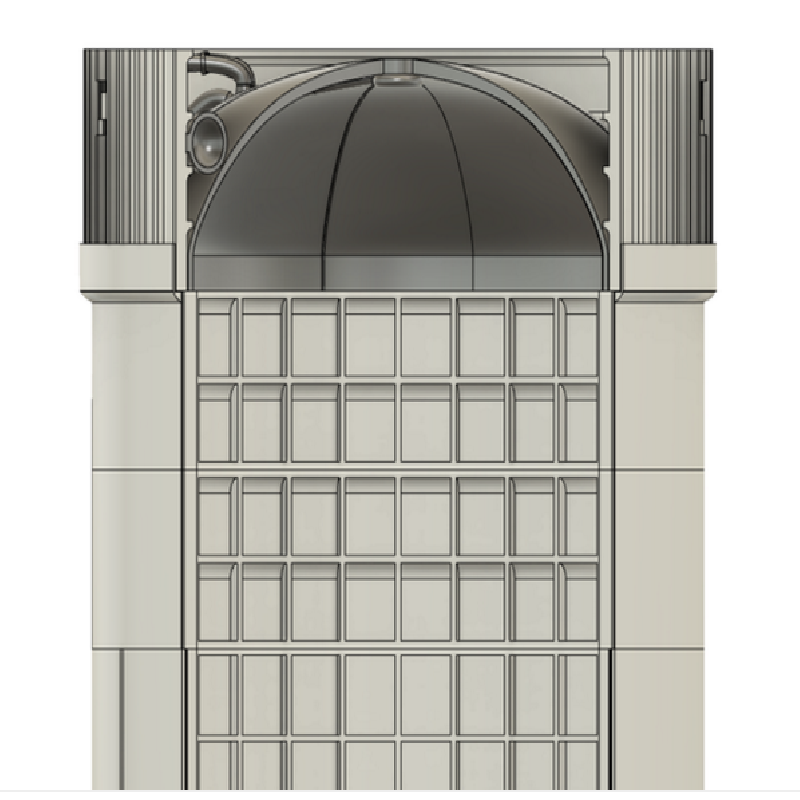

Perfect tuning FDM printer is required for high quality printing. Especially bulkheads and tiny pipes could be printed almost without visible layers. For bulkhead place one section of bulkhead on edge without support. Printer settings should be only one perimeter wall thickness with 100% infill.
