by RF100User

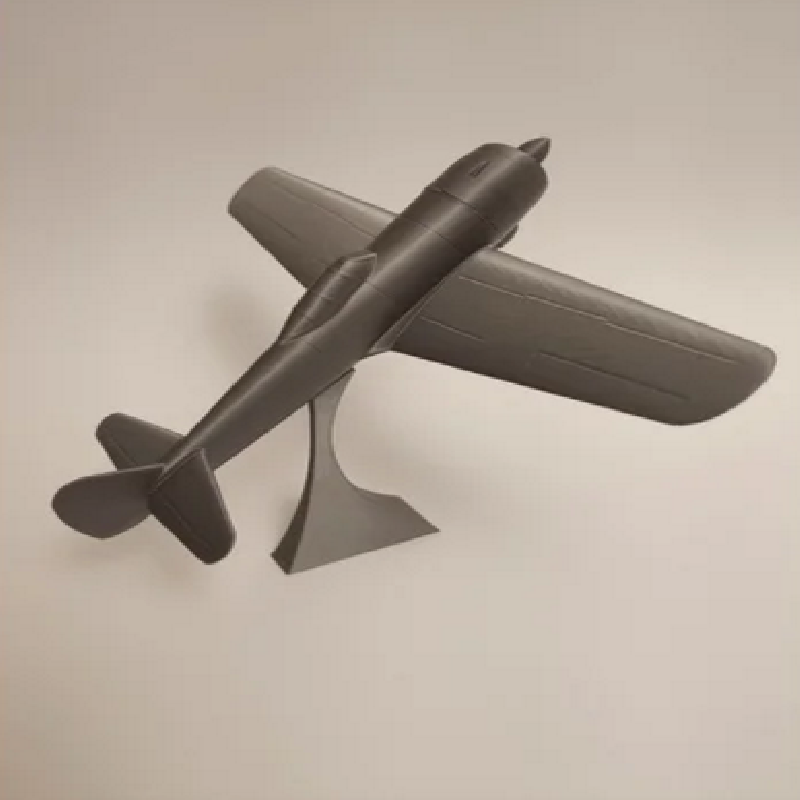

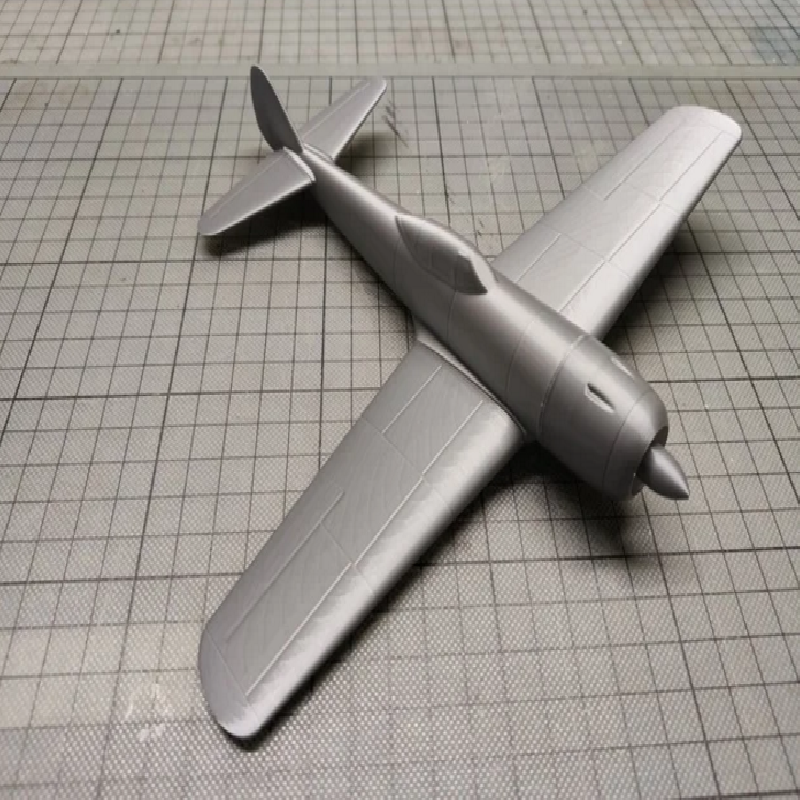

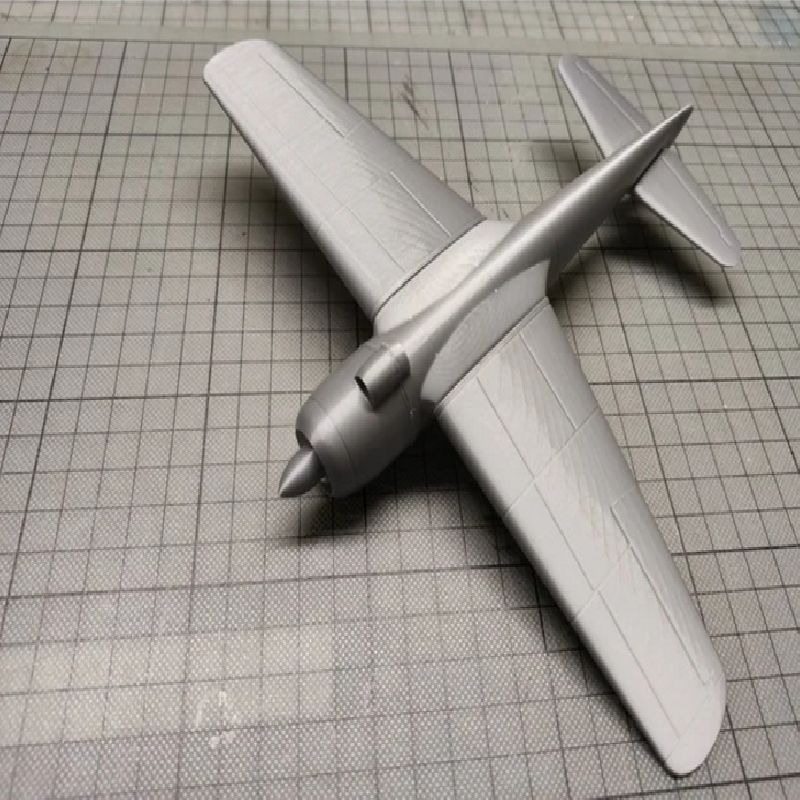

This is an updated version of the previousley uploaded 1/48 "Simple Ki-84 Hayate" model.
Changes:
The nose is a separate model now
The spinner is combined with an engine dummy
More surface details added

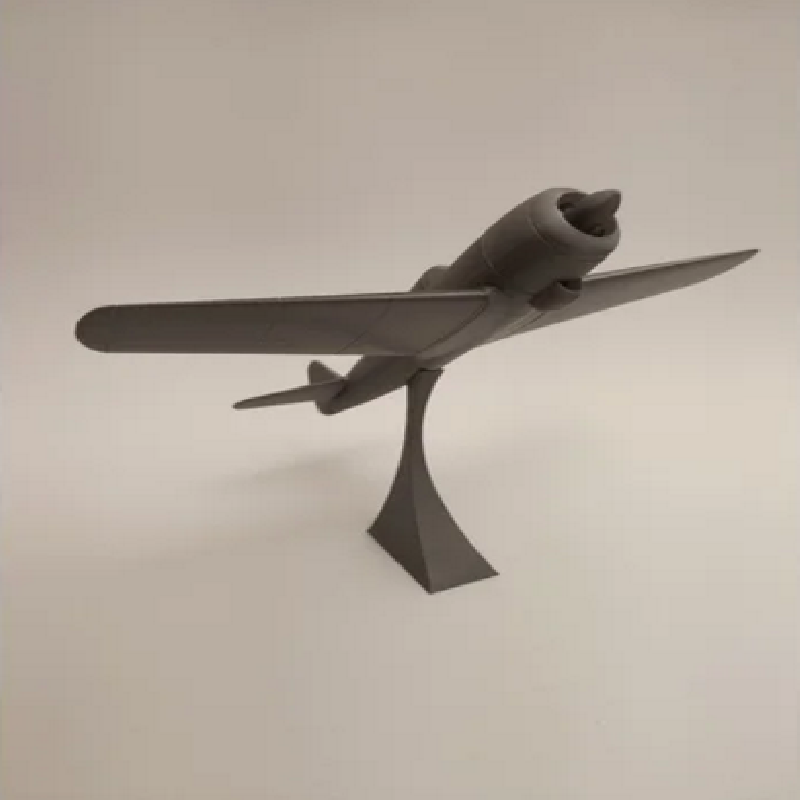

Simple model stand provided
All parts can still be printed in vase mode (spiralized outer contour) to save time an material.

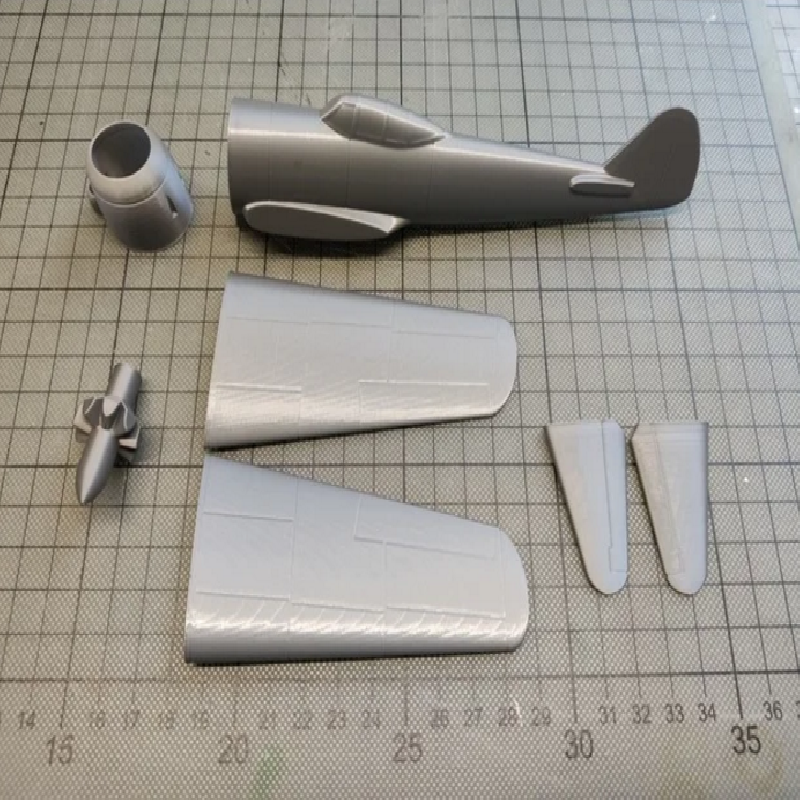

The wings and the horizontal tailplanes (HTP) are symmetrical. Each has to be printed twice.

Print Settings

Printer brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

No

Resolution:

0.1-0.2

Infill:

0

Filament_brand:

Reyke

Filament_color:

Silver

Filament_material:

PLA

Notes:

All parts were printed in vase mode using Cura as slicer with a 0.4mm nozzle.
Layer thicknesses used:
wings: 0.2mm
horizontal tailplanes: 0.2mm
fuselage: 0.2mm
spinner: 0.15mm (preferably 0.1mm)
nose: 0.1mm - 0.2mm (variable layer thickness in Cura to save time)
stand: 0.15mm - 0.25mm (variable layer thickness in Cura to save time)

Post-Printing

Parts glued together with plastic glue.
The spinner has to be attached to the fuselage before the nose.
In best case one should glue the spinner and the nose simultaneously to the fuselage in order to achieve a nice, centralized alignment.

How I Designed This

The model shape is simplified and adapted for printing in vase mode.
