by nachete2016

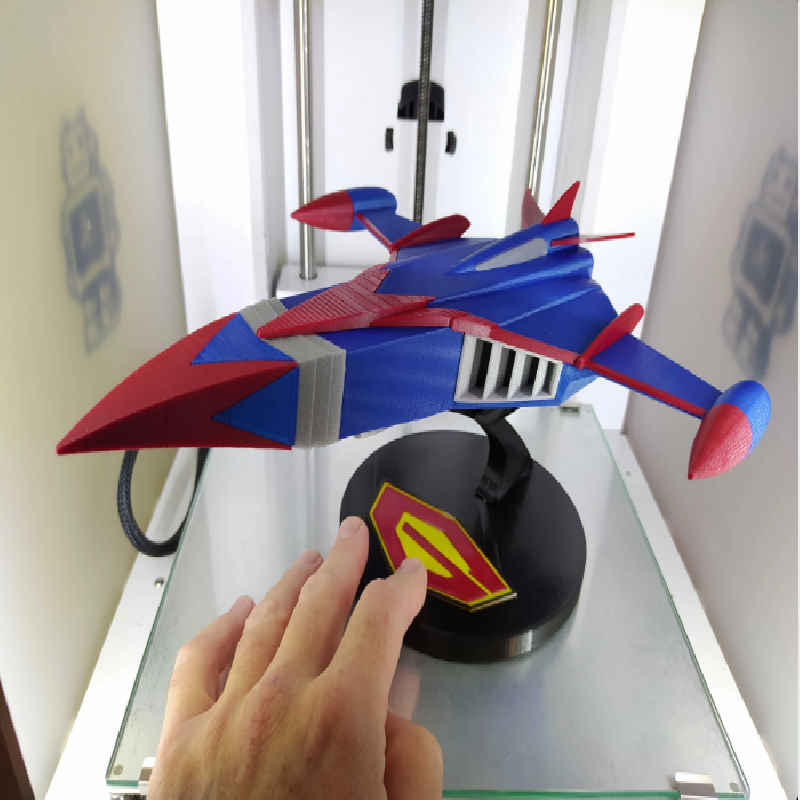

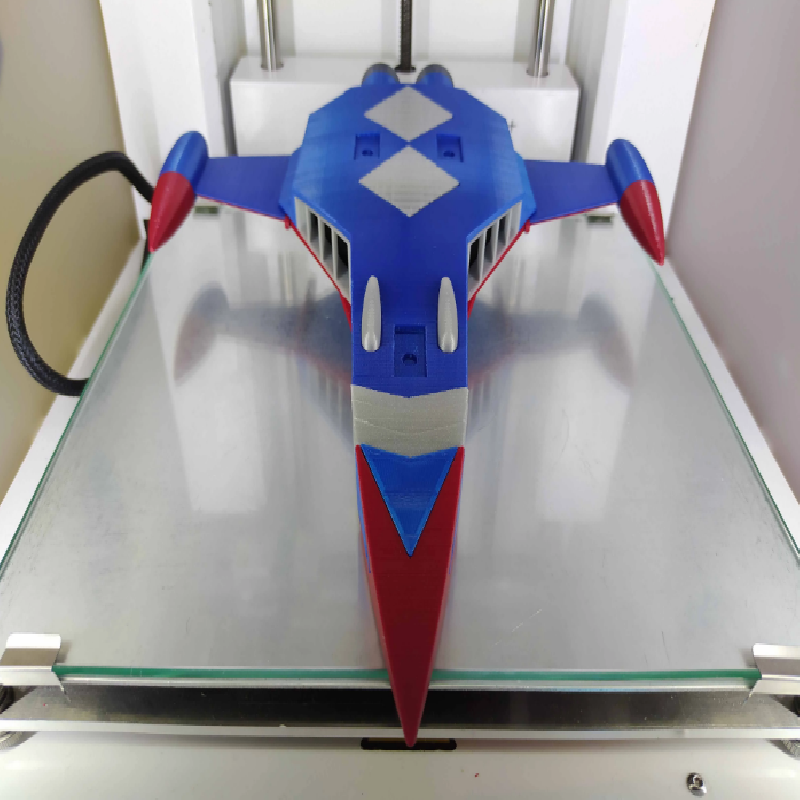

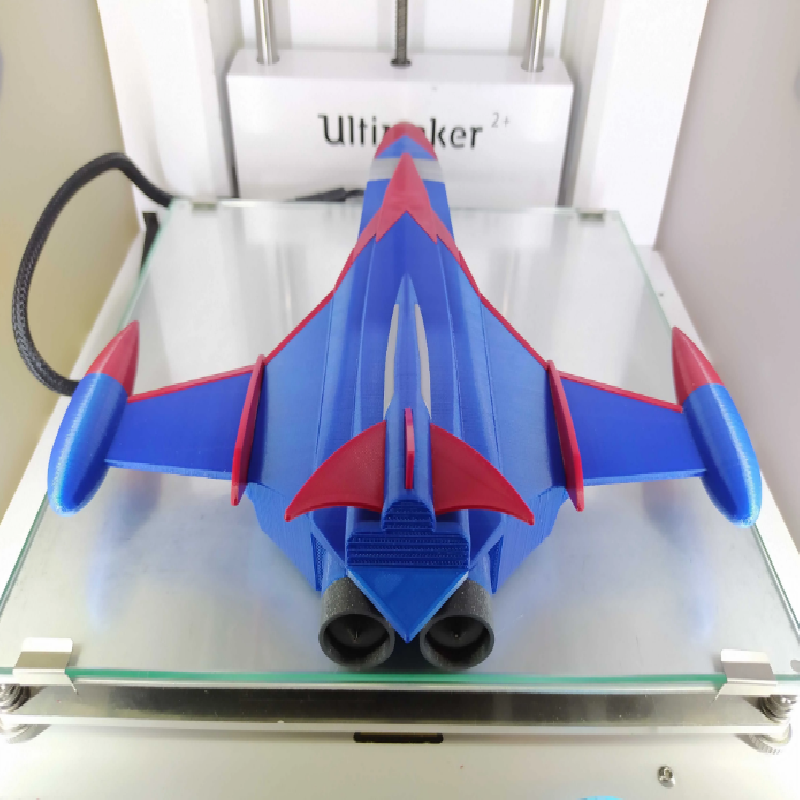

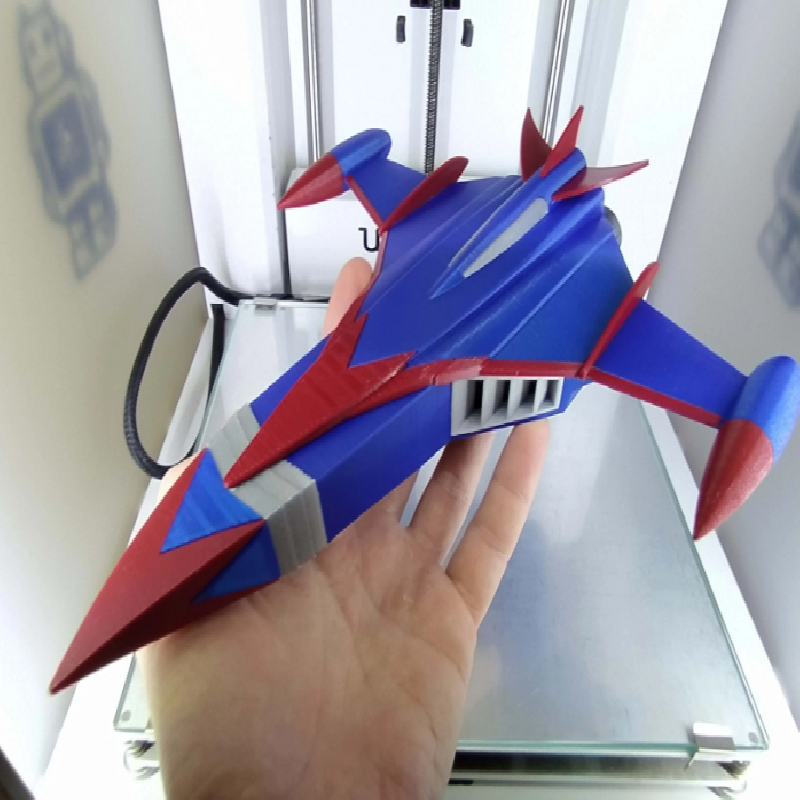

The Phoenix ship from 70´s japanese anime series "Gatchaman" or "Battle of the Planets" or "Comando-G" acording to each country.

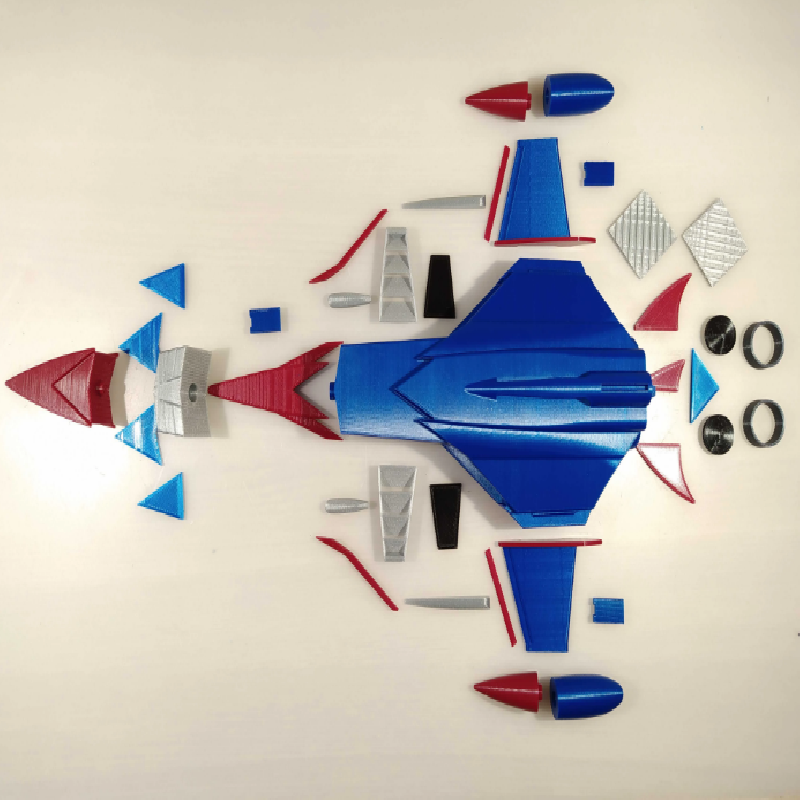

I have tried to simplify the design of the pieces to facilitate their printing and assembly.
¡¡The video of the assembly!!
https://youtu.be/8jDvTBL89EI
I hope you like it as much as I do and that you enjoy its printing and assembly.
Recommeded filament: Fillamentum Noble Blue, Pearl Ruby Red, Rapunzel Silver, Vertigo Grey, Traffic Black and Traffic Yellow.
Print Settings
Printer brand:
Ultimaker
Printer:
Ultimaker 2
Rafts:
Yes
Supports:
Yes
Resolution:
0.2
Infill:
15
Filament_brand:
Fillamentum
Filament_color:
Fillamentum Noble Blue, Pearl Ruby Red, Rapunzel Silver, Vertigo Grey, Traffic Black and Traffic Yellow.
Filament_material:
PLA
Notes:
First I will indicate the CURA general print settings and then detail them for each STL file.
Nozzle: 0.4 mm
Layer Height: 0.15/0.2/0.25 mm
Line Width: 0.35 mm
Wall Line Count: 3
Z Seam Alignment: User especified to place it so that it´s hidden.
Infill Density: 15%
Infill Speed: 60 mm/s
Outer Wall Speed: 25mm/s
Inner Wall Speed: 35 mm/s
Top/Botton Speed: 25mm/s
Support: According to stl file
Support Over Hang Angle: According to stl file.
Support Density: 15%
Support Interface Thickness: 0.6 mm
Support Interface Density: 50%
Printable STL files:
G_Phoenix_body_blue: Aprox.Time:11 h 30 min. Material: 124 gr. Layer Height: 0.2 mm Outer before inner walls: Desactivate Support: Yes Support Over Hang Angle: 78º Raft: YES Recommended filament: Fillamentum Noble Blue. G_Phoenix_blue_pieces: Aprox.Time: 2 h 30 min. Material: 14 gr. Layer Height: 0.15 mm Support: Yes Support Over Hang Angle: 80º Raft: NO Recommended filament: Fillamentum Noble Blue.. G_Phoenix_black_pieces: Aprox.Time: 31 min. Material: 3 gr. Layer Height: 0.15 mm Support: NO Raft: NO Recommended filament: Fillamentum Traficc Black. G_Phoenix_grey_pieces: Aprox.Time: 21 min. Material: 2 gr. Layer Height: 0.15 mm Support: NO Raft: NO Recommended filament: Fillamentum Vertigo Grey. G_Phoenix_red_pieces: Aprox.Time: 3 h. 30 min. Material: 21 gr. Layer Height: 0.15 mm Support: Yes Support Over Hang Angle: 80º Raft: NO Recommended filament: Fillamentum Pearl Ruby Red. G_Phoenix_silver_pieces: Aprox.Time: 3 h. Material: 18 gr. Layer Height: 0.15 mm Support: Yes Support Over Hang Angle: 80º Raft: NO Recommended filament: Fillamentum Rapunzel Silver. G_Phoenix_wings_red_blue: Aprox.Time: 1 h. 30 min. Material: 30 gr. Layer Height: 0.2mm Support: Yes Support Over Hang Angle: 82º Raft: NO Change colour. Pause at height/layer (layer height: 0.2): layer 12. Recommended filament: Fillamentum Pearl Ruby Red and Noble Blue. G_Phoenix_support_A: Aprox.Time: 1 h 30min. Material: 18 gr. Layer Height: 0.25 mm Support: Yes Support Over Hang Angle: 80º Raft: NO Recommended filament: Fillamentum Traffic Black. G_Phoenix_support_B: Aprox.Time: 1 h 30min. Material: 18 gr. Layer Height: 0.25 mm Support: NO Raft: NO Change colour. Pause at height/layer (layer height: 0.25): layer 40, 42, 44. Recommended filament: Fillamentum Traffic Black, Traffic Yellow and Pearl Ruby Red.
