This makes it a very fast print while still being strong enough.
To print a set of the original one will take me 1:45 and use 29g of plastic. A set of the resized ones take 0:48 and uses only 13g of plastic (according to Cura).

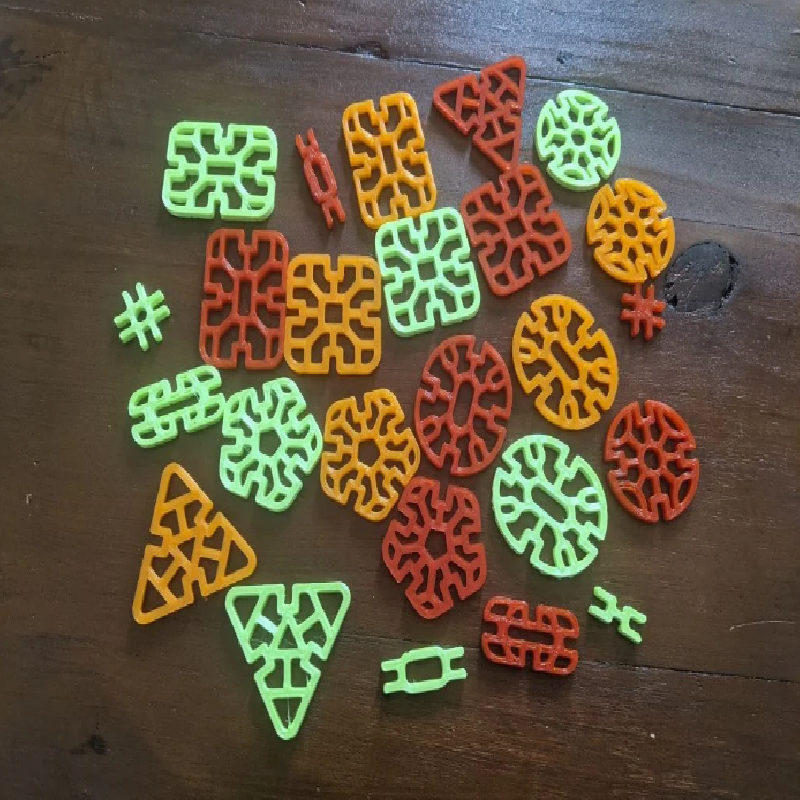

I also added some with more connection points. The circle with 8 slots is especially versatile.
A good starter set is:
10 X Circle 2
4 X Square 2
4 X Triangle 2
6 X Rectangle Slim
4 X Rectangle
4 X Oval
4 X Pentagon
The clips and beam are quite small and can be a choking hazard. If you are printing these for a small child, skip those.
Print Settings
Printer brand:
Creality
Printer:
Ender 3 Pro
Rafts:
No
Supports:
No
Resolution:
0.32
Infill:
0%
Filament_brand:
FlashForge
Filament_color:
Orange
Filament_material:
PLA
Notes:
I used a 0.4mm nozzle with 0.32mm layer height, 0.48mm line width and 4 walls.
I also optimised it so that it should work using a 0.8mm or 1mm nozzle with 0.8mm layer height, 1mm line width and 2 walls.
Take care with your layer height! If 3,2mm is not exactly divisible by your layer height, you'll have a loose fit. 0,16mm and 0,2mm layers will work. 0,24mm and 0,28 will not.
