by JorgePeralta
WARNING. This is a very large model. It will take a long time and lots of plastic to print all the pieces.
Model is over 800mm (32 inches) tall.

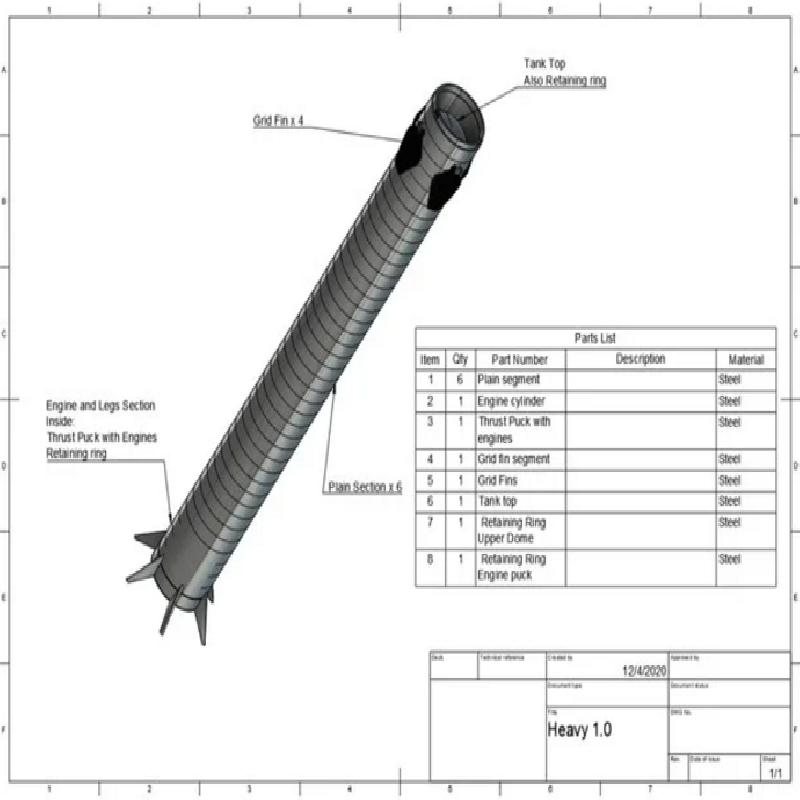

This is my interpretation of the 'Super Heavy' rocket from SpaceX. In real life it is a work in progress, and it will change. So will this project. The design is modular, so revisions should be minimum as the design evolves. Snap together, no glue is necessary unless you want a more durable permanent assembly.
NOTES:

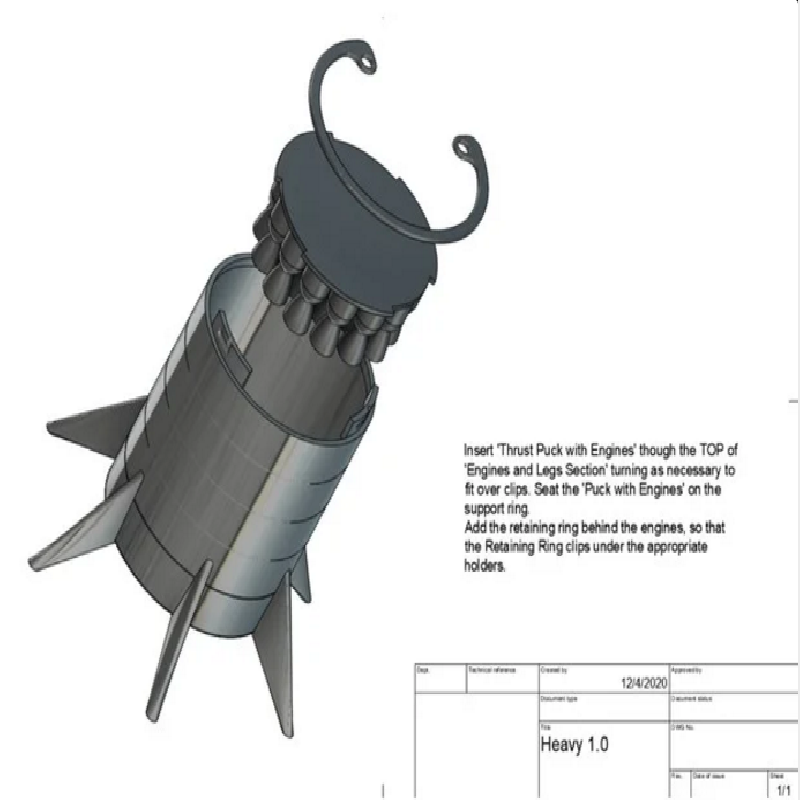

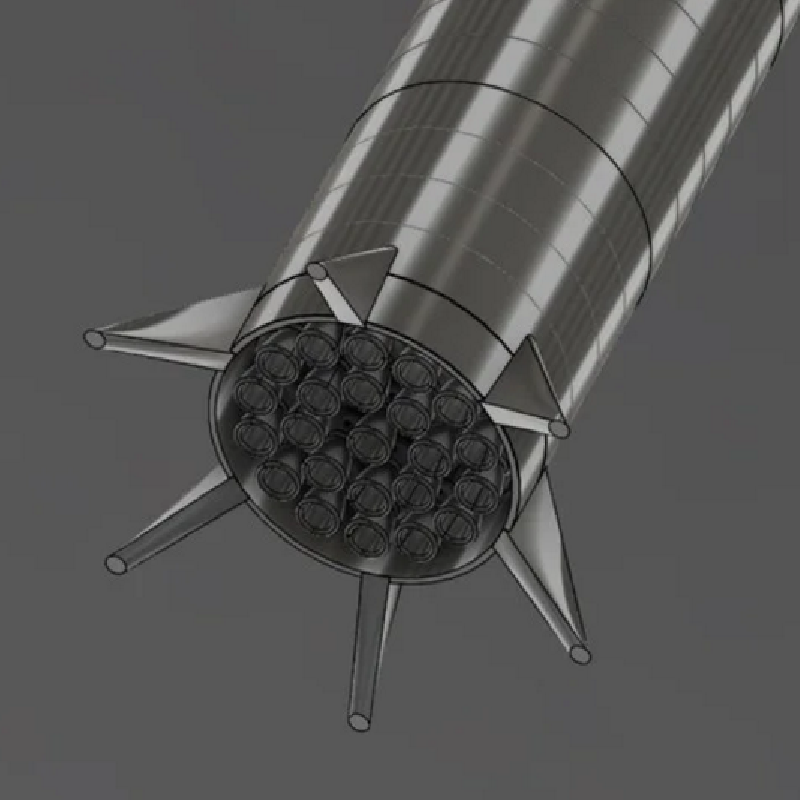

Engine and legs section: Print with supports, raft and brim. The printing contact area is very small and easy to bump off while printing, and supports are needed for the bottom ring.
For a nice steel look, I recommend this filament:
https://www.amazon.com/gp/product/B07QGV6D8P
Print Settings
Printer brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
15
Filament_brand:
GEEETECH Metal Shine Silk
Filament_color:
Metallic Silver
Filament_material:
PLA
