by dapoppa

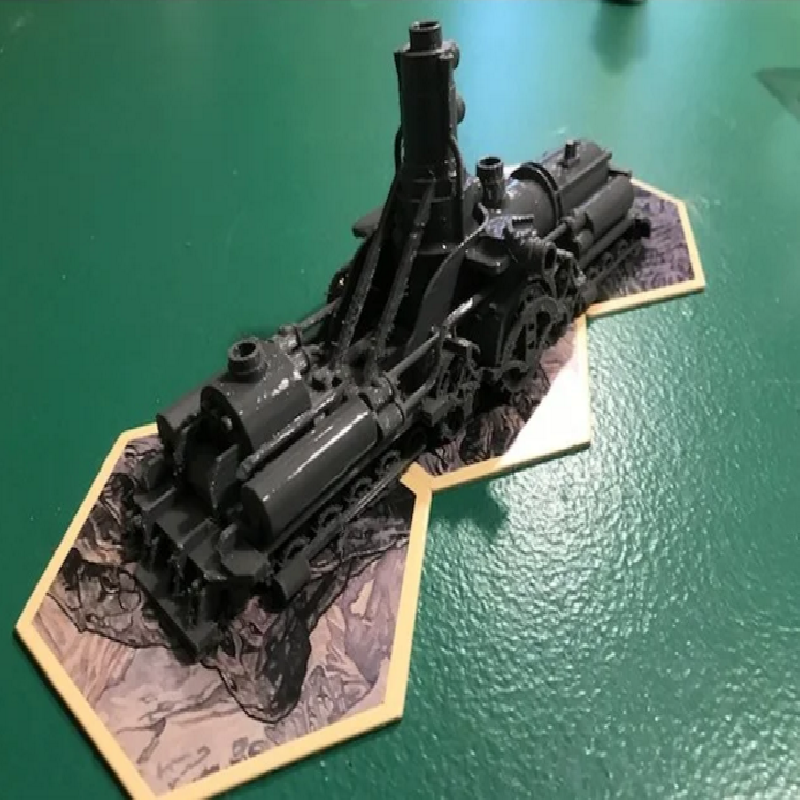

My take on the Frostpunk Dreadnought, to be used with the board game once it comes out next year.
It's loosely based on the Dreadnought pictures and just made by hand/eye, no measuring, so it's around the right size - don't expect an exact copy. It was designed to be a bit bigger than 2 tiles - if you would like it bigger, just increase the size to 110/120/etc. % in your favorite slicing software.
The model is tilted 10 degrees, to simulate sinking into the ground - while it prints pretty well, there are some pieces that will be a bit rough - which is fine with me because it's supposed to old, busted and rusted. You can add snow to it later, around the base, etc.

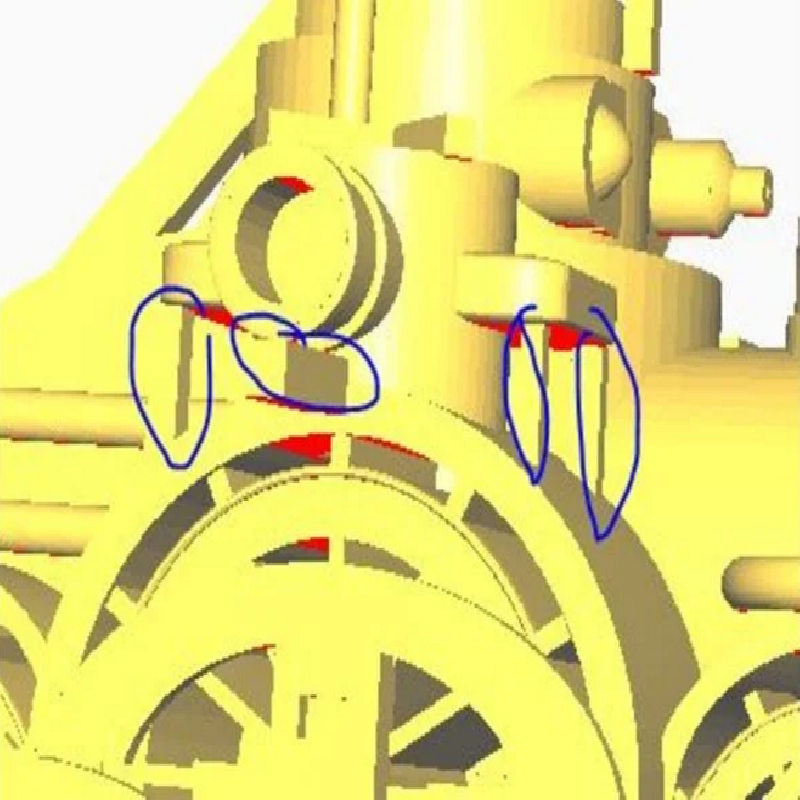

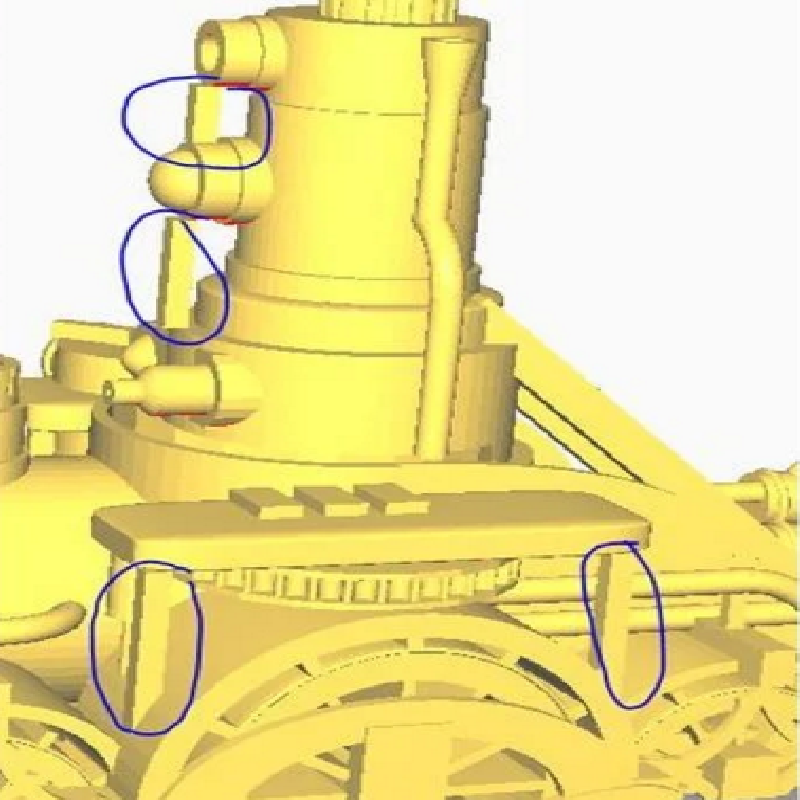

Only really need to use supports on the build plate, as I've added some throughout the model that can be clipped off later.
Tip: I've discovered that if you paint PLA with Gorilla original clear glue, it fills in the layer lines. Prime/paint it, gives it an excellent smooth finish.
Print Settings
Printer brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
Yes
Resolution:
0.16 or better
Infill:
10
Filament_brand:
any
Filament_color:
Black, Grey
Filament_material:
PLA
