by Slava_Z

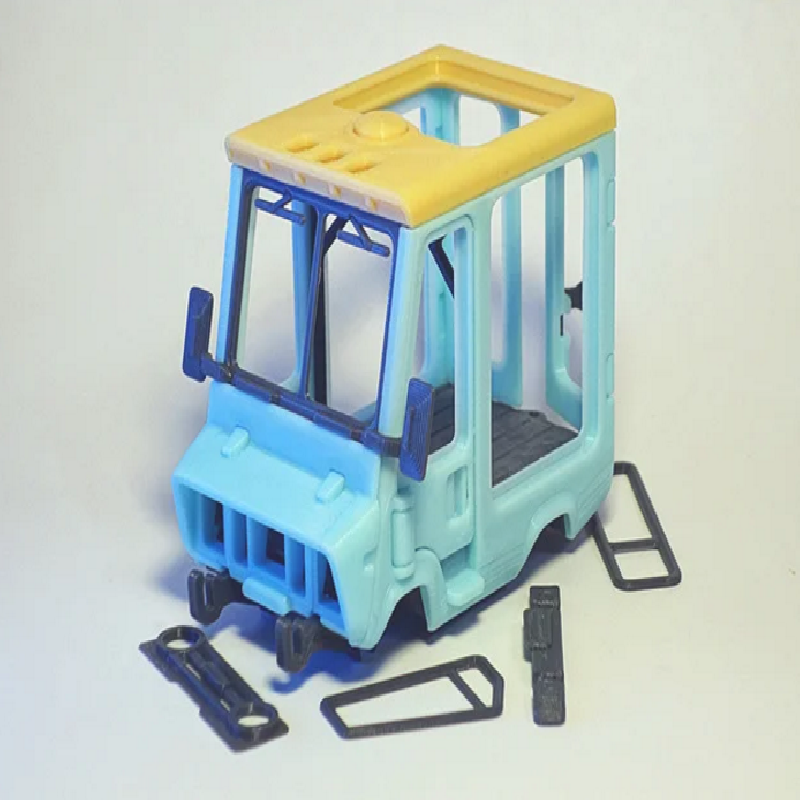

Click-snap assembly (no glue, no bolts). Can be taken apart afterwards.
Designed to be printed with 0.6 (or smaller) nozzle at 0.2 layer height, no supports needed.

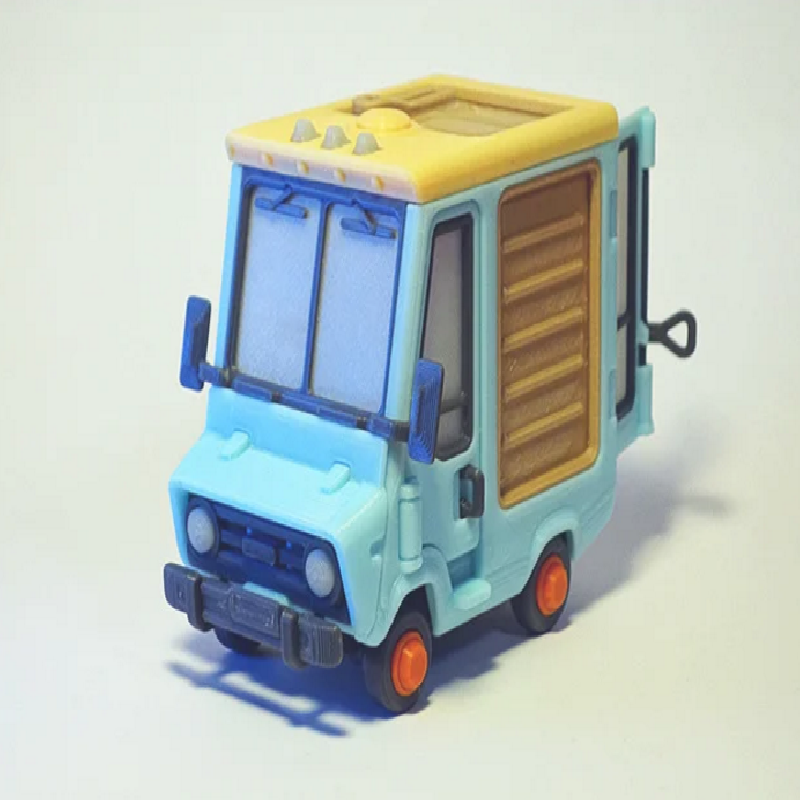

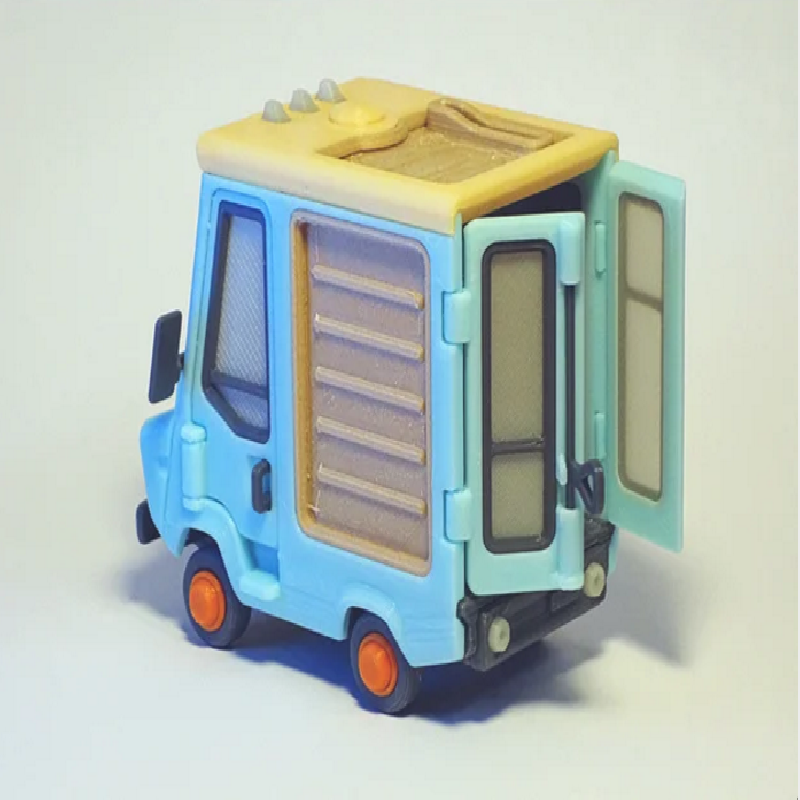

This little van can serve as a piggy bank with one of the roof inserts.

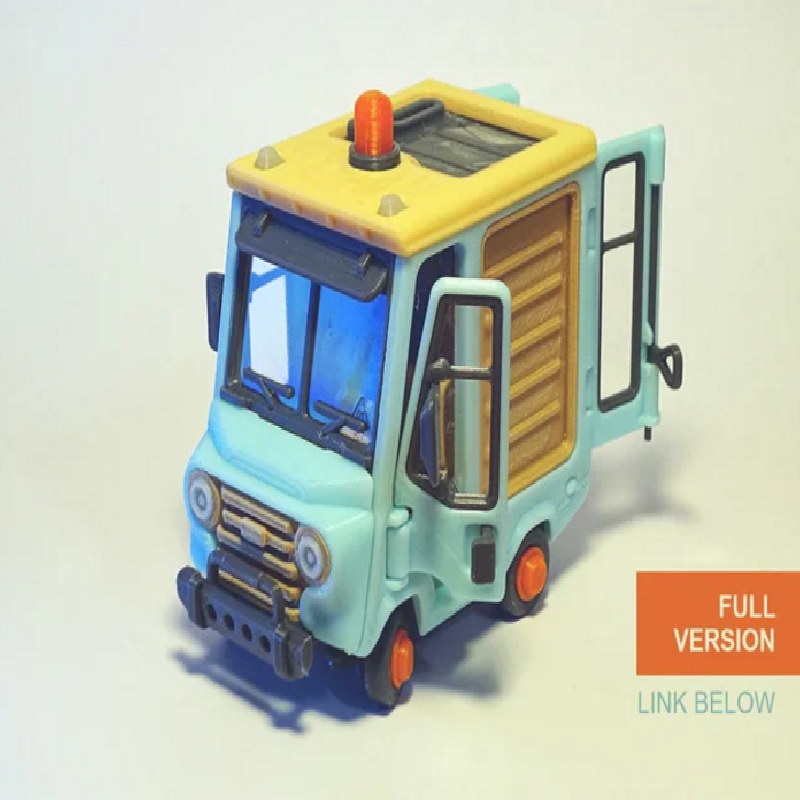

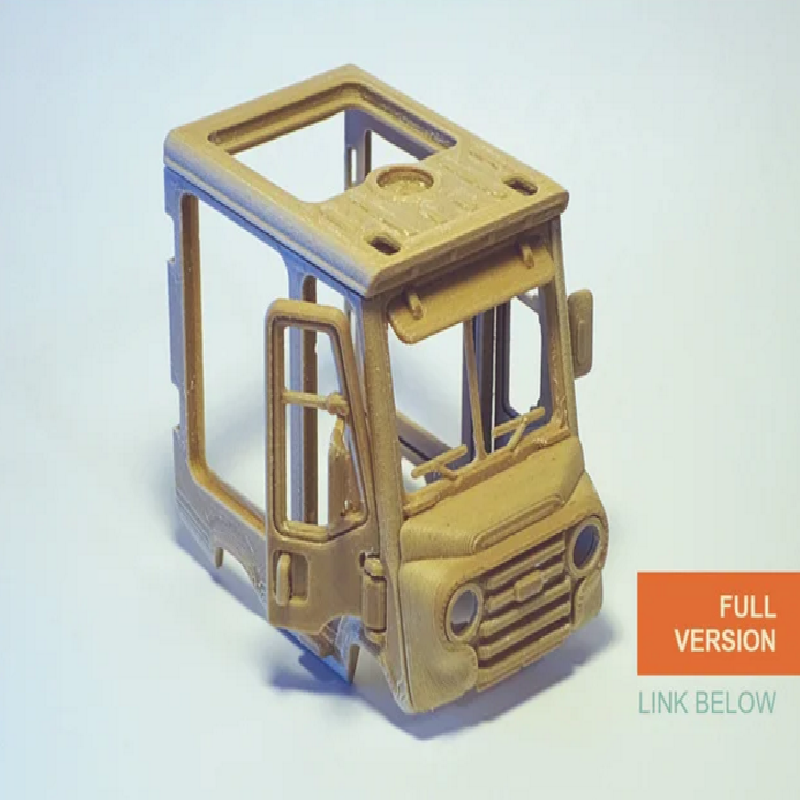

If you like this thing, you could support me by purchasing the full version
that has an interior and steering. Can be found here on Cults:
https://cults3d.com/en/3d-model/game/piggy-van

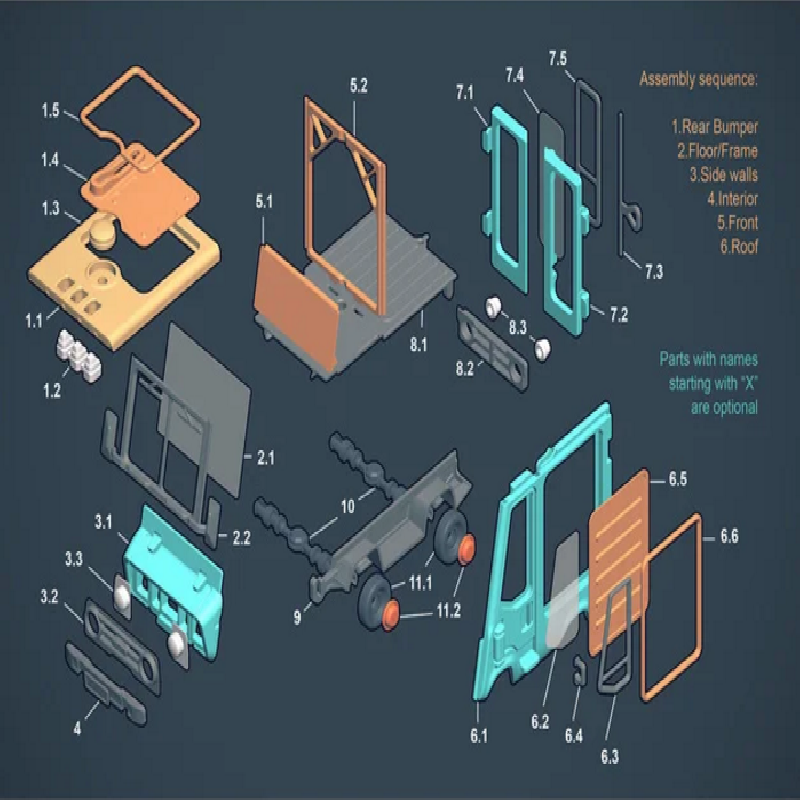

Explosion diagram in 3d viewer (Sketchfab):https://skfb.ly/6W9wB
10x10x6cm, 70g.
Print Settings
Printer brand:
Anet
Printer:
A8
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
15%
Filament_brand:
Bestfilament
Filament_color:
Sky Blue, Dark Grey, Creme
Filament_material:
PLA
Notes:
Designed to print well with 0.6 nozzle (wood filament friendly). Printed at 0.2 layer height. Used Cura's ironing to smooth out the surfaces. Don't forget to reduce the layer height if you plan to downscale it. Should print well at 50% scale with 0.3 nozzle at 0.1 layer height. Didn't test the assembly though - the gaps may become too small. Should print upscaled with no issues.
