by erwoong

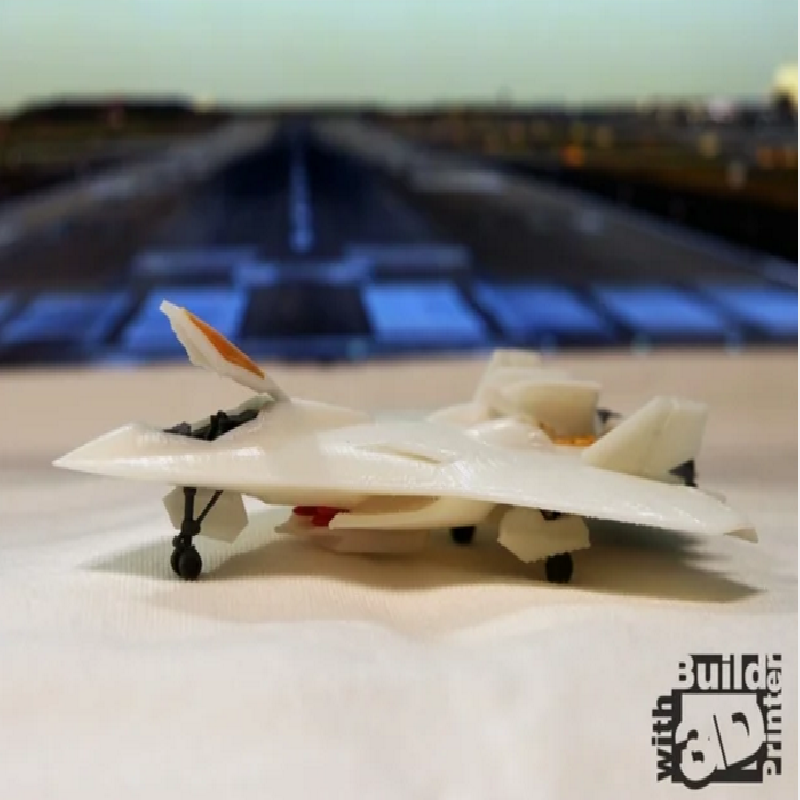

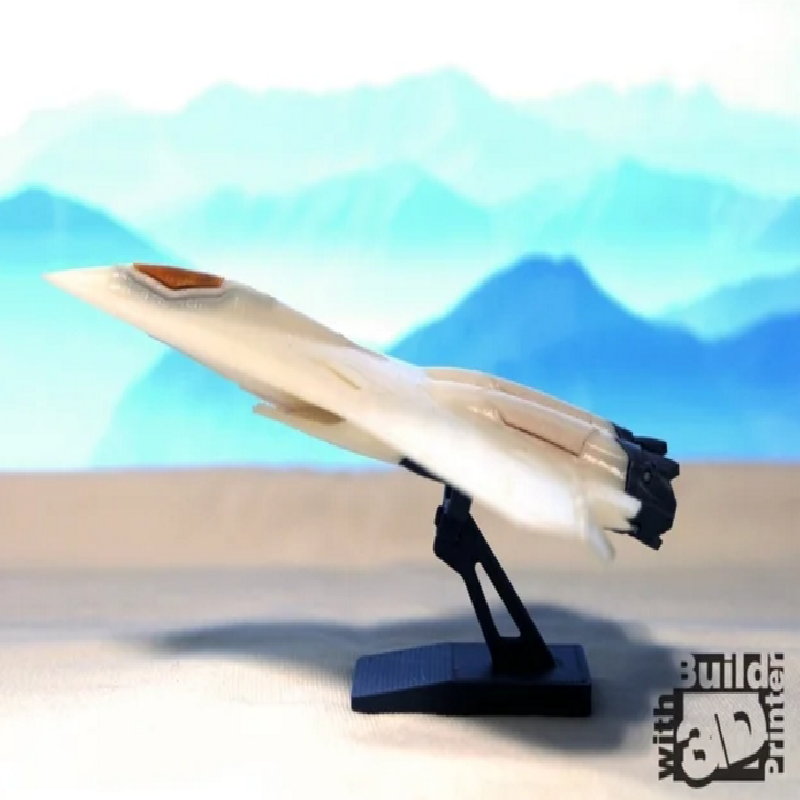

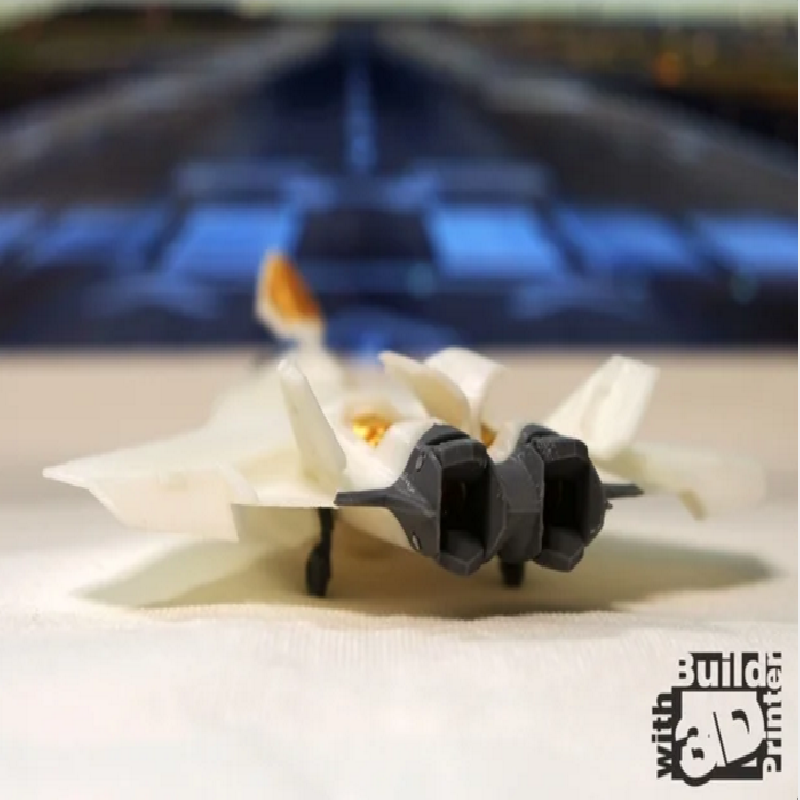

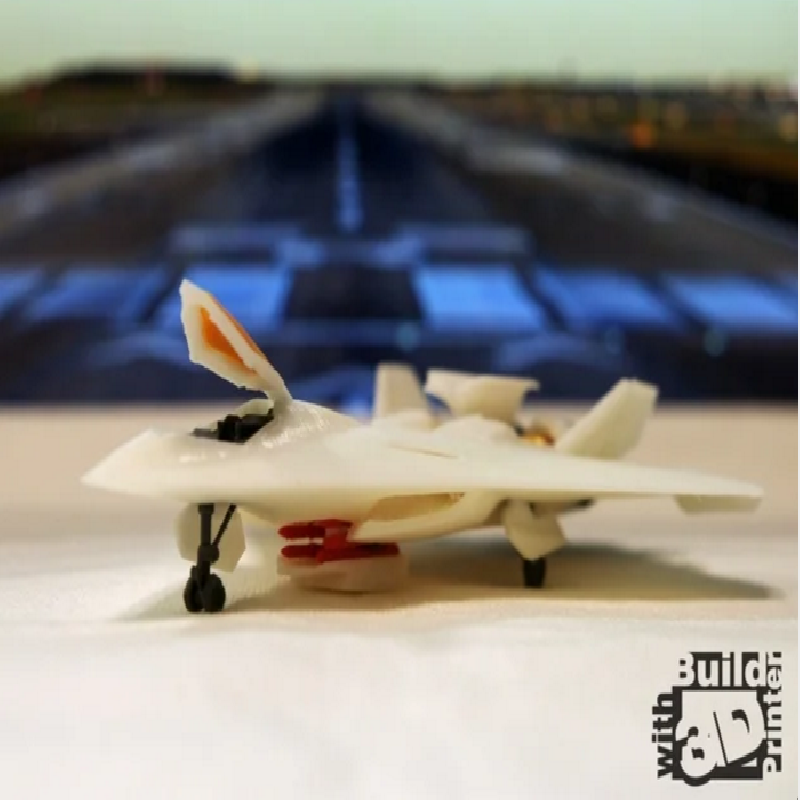

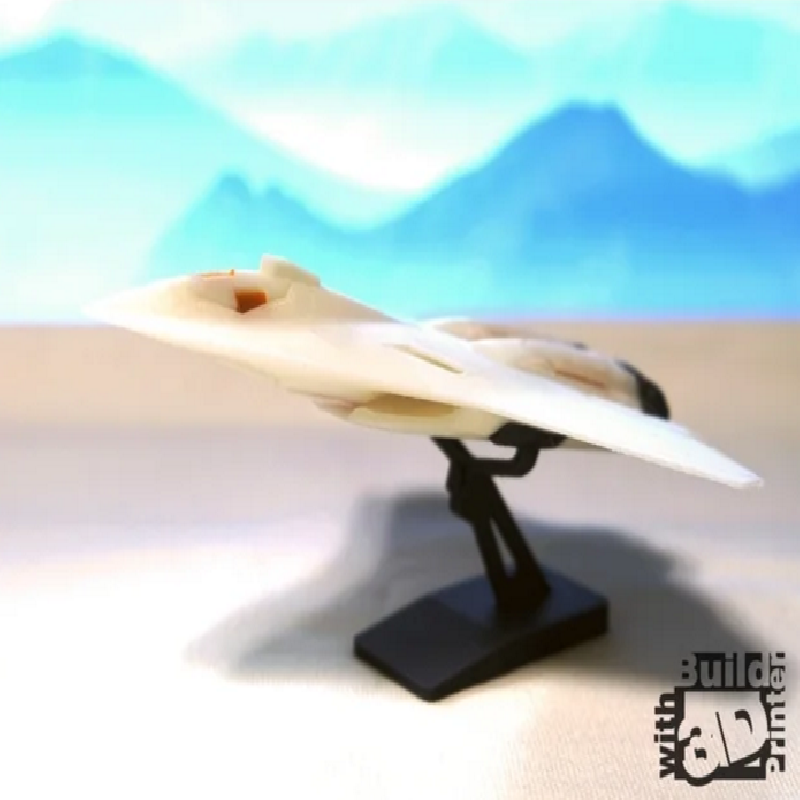

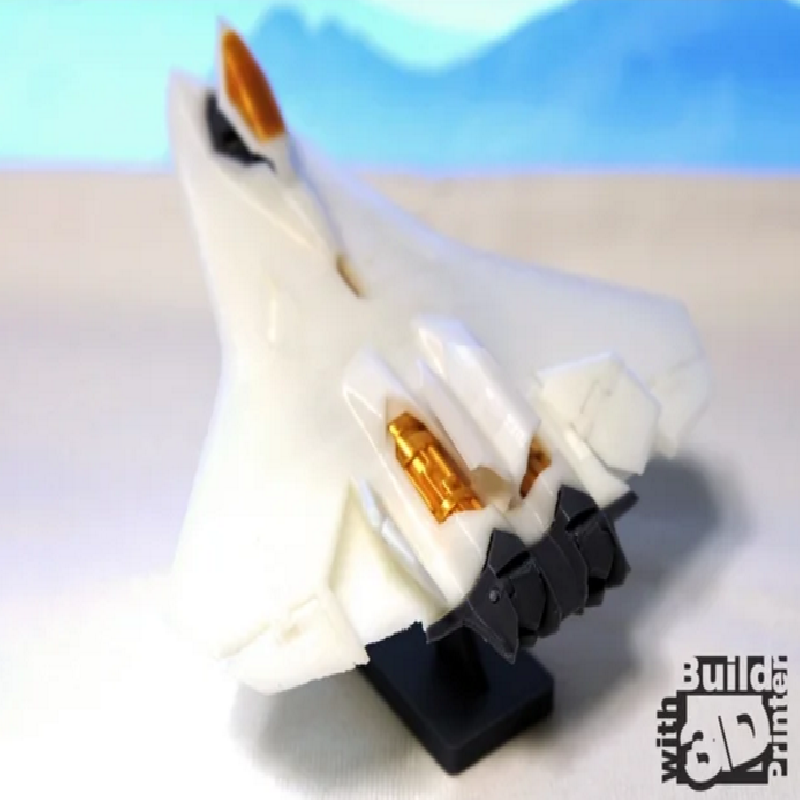

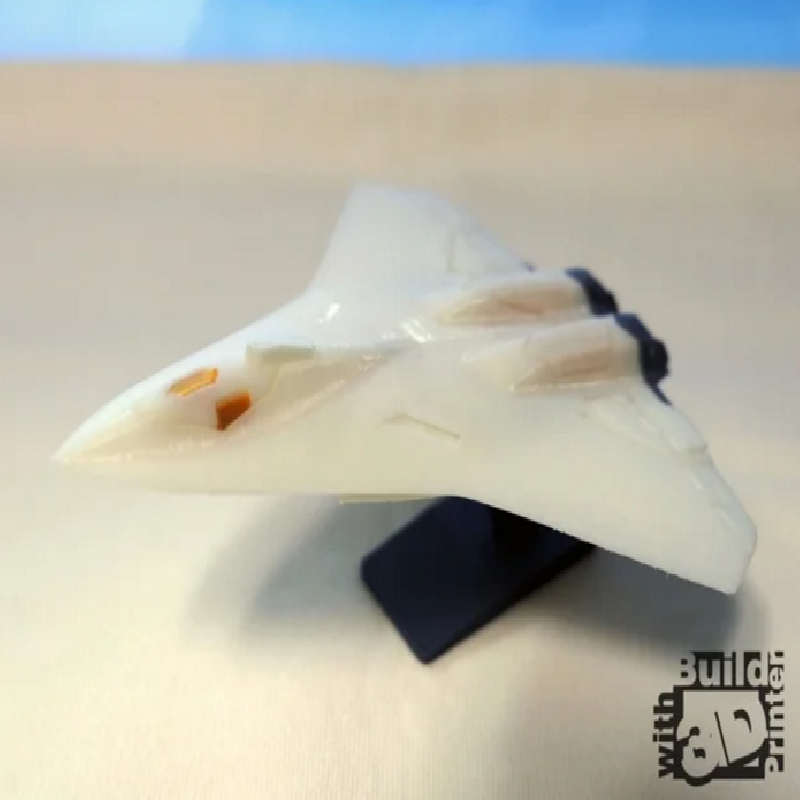

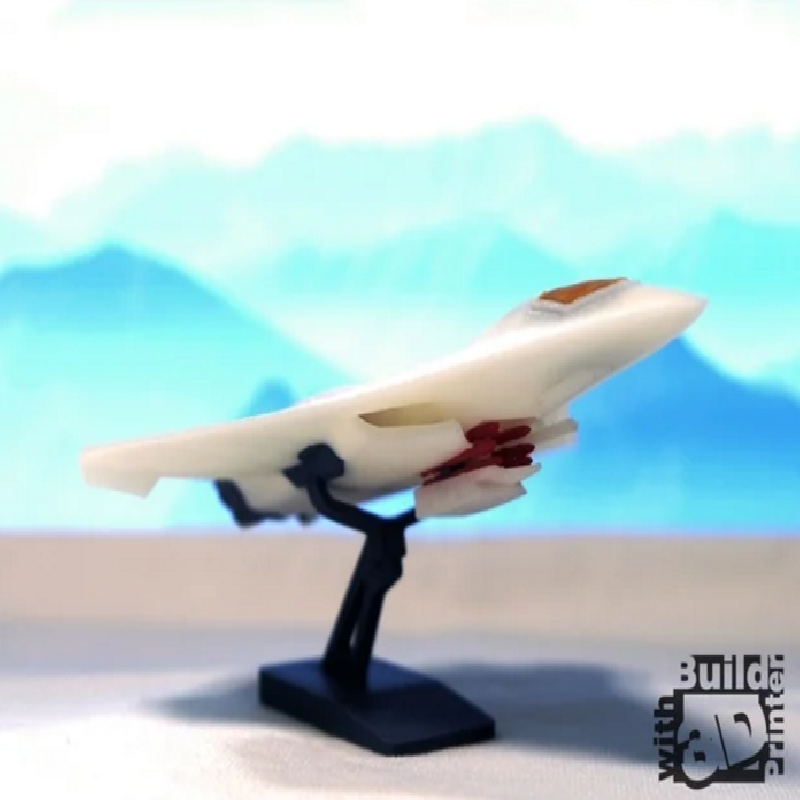

Printable Aircraft Model
Assembly is required.
Assemble instruction is in my youtube channel
https://youtu.be/_nTfZWFR-nE
The parts are designed and tested to fit each other, however the tolerance is depends on a 3d-printer's condition.
Please remove the supports completely. May need a sandpaper or cutter while assemble the parts.
Use a raw 1.75mm filament and super glue while assemble the parts.
Layer height:
0.10mm : All the Rest
0.18mm : Body, LandingGearCover, EngineCover.STL
Shell count: 3
Fill density:
15%~20%
Time to do: about 950 - 1100 minutes
Technology: FDM
Material: PLA
Dimensions: about 155mm x 140mm x 29mm
Material Quantity: about 95g
Print Settings
Printer brand:
FlashForge
Printer:
Adventurer 3
Rafts:
Yes
Supports:
Yes
Resolution:
0.18
Infill:
15%~20%
Filament_brand:
Polysmart
Filament_color:
White, Gray, Gold
Filament_material:
PLA
Notes:
Layer height: 0.10mm : All the Rest 0.18mm : Body, LandingGearCover*, Engine_Cover_*.STL Shell count: 3 Fill density: 15%~20% Time to do: about 950 - 1100 minutes Technology: FDM Material: PLA Dimensions: about 155mm x 140mm x 29mm Material Quantity: about 95g
