by BurnedChart3

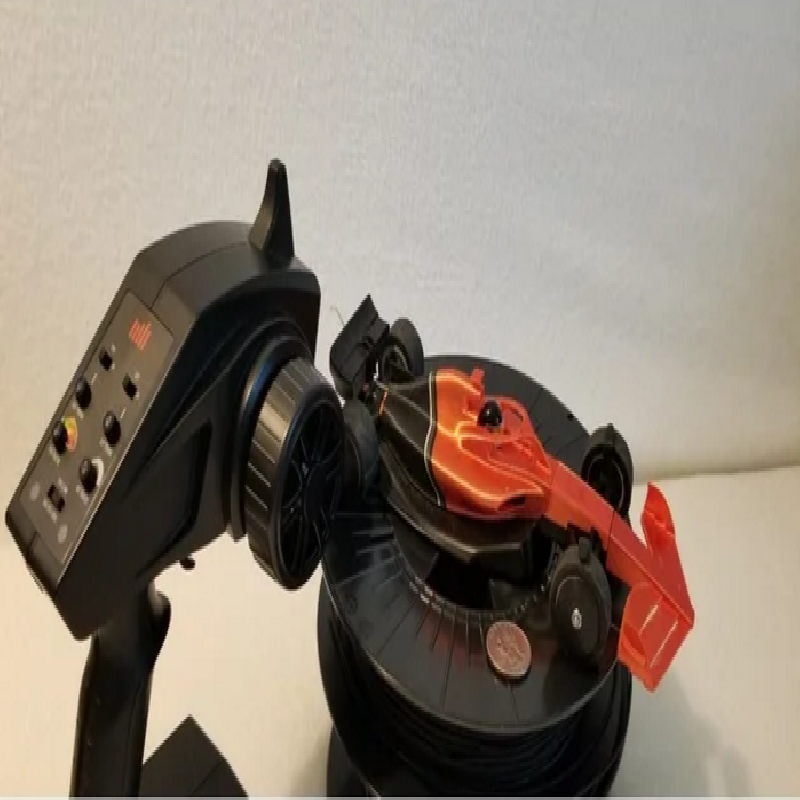

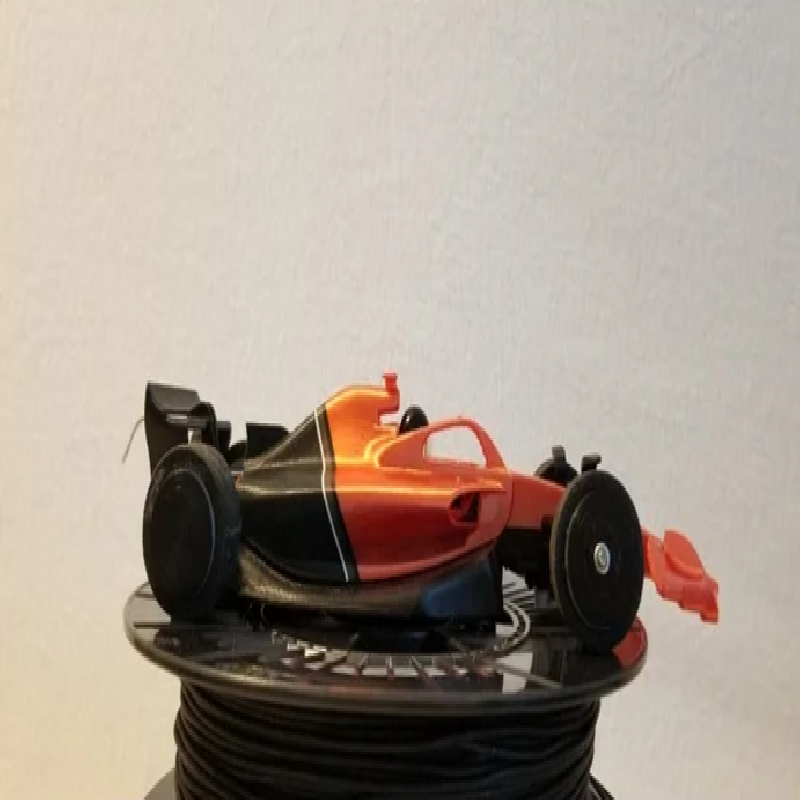

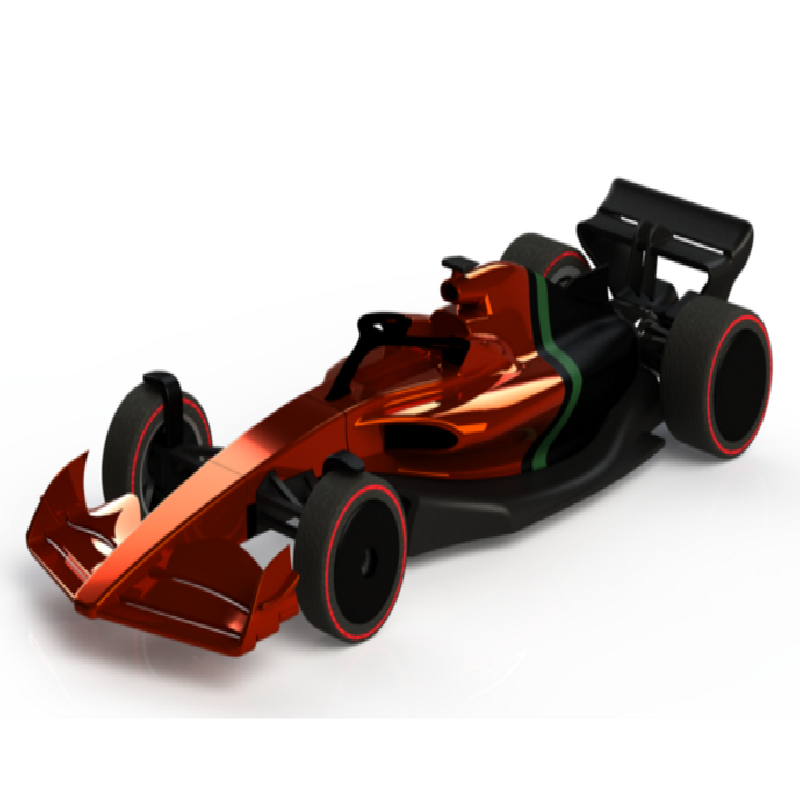

This is a 1:24 scale 2022 Formula One RC car. The car is based on the upcoming 2022 F1 Regulations but built as a small RC car. The model is my own design, not based on a particular teams car but I used the ascetics of the concept car the FIA previewed in 2019.

This model is mostly 3D printed however some of the parts are not. To make the car you will need:
1x m3 nut
1x m3 x 8mm
2x m3 x 10mm (cut off head) / cut m3 rod
2x m3 nylon locking nuts
2x #6 hex nuts
2x #6 hex kep nuts
2x #6 washers (optional)
1x 5/16 x 3" threaded rod
2x 1/4" OD x 1/2" long nylon spacer
2x 1/8" x 1/2" carbon/brass rod
1x 1/8" x 5/16" carbon/brass rod
1mm OD cable (steering linkage)
1x Tamyia JR G13 & 8T PINION GEAR SET
Superglue

You also need the following electronics:
1x Turnigy nano-tech 300mAh 2S 35~70C Lipo Pack
1x 130 type DC motor
1x 10 Amp Brushed ESC
1x Radio transmitter and receiver (I use a Spektrum STX2 radio and receiver system)
1x JST B2 female connector
1x Turnigy TGY-0025 Digital Nano Servo

These electronics parts are the one's that I use and that I've found to work the best. The RC receiver needed to be smaller, so I took it out of the plastic shell and trimmed the connectors down and soldered to the board. I haven't had any failures yet.

Print Settings

Printer brand:

Creality

Printer:

CR-10S

Rafts:

No

Supports:

Yes

Resolution:

High

Infill:

15% car and tires

Filament_brand:

General / Treed

Filament_color:

Any

Filament_material:

Pla / Treed Pneumatique

Notes:

The entire car can be printed out of PLA, except for the tires which should be made out of some flexible filament. I suggest Treed Pneumatique because it's made of recycled rubber but most likely any flexible filament will do.

Post-Printing
