by Minigeek55

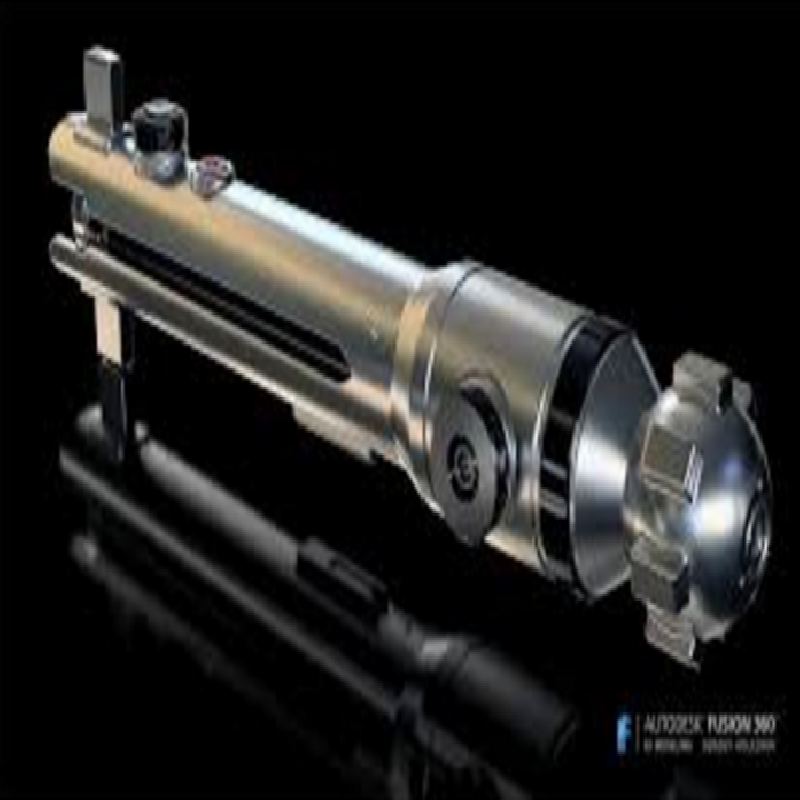

This Ahsoka lightsaber is designed to work with electronics and a blade to light up and make sounds. The saber unscrews from the pommel to allow you to change the batteries.
What you will need:
https://ultrasabers.com/product/fullsize-grab-bag-blades/
https://ultrasabers.com/product/4-aaa-battery-holder/
https://www.ledsupply.com/leds/cree-xlamp-xp-e2-color-high-power-led-star
https://www.ledsupply.com/led-optics/10048-carclo-lens-plain-tight-spot-led-optic
https://www.etsy.com/listing/575856594/lightsaber-soundboard-module-sabercore?ref=hp_rv-1&frs=1
https://www.etsy.com/listing/726648666/so-elite-28mm-2w3w-4ohm-full-range-bass?ref=hp_rv-2&bes=1
https://www.amazon.com/Hilitchi-200-Pcs-Tactile-Momentary-Assortment/dp/B071YPZ4G1/ref=pd_rhf_ee_p_img_11?_encoding=UTF8&psc=1&refRID=8C0NGCWYJ14271Q36K4J
what to do:
The speak fits in the pommel but do not glue(this is so the pommel can unscrew with messing with the wires).
The battery holder will need a jst connector to all you to take it out and change the batteries.
the blade sits in the main body about 2 inches down and you will need to drill a 8/32 hole for a 8/32 set screw to hold the blade. the led sits with the lenses right below the blade and should be flush with the blade.
the button will sit on the outside of the main body and then you will glue the on off stl to the button to turn the blade on and off.
Print Settings
Printer brand:
XYZprinting
Printer:
da Vinci 1.0 Pro 3in1
Rafts:
Doesn't Matter
Supports:
Yes
Infill:
50
