I wanted those warframe figures, but they were sold out, so i had an idea: "Why not try to make one?"
Having a 3D printer at my disposal, i looked upon a 3D model, then I downloaded the 3D model from Steam Workshop for tennogen development.
But that's not enough. A cool figure must have a cool pose to print, but which one? Well...that´s tough, what should i do?
Although i have little expertise in CAD software, I tried Fusion 360 to tinker with the 3D model, since i knew Blender wasn´t going to cut it.
About those figure thing, I had inspiration from my small collection of 1:6 scale Hot Toys figures, non-scale Amazing Yamaguchi Revoltech figures, and some old Master Grade Gundams i assembled back in 2006. With that in mind, i leaned towards the idea of making an articulated figure.
In Fusion, i started drawing, joints and tools, blew the dust off my Wacom, and started drawing the cuts to the mesh.
It is a lowpoly model, those used to create Tennogen skins. If you have expertise in 3D modelling, feel free to beef up the poly count.

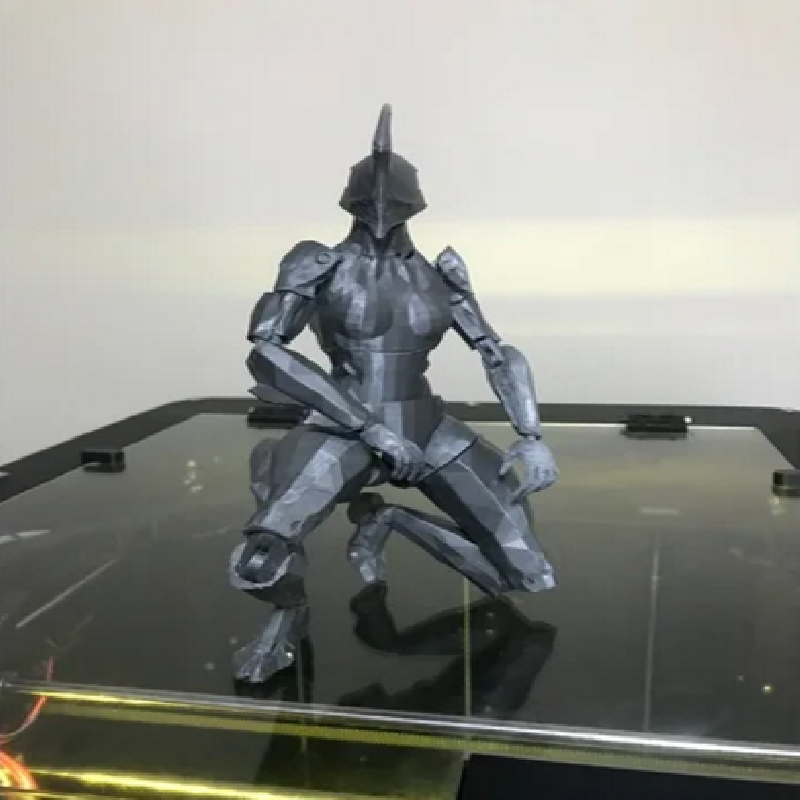

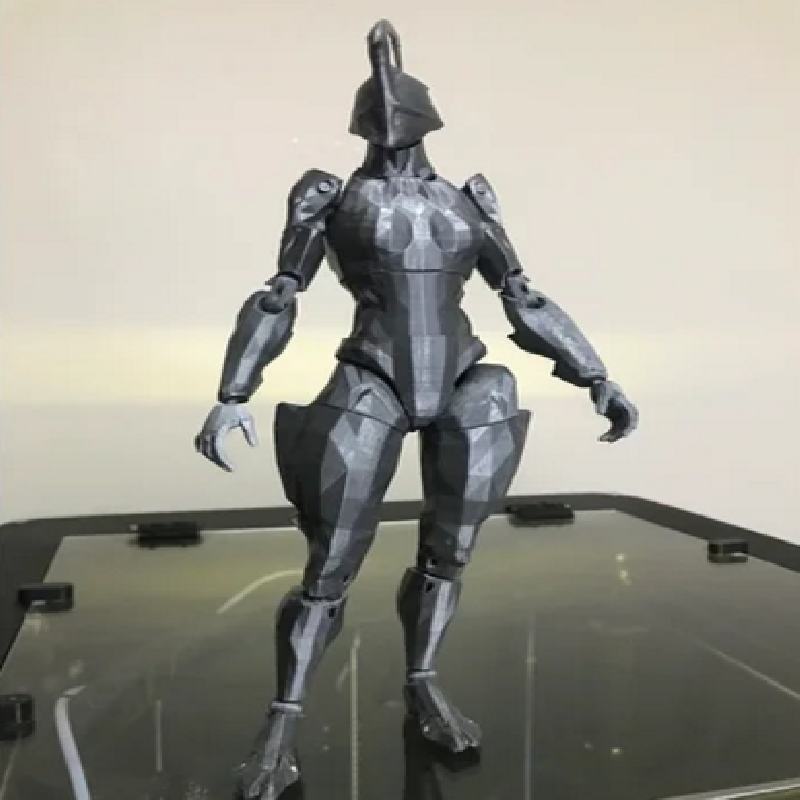

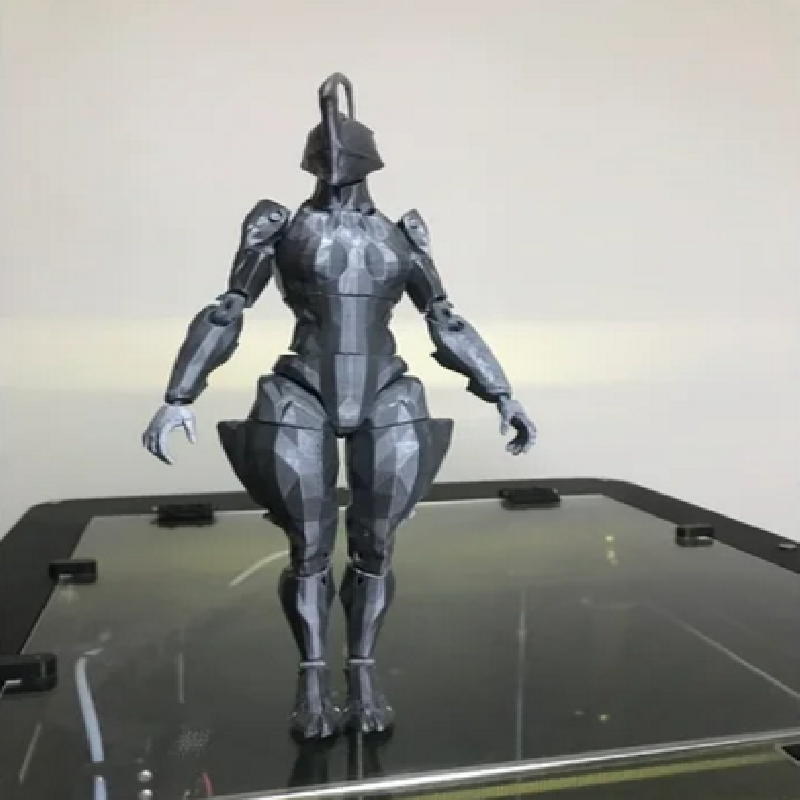

Features 38 points of articulation
Print Settings
Supports:
Yes
Resolution:
.10 ideal, .16 okayish
Infill:
25%
Notes:
Print an extra Ankle Joint to connect the waist axis and hip.
Post-Printing
After printing there still work to do
Some sanding is required, if you have a dremel at hand, it will be a walk in the park. the hands are not perfectly posed, so i used a lighter or soldering iron to bend the fingers around the nikana sword and sheath.
How I Designed This
Made with Fusion 360
I am not familiarized with CAD software, actually it is my very first project after some youtube tutorials.
