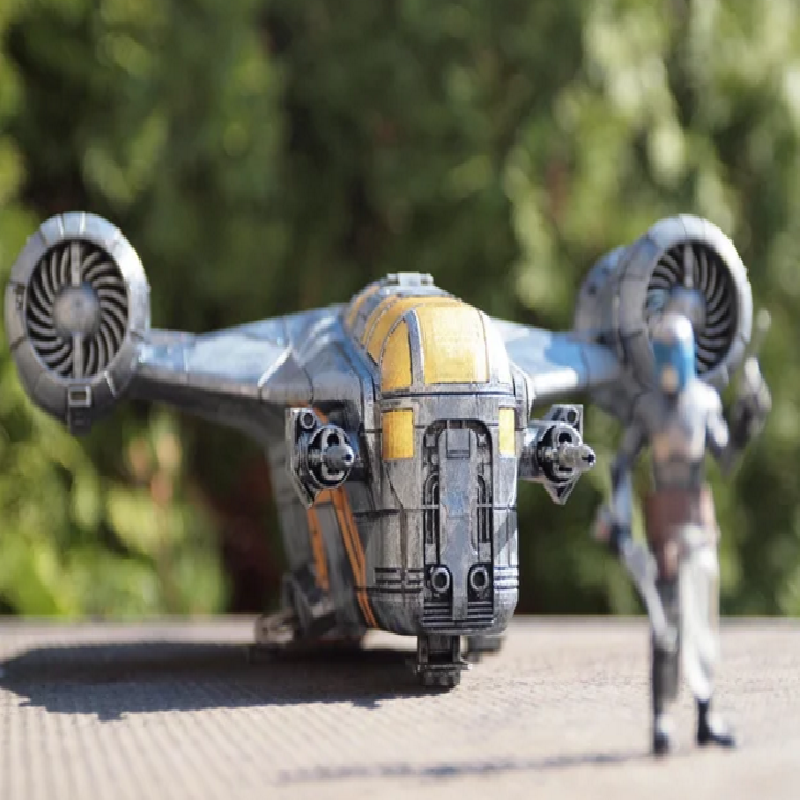

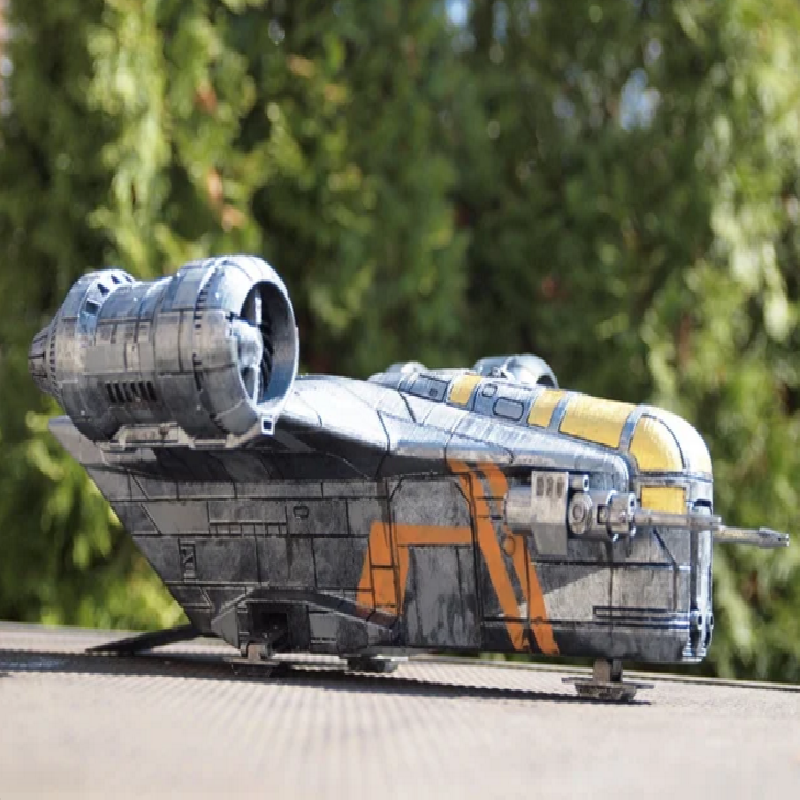

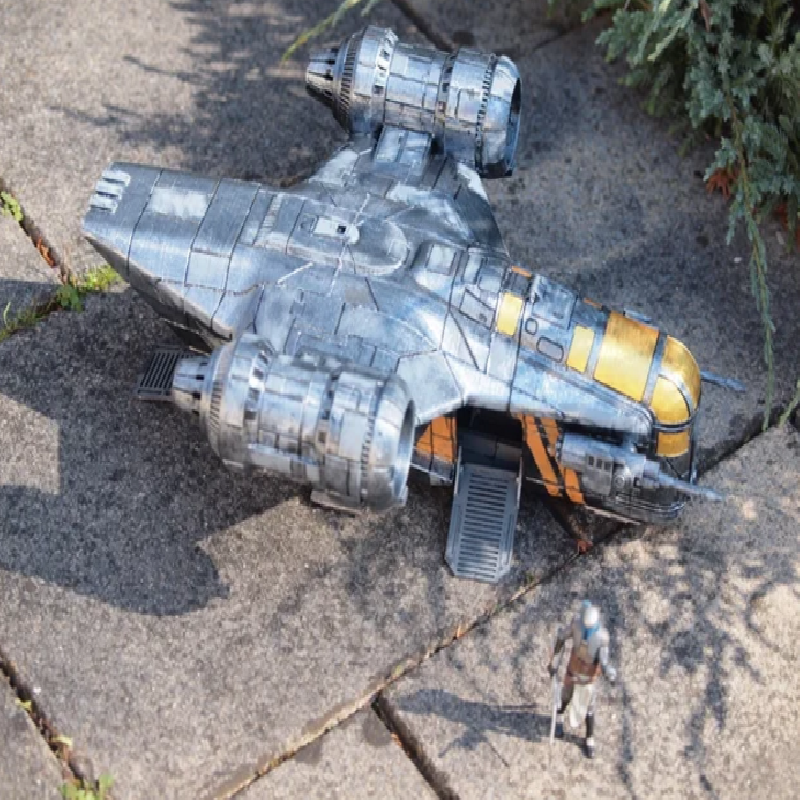

This is a Fan sculpt of the Razor Crest from the series "The Mandalorian"

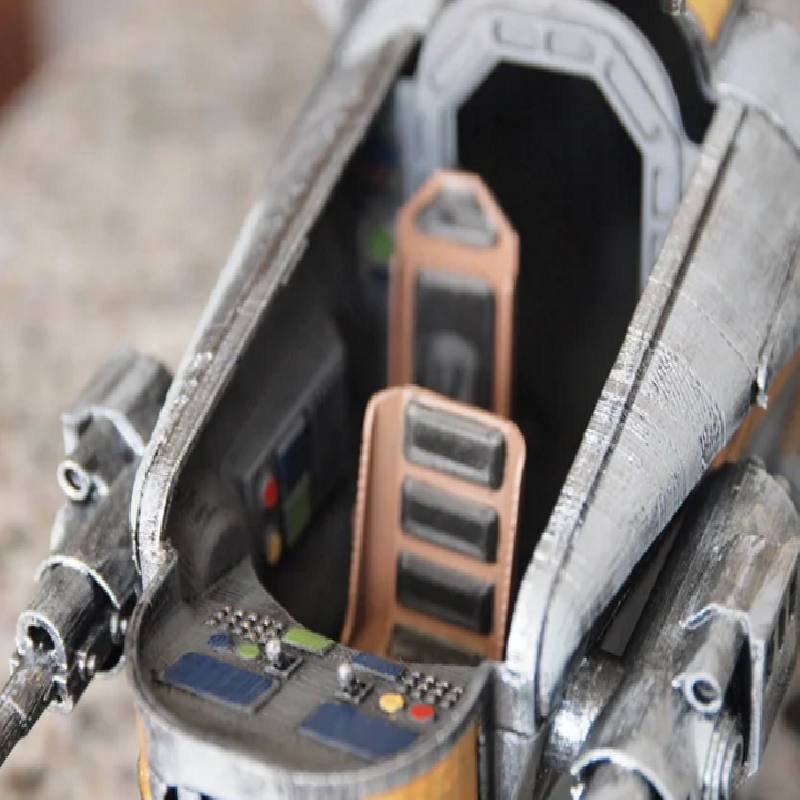

It comes complete with a detailed cockpit, retractable landing gear and opening front hatches and back door and a opening cockpit.

When printed in 100% it has the perfect scale for star wars legions while I added a cockpit for hasbro 3.75inch/10cm action figures. So if you are tired of waiting for hasbro labs to bring a modell print this thing and save yourself the 300+ bucks it would cost anyway.

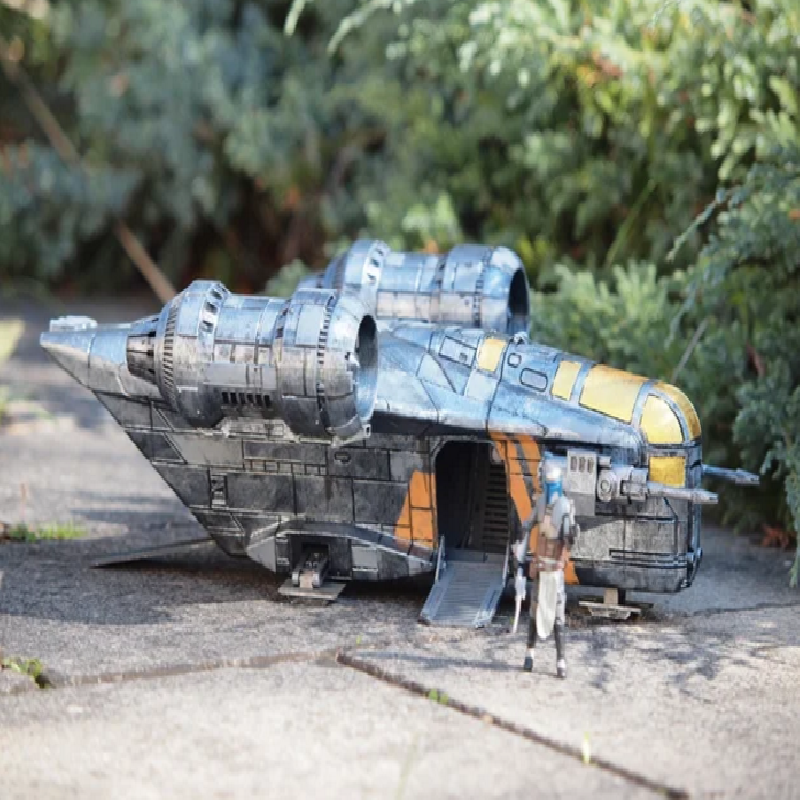

I tried to be as screen accurate as possible using Fotos and watching the series. In two points I made changes: First the side doors had to be bigger to fit for hasbro action figures while keeping the modell at a reasonable scale which can be printed on a common 20x20x20cm printer.
Second I wanted the Landing gear to be retractable and therefore made it a little simpler.

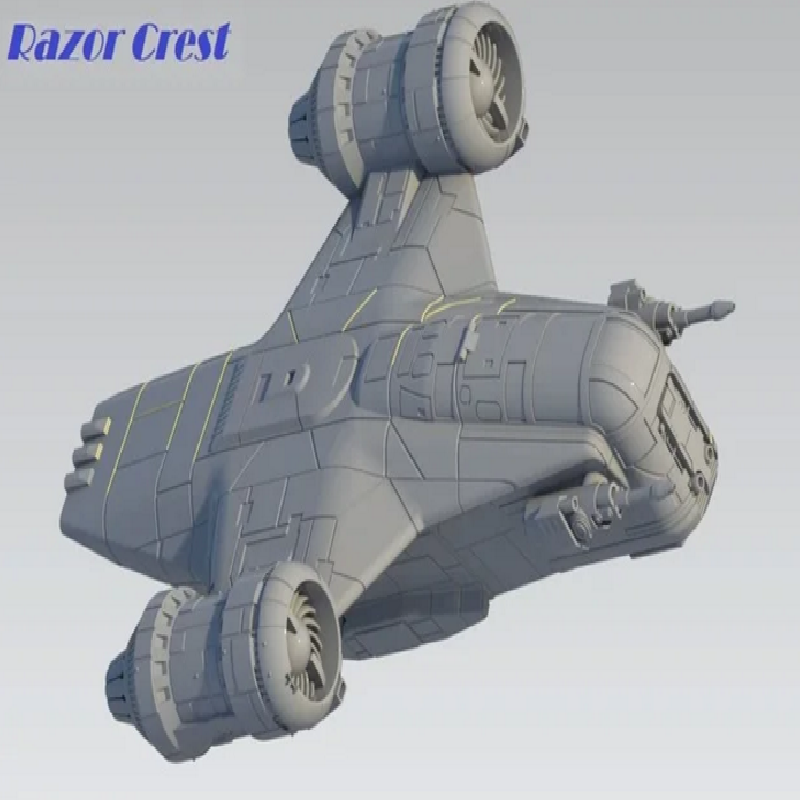

Some words in own interest: To model the ship in 3D was no easy task, in the CAD program it has over 1000 features and many time and effort was put in it.
So please leave a like if you enjoy the photos, leave a make (and also a like) when you download and print it and consider tipping me when you print the ship. Comments are also highly welcome, if its praise or recommendations for changes.

Printing Instructions:

Nearly all parts can be easily printed without supports. Only exception is the Main body front, put the overhang angle to 70% so you don´t need to much support material. 10% infill is suitable for all parts, I recommend minimum 0.8mm wall thickness. All main parts should be printed vertically in or against flight direction. You can also print the canopy vertically if you have a good adhension to the print bed, but i recommend to set the build plate adhension type in Curamaker to "brim"

All parts with a 2x or 4x in the name have to be printed that often (2 times or 4 times), the part "positioner" is needed 8 times if you want to use all of them which I recommend for easy assembly. (The red parts in the assembly instruction picture.

The 7 main parts take 8 to 14 hours for each to print, the whole printing time for all the parts is approximately 100 hours. (100% size)

If you print it in 150% (if you have a big enough printer) it also fits the 6" action figures from hasbro. Excetp of the landing gear it could be sized down to 50%, the LG may also work but I´m not sure about that.

Building instructions:

You need some 1mm wire (for example a paper clip or a thin nail) and some dymo magnets, best 9mm diameter and 3mm high which fixes the back landing gear and the doors in place.

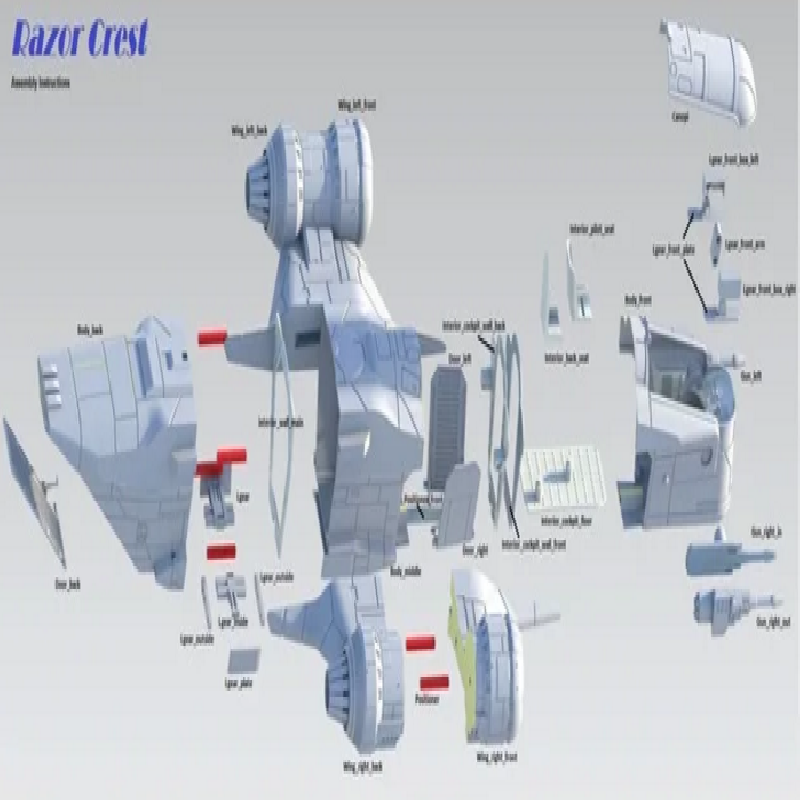

See the building instructions picture for assembly. You need to place pieces of wire in the small holes on top of the two side doors and the back door, dymos come into the two round holes of the cockpit wall back, the right hole on the inside of the main body back and in the middle parts of the landing gear in the small pockets. Be sure that these two magnets attract each other! You also need a little piece of wire as the joint of the cockpit canopy. The rest of the assembly is pretty straightforward, first assemble the landing gears, then place them in the hull, build the cockpit and place it in the front part, add the wall in the main body middle, assemble the two wings and finaly assemble all the main parts. When using PLA a normal revell glue should be enough.
