just a remixed version to press fit the dagger together.
everything is sized to fit on the ender 3 baseplate, with some finagling on your part.

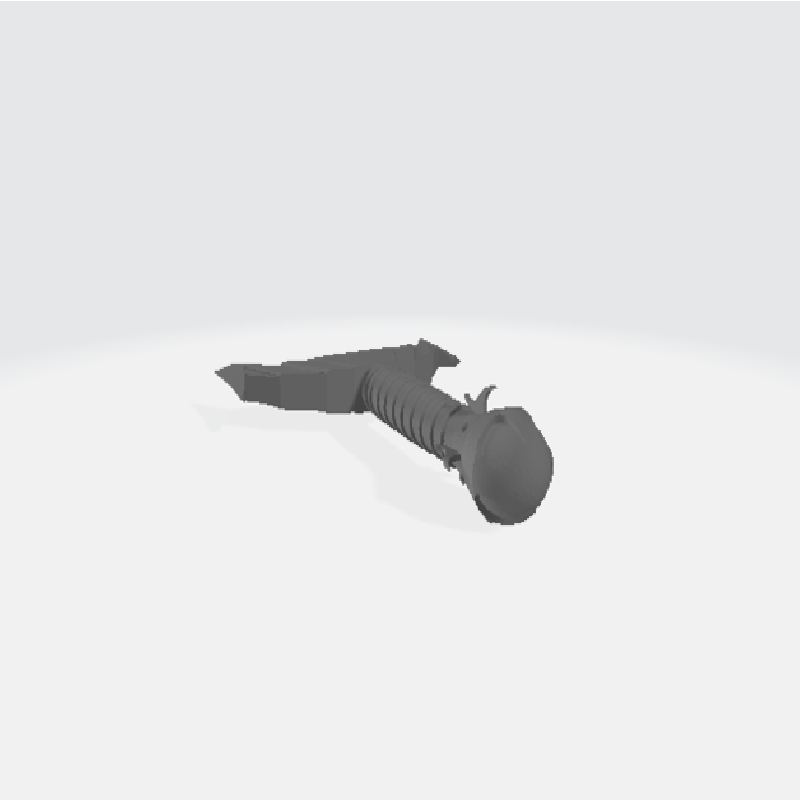

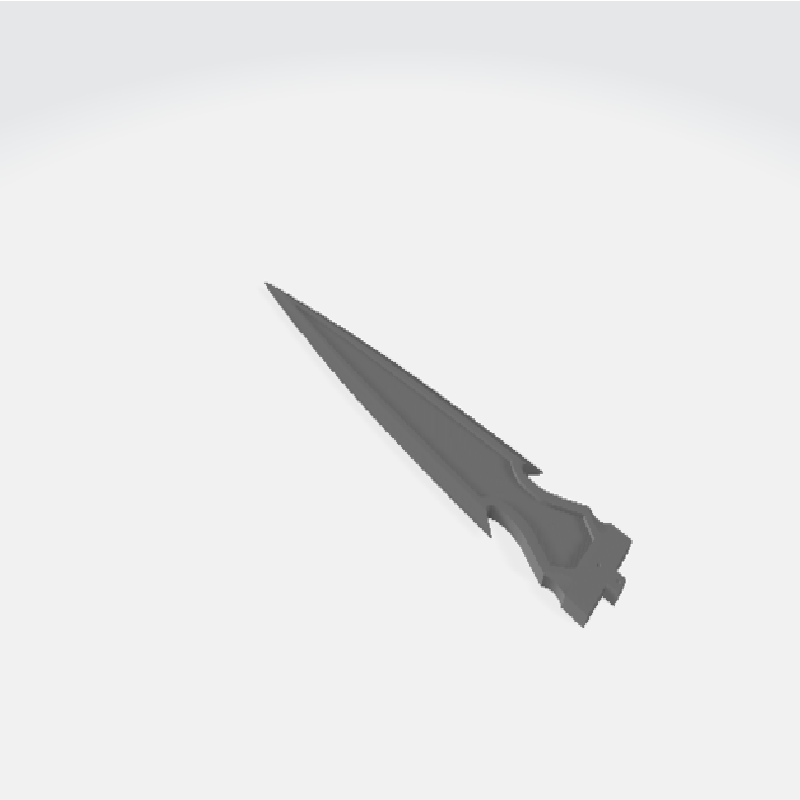

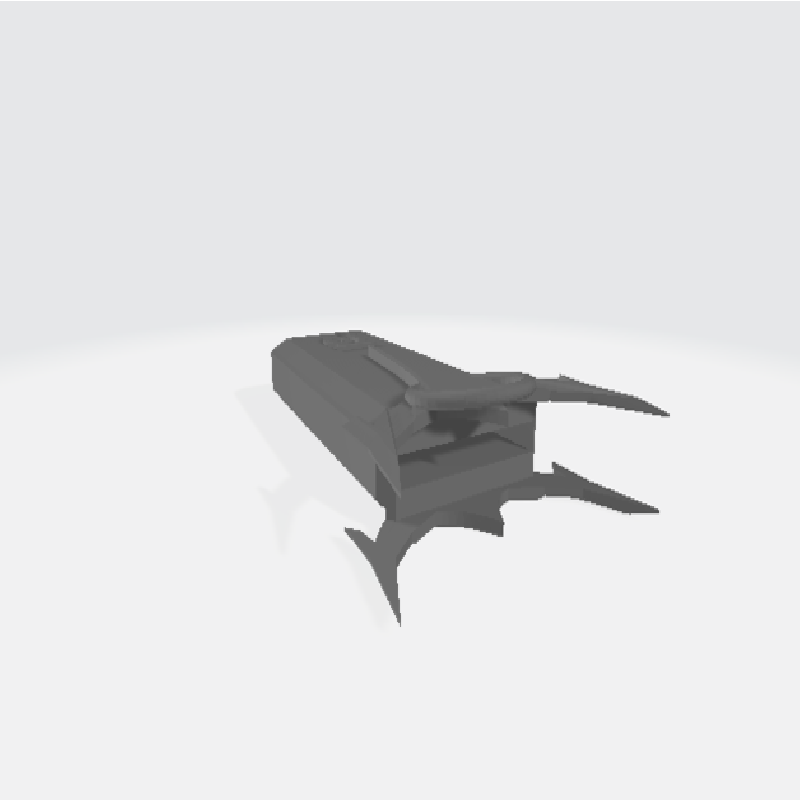

the holes in the sword and hilt are for small pieces of filament to be pushed through, and the the end melted.

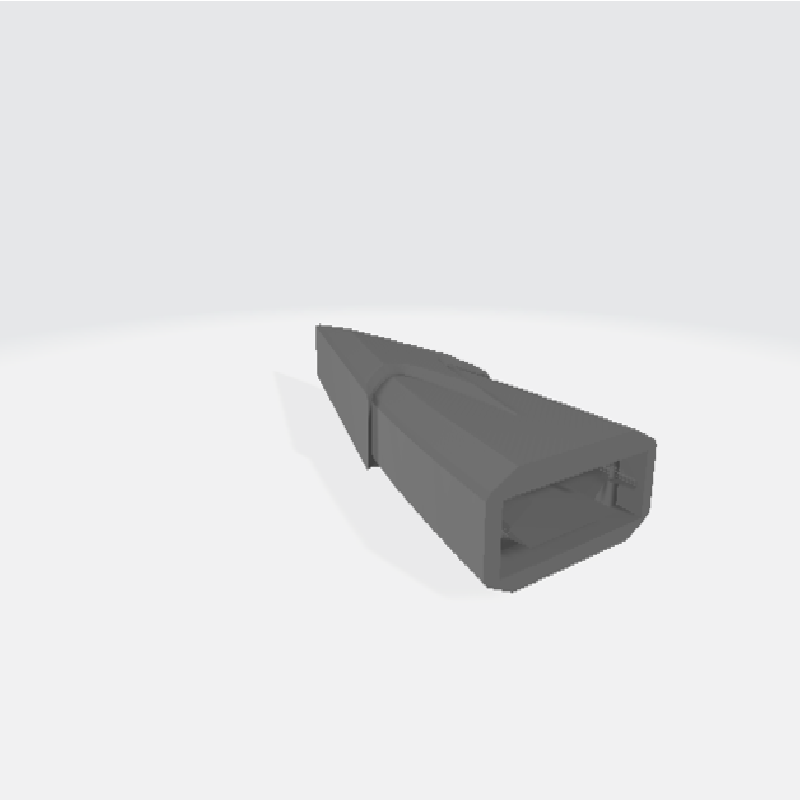

recommended that the scabbard be printed vertical, because when it is printed horizontal i got a wavy layer, and couldnt quite fit the blade it without force.
with supports, there will be some roughness in places. orient it to minimize where that roughness will appear, or to inconsequential areas
perhaps later i will change the hilt to be able to print the little bits in various colours
original files are in there as well.
My changes are labeled press fit and one piece
Rafts:
Yes
Supports:
Yes
Resolution:
.2
Infill:
20
Filament: Ltone pla
Notes:
i printed the hilt and blade together, the blade at corner to corner, and about 40 degrees to the plate, with the handle flat underneath it. ill upload my make pictures to show more on the idea.
raft size was .7mm, or there abouts, with tree supports.
be very careful when removing the supports, especially around the pommel, the little wings on the edge shear off easily.
it took me about 3 hours to cut away all the support, carefully, to not lose the small bits.
probably take less time with a dremmel or similar cutter.
scabbard i recommend a flat emery board to make sure it closes to as tight as possible.
altogether took about 40 hours of printing.
