by PhunXter

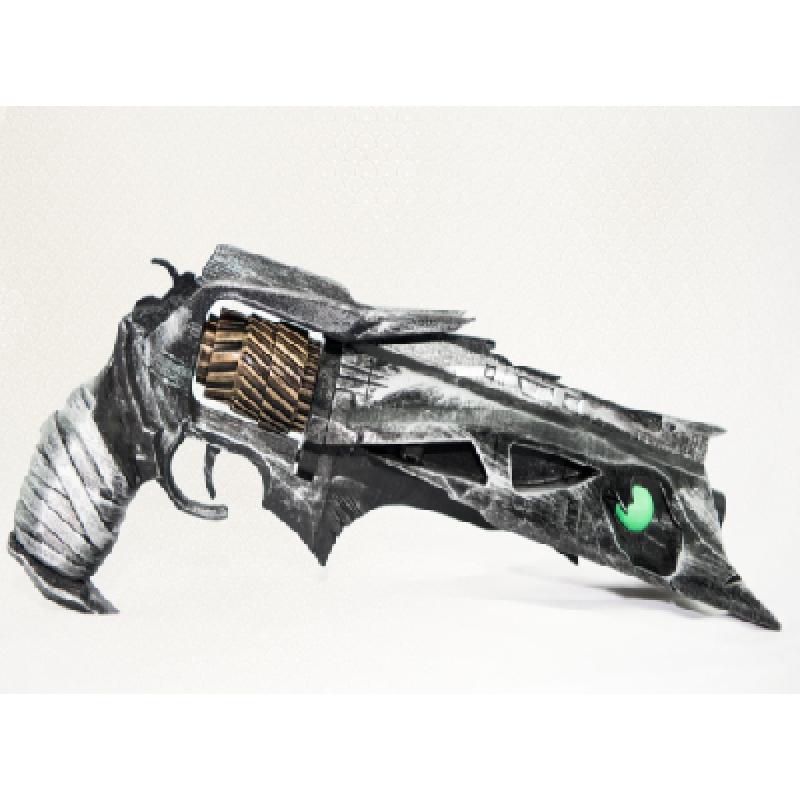

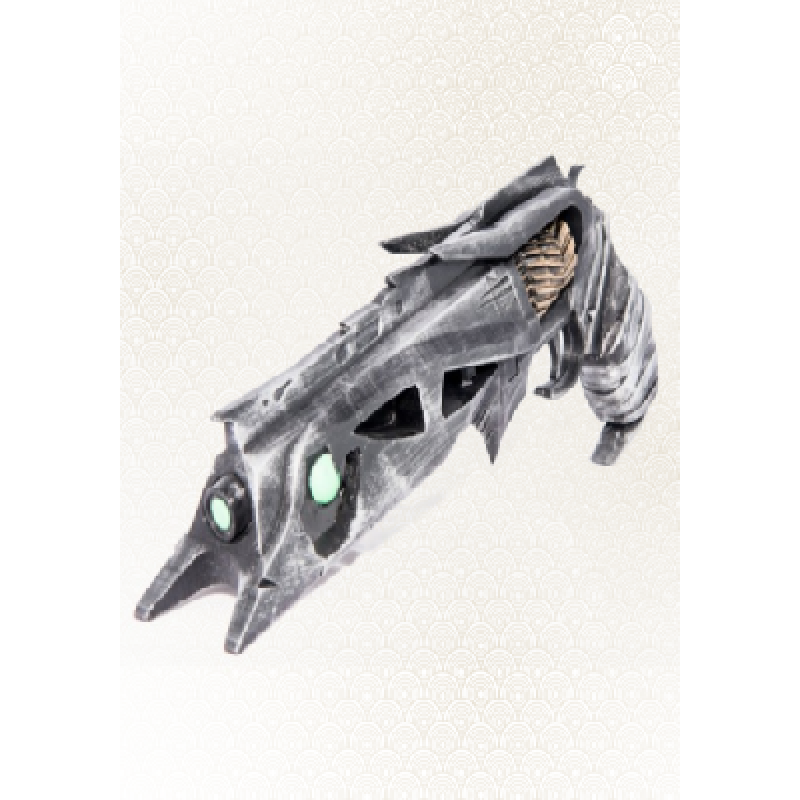

Destiny - Thorn Pistol V1.5c (Full size)

Fully working part trigger and barrel eject .Also includes a battery door for adding illumination to the model

The most detailed Thorn pistol available for 3D printing without having to spend £xx for the use of the the .stl's

This is a work in progress and updates will be posted as i complete them.

Some of the parts may need a little fettling for them to fit properly straight from the printer, so i am working on refining the whole model so as it is easier to print and assemble. I am also adding detail to parts that need it. (V3 parts will be the latest i have updated) Some parts still on revision V1 or V2

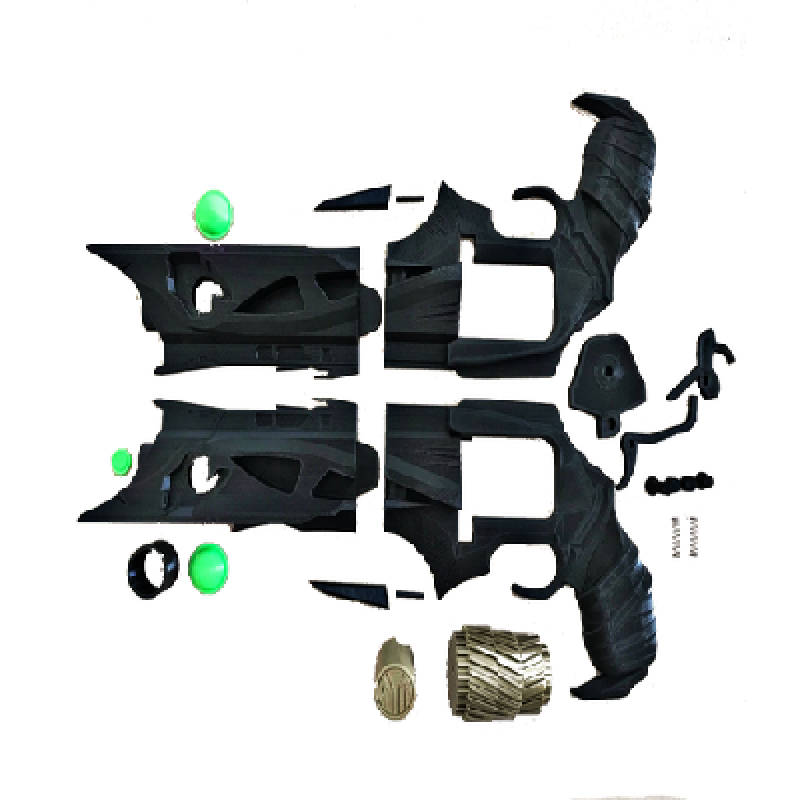

Main sections of the pistol are developed with dovetail joints so that they'll really stay secure once the whole pistol is together

Any questions or tips or pointers or whatever, just communicate your thoughts please

Printer Used : Ender 3
Supports: Yes
Resolution: 0.2 - 0.28
Infil: 20% for all of the parts except Thorn_Pivots 60% for some added strength

The only additional items that are needed are
-: A small spring, the type you get in biro pens so they are easily obtained.
-: M3 20mm bolts (Next job is working on some PLA pivots to remove the need for these),
-: 4x 5mm long screws for the battery box door
