by Bandido

A toy plane version of one of my favorite jets, the mighty Saab Viggen from Sweden.
A short takeoff and landing beast, with some unique features and capabilities, my job was just to make it cute.
https://en.wikipedia.org/wiki/Saab_37_Viggen

Please read the printing notes below.

Print Settings

Printer Brand:

Anet

Printer:

A8

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0.1 mm

Filament:                                            Velleman PLA                                        White

Notes:

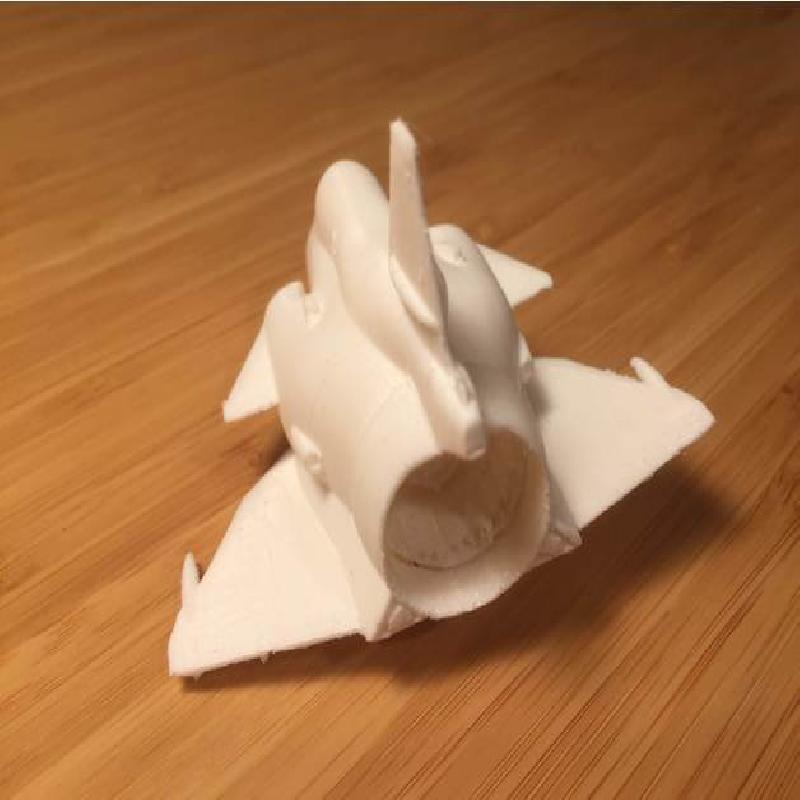

This model poses some problems when printing, because the best position on the table (nose up, 80 degrees) generated supports deep inside the engine exhaust.
This made it hard to remove all the bits of support plastic (I'm printing single-material) and destroyed the detail inside.
So now the nozzle is a separate part. Just slice and print the file in the layout it is presented, then glue the finished nozzle in place.
Important to ensure a correct geometry: enable the "Union Overlapping Volumes" in the "Mesh Fixes" pane in CURA.
For best adhesion, use a brim (I use 8 mm).

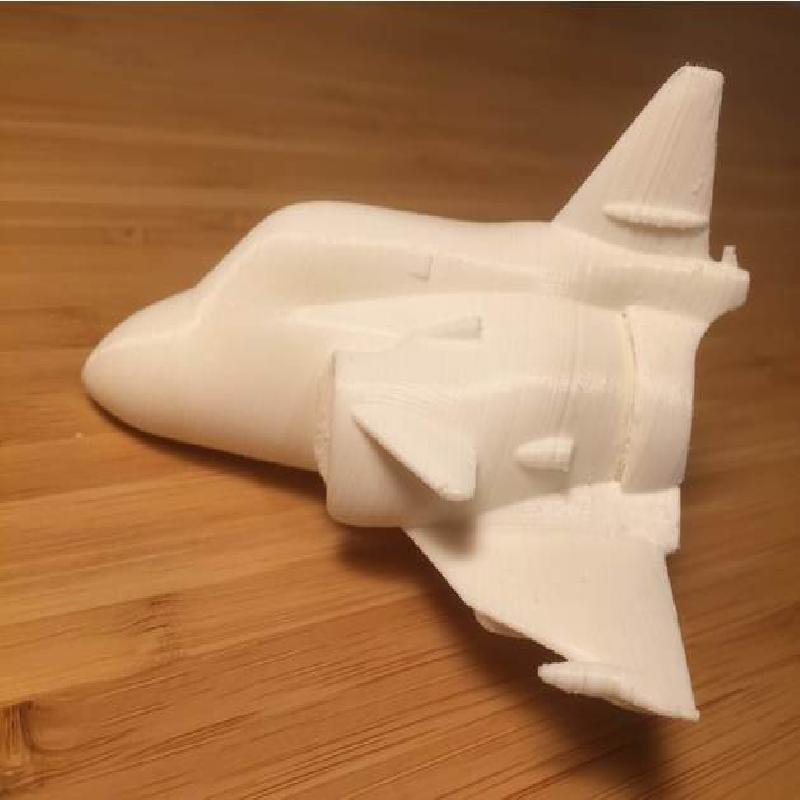

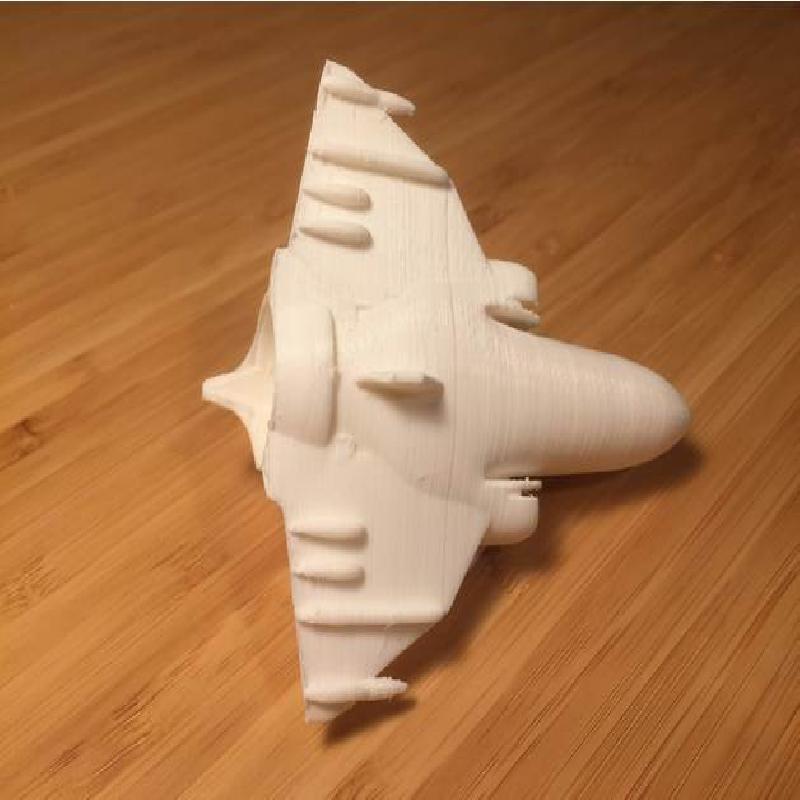

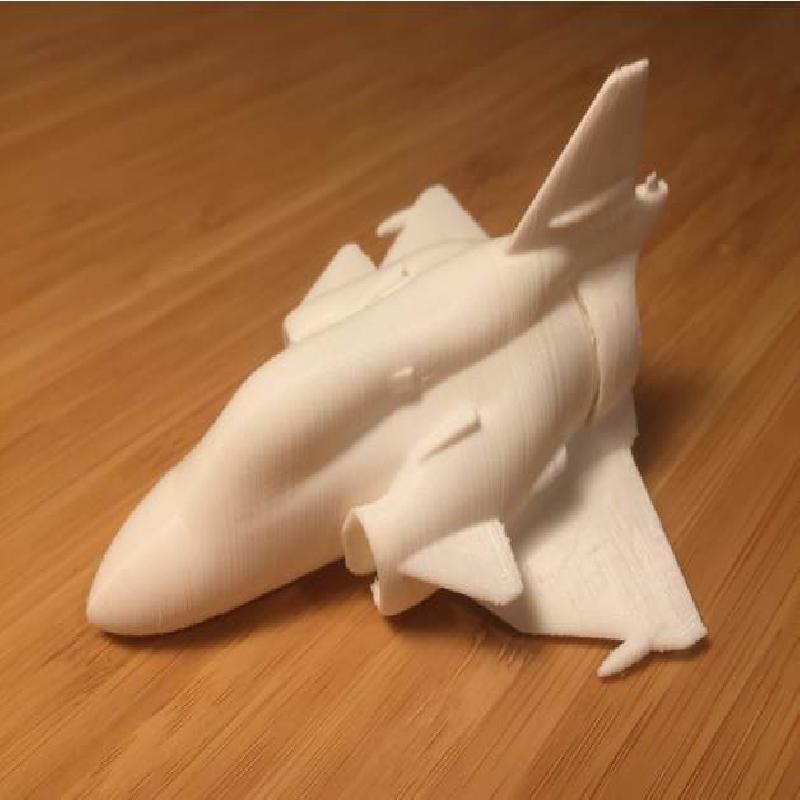

Model in photos is 85 mm long.
