Ciao a tutti,
Hallo everybody,
THIS WORK IS IN PROGRESS
I will try the Flying wing on air as soon as possible. I will let you know
Respect the parts uploaded I've already done some changes. As soon I will printed and tried their I will upload.
The changes are:

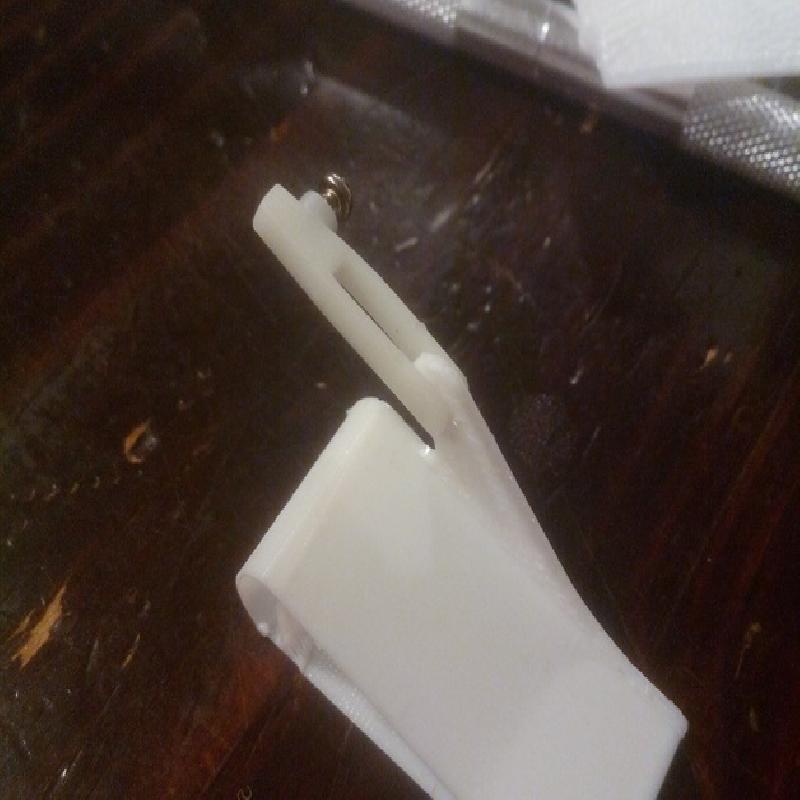

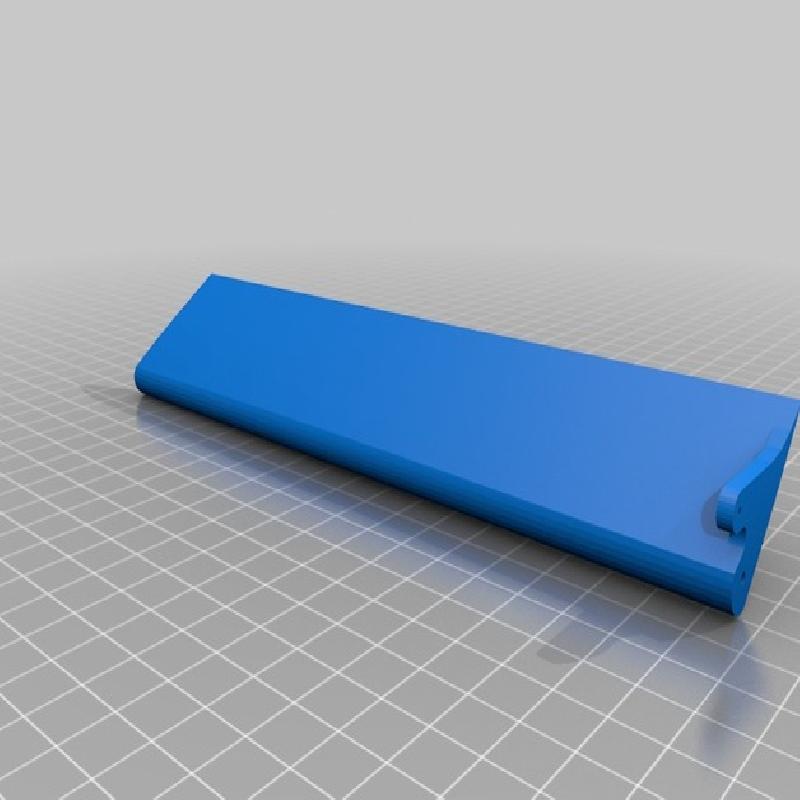

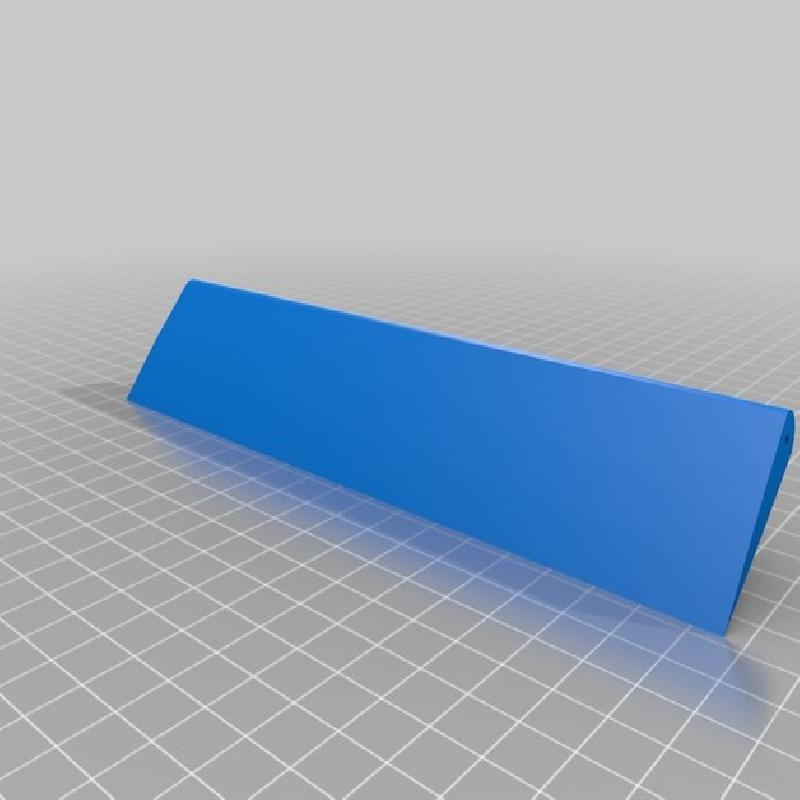

modified aileron to accept the commercial still rod 1mm for servo connection

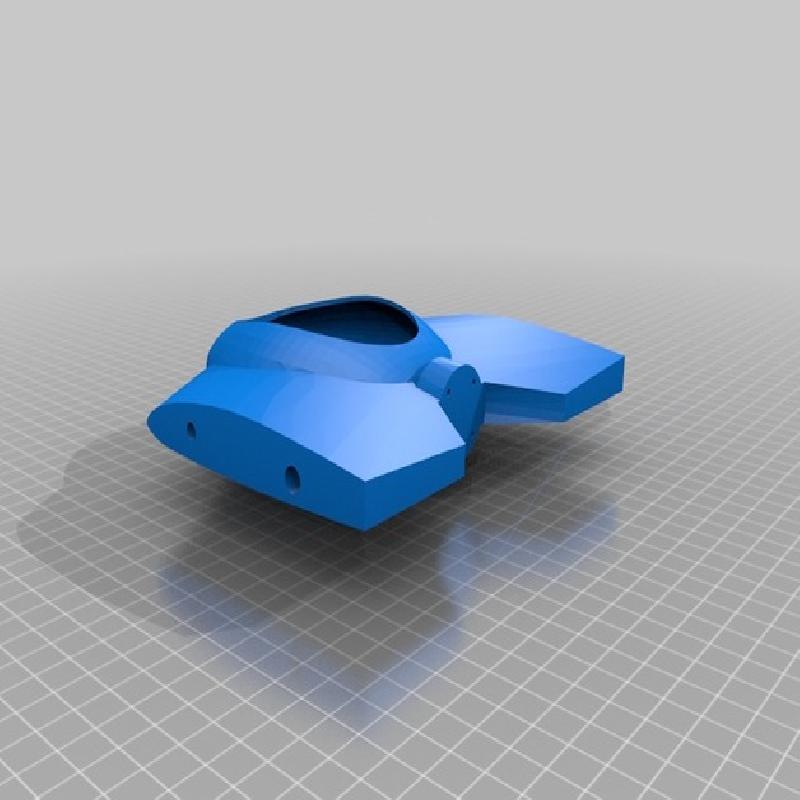

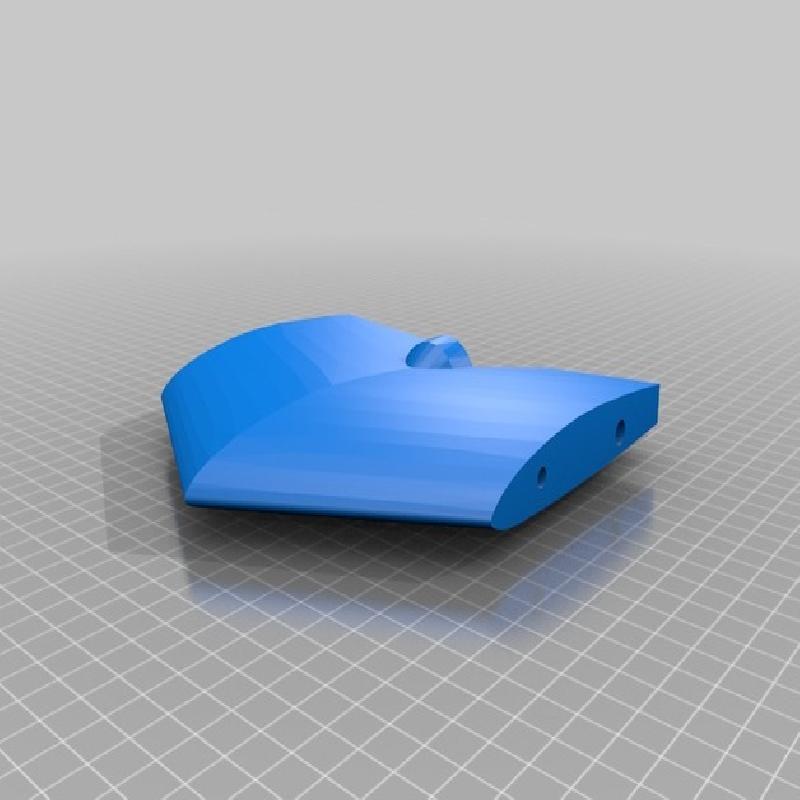

modified the central part to add the vane for the electronics

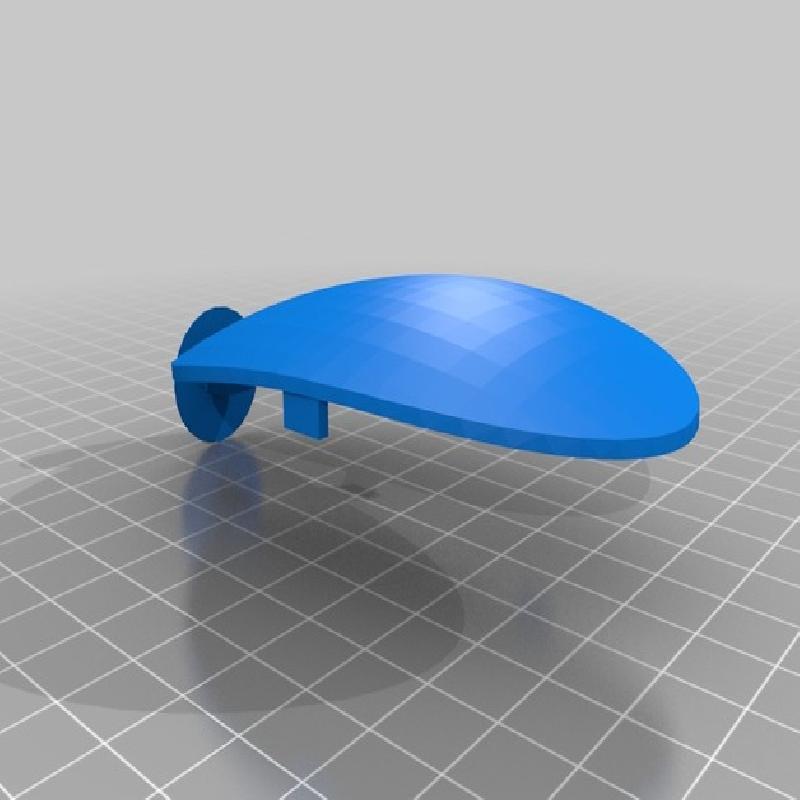

added vain and canopy

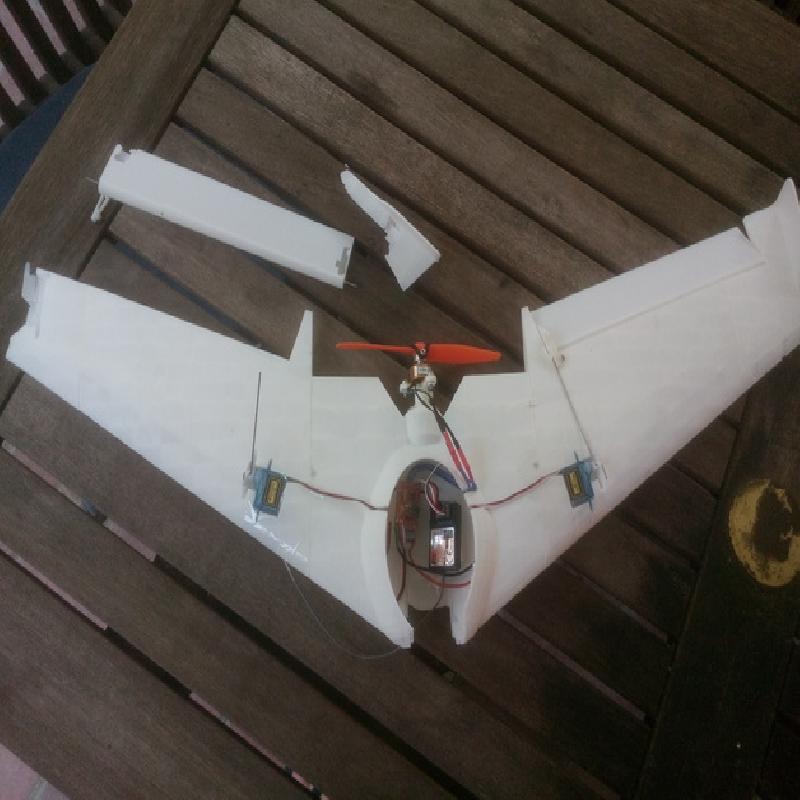

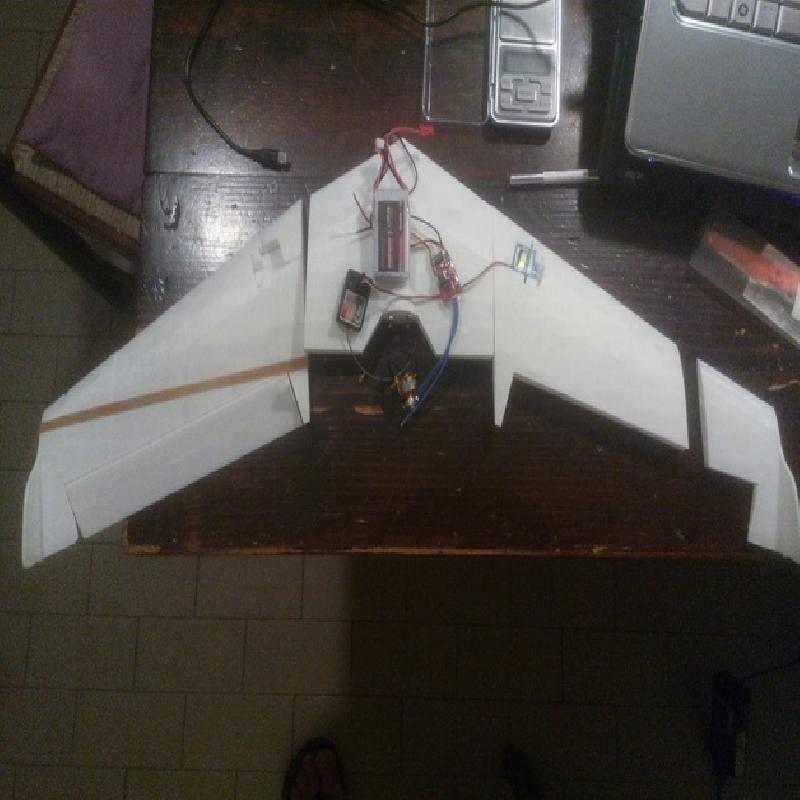

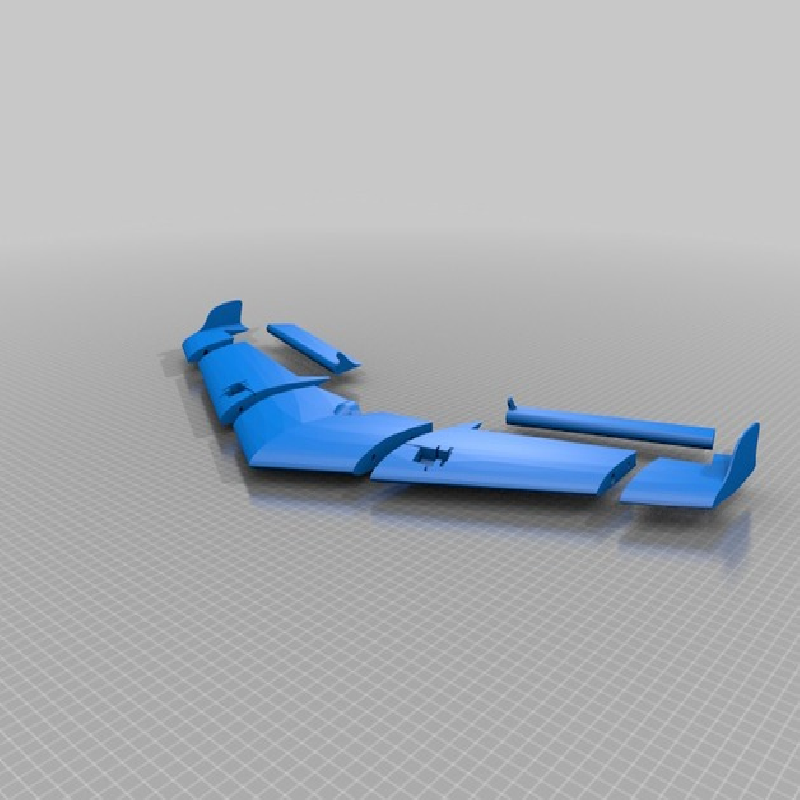

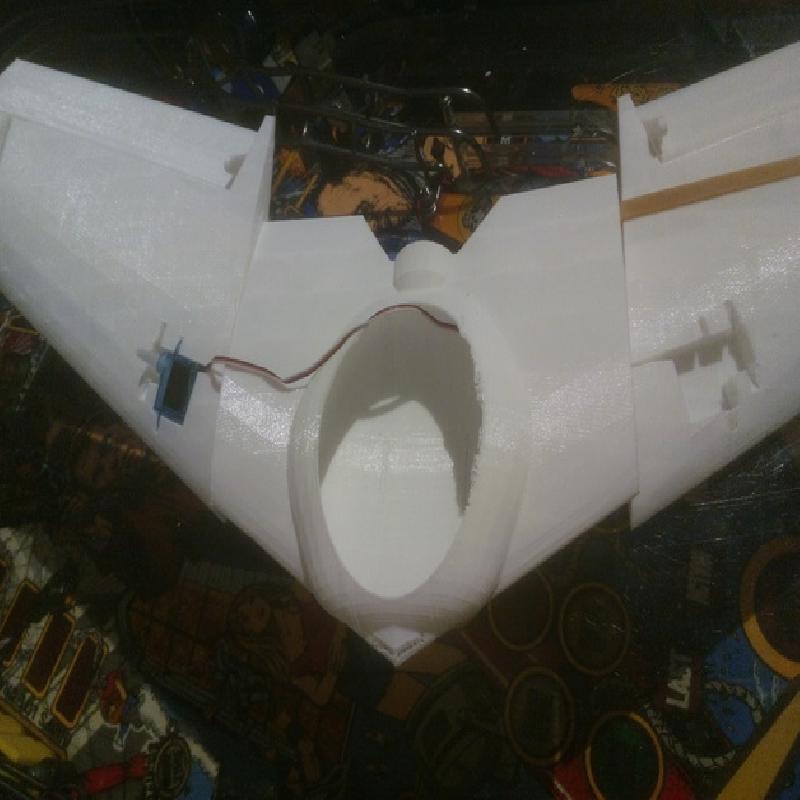

I've made a very easy flying wing 60cm wing span.

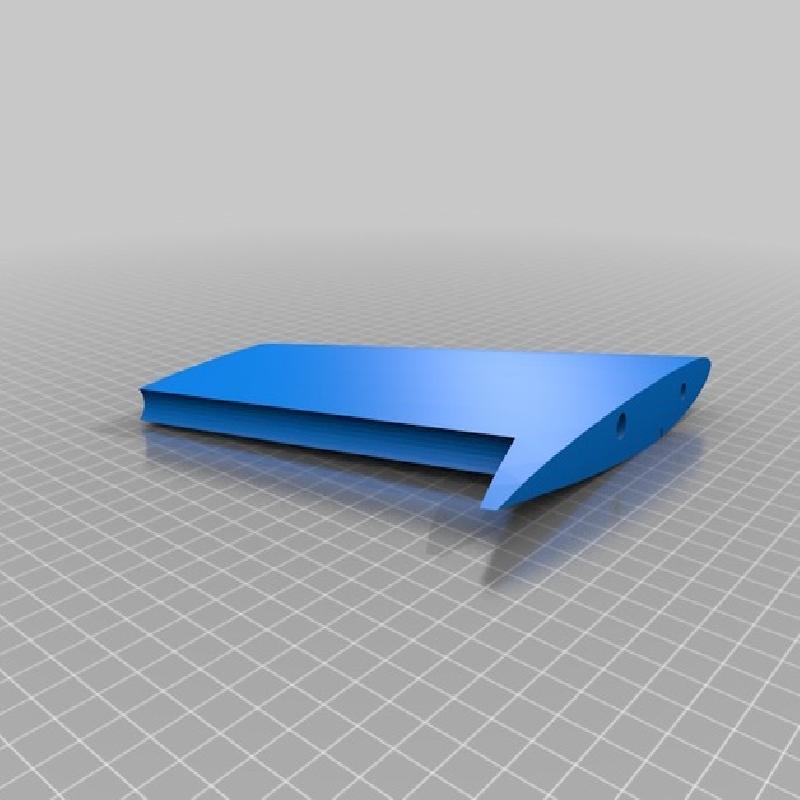

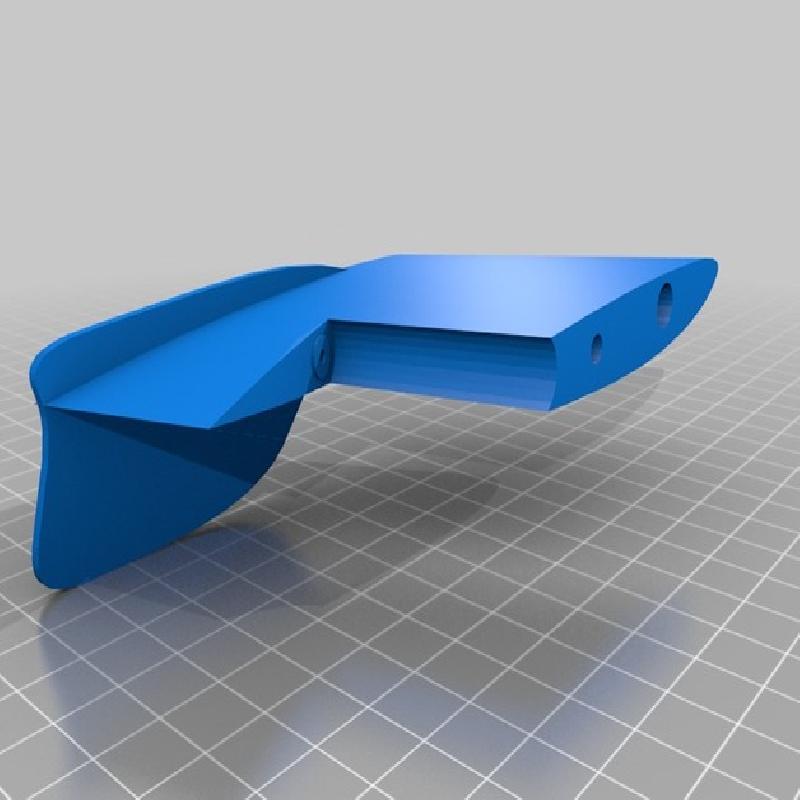

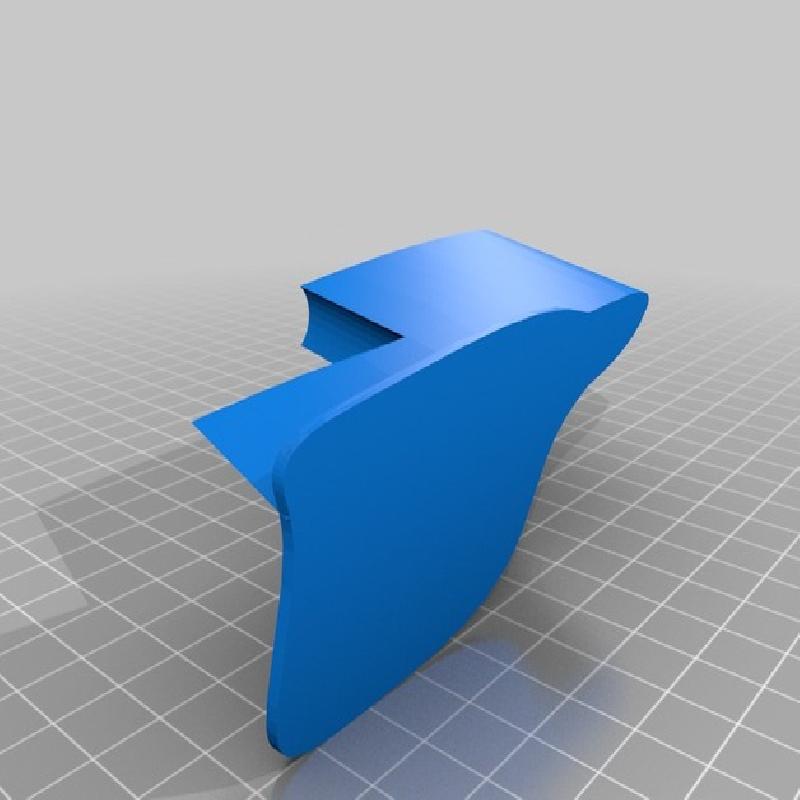

Just 7 pcs to print and play (+ 1 more for canopy)
The project need:
motor 1828A-1950KV
propeller 5x4
esc

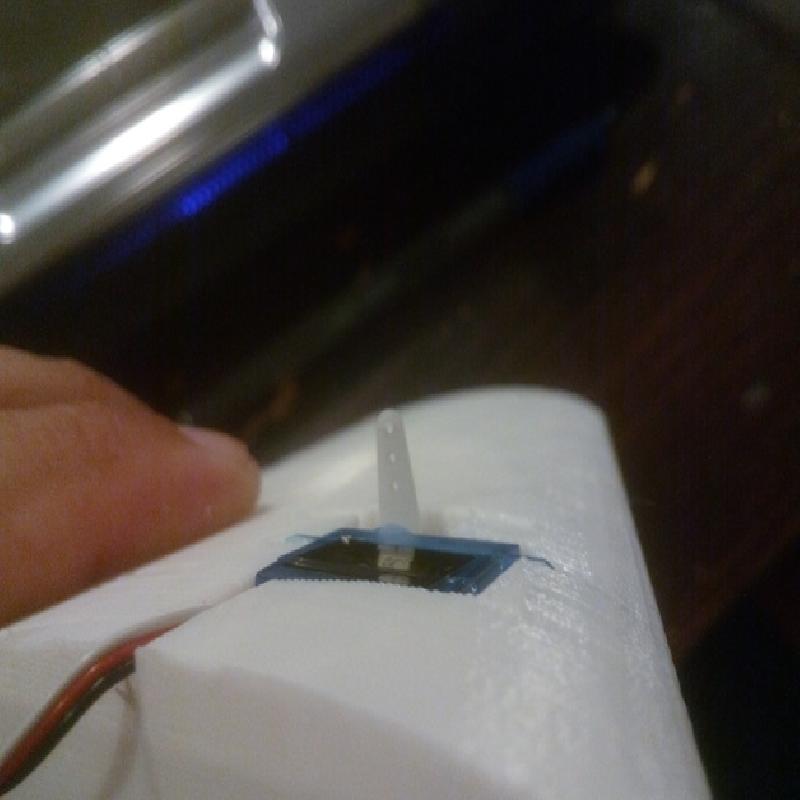

2x servos 3,7g
receiver
battery 3s 450mAh
Printer Brand: RepRap
Printer: Prusa rework i3
Rafts: Yes
Supports: No
Resolution: 0,2mm
Infill: From 1 to 5%
Notes:
Use the minimum infill % possible Keep attention to have the infill generated not in casual position but in a position that help the robust design (with Repetier move in the plan untill the infill will be generated in a good position)
