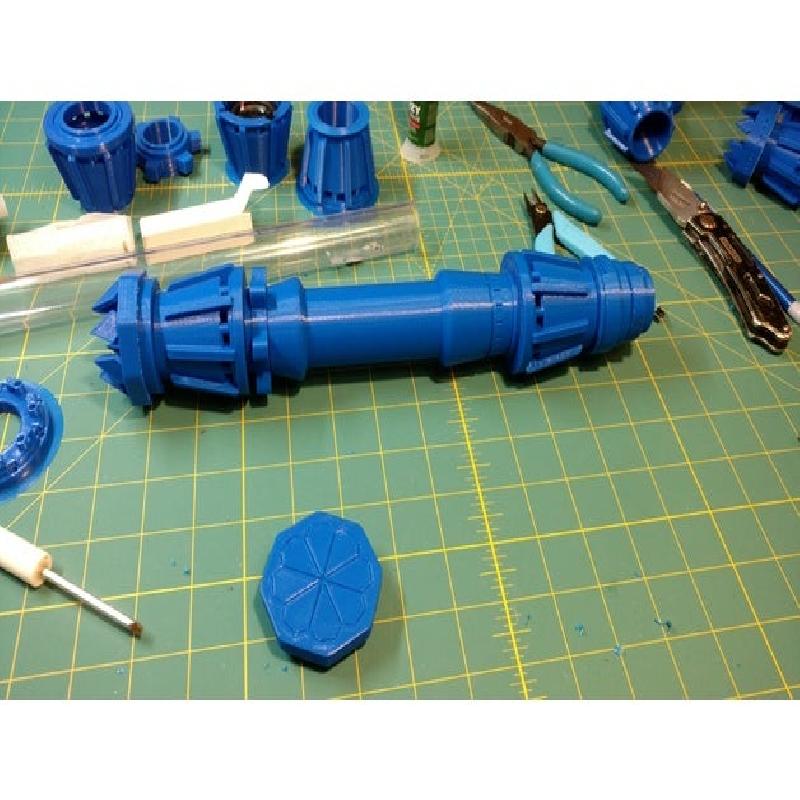

This is a replica of Rey's lightsaber from the final scenes of The Rise of Skywalker.

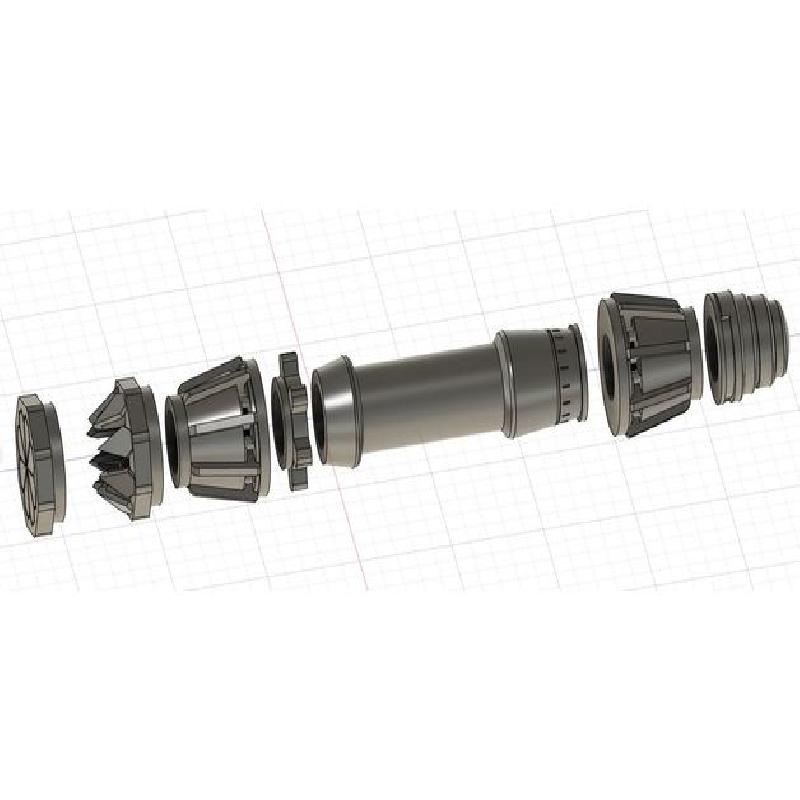

Designed in Fusion360, printed on an Ender 3.
It's made to fit over a 1" dowel or have couplings printed to fit it together.
If you use the closed emitter, you'll need a 275mm (10 3/4") dowel.
If you use the open emitter, you'll need a 284mm (11 3/16") dowel.

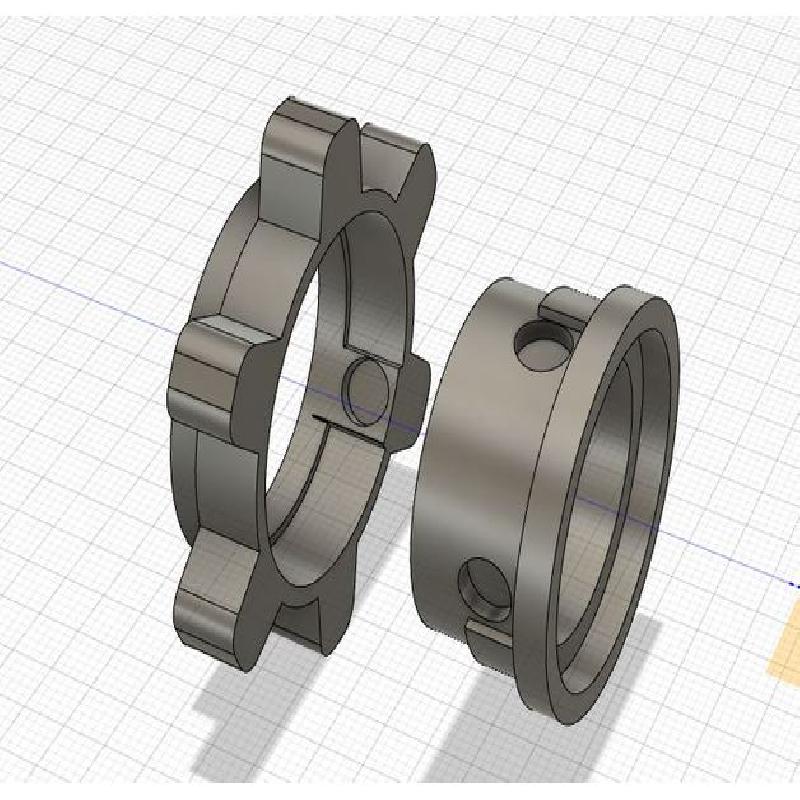

There are two cog switch options- a fixed and a rotating option. The rotating option is two parts that nest. The rotating option has indents for 6mmx2mm disc magnets (for a total of three magnets) that prevents it from free spinning and lets it snap into position. The switch rotates about 60 degrees.
All parts will orient to the build plate.
Emitter (both open and closed) : support
Cog switch fixed: no support
Cog switch rotating inner: no support
Cog switch rotating outer: support
Maul cone : no support, print two
Handle : no support, print with a brim
End cap : support
Printer Brand:
Creality
Printer:
Ender 3
Resolution:
0.1
Infill:
20
Filament: Any PLA Any
