by YachGoods

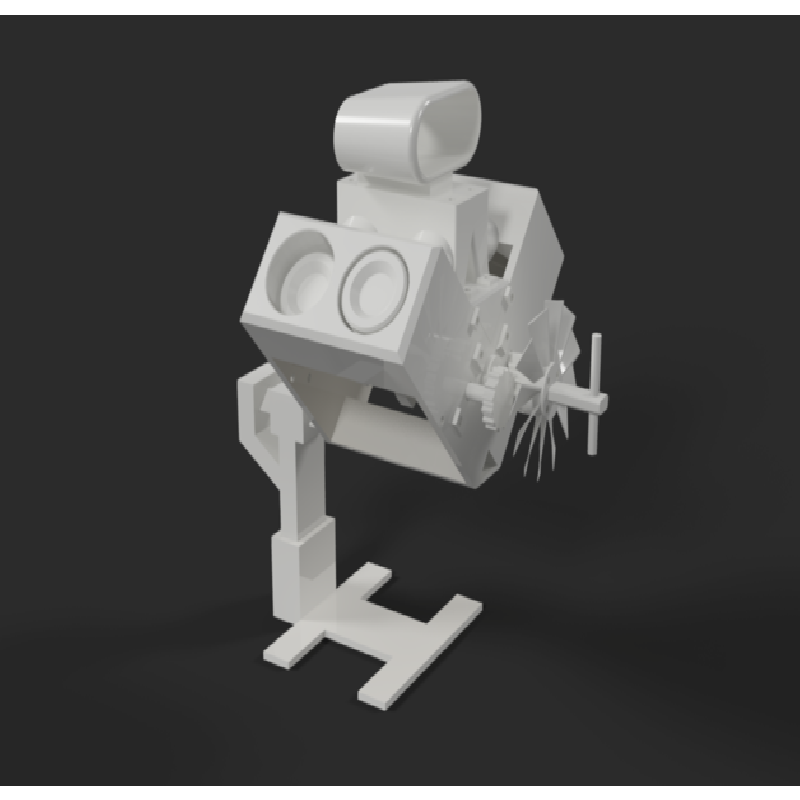

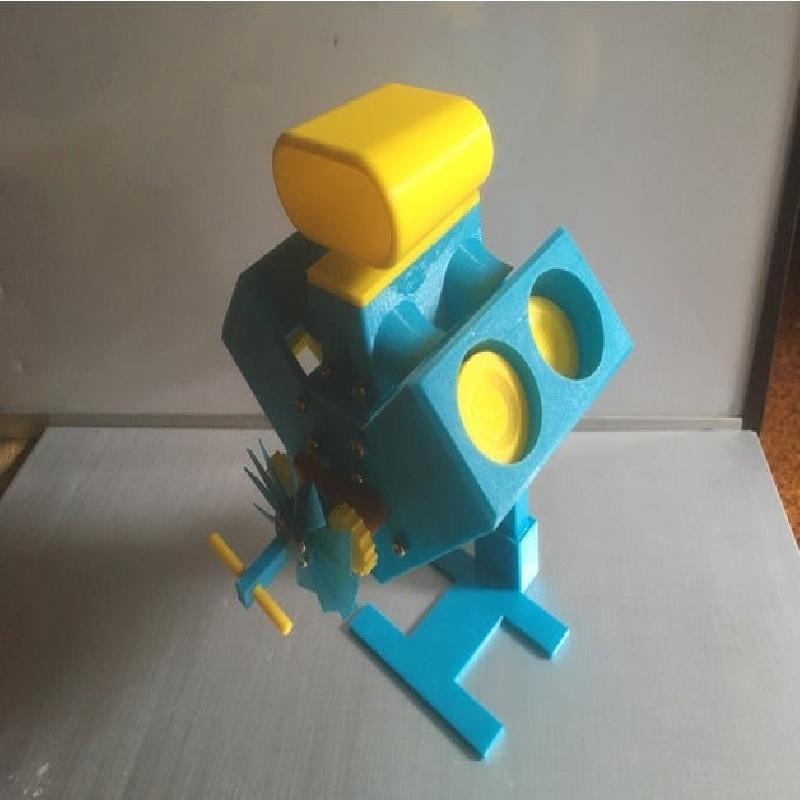

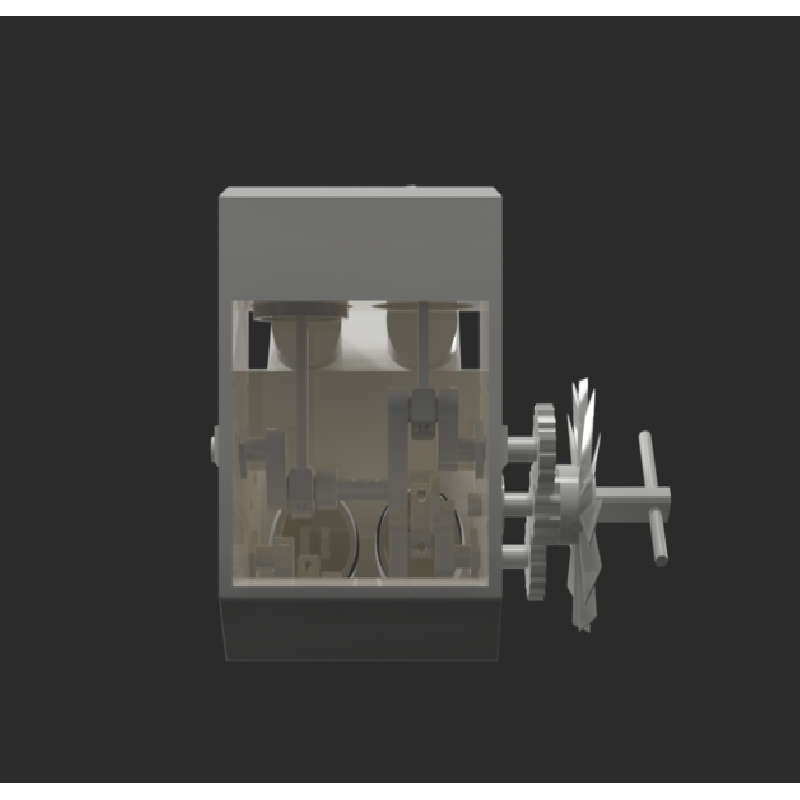

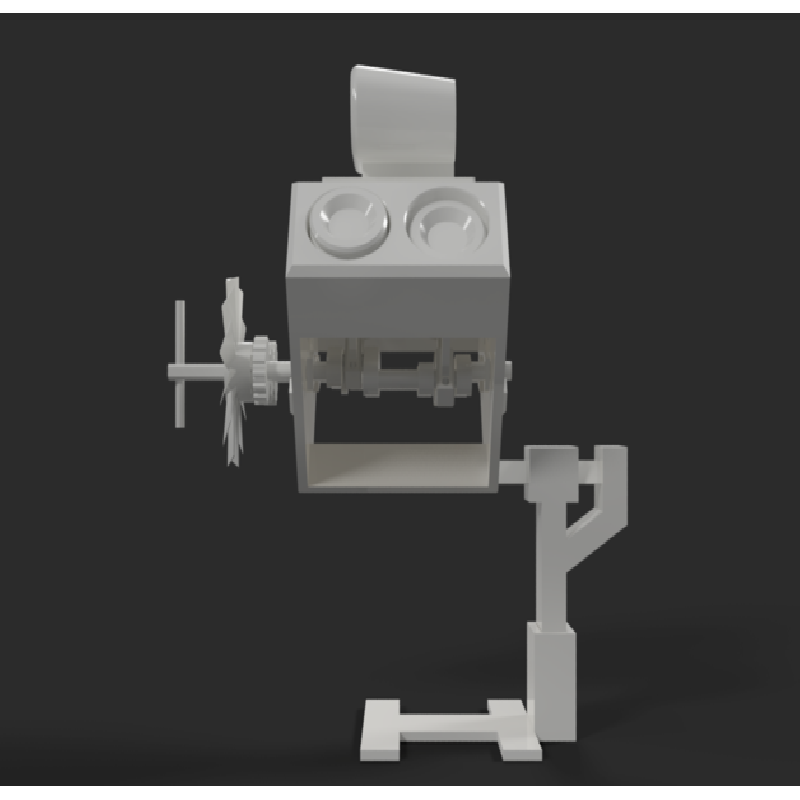

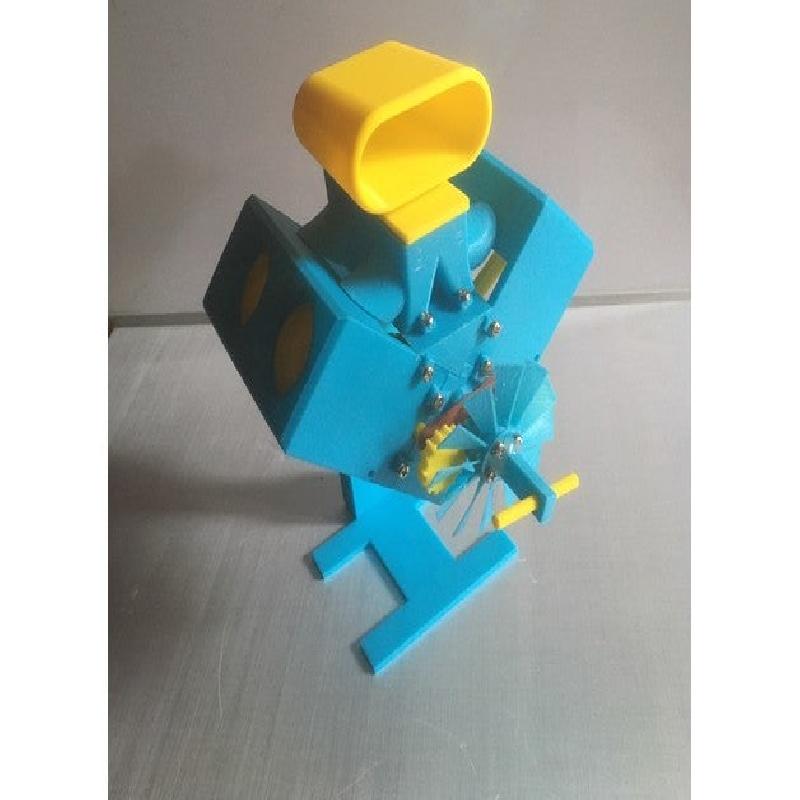

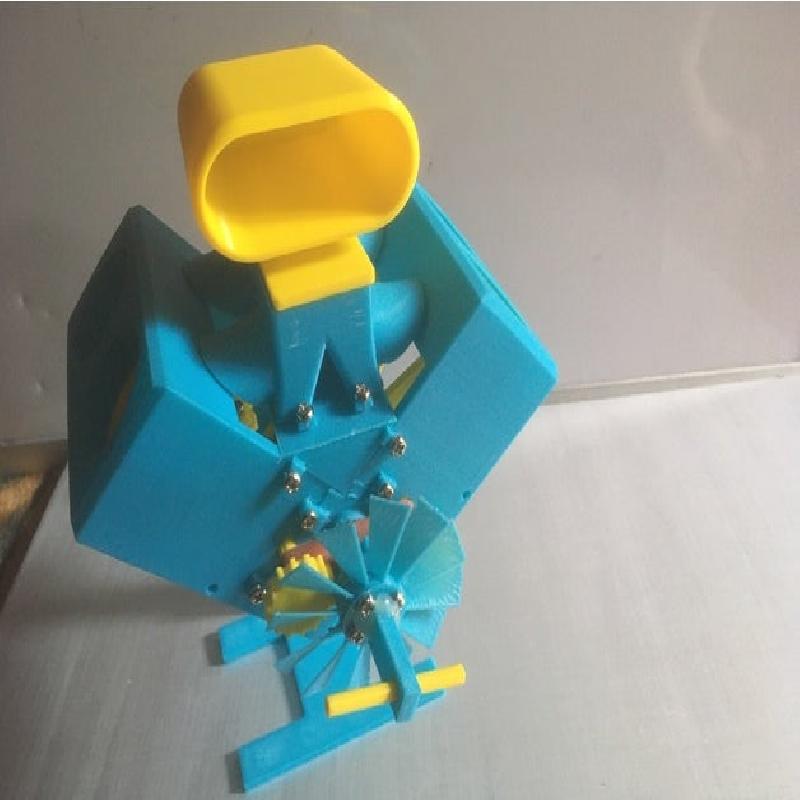

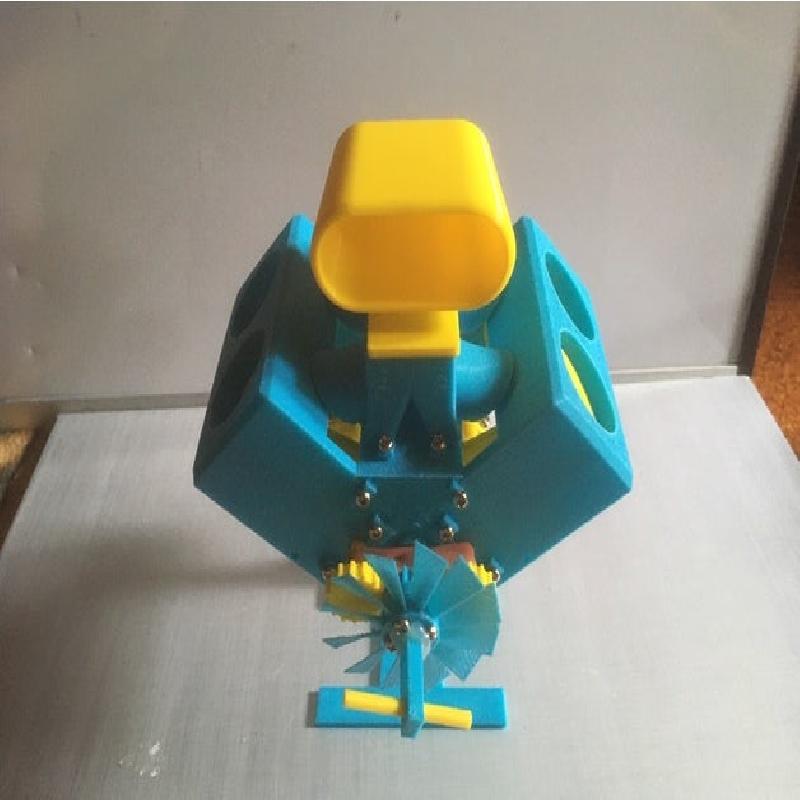

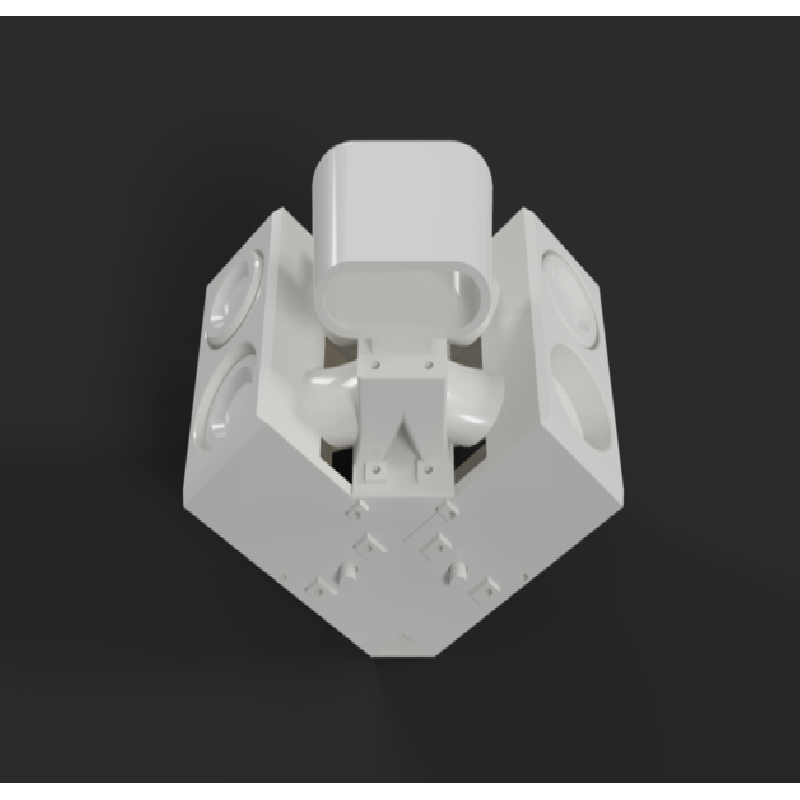

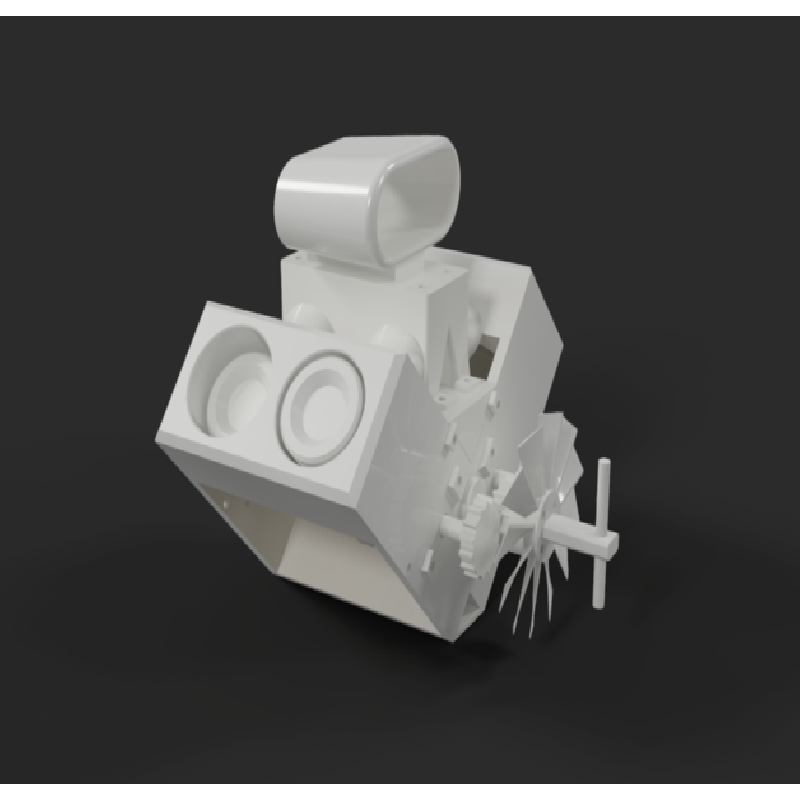

A V4 engine model with moving parts and a few artistic add ons. The model demonstrates simple engine movement with extra visual features.

notes

• use v4 engine READ ME.txt - it helps

• All holes are 3.1mm for M3 bolts

• This print requires a lot of print time, material and 32 M3 x 10mm bolts

• May require a little sanding/cutting and use of hot glue to keep rods in place

• Chamfer has been added to a lot of edges to combat elephanting

• Assembly is pretty straight forward but order should go bottom engine block – central drive parts – crankshafts & connected parts (piston, connecting head & arm) – top engine blocks – exhaust module – air intake

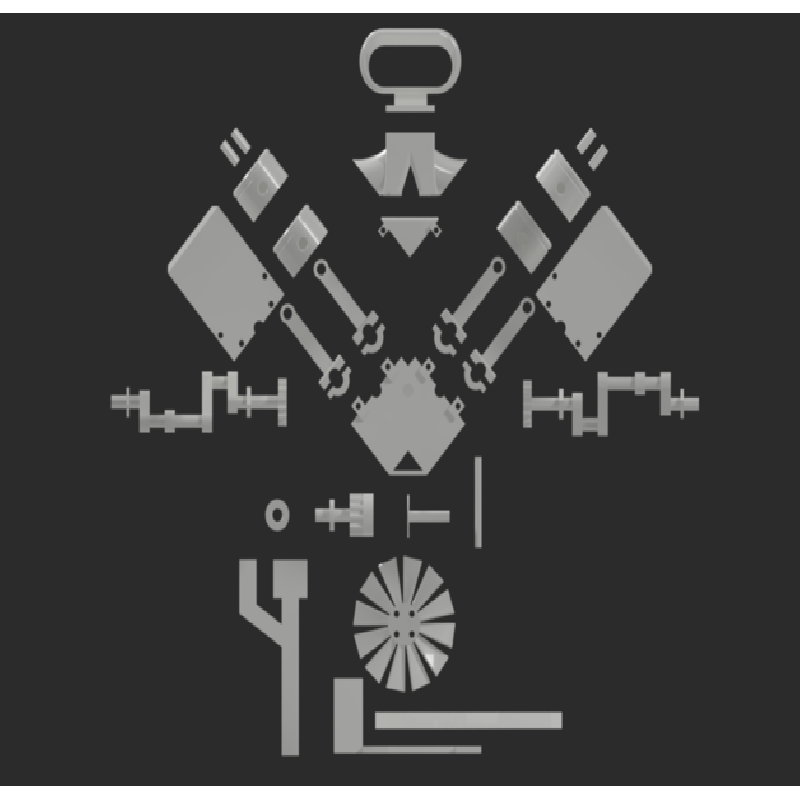

print count:
Bottom block p1 x1
Top block p2    x2
Crankshaft  x2
Central drive gear  x1
Central drive ring  x1
Piston head x1
Piston head rod x1
Connecting arm  x4
Connecting head x4
Radiator fan    x1
Turning arm x1
Turning rod x1
Exhaust mount   x1
Exhaust module  x1
Air intake  x1
Engine jack tube    x1

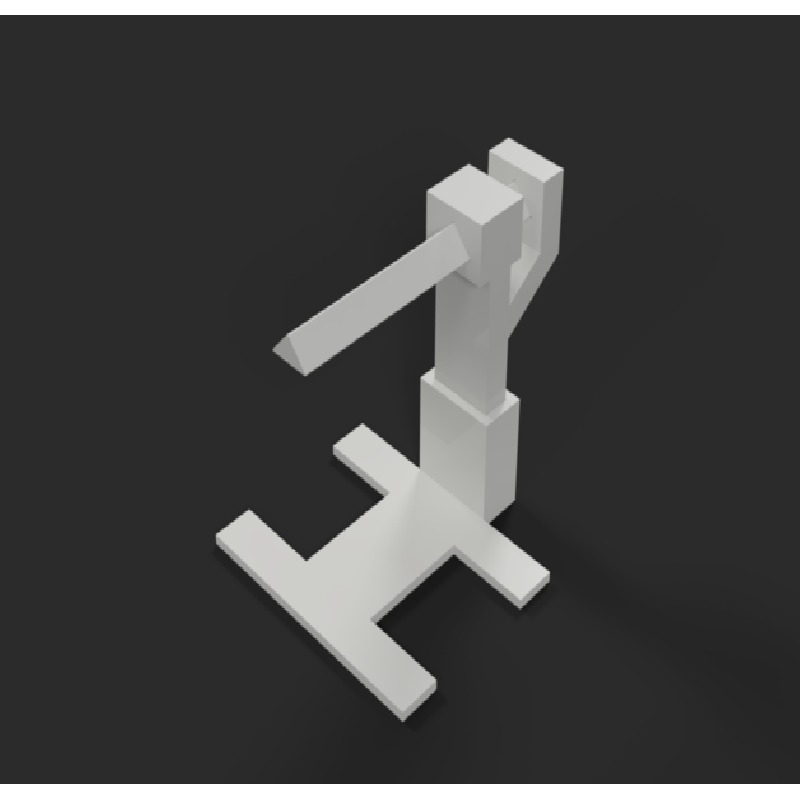

Engine jack base    x1
Engine jack tower   x1
Engine jack cap x2

Print Settings

Printer Brand:

FlashForge

Printer:

Finder

Rafts:

No

Supports:

Yes

Resolution:

0.15

Infill:

15%

Filament:                                            esun PLA
