by erwoong
[Iron Boy]
Printable ironboy figure

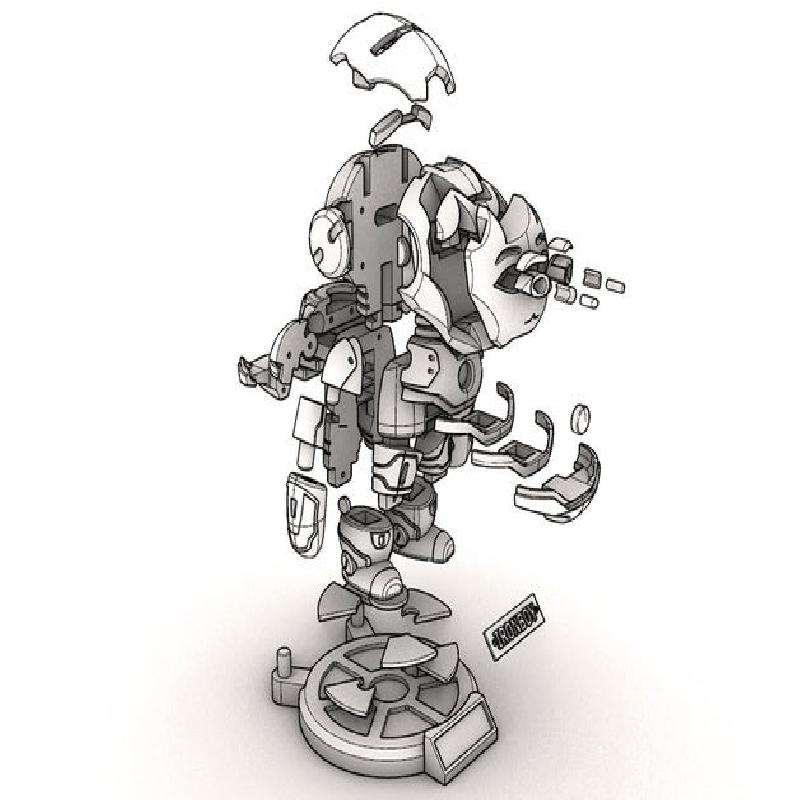

Simple assembly is required.
Assemble instruction is in my youtube channel
https://youtu.be/_SqHl5YkuWI
Design and Build
https://youtu.be/d4vCZzAquo4
Use a raw 1.75mm filament and super glue while assemble the parts.
May need a sandpaper while assemble the parts. It depends on a 3d-printer's condition.
The object tested by FDM 3d printer with PLA filament.
Printer Brand:
FlashForge
Printer:
Adventurer 3
Rafts:
Yes
Supports:
Yes
Infill:
15%~20%
Filament: Polysmart PLA Red, Gold, Clear, Grey
Notes:
Layer height:
0.10mm (Face, Hair, Clearparts, Right_Eye_01,02,03,04, Right_Eyebrow, Left_Eye_01,02,03,04, Left_Eyebrow.stl)
0.15mm (All the rest stl parts)
Shell count: 3
Fill density: 15~20%
Time to do: about 1800 - 1900 minutes
Technology: FDM
Material: PLA
Dimensions: about 900mm x 1600mm x 1000mm
Material Quantity: about 240g
