by shirnschall

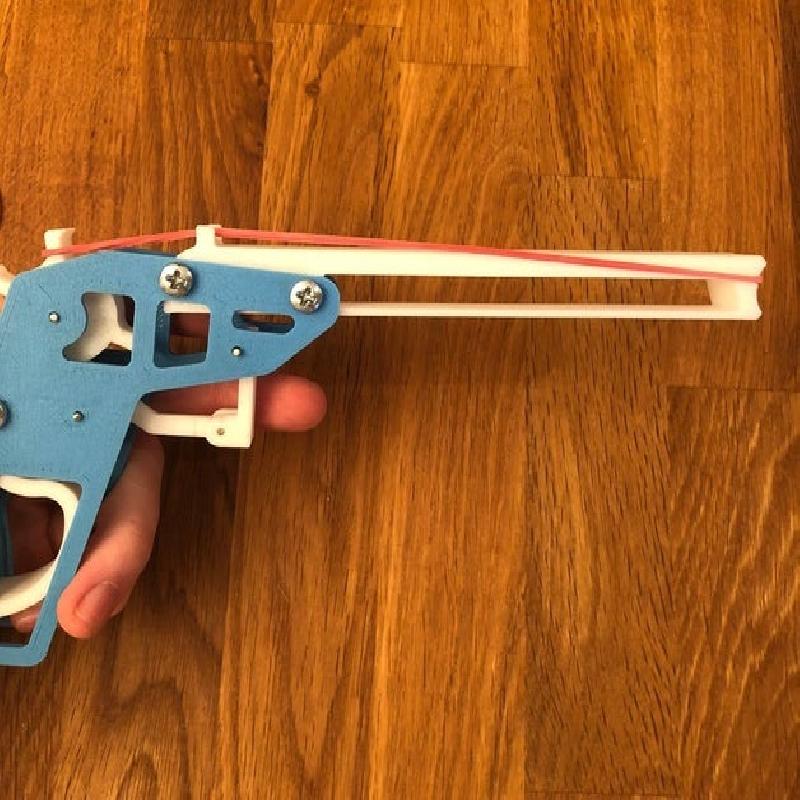

Since I always get ask if I 3d print guns... I decided to design a rubber band gun (for Anna). Inspired by
https://github.com/GavilanSteinman/rbg
You need:
8 times M4x10 screws
2mm diameter metal pins:
3 times 25mm long
2 times 10mm long
Download the barrel from:
https://github.com/GavilanSteinman/rbg/raw/master/solid/barrel_fixed.stl
Printer:
DIY Core-XY
Rafts:
No
Supports:
No
Resolution:
0.2/0.3mm
Infill:
20%
Filament: BQ PLA White/Blue/Pink
Notes:
Download the barrel from:
https://github.com/GavilanSteinman/rbg/raw/master/solid/barrel_fixed.stl
use your default settings.

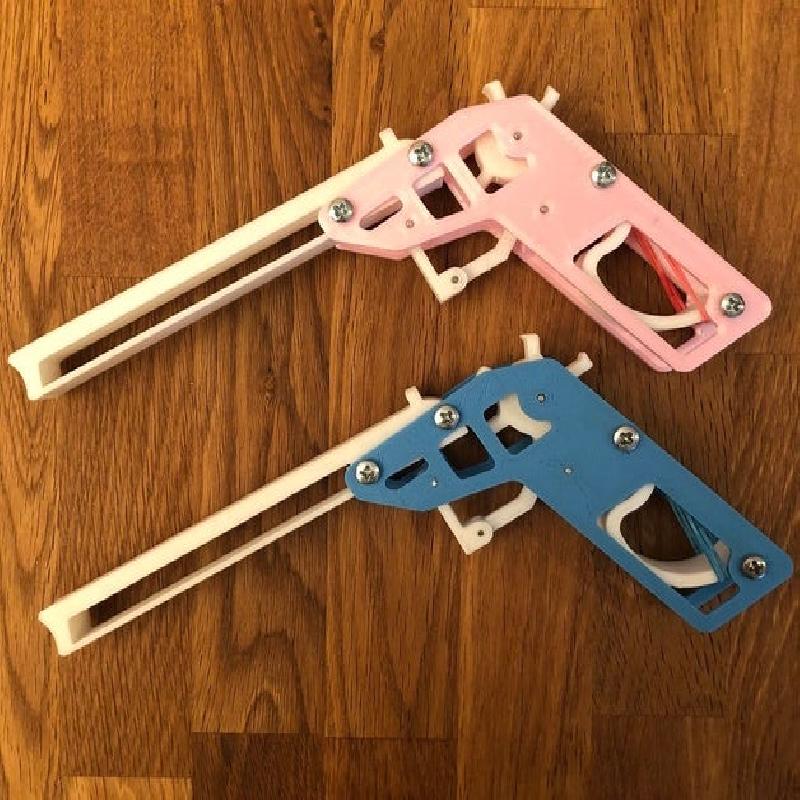

I used 0.2mm and 0.3mm layerheight and white/blue pla
print the sear with support.

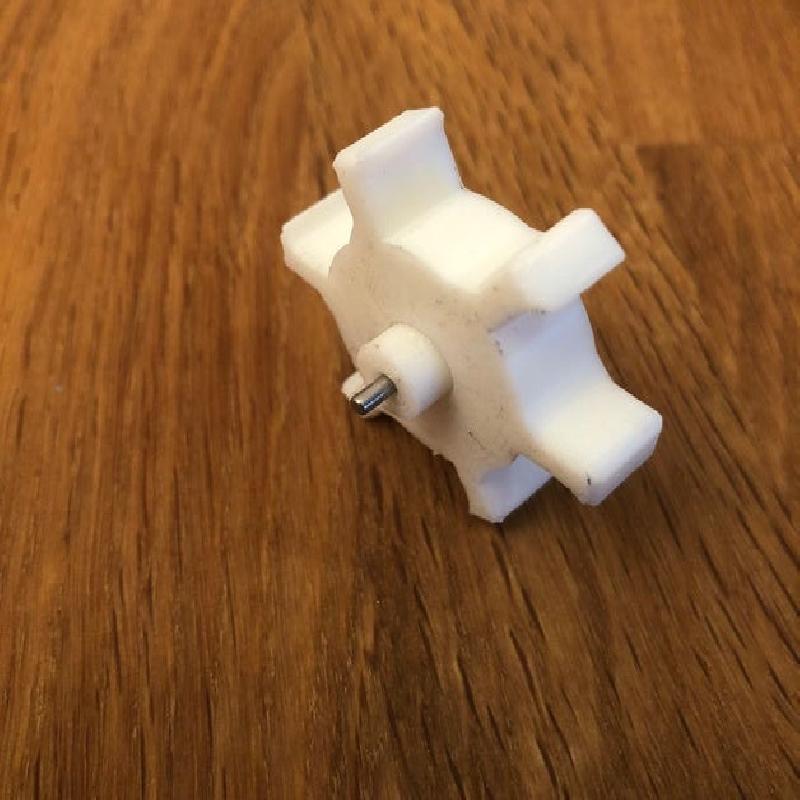

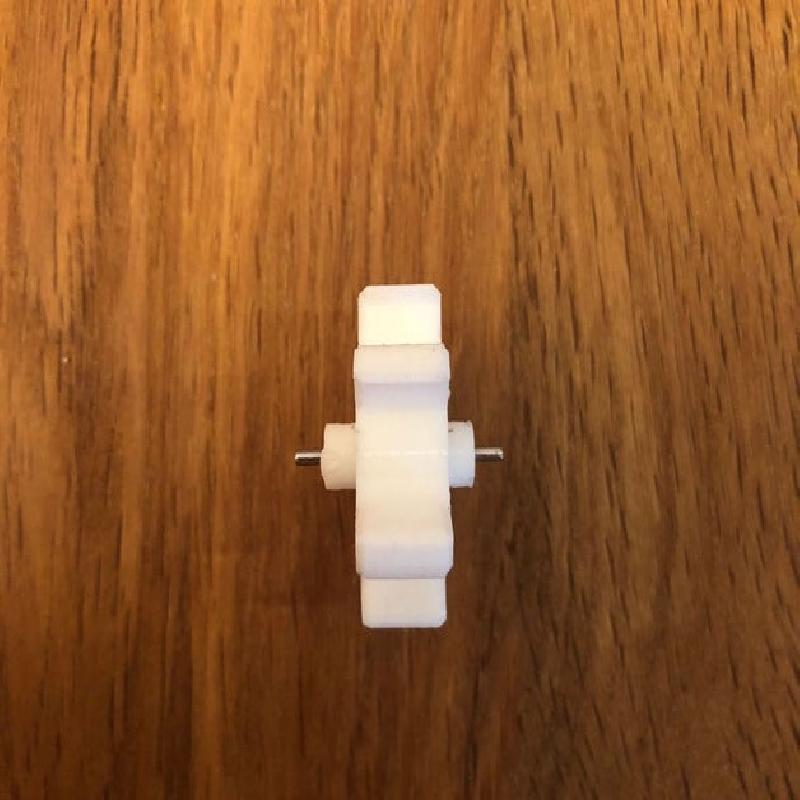

the wheel and wheel-axel are two separate pieces to avoid the need of support. glue them together as shown in the pictures.

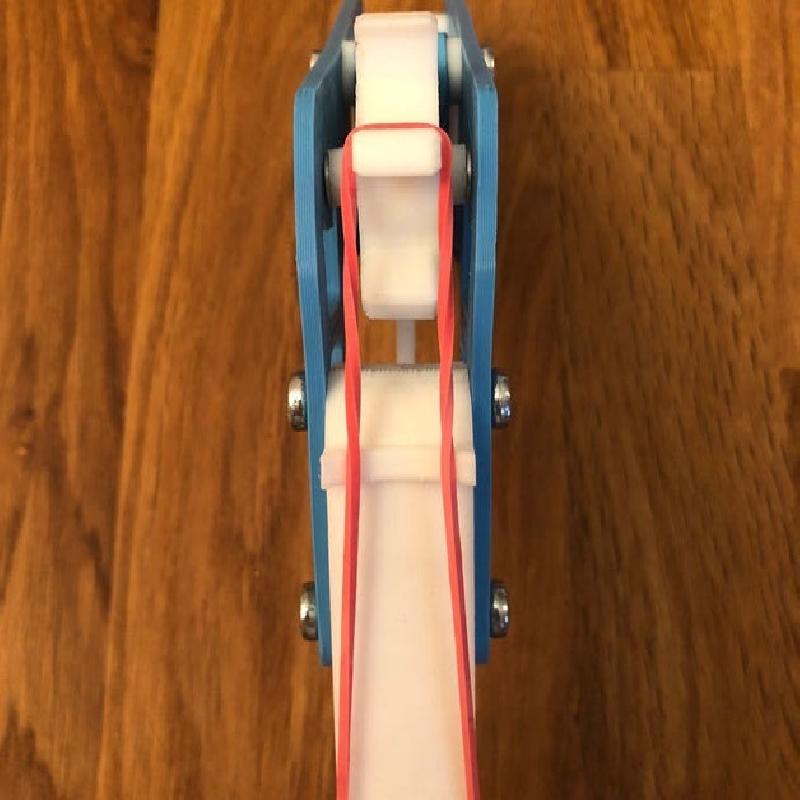

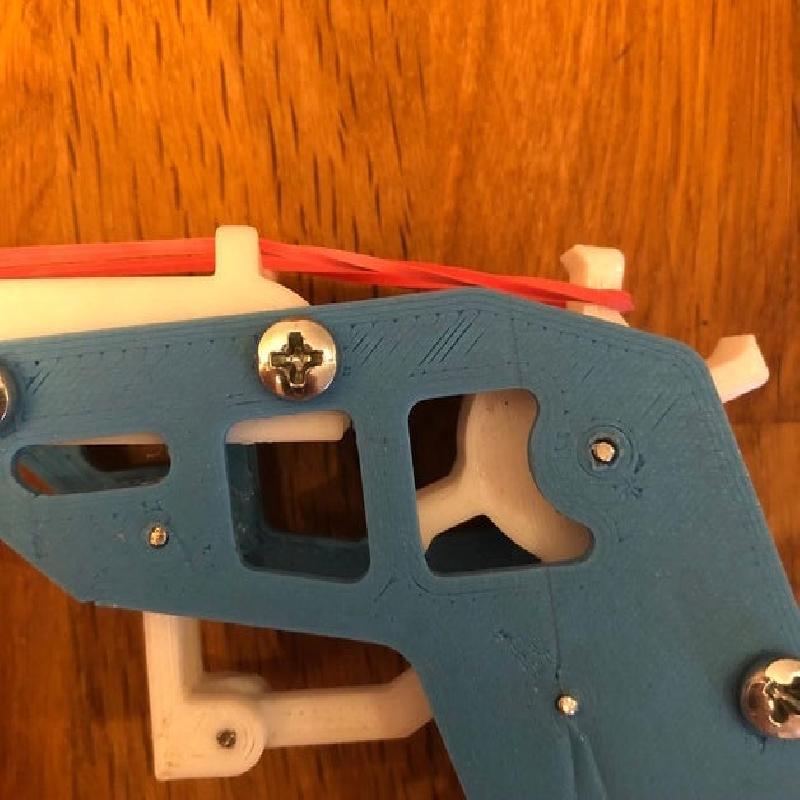

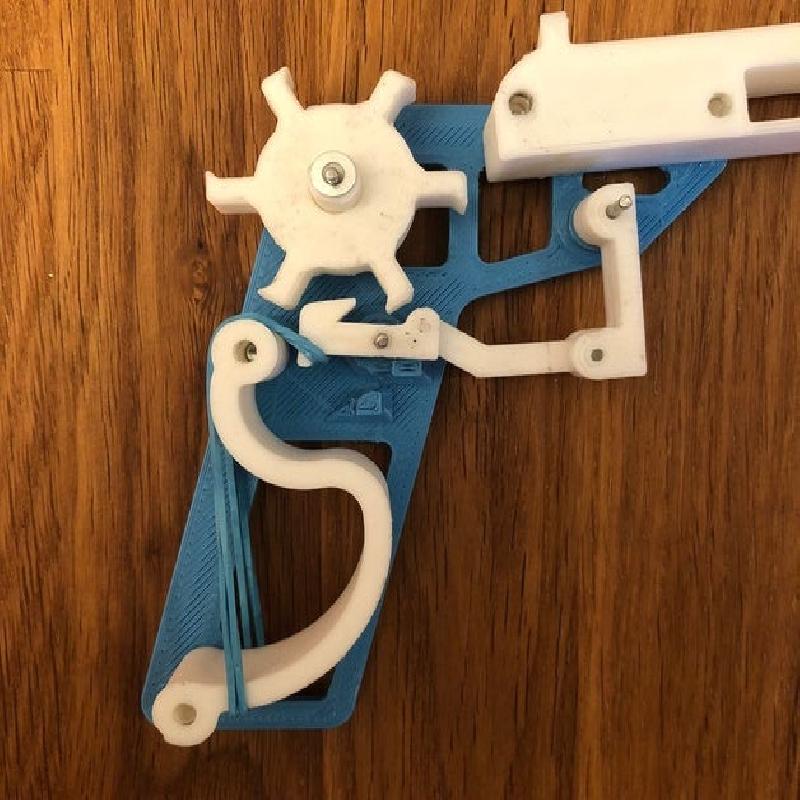

assemble all parts as shown in the images.
