by snowpaddler

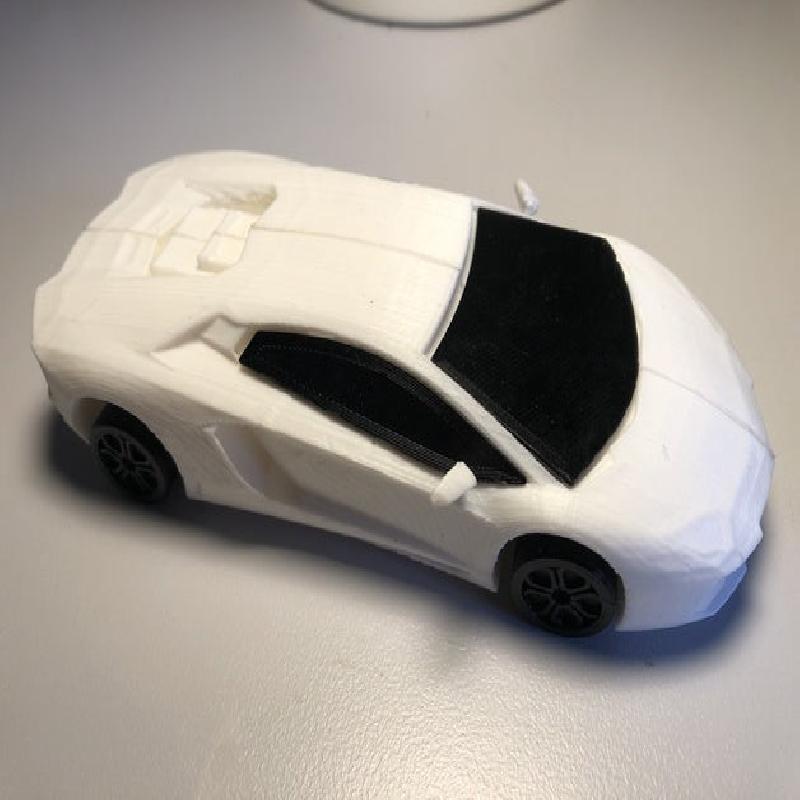

This model is split into multiple parts to simplify printing, minimise supports and allow you to print multiple colours.  The wheels spin on this car.

Print Settings

Printer Brand:

Creality

Printer:

CR-10S

Rafts:

Yes

Supports:

Yes

Resolution:

0.15 layers

Infill:

20%

Filament:                                            Flashforge PLA                                        Black and White

Notes:

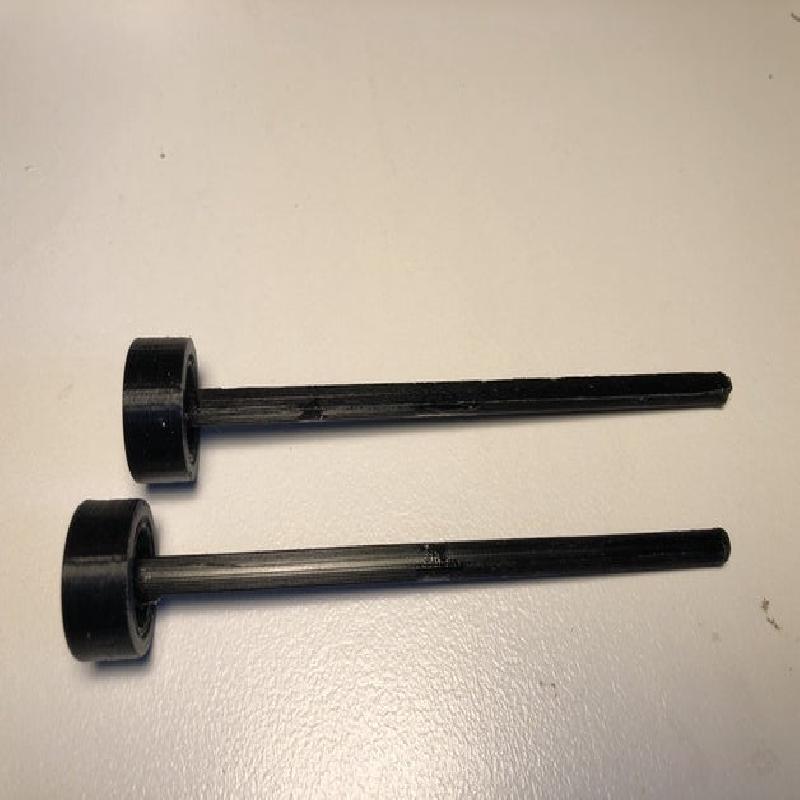

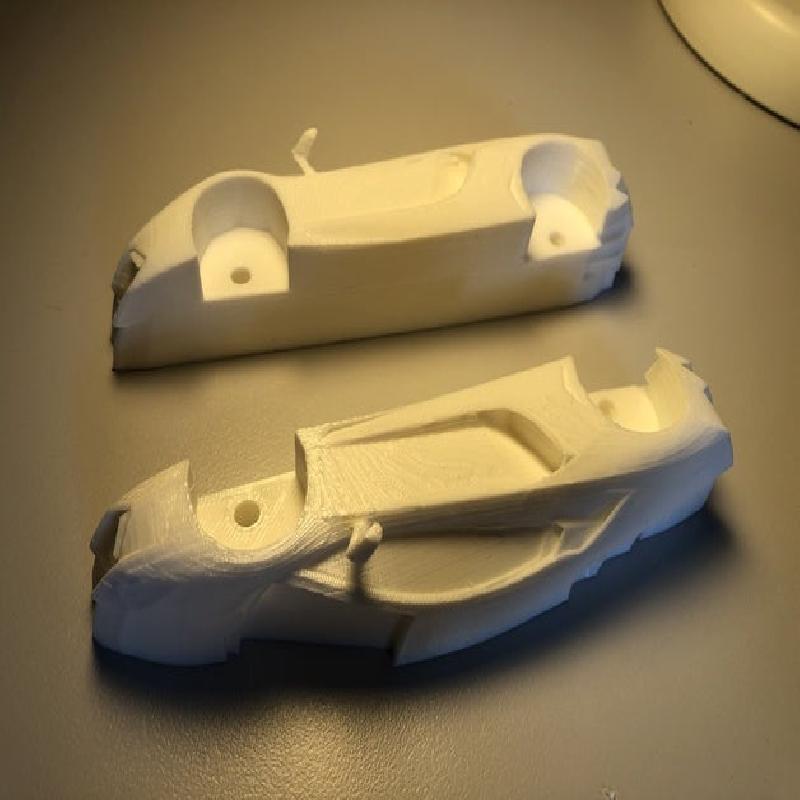

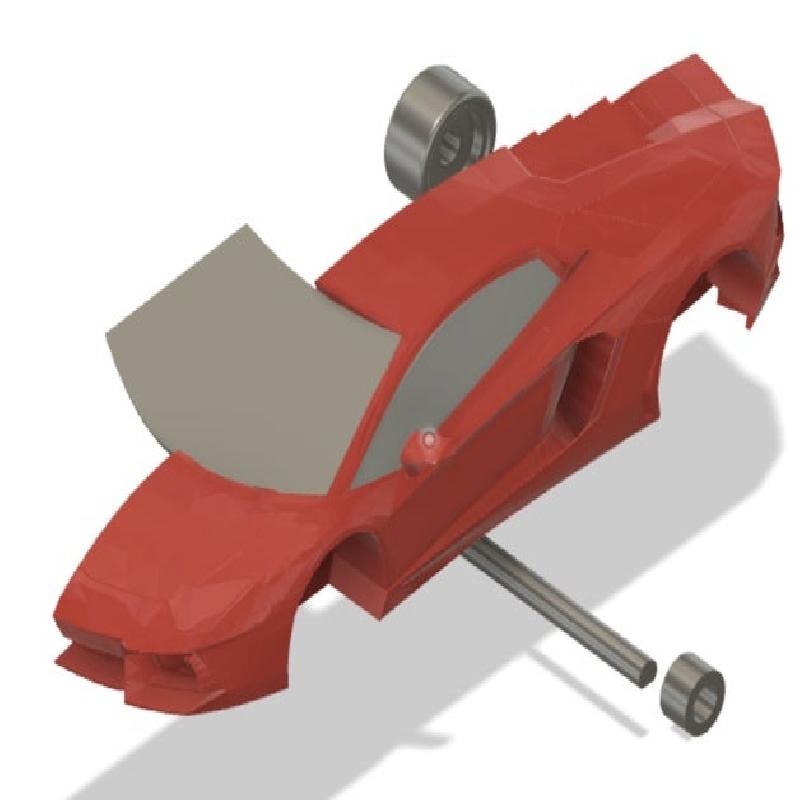

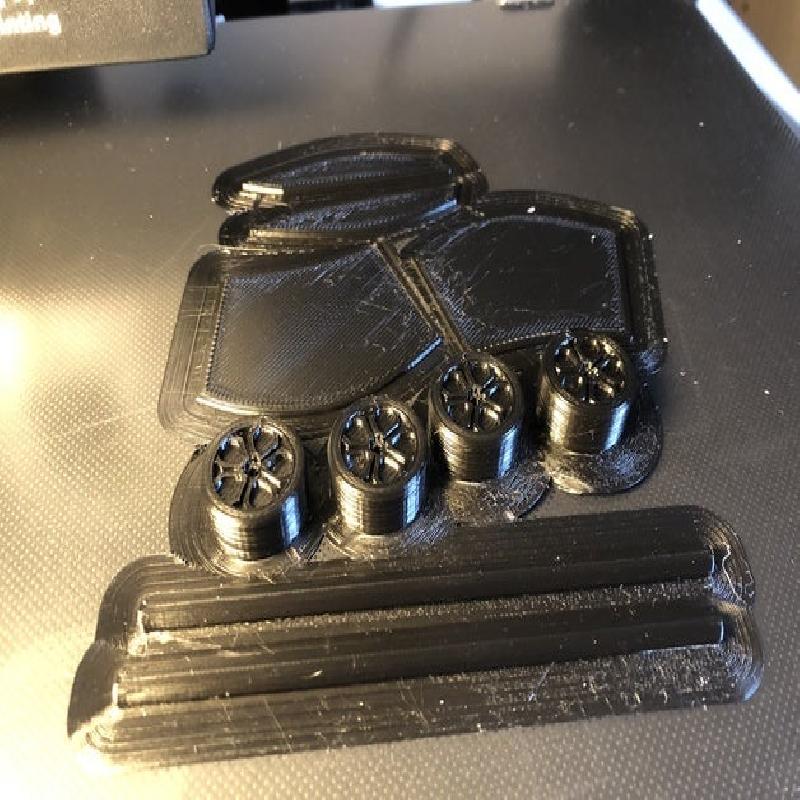

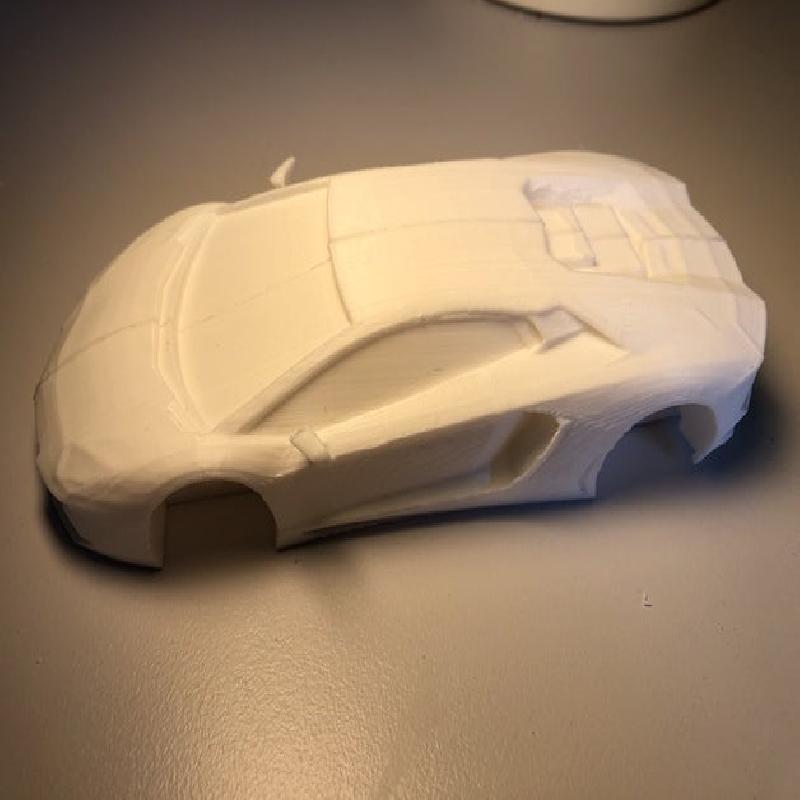

I imported the STL into F360, cut out the wheels and windows and created these as seperate components for printing.  The body was split in half to minimise supports.  Lay it flat and mirror it before printing in white PLA.  Print the windscreen and 2 copies of the side window, 4 wheels, 2 axles and spacers in black.  Assemble and glue using superglue.  Before adding the axle and wheels, use a 5mm drill to clean out the holes through the body.  Don't forget to add the spacers to hold the wheels out from the body and cut the axles to length.
I've included the Fusion 360 model to make it simpler to extend.
One enhancement may be to leave space for an electric motor and batteries or a gear/spring assembly from Jaycar.
