Notice : This is time time consuming project and recommend run with at least two printer if you try this project.
i do recommend Not try to build this one, not again.
Hand is not included yet.
This model is 1/4, 25% of original scale. to make 1:3 you have to scale 400% to 1:1 then 33% to make 1/3 and doing so, some of joints can be loosend due to change of tolerance.
This project is designed for Snap fit joints, if you want use elastic cables to assemble this is not for them and require modifiy it.
i included 3ds max work docs to easy remix for armors and custom mods it make open source but this is not allowed sell. free to remix and modifiy but no sell.
Draenai and the source model that i used to build this one is property of Blizzard Entertainment, and aquire source model from CGtrader. Do not use it for commercial propose
Resolution:
0.1~0.15
Infill:
10 /40
Notes:
The Build.
Part / Type / layer / infill
Hoof , Skin, 0.15 , 10%
Hoof Ankle joint , Bone , 0.15 , 40%
Calf , Skin , 0.1 , 10%
Calf knee joint , Bone, 0.15 , 40%
Calf knee , Skin , 0.1 , 10%
Lower Thigh , Skin , 0.1 , 10%
Knee , Skin , 0.1 , 10%
Knee Joint , Bone, 0.15 , 40%
Upper Thigh , Skin , 0.1 , 5~10%
Pelvis Joint , Bone , 0.15, 40%
Pants , Skin , 0.1 , 10%
Belly , Skin , 0.1 , 10%
Pelvis to Belly Joint , Bone , 0.15 , 40%
Chest to belly Joint , Bone , 0.15 , 40%
Chest , Skin , 0.1 , 10%
Neck Joint , Bone , 0.15 , 40%
Head , Skin , 0.1 , 10%
Head Cap , Skin 0.15 , 10%
Head Tentacle , Skin , 0.1 , 10%
Ram Horn, Skin , 0.1 , 10%

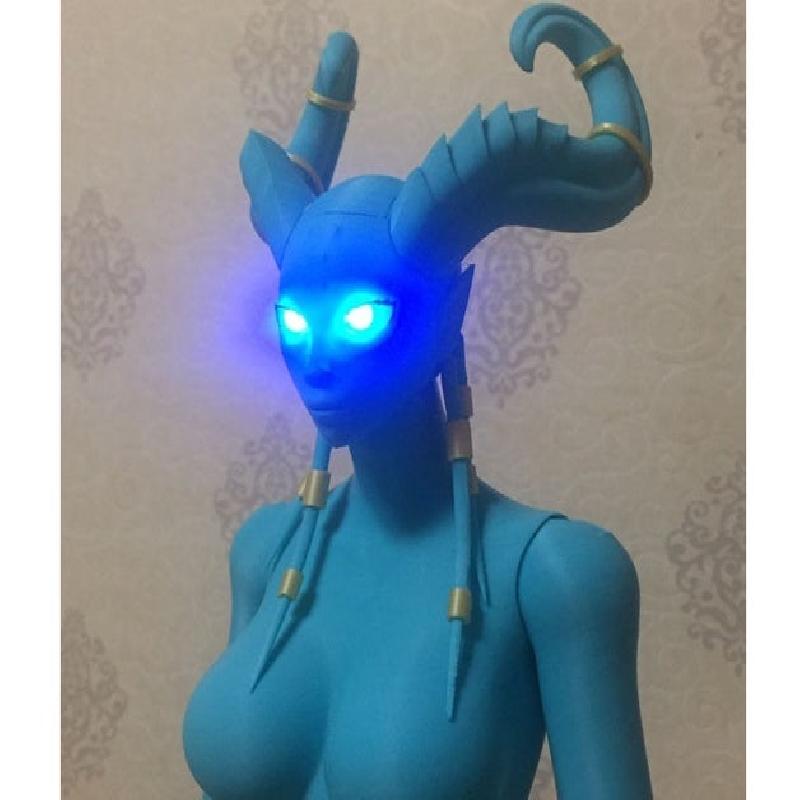

Eye LED Soket , 0.1 10% (for 5mm LED unit)
Sholder Joint , Bone , 0.15 , 40%
Upper Arm , Skin , 0.1 , 10%
Elbow , Skin , 0.1 , 10%
Elbow joint , Bone , 0.15 , 40%
Lower Arm . Skin ,0.1 , 10%
Hand joint , Bone ,0.15, 40%
Hand 1 is't ready yet
Gold Tail cover , 0.1 , 10%
Tail 01-05 / 06-10 / 11-15 / Tail Tip , Skin , 0.1 , 10%
Tail Start pin , Bone , 0.15 , 40%
Gold Ram Horn Ring / Gold Tail Ring / Gold Tentacle ring , Skin , 0.1 , 10%
