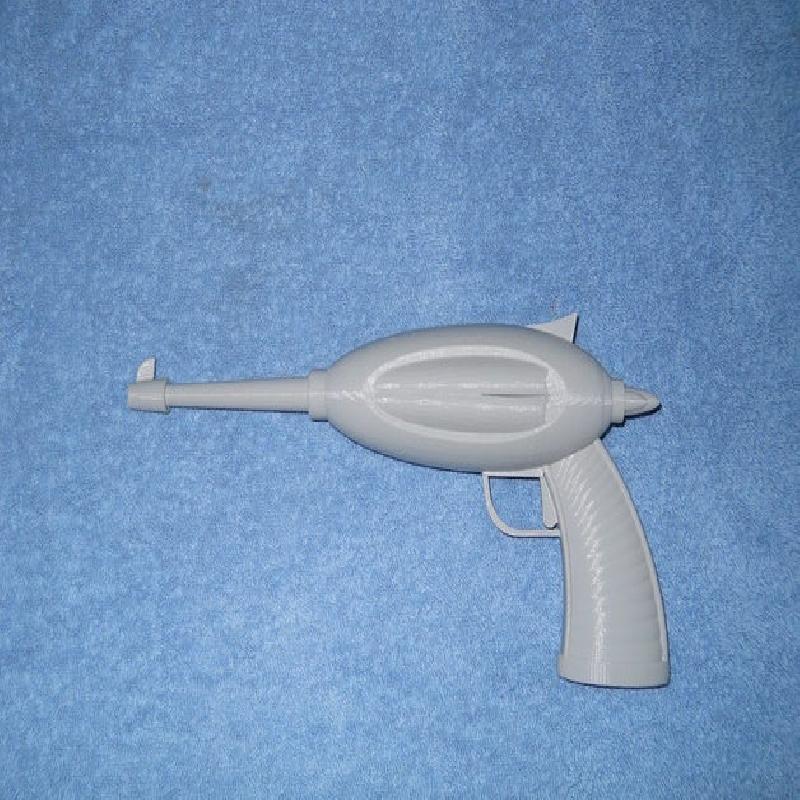

This is from 1975 Marvel comics Deathloc the Demolisher!
His laser pistol drawings varies thru out the series
was designed using the parts most commonly drawn
Was a dying solder that was turned into part cyborg, part human
has a computer that talks to him in his head
2 versions, parts with L are for installing a laser pointer, other parts are same for both
Printer Brand:
MakerBot
Printer:
Resolution:
.20
Infill:
10%
Filament: colorfab pla gray
Notes:
barrel is a printed at 20% L trigger parts full infill
designed to print without supports
For building the version with a laser. parts needed:
A23 battery holder
21SX39-T sub micro switch
2CR1/3N or L28 Battery
6 mm Laser module 5v 650 NM (if 12 v use A23 battery)
2)10 inch 22 or 24 gauge wire
small piece of foam rubber
solvent cement
test fit parts before assembly, do not add tip until last
solder the two wired to switch terminals C and NO. run wires thru handle glue switch into handle, button up. leaving half of mounting holes level with edge of handle, run wires thru body, assy handle and body. use a small wire paper clip for pivot of trigger glue trigger base and handle in place before installing trigger.(use 9 mm piece of paper clip). should be able to hear switch click when depressed. connect trigger wires to red wires of battery holder and laser connect other 2 wires together.(remove excess length of wire before connecting) press laser into barrel, battery into holder, a little foam around battery holder to prevent rattle.. screw barrel into body then add tip
