by sasha19md
Assembly tutorial here https://youtu.be/3McyKZAeLAM

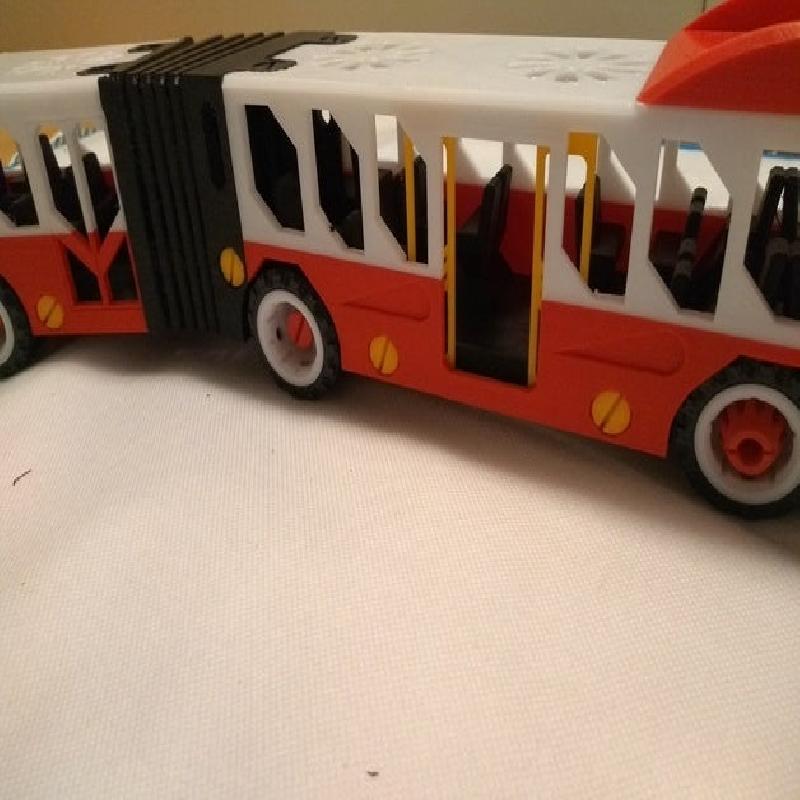

The improvements are in the body articulation part. Now the articulation
part is "on its own" and I've printed it using TPU (flexible material).
The screw connections between the body parts on the roof are also new.
It is completely 3d printable.
The tolerance for pieces that need to fit tightly is 0.1mm,
for pieces that need to allow movement (like screws and axles) 0.3mm.

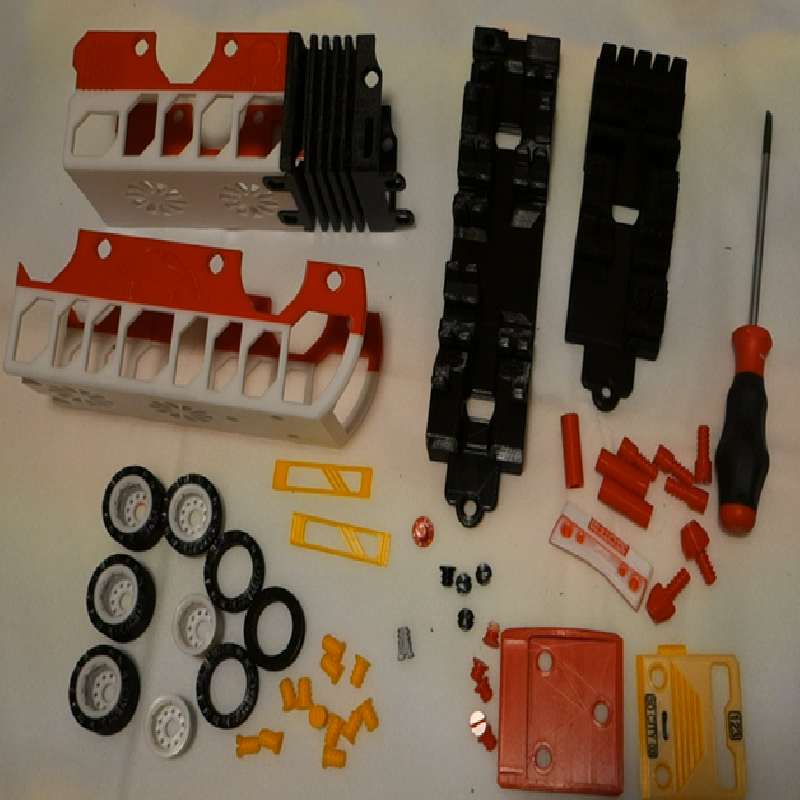

Printing list:
Nb. STL file name rezolution support colour
1x articulation_body_flex.stl 0.16mm no black (TPU)
3x axle_die.stl 0.16mm no red
1x back_base.stl 0.16mm yes(plate) black
1x back_body.stl 0.16mm yes(plate) red/white
1x back_face.stl 0.12mm no orange/white/black
1x front_base.stl 0.16mm yes(plate) black
1x front_body.stl 0.16mm yes(plate) red/white
1x front_face.stl 0.12mm no red/white
1x front_number_cap.stl 0.12mm no red
4x rim_double.stl 0.12mm yes(plate) white
2x rim_single.stl 0.12mm yes(plate) white
5x screw_9mm.stl 0.16mm no red
4x screw_9mm.stl 0.16mm no black
0x sleeping_screw_9mm.stl 0.16mm no
12x screw_13mm.stl 0.16mm no orange
0x sleeping_screw_13mm.stl 0.16mm no
1x screw_articulation.stl 0.16mm no gray
0x sleeping_screw_articulation.stl 0.16mm no
4x screw_double_wheel.stl 0.12mm no red
2x screw_front_wheel.stl 0.12mm no red
1x sliding_doors.stl 0.12mm no orange
1x steering_wheel.stl 0.12mm no red
4x tire_bus_simple.stl 0.16mm no black (TPU)
6x tire_bus_with_outter_cut.stl 0.16mm no black (TPU)
The front face, back face and two body parts where printed with changing the materials for a "multi-colour" effect:
front and back body - change the filament at the desired hight (white - red)
front face - print with "lights pointing up" - change the filament at 3.7mm and 4.4mm (white - red - white)

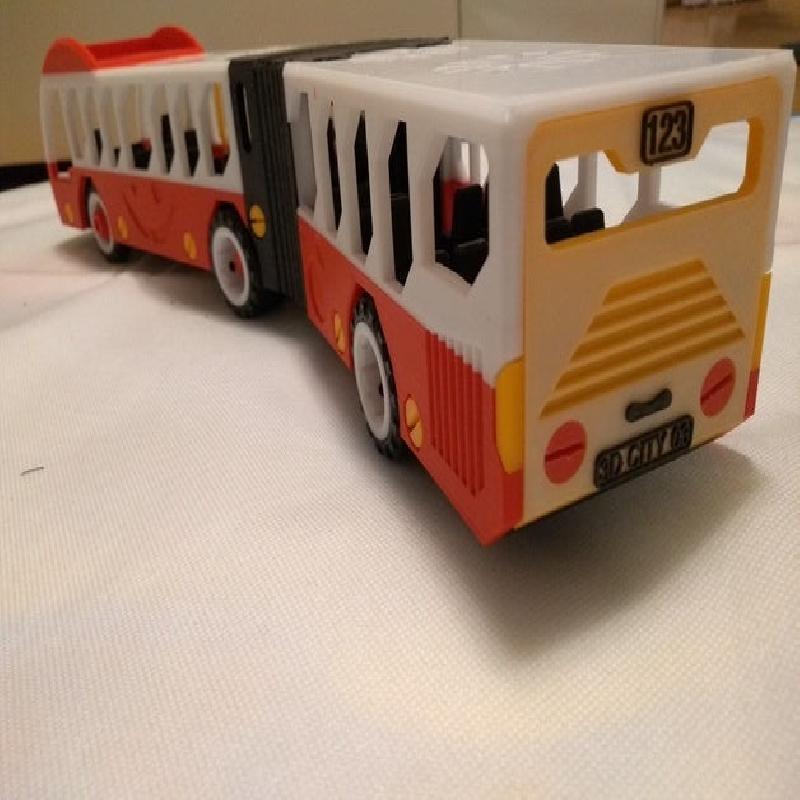

back face - print with "lights pointing up" - change the filament at 3.6mm and 4.1mm (orange - white - black)
For the model assembly check the video:
If something is not clear, just ask.
If You like the model, a tip will be apreciated ;)
