by sasha19md

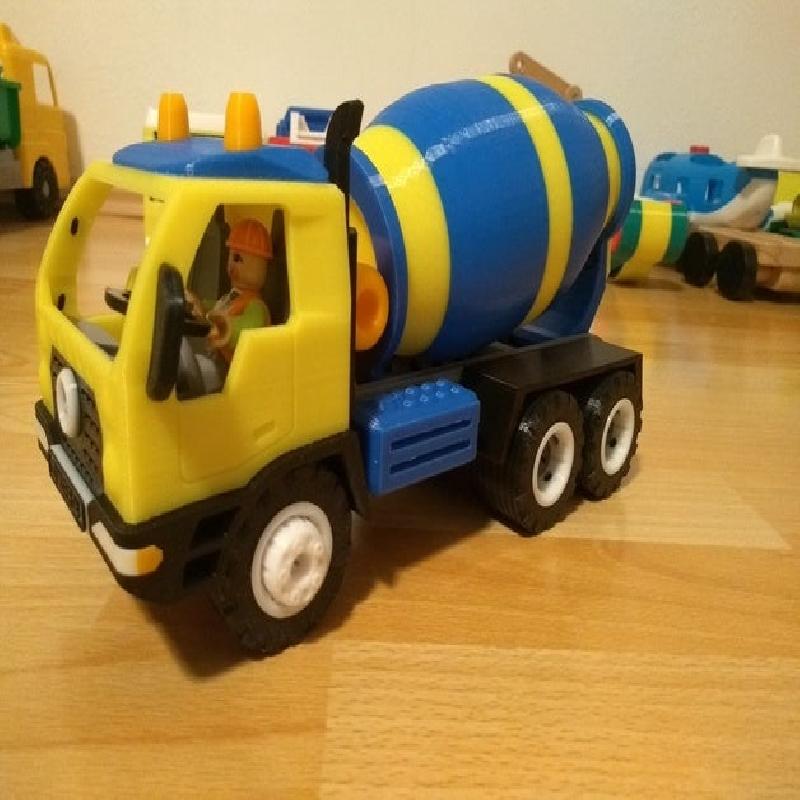

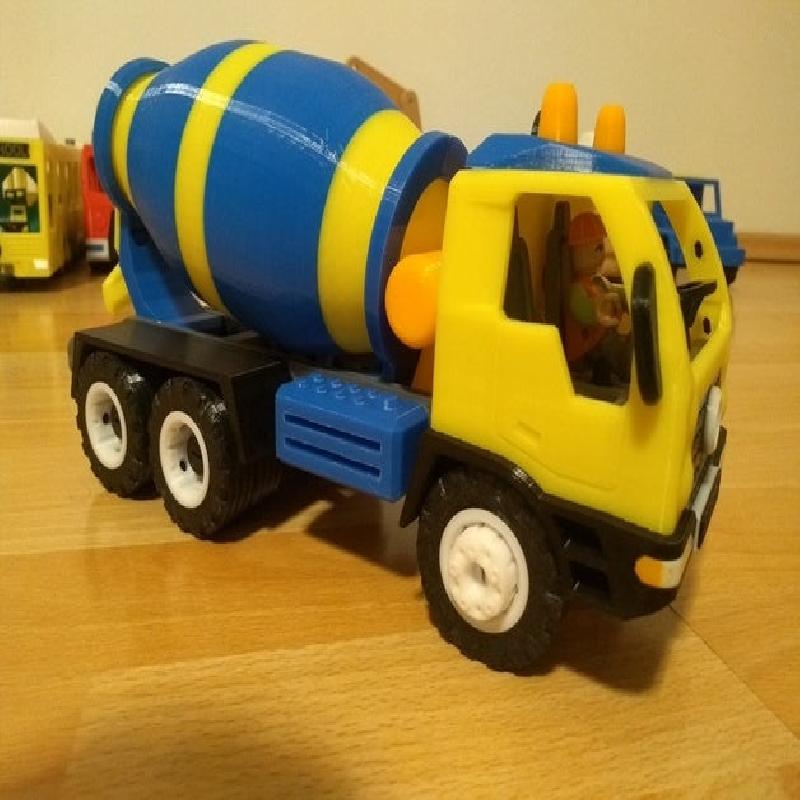

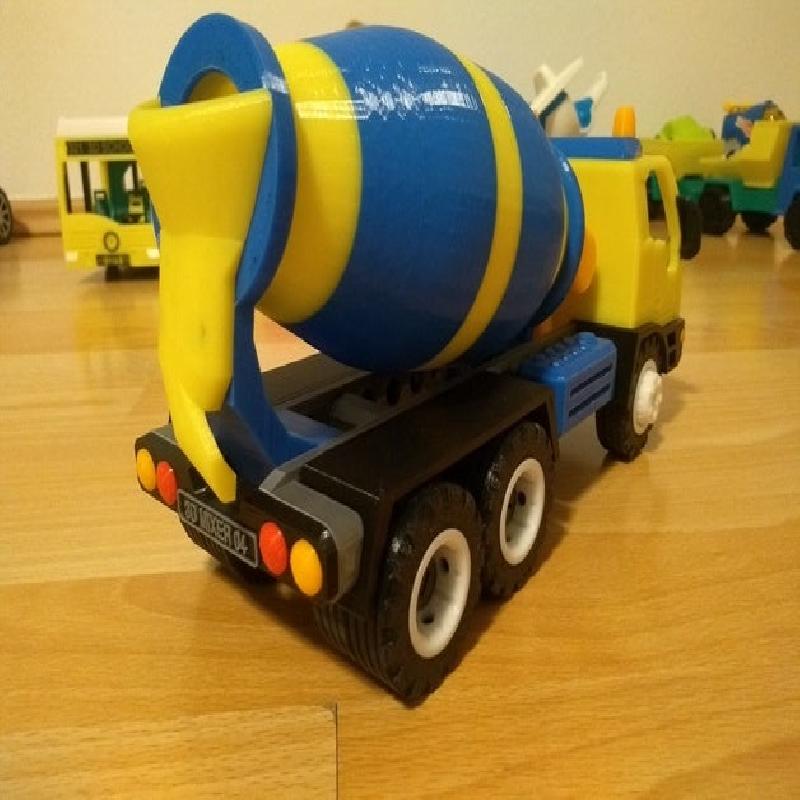

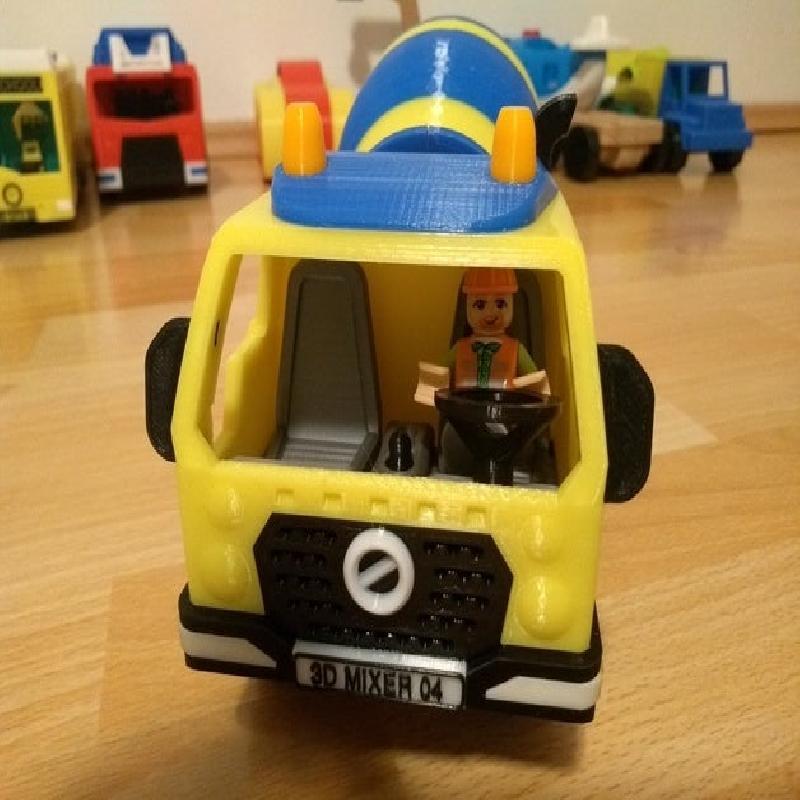

This is a concrete mixer truck toy. It is fully 3d printable.

Assembly tutorial here https://youtu.be/vKf4fwXmXI4

The tolerance for pieces that need to fit tightly is 0.1mm,
for pieces that need to allow movement (like screws and axles) 0.3mm or more.

Printing list:
Nb. STL file name                     rezolution  support   colour (my make)

• 2x  axle_back.stl                         0.16mm       no               gray

• 1x  axle_front.stl                        0.16mm       no               blue

• 1x  back_funnel.stl                       0.12mm       no             yellow

• 2x  back_light.stl                        0.16mm       no             orange

• 2x  back_light.stl                        0.16mm       no                red

• 1x  backhead.stl                          0.12mm       no        black-white

• 1x  base_dist.stl                         0.16mm       no               gray

• 1x  base_left.stl                         0.16mm       no               gray

• 1x  base_right.stl                        0.16mm       no               gray

• 1x  cabin_with_support.stl                0.16mm       no             yellow

• 0x  cabin_your_own_support.stl            0.16mm      yes             yellow

• 1x  cabin_cap.stl                         0.16mm       no               blue

• 4x  cap_double_rim.stl                    0.12mm       no              black

• 2x  cap_single_rim.stl                    0.12mm       no              white

• 1x  exhaust.stl                           0.16mm       no              black

• 1x  front_grill.stl                       0.12mm       no  black-white-black

• 1x  front_lights.stl                      0.12mm       no       orange-white

• 1x  interieur.stl                         0.16mm       no               gray

• 1x  interieur_base.stl                    0.16mm       no             orange

• 1x  mirrors                               0.12mm       no         black(TPU)

• 1x  mixer_wall_wider.stl                  0.28mm       no        yellow-blue

• 4x  rim_double.stl                        0.16mm       no              white

• 2x  rim_single.stl                        0.16mm       no              white

• 2x  roof_light.stl                        0.16mm       no             orange

• 1x  screw_gear_knob.stl                   0.16mm       no              black

• 6x  screw_l9mm.stl                        0.16mm       no            several

• 12x screw_l13mm.stl                       0.16mm       no            several

• 0x  sleeping_screw_l9mm.stl               0.16mm       no            several

• 0x  sleeping_screw_l13mm.stl               0.16mm       no            several

• 1x  steering_wheel.stl                    0.16mm       no              black

• 1x  support_mixer_back.stl                0.16mm       no               blue

• 1x  support_mixer_front_left.stl          0.16mm       no               blue

• 1x  support_mixer_front_right.stl         0.16mm       no               blue

• 6x  tire_outter_cut.stl                   0.16mm       no              black

• 4x  tire_simple.stl                       0.16mm       no              black

• 1x  tool_box_left.stl                     0.16mm       no               blue

• 1x  tool_box_right.stl                    0.16mm       no               blue

• 1x  water_tank_left.stl                   0.16mm       no             orange

• 1x  water_tank_right.stl                  0.16mm       no             orange

• 1x  wheel_house_back_left.stl             0.16mm       no              black

• 1x  wheel_house_back_right.stl            0.16mm       no              black

• 1x  wheel_house_front_left.stl            0.16mm       no              black

• 1x  wheel_house_front_right.stl           0.16mm       no              black

Observations:

• all objects already have the intended print direction in the STL files!

• if you don't like the "built in" supports for the cabin,
  then you can find only the cabin in "cabin_your_own_support.stl"

• most of the parts were printed with PLA. only the tires and
  the mirrors were printed from TPU (flexible material)

• there is narrow and a wide mixer parts, chose the one you like

• screws... there are also "sleeping" screws STLs included
  these are printed on the side which makes them a lot stronger
  the drawback is that these don't close the holes completely...
  So use only as many "sleeping" screws if the toy is going to be
  played with, and only normal/round ones otherwise

As always, improvement suggestions are very welcome (can't promise though that I'll have the time to do them all ;) )

There are, of course, other variations of this model in the pipe...

PS: the driver is not included, it was only a temporary job for him.
