Summary

Requested by SkyKing...

The Grumman American AA-1 series is a family of light, two-seat aircraft. The family includes the original American Aviation AA-1 Yankee Clipper and AA-1A Trainer, the Grumman American AA-1B Trainer and TR-2. This particular model is mostly based on the AA-1 Yankee Clipper. Documentation on this aircraft was sparse due to it's status as an older trainer. The AA-1 was originally designed as a kit-build under FAR 23. When no kits were sold, it was re-designed as a trainer, and a very forgiving trainer indeed. The design of the entire airframe was simple by design philosophy, with the wings interchangeable on either side. I attempted to "cut" into the fuselage mesh to have the wing pegs connecting inboard as opposed to outboard, but it was only with limited success. Enjoy!

Version 1.0.2

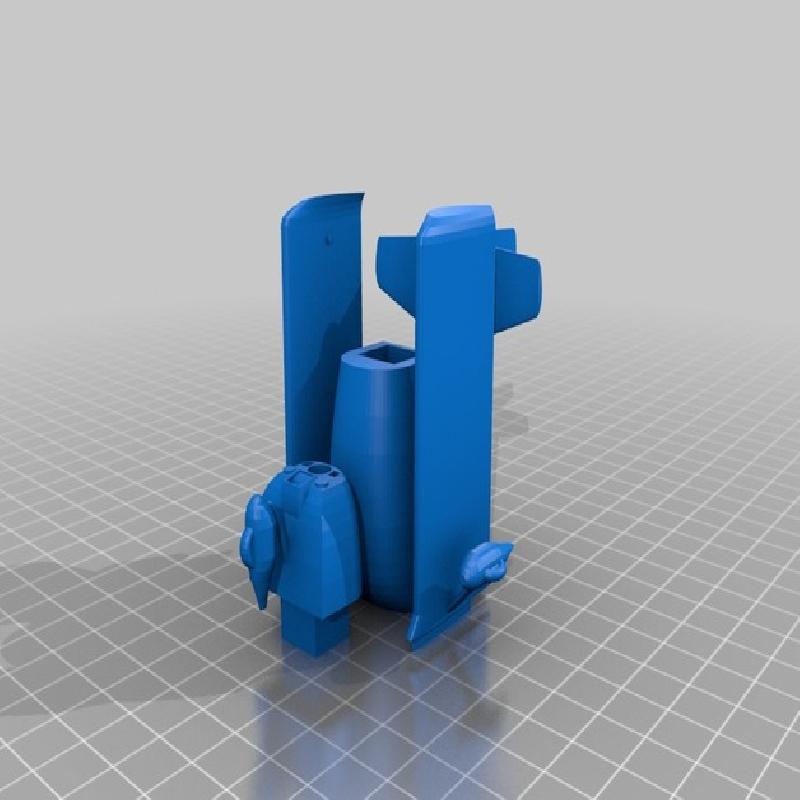

Print Settings

Printer Brand: MakerBot

Printer: MakerBot Replicator (5th Generation)

Rafts: Yes

Supports: Yes

Resolution: 0.1mm High Resolution

Infill: 10% 0.4mm Diamond (fast)

How I Designed This

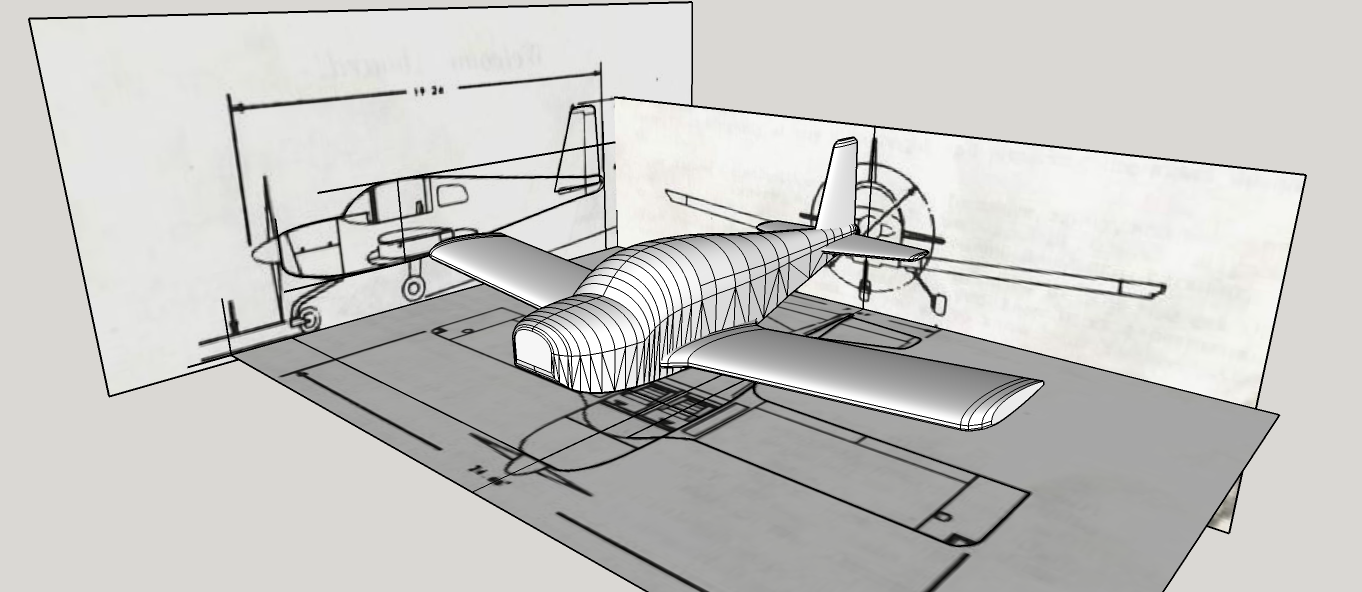

The orthographic three-view I used as the primary reference. No schematics were readily available, so I captured this out of an old POH.

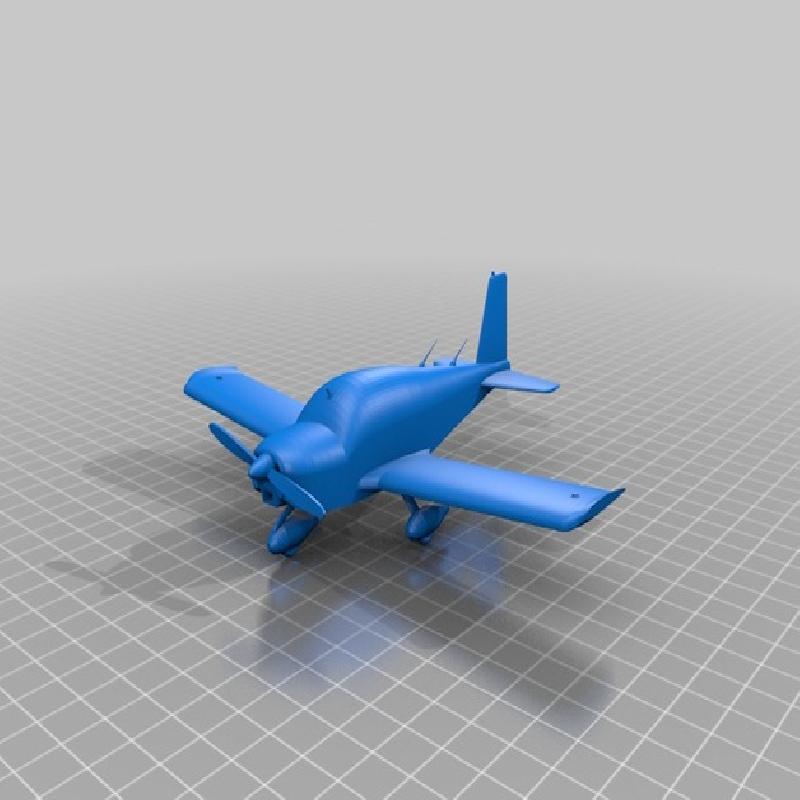

Main body is complete, and ready for detailing.
