Warhammer Rhino Tank

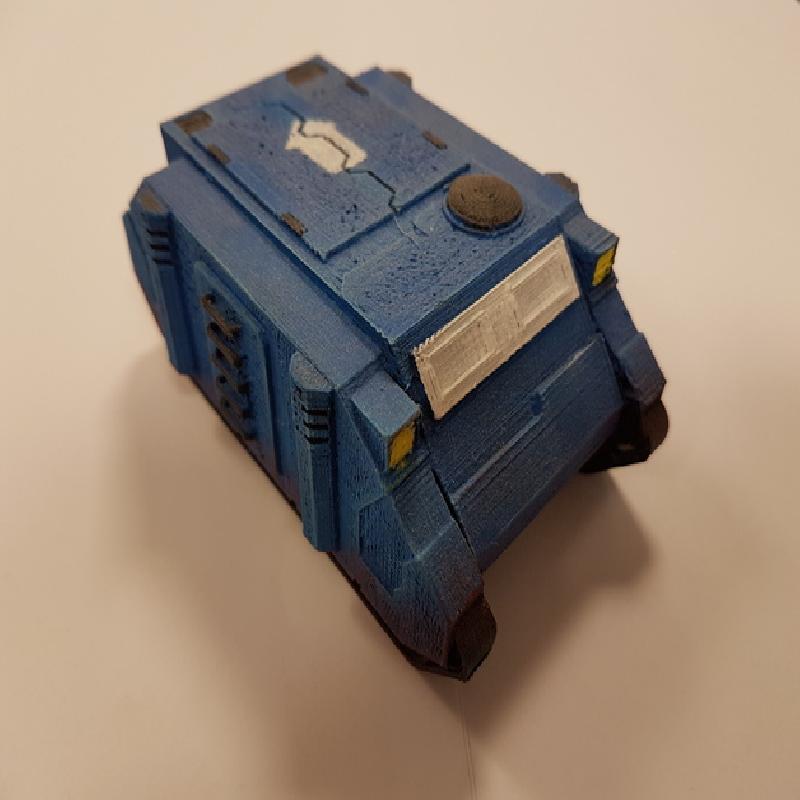

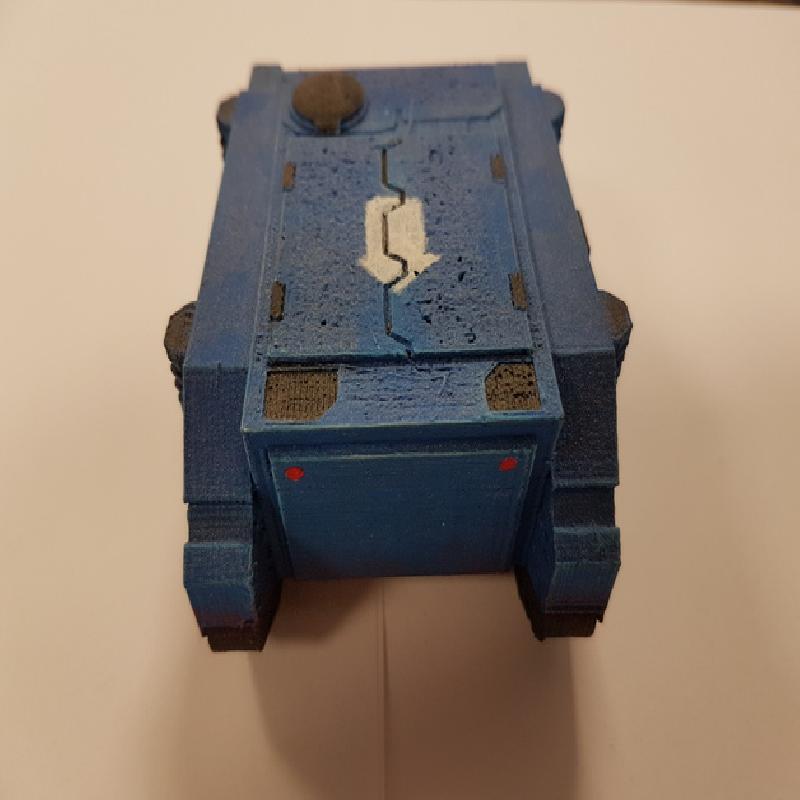

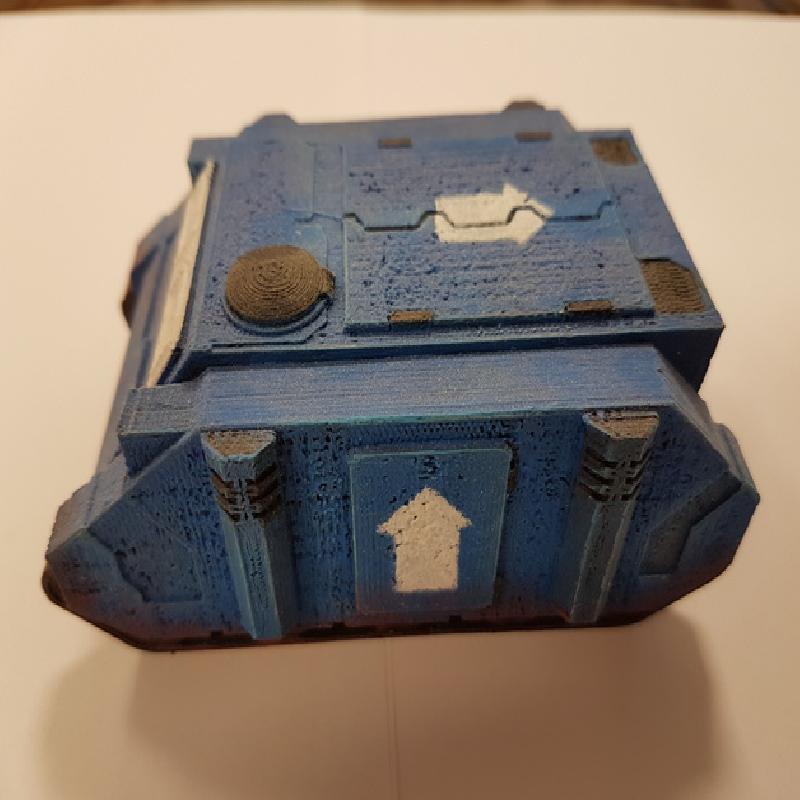

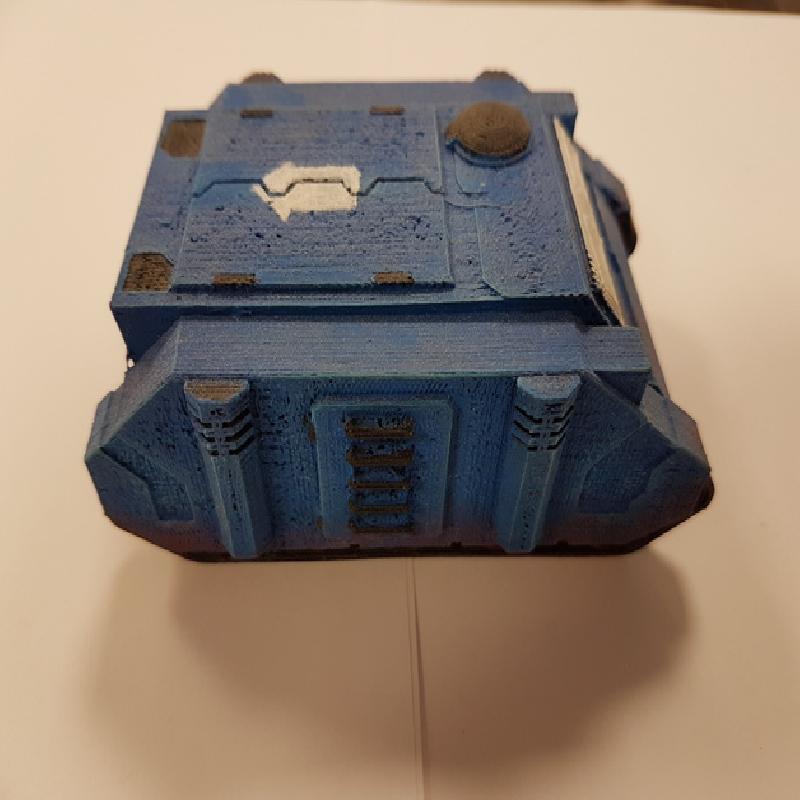

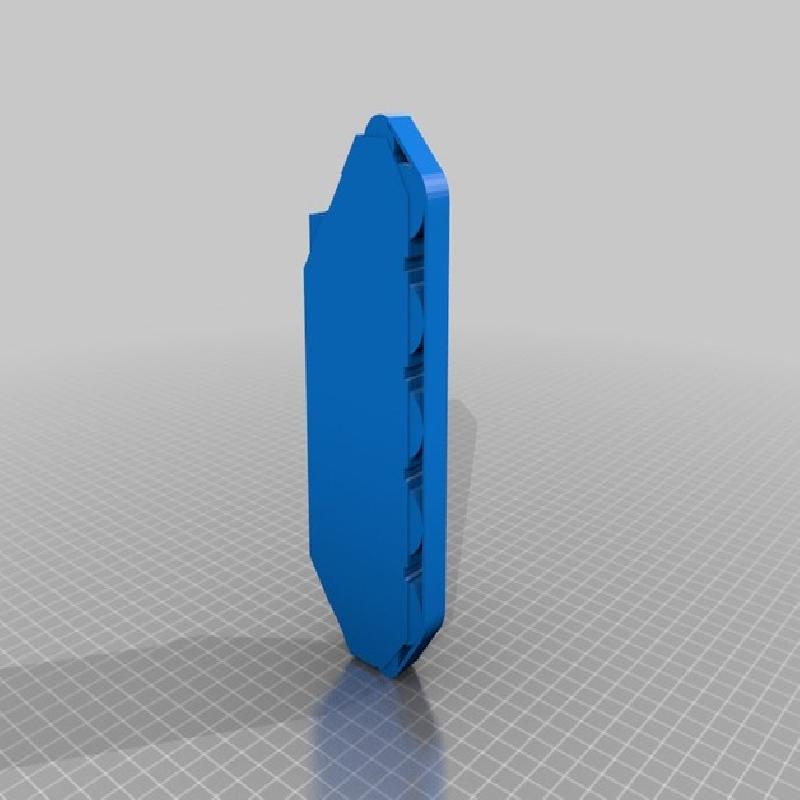

Thought i would have a go at printing out a scale model of a warhammer Rhino tank
a student was designing a folding gaming table ( similar to a pasting table) for mobile gaming.
when I saw what he was designing i thought it would be a good idea to design some models to display on it. Thus where this model came from.
i tried to get the dimensions accurate but some tweaking is still needed as the 100% scale was slightly too big.

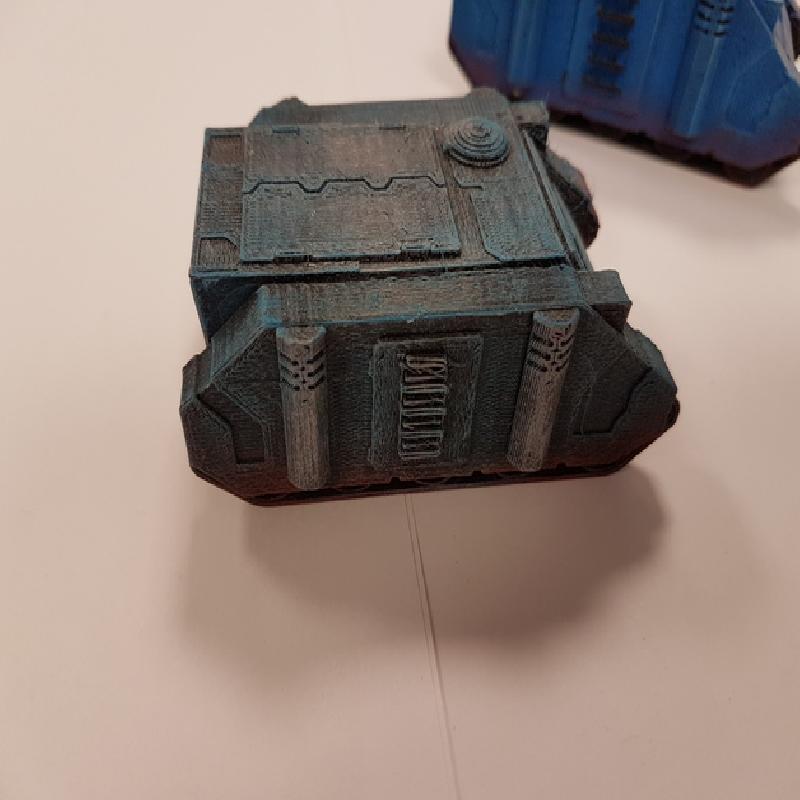

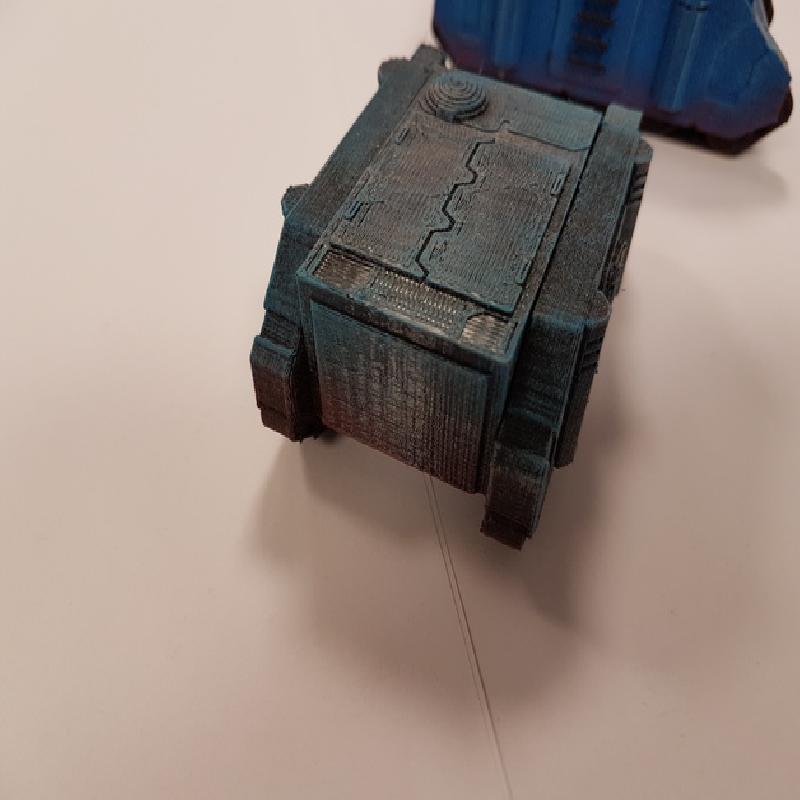

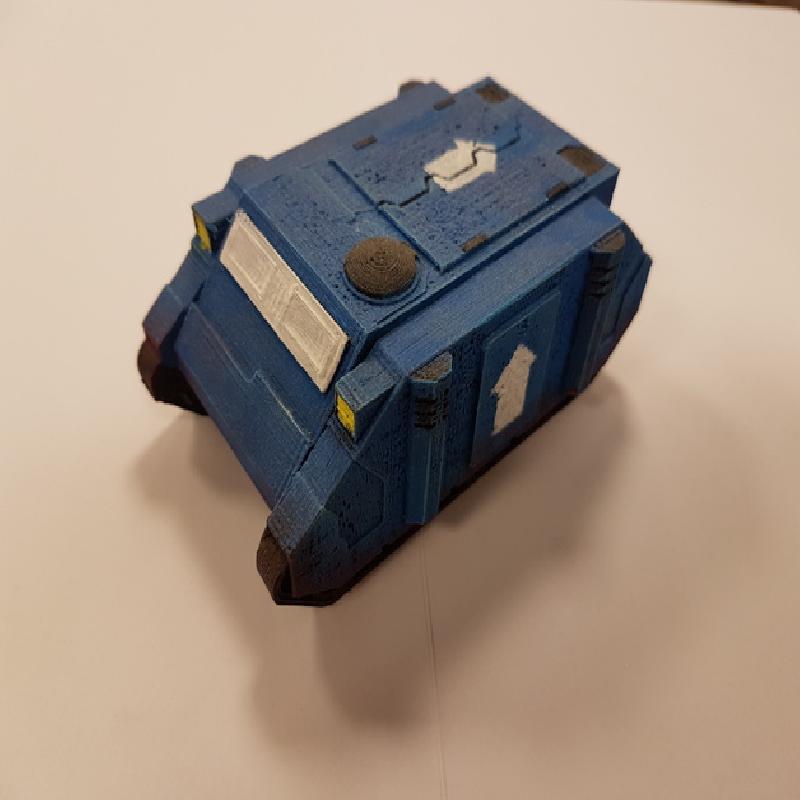

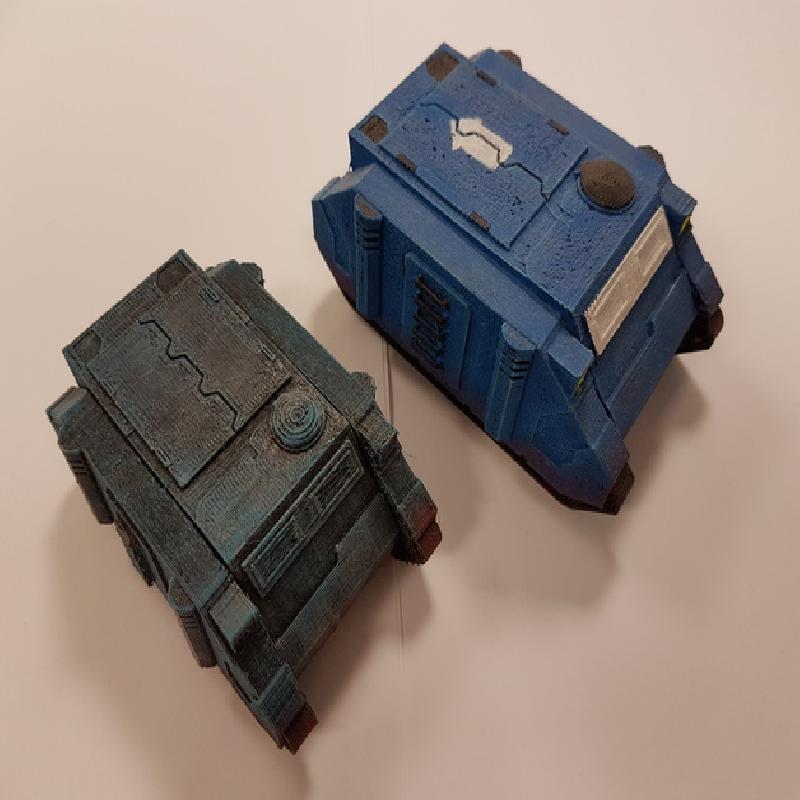

I decided to print mine at a slightly smaller scale.

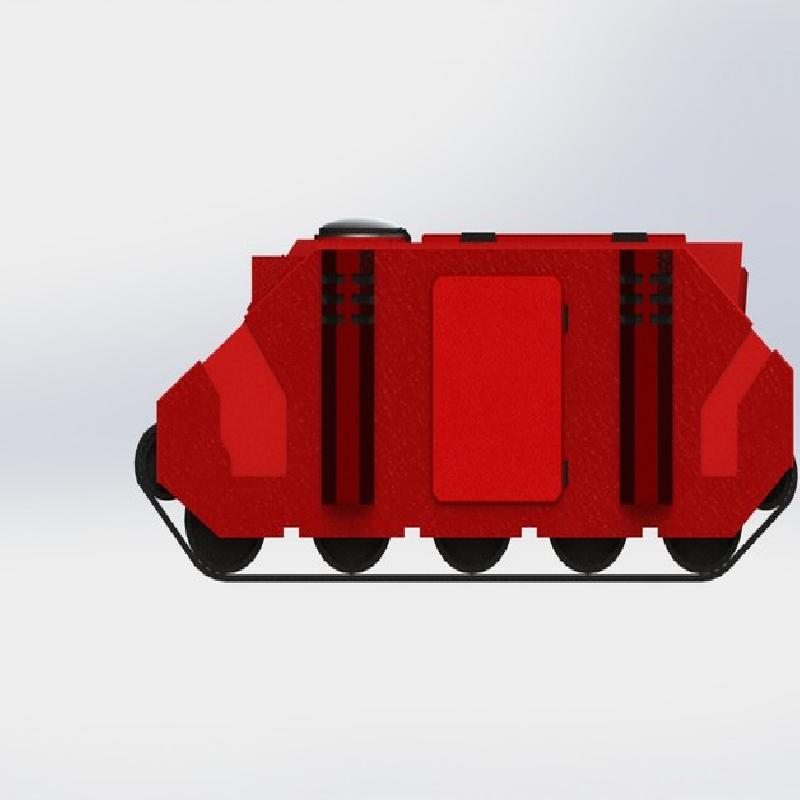

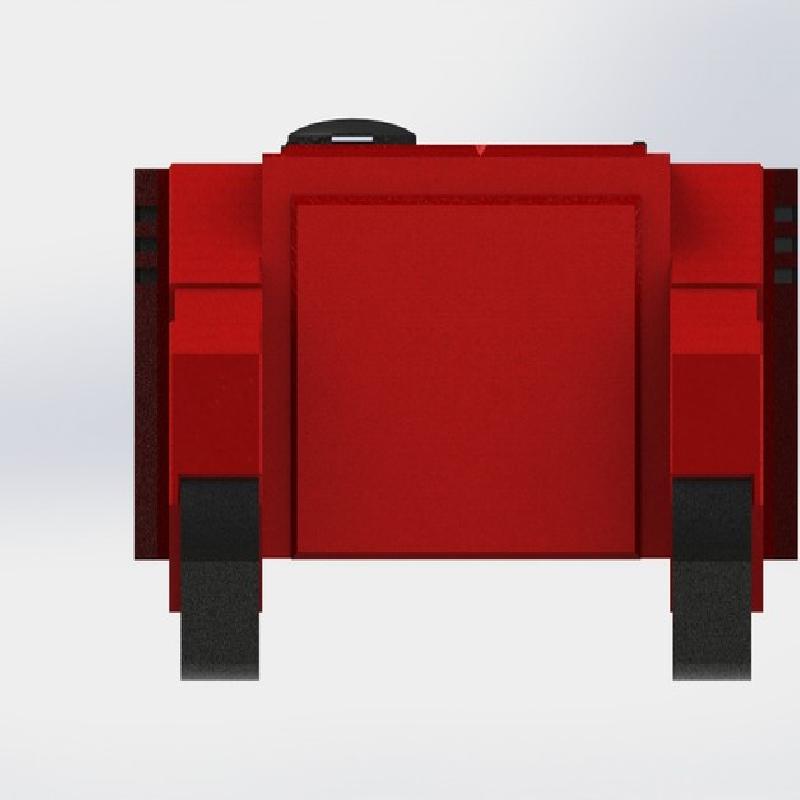

I have included the solidworks files so that anyone wishing to modify this might be able to do so.
i also managed to forget to design the exhaust vents which sit on the 4 upright pillars.
Printer Brand: MakerBot
Printer: MakerBot Replicator (5th Generation)
Rafts: Yes
Supports: No
Infill: 10
Notes:

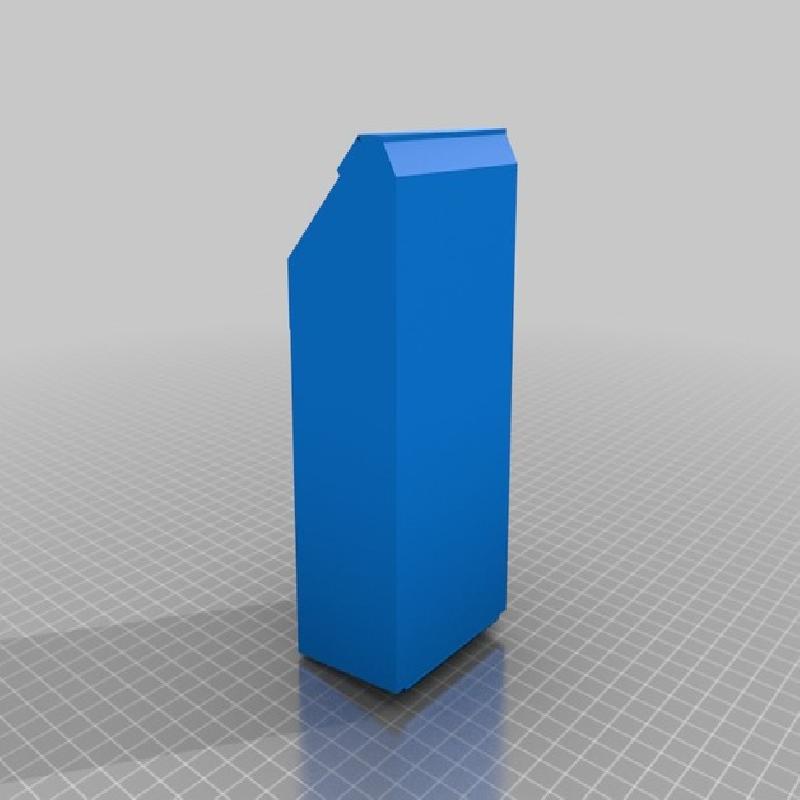

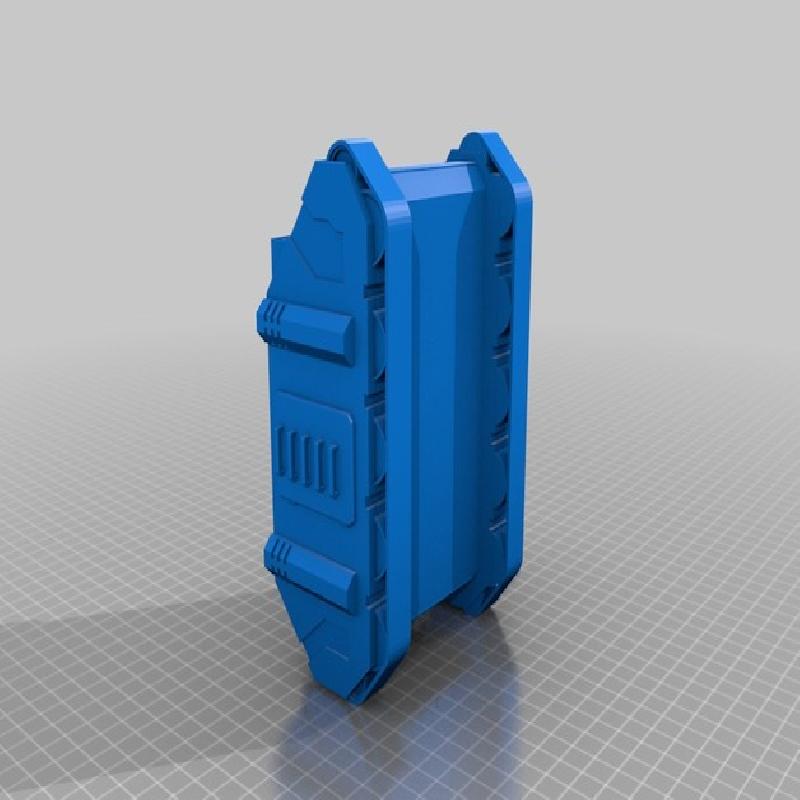

these print settings are for a guide. I basically used the makerbot standard high quality print and had no issues. The best thing to do is print it out separately. There are some areas to modify as i didnt have a massive amount of time to play with the model.
Designed for displaying on a students final piece
I designed this to help a student display his final piece and show what it can be used for.

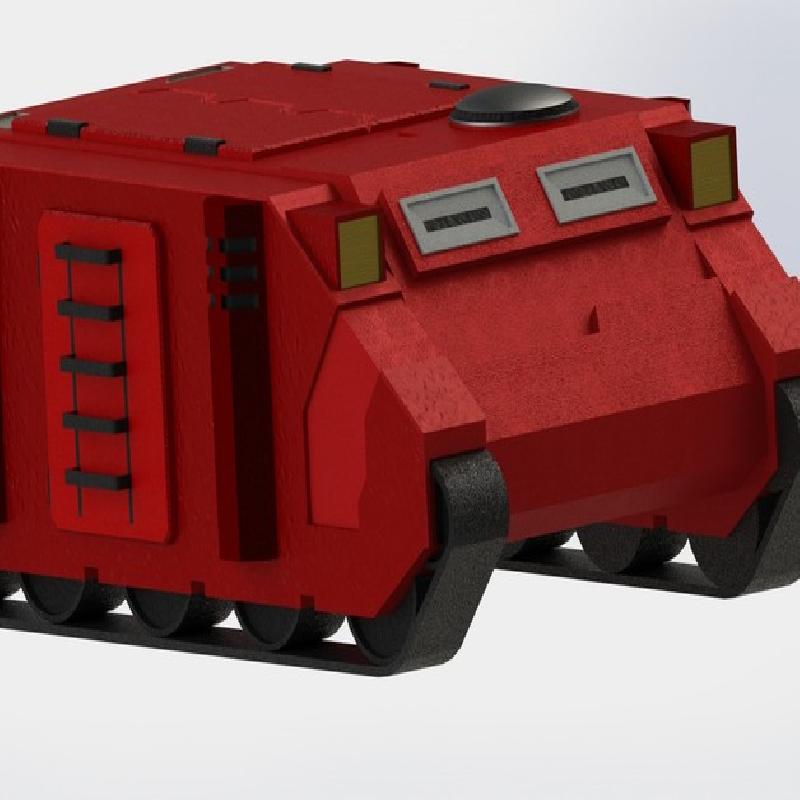

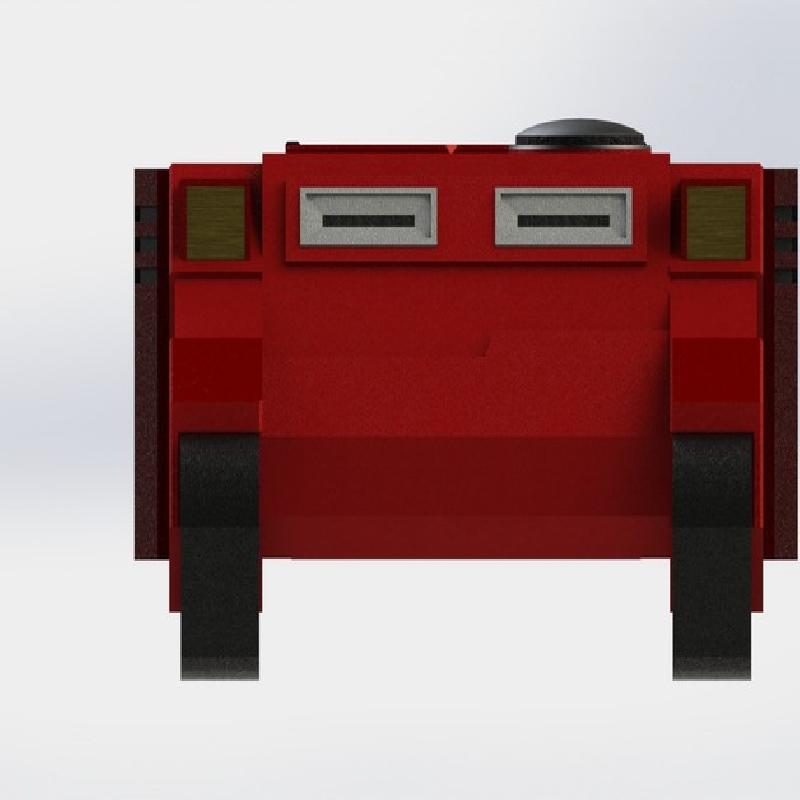

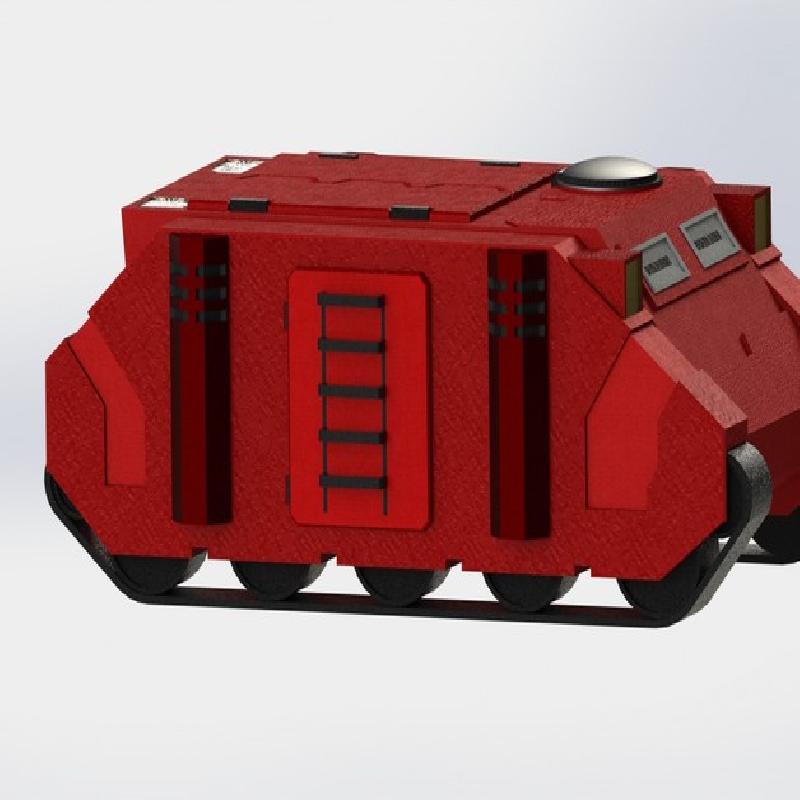

designed using Solidworks and a lot of online research for the dimensions etc.
