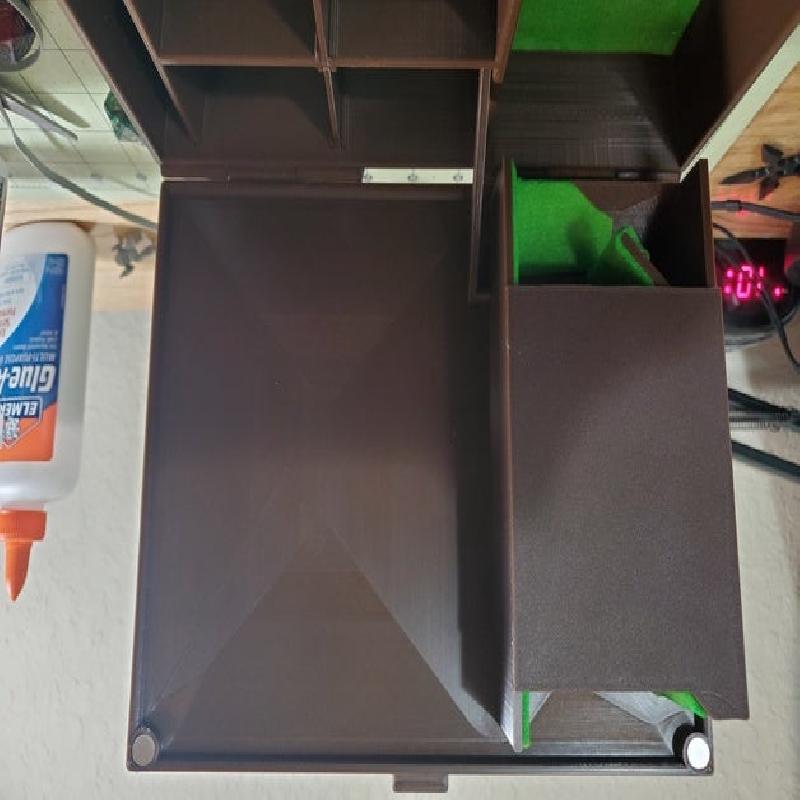

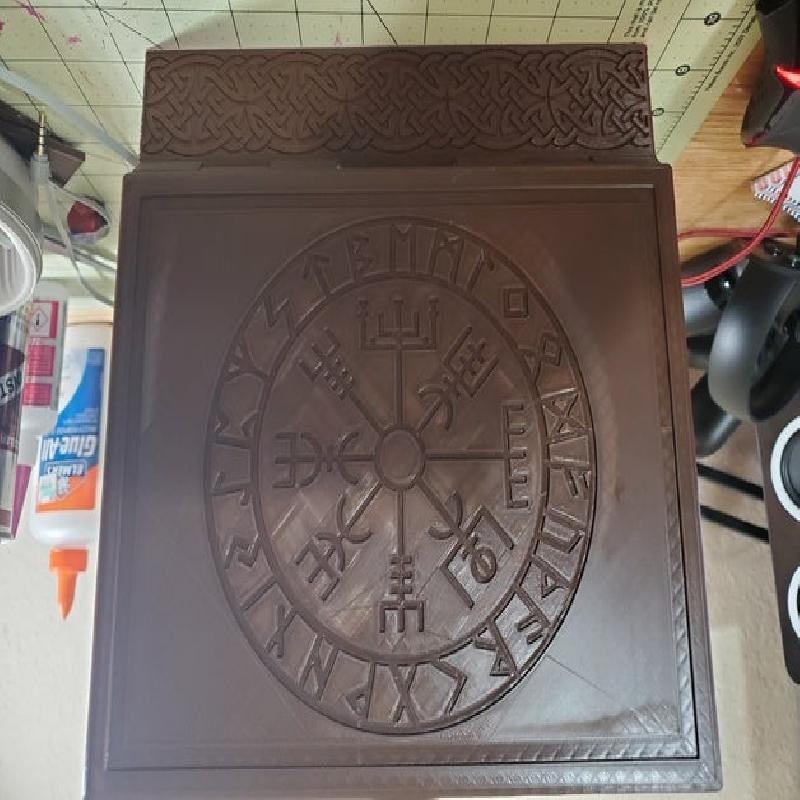

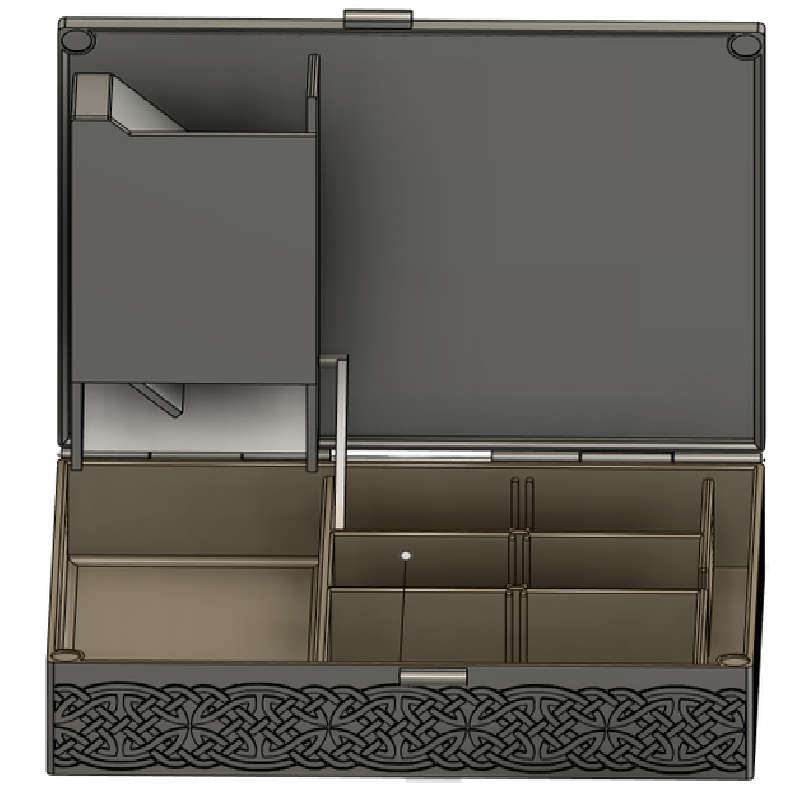

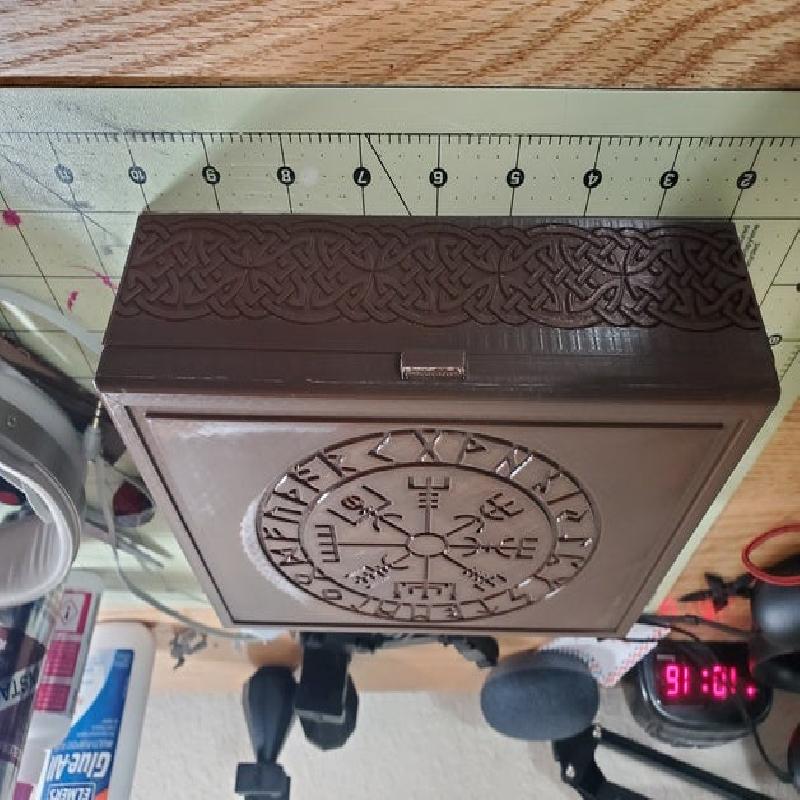

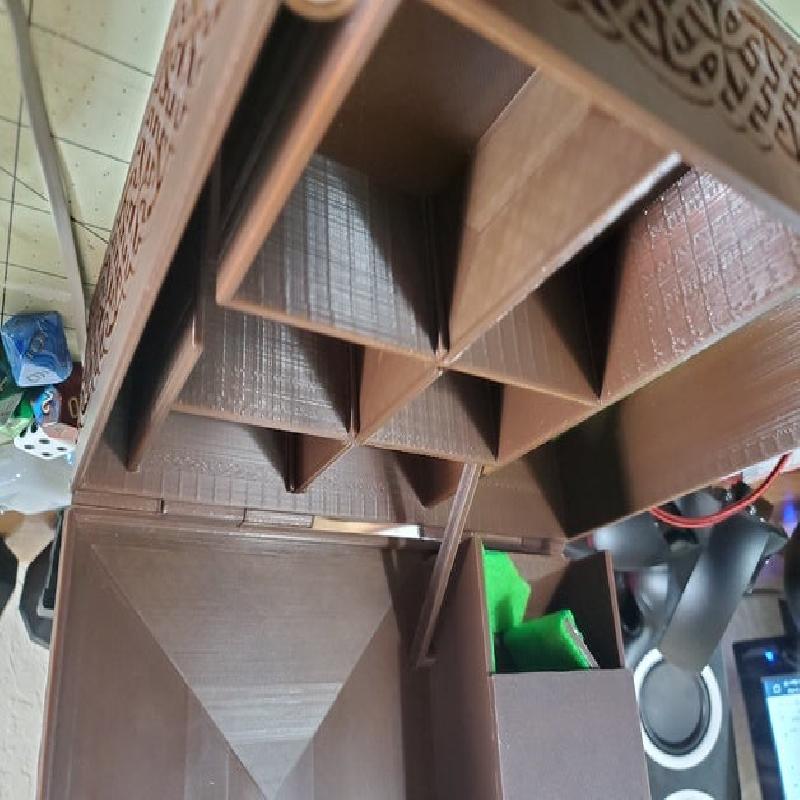

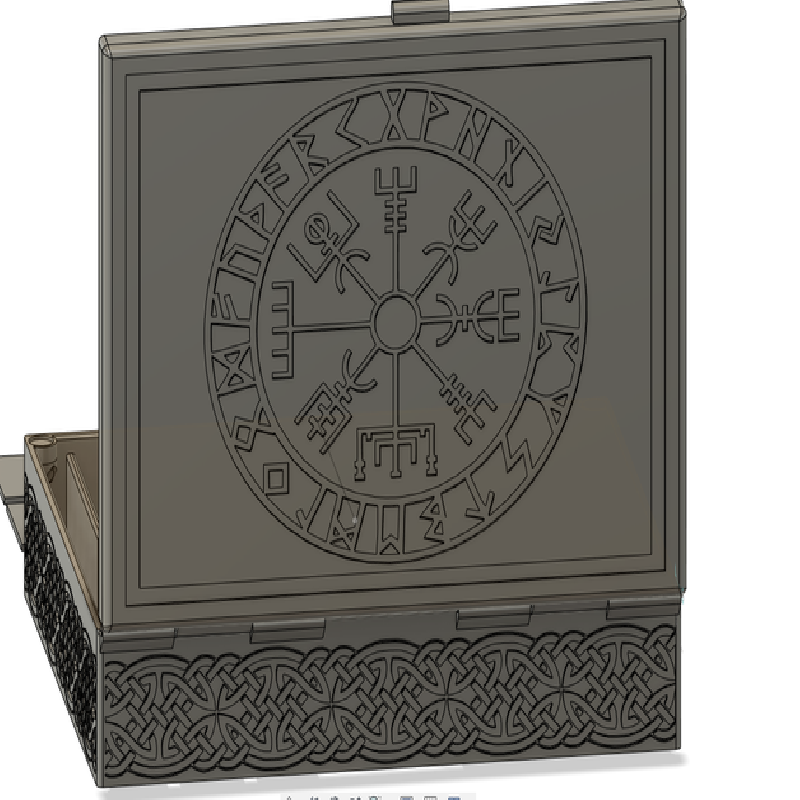

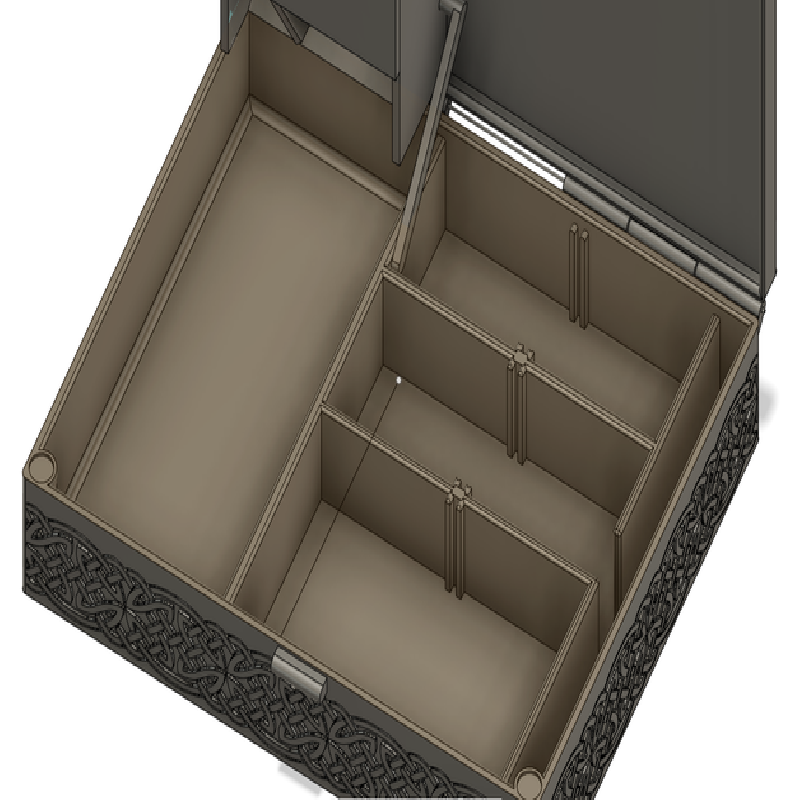

This is a 8.25" x 6.6" x 2.25" dice box with a built in dice tower attached to the lid. It has room for pens and pencils, 3 rows of storage with dividers available, and the tower in the rest of the space. The lid is printed in 2 pieces to allow a decorative cover to be placed without having to print with supports.

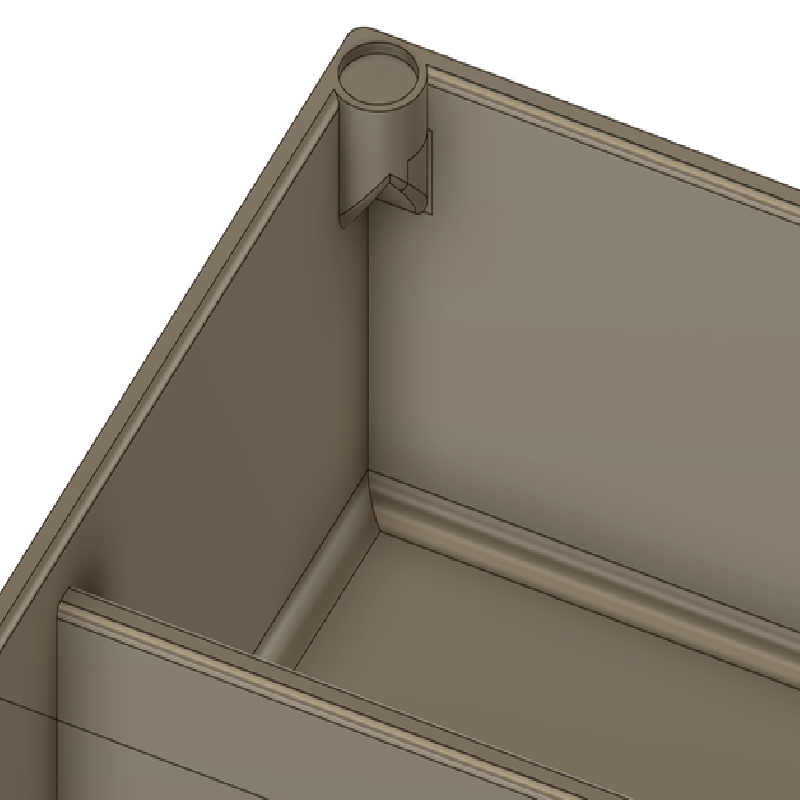

The hinges are assembled with paperclips and glued at the ends. The spots in the corners are for 8mmx1mm disk magnets. I may update with a spot for a 3rd pair. The holding pin allows you to keep the lid at 90 degrees.

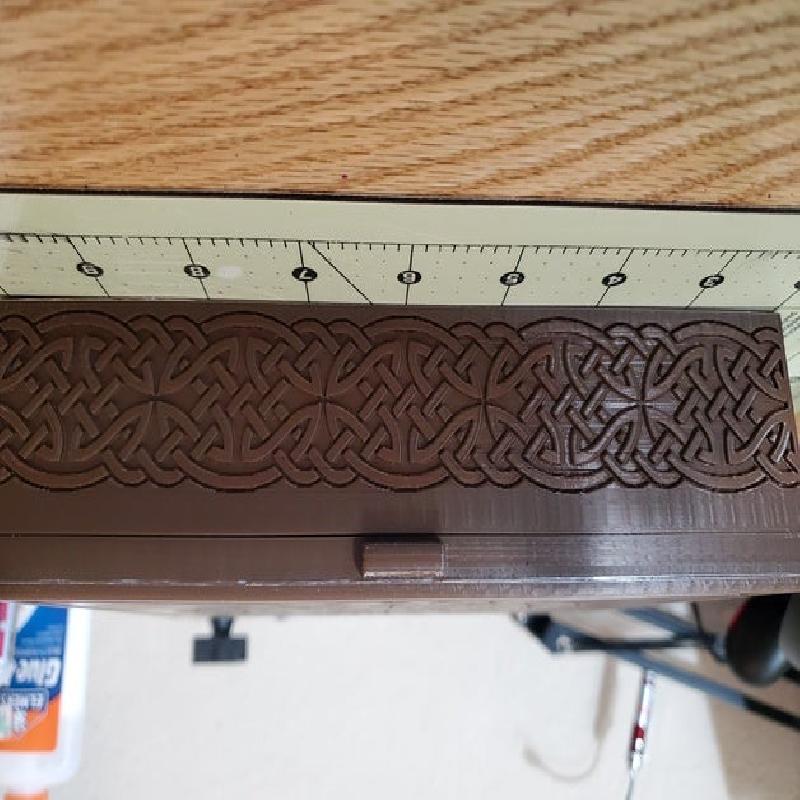

The designs on the base box is best printed at 0.2 mm or finer without supports. There will be some uncleanness at 0.2 but higher layer sizes look bad.
Redesigns can be requested.
Please feel free to tip or support me on Patreon https://www.patreon.com/AustinCooperrider
Printer Brand:
Creality
Printer:
Ender 3 Pro
Rafts:
Doesn't Matter
Supports:
Doesn't Matter
Resolution:
0.2mm
Infill:
10%
Notes:
The only part that needs support is the lid for the thumb catch. All other parts are supportless.
