by juergen54

When I started printing vehicles I often was frustrated about the deficient print quality and the awful cleaning work.

So I decided to divide the object into several parts.
The focus is on print quality and avoiding support structures.

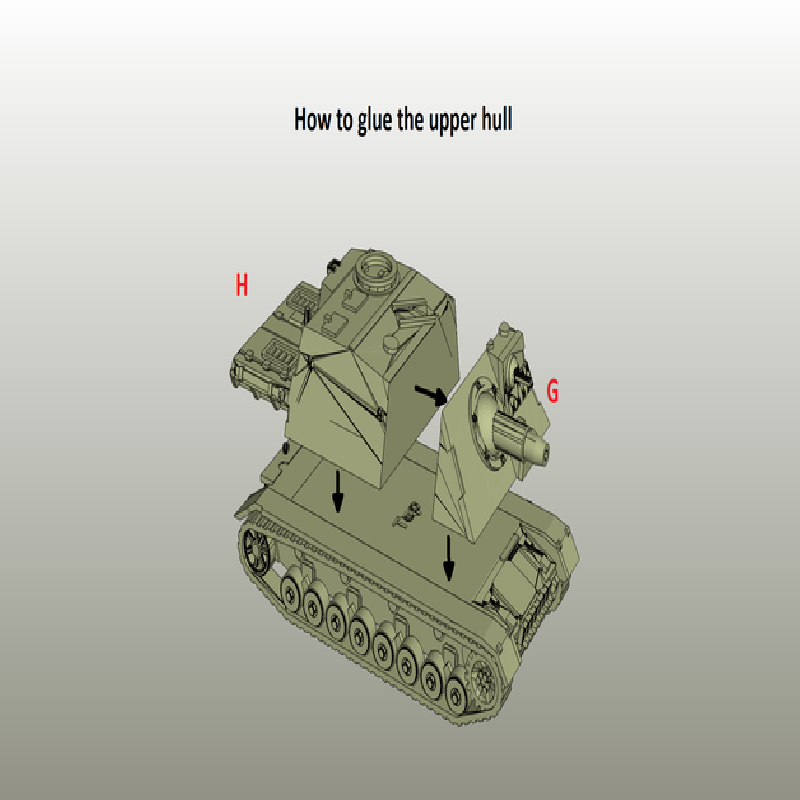

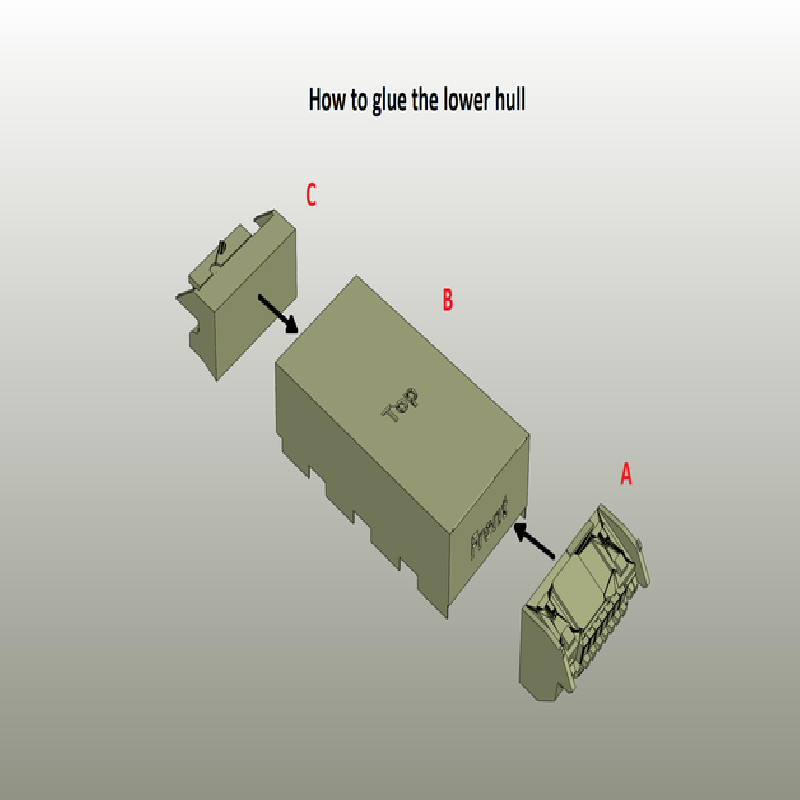

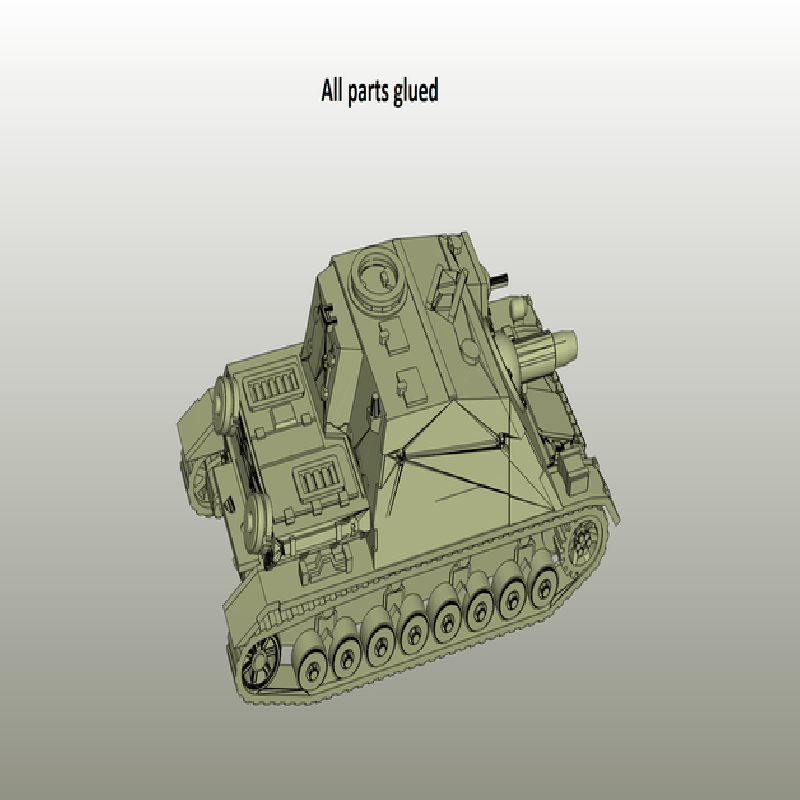

After printing, the parts have to be glued together.

Meanwhile I printed and built some models in this way.

I publish the print files for all users who like to have quick and good print results.

Finally, let my thank the original designers of the models. They are important for our community. I only cut their models into several pieces ... nothing else.

This time I worked on the Sturmpanzer IV - Sd.Kfz.166 called Brummbär.

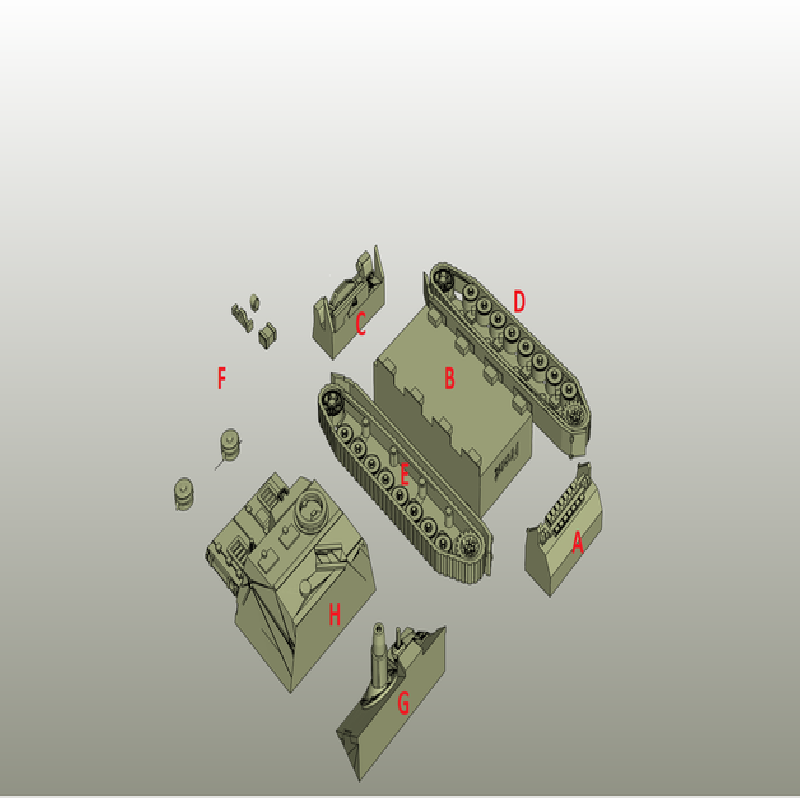

I took this object, cutted it into several pieces.

The attached stl-files are scaled to 1/100.

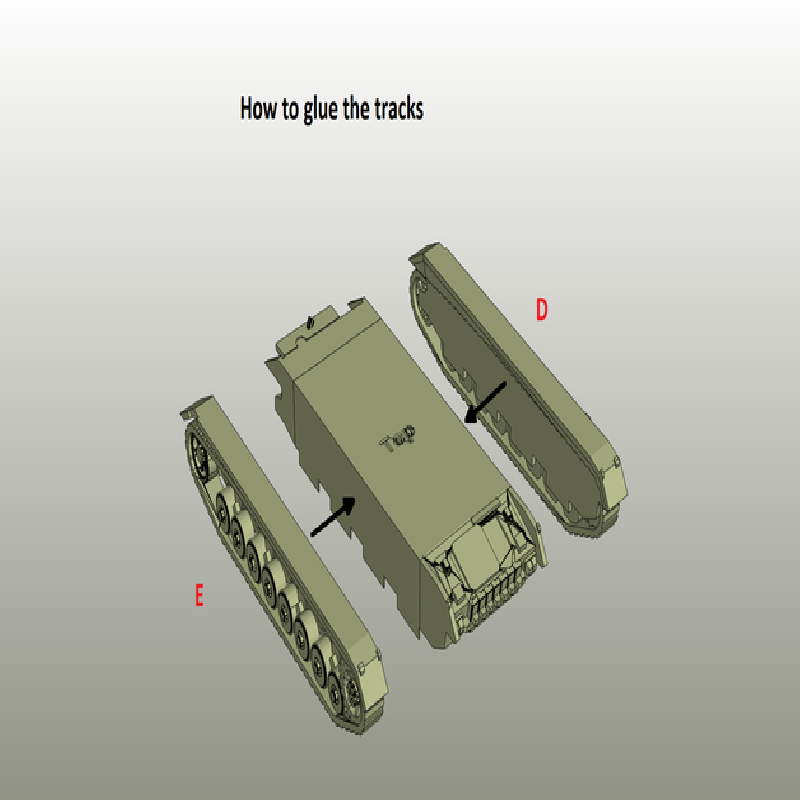

Print the tracks (file D and E) with support.

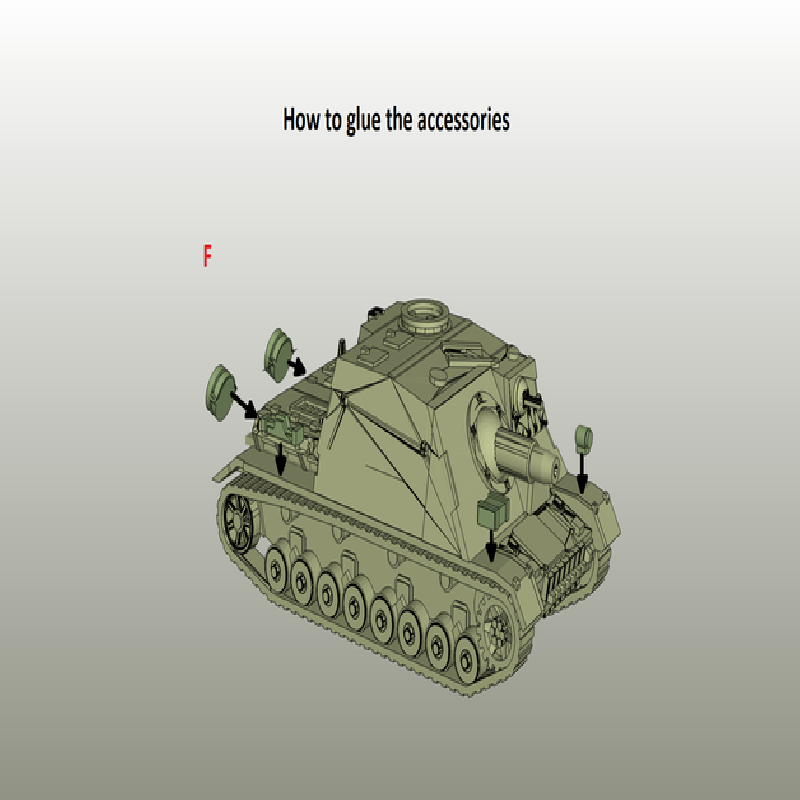

Print the accessories (file F) with brim or raft.

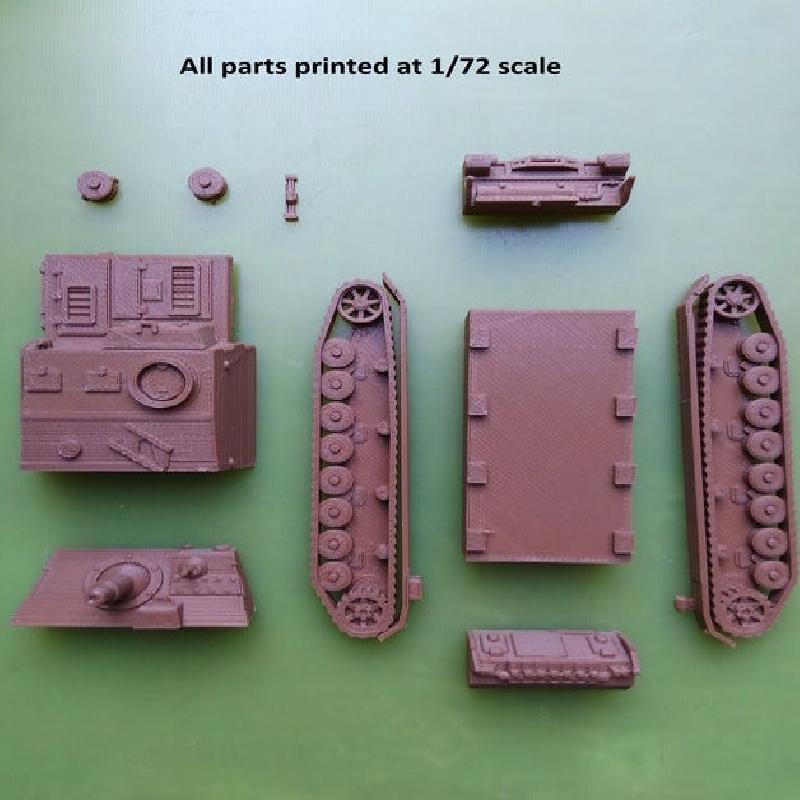

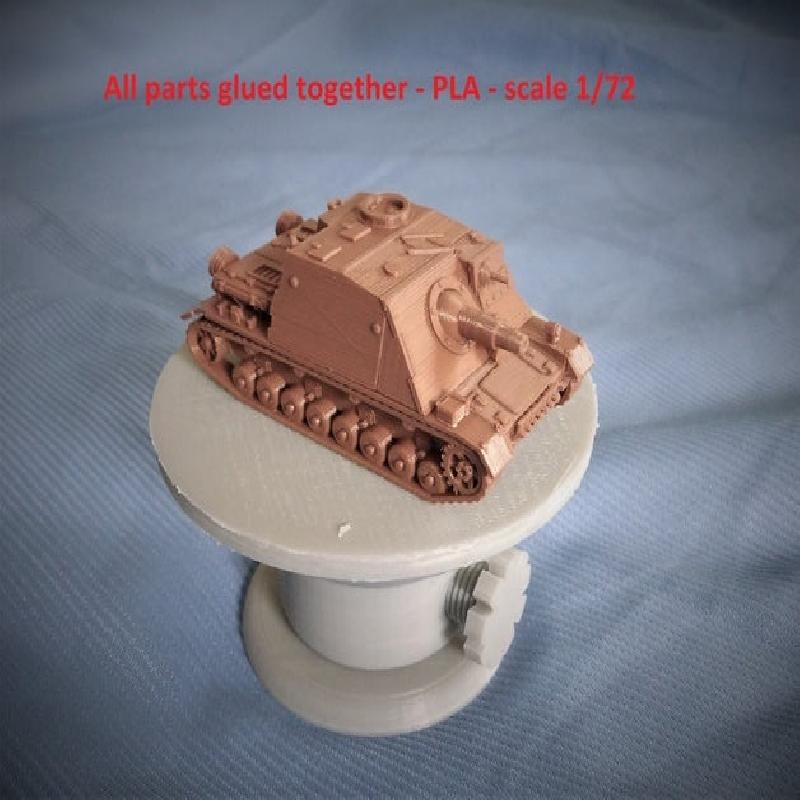

I printed the parts at a scale of 1/72.

Print Settings

Printer Brand:

Monoprice

Printer:

Maker Ultimate

Rafts:

No

Supports:

No

Resolution:

0.1 mm

Infill:

25 %

Filament:                                            OWL PLA                                        RAL 8024

Notes:

nozzle 195°C, heated bed 60°C
