by Jeremycon, published

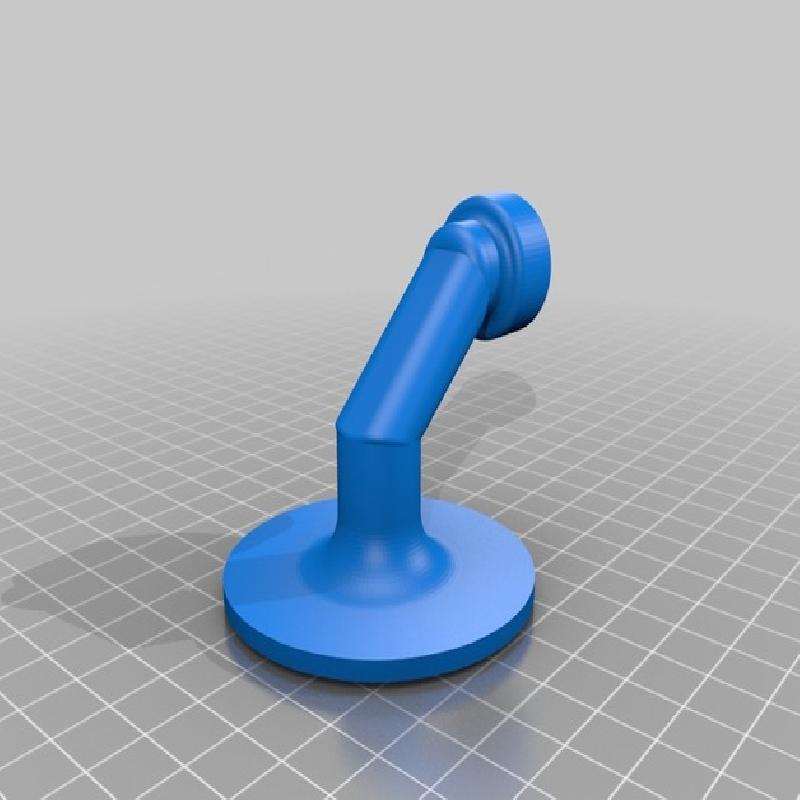

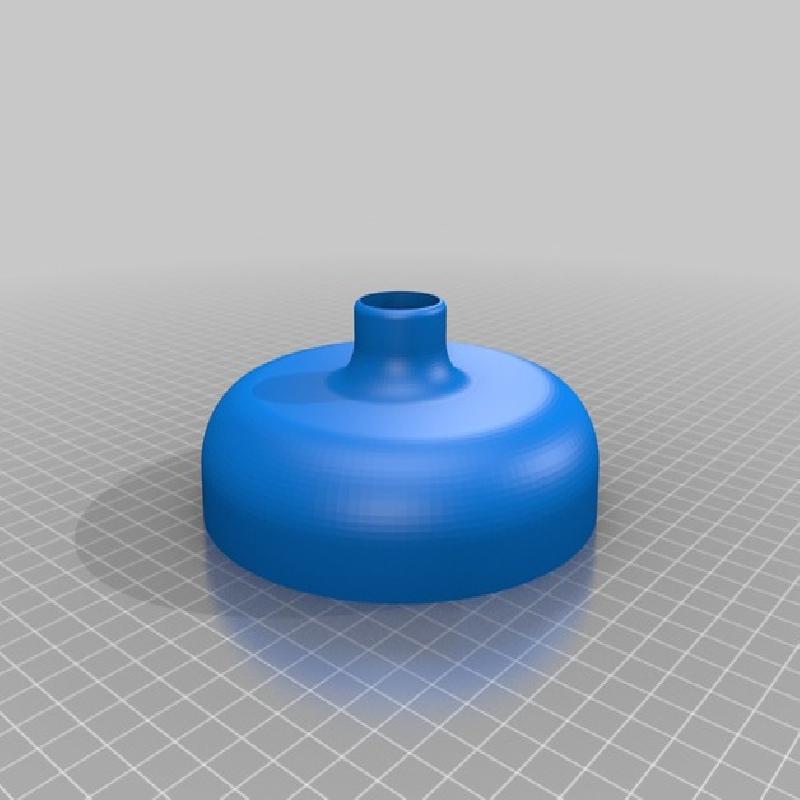

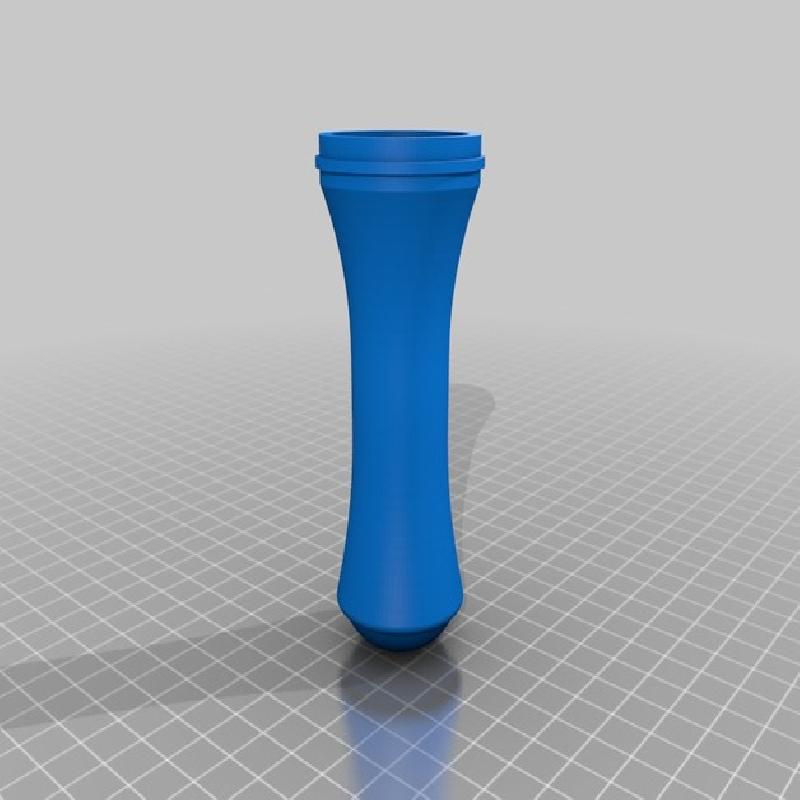

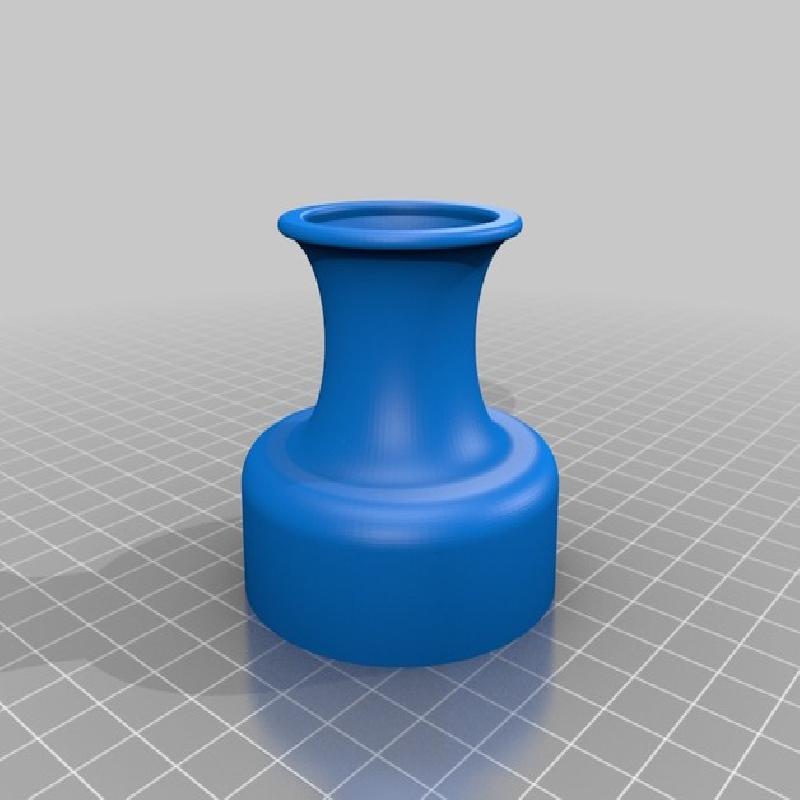

My School is doing a play and needed an old style phone so after a bit of design work here it is. Known as a Candlestick Phone for obvious reasons, I have designed it so that all the parts slot into each other. Just added 'Base2' which is slightly smaller, decide which one you prefer.
There is a hole in the base and ear piece (see Pictures) to attach some string or cord for them to join together.

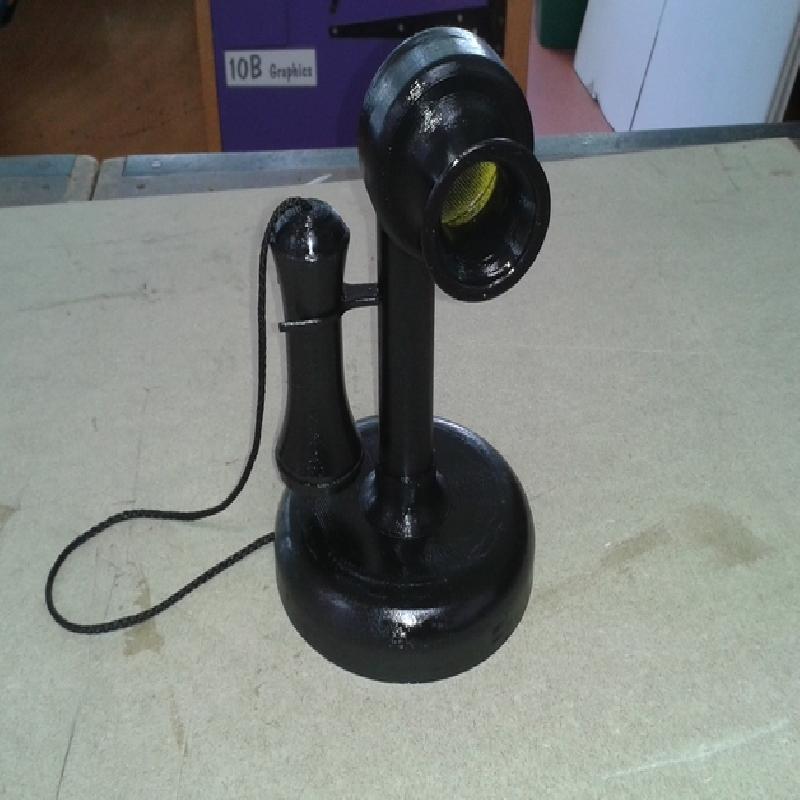

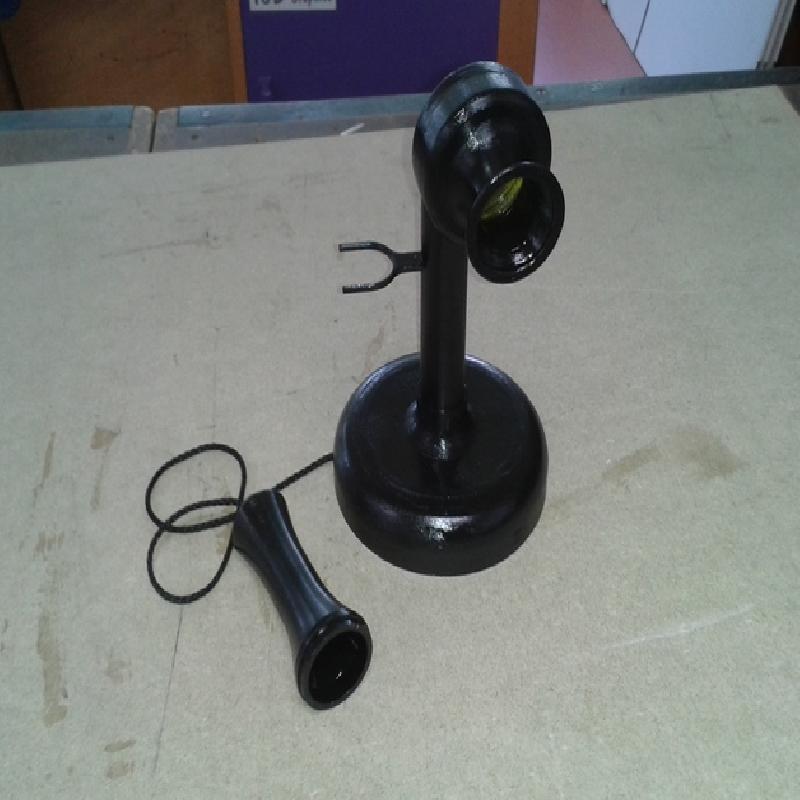

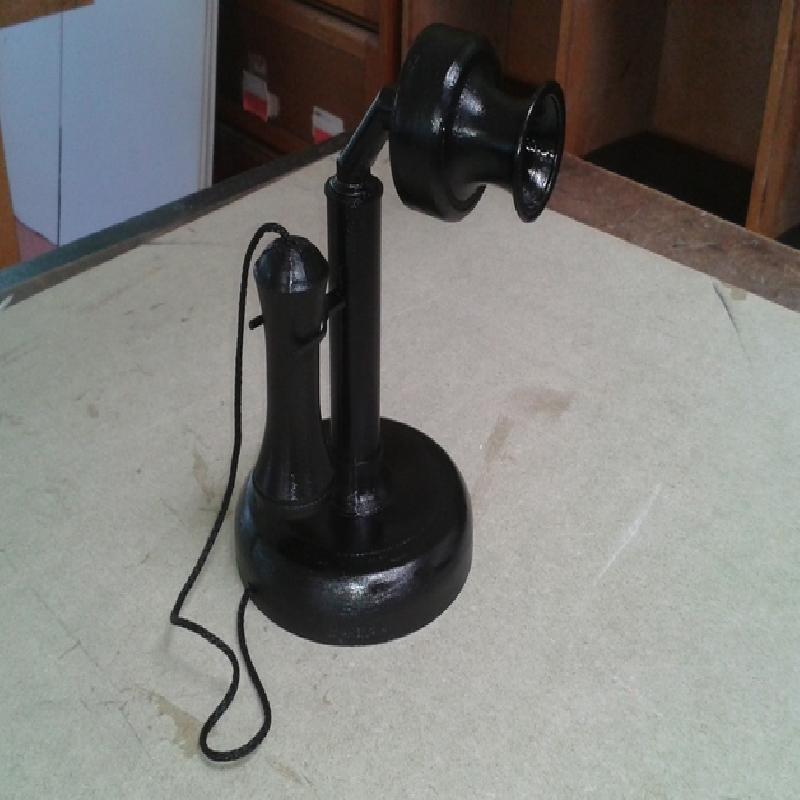

Just uploaded finished pictures sprayed in black with black cord for the phone line.
Printer Brand: Up!
Printer: Up Plus2
Rafts: Yes
Supports: Yes
Resolution: .2 is fine
Infill: 20%
Notes:

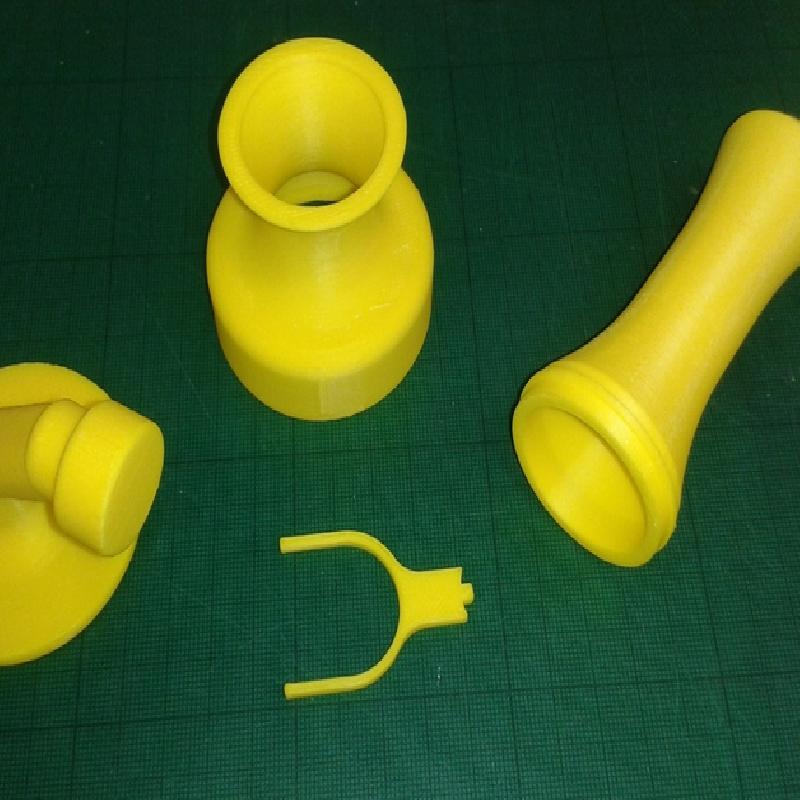

Not much to say really, am printing the parts at the moment, some have been, done see picture.The only part that needs 100% infill would be the 'Rest' just for strength.
Designed in Creo
