This is a rocket for a m72 law. I started out to only make a coupler to attach a m31 rifle grenade to a law rocket body, but I ended up modeling the entire rocket.
To attach the fins to the body 3mm screws or cotter pins can be used. I used a piece of filament and melted the ends with a 3d printing pen. A soldering iron or wood burner could be used to do the same thing.
Once the rocket is assembled it can be filled with resin to make it a more realistic weight.
I have inclued all the fusion 360 files.
Supports:
No
Notes:
For the warhead_complete_stl I recommend printing with 3 shells, no infill and, no top layer.
Everything prints as oriented. Only supports are needed for the body. A version of the body with supports has been included.

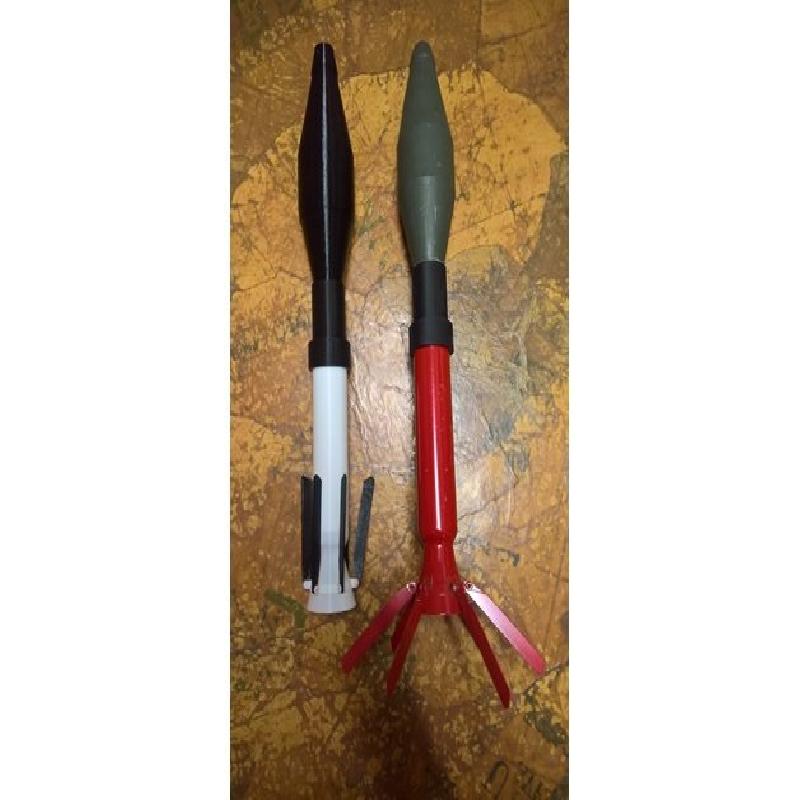

I used a real m72 law rocket body, a m31 rifle grenade, and some pictures.
