by hotpretzel

In celebration of the 40th Anniversary of ALIEN.

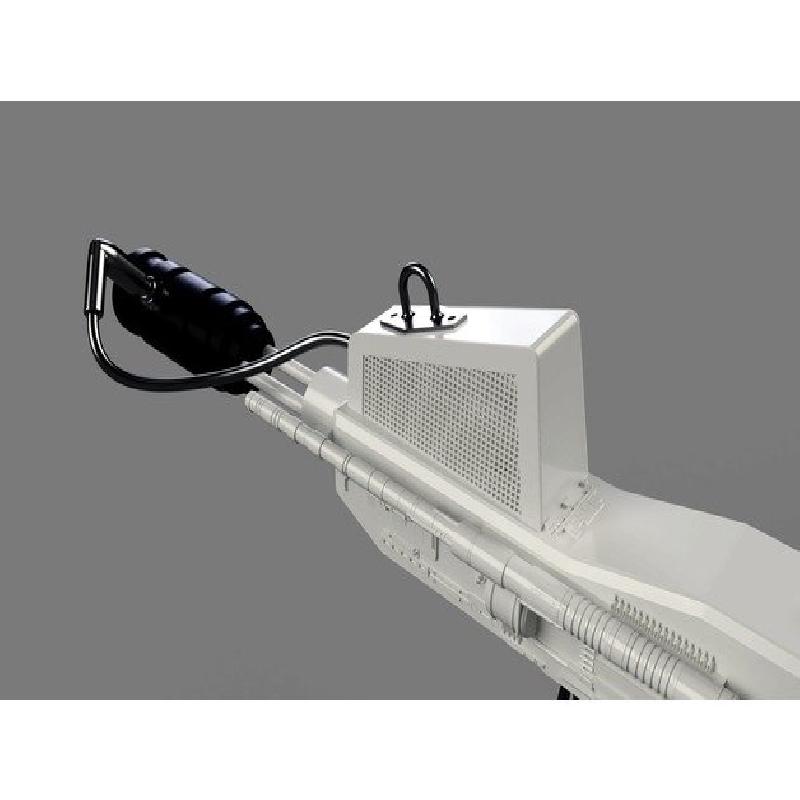

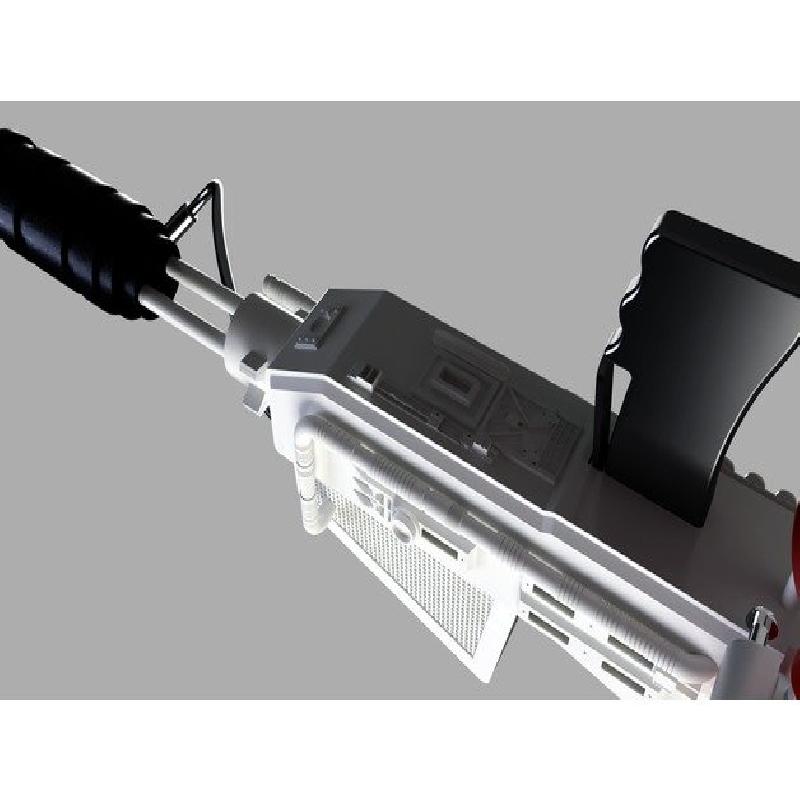

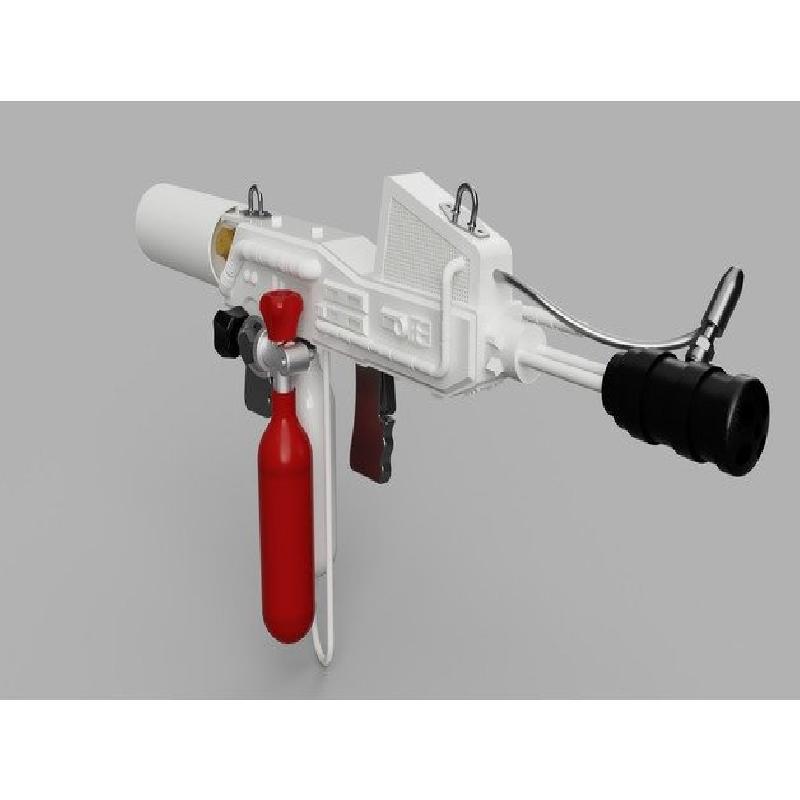

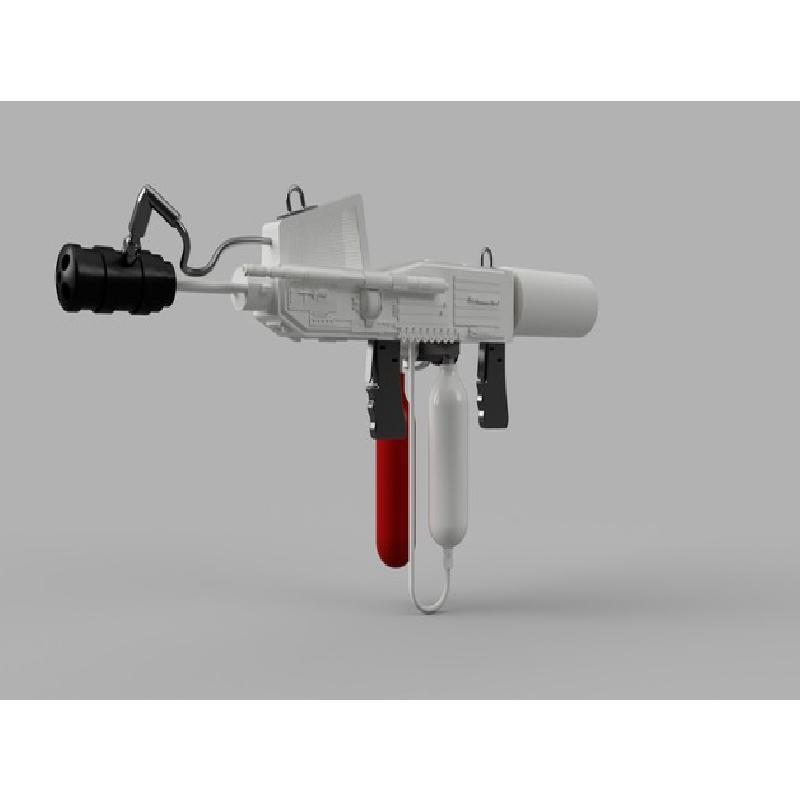

I bring you a 1:1 scale Incinerator Unit Model Kit that I crafted in Fusion 360 resembling the unit from the film.
https://youtu.be/dq1cWZE8QYw
(I have always wanted one!)

Please check log for updates\changes. Times are in EST.

Log:

5/4/19
Removed duplicate body_right_grill.stl, it was the same as grill_right.stl @ 11:16pm
Added 2 additional render photos @9:10pm
Updated body_middle.stl @ 8:12pm with minor change.
Updated front_emitter.stl @6:11pm with correct model. oops.
Updated body_middle.stl @ 4:46pm to correct minor duplicate hole error.
Updated greebly_9.stl @ 4:19pm, was missing some details.
Removed outdated duplicate part: fuel_white_tank_bottom.stl from 4/29/19, New one is from 4/30/19

As I do not have access to the original props, I relied heavily upon photos shared by user 8th_passenger of his hand crafted build.
@ Propsummit.com link: "http://www.propsummit.com/viewtopic.php?t=4075"
as well as movie stills and auction house photos.

Without those reference photos this kit would be severely
lacking in detail.

"I am still improving this kit, so some parts may change."

A large portion of the files are little Greeblies, which you will glue into place.

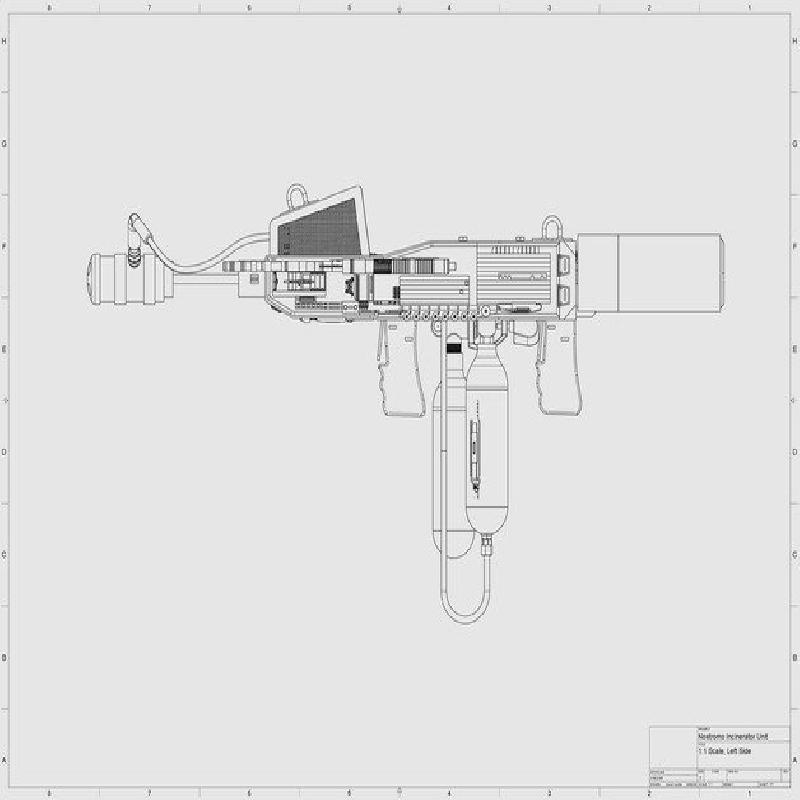

I have included a "map" pdf file to help you locate where they should go.

If you have enjoyed building this kit please consider throwing some spare change in the tip jar!

To all the Ripleys out there, enjoy!

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK2S

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0.1 - 0.15mm

Infill:

15 - 30%

Filament:                                            Matter Hackers PLA                                        White and Metalic for Grips

Notes:

Some of the larger body parts will take over 10 hours.

Post-Printing

After you have printed all the parts, it's time for assembly!

You will need some CA glue, some Bolts and Screws, but you could just glue it all together.

Bolt Screw Sizes.

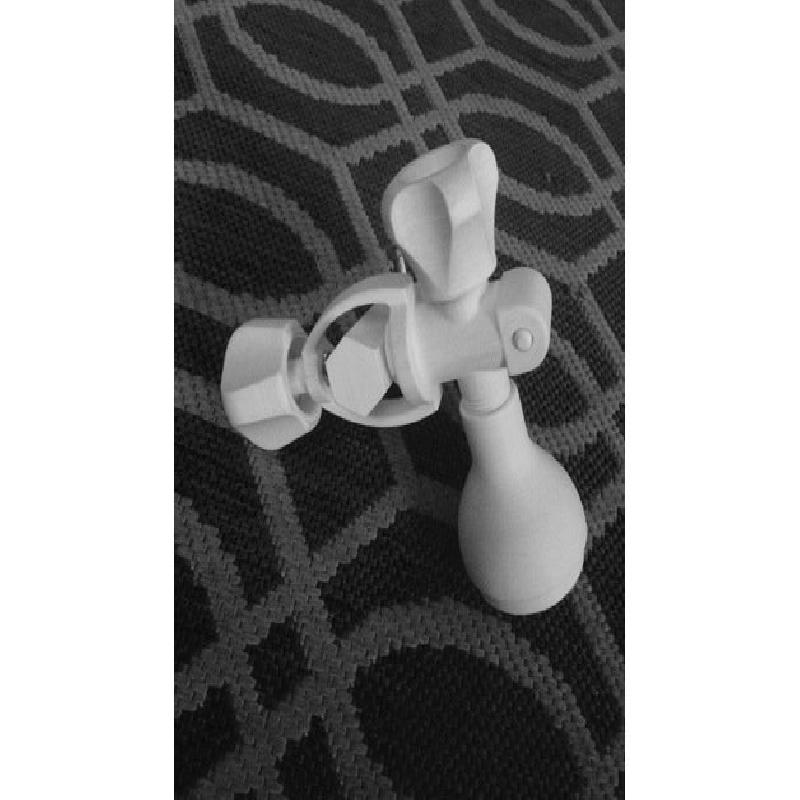

QTY=3 (For Fuel Valve\Canister Area)
1/4 inch Bolt with Nut(Metric M6) 3 -4 Inch length.

QTY=8 (For Main Body)
Size#10-32 Machine Screw with Nut (M5 x 0.8) 3/4 19mm length.

QTY=4 (For Handles)
Size#6-32 Machine Screw with Nut (M3.5 x .06). 1 1/2 - 2 Inch length

QTY=2  (For Antenna Greebly)
Size#6-32 Machine Screw with Nut (M3.5 x .06). 3/4 19mm length.
