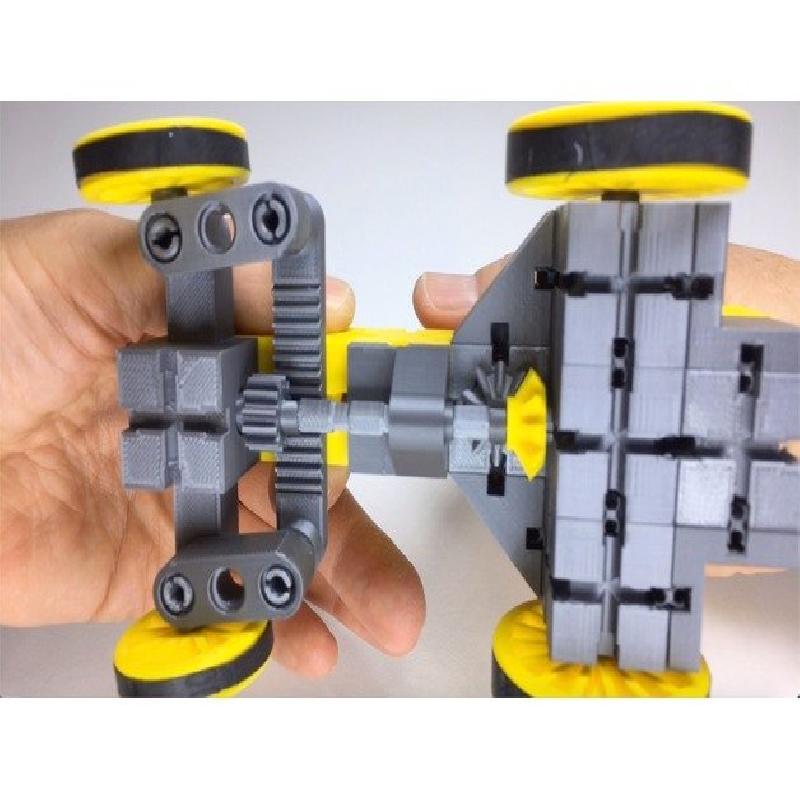

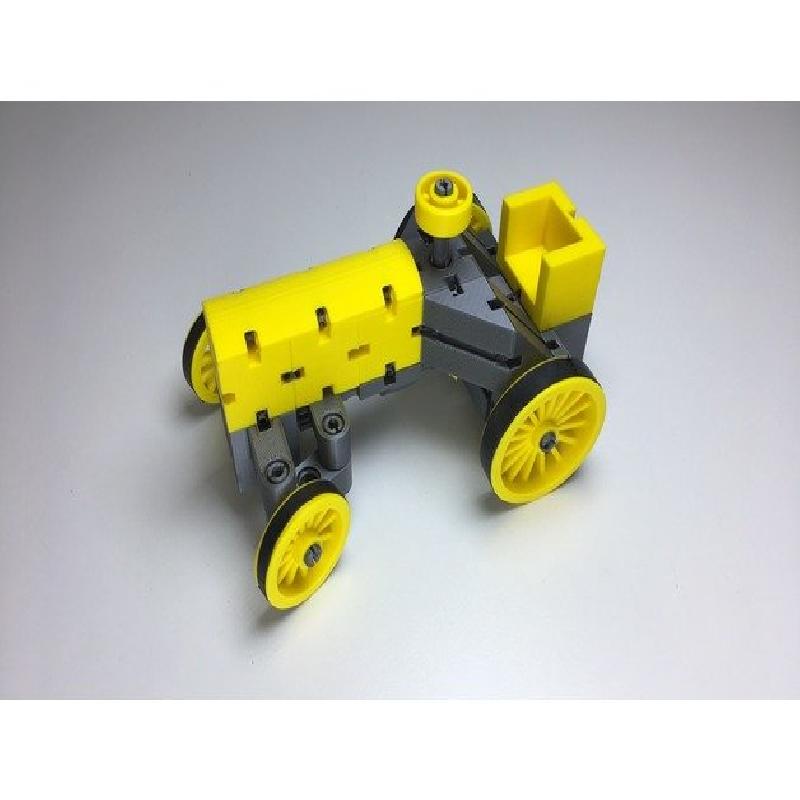

The kbricks tractor uses a subset of 24 parts of the  kbricks construction system and is one of the first models I designed for it. The tractor has a functioning steering and can be used in combination with figures of common toy lines. The list below shows how often each part needs to be printed. A video provides a step-by-step description for assembling the tractor.

Print Settings

Rafts:

No

Supports:

No

Resolution:

0.15mm

Infill:

20%

Filament:                                            Prusa PLA, PETG                                        silver, yellow

Notes:

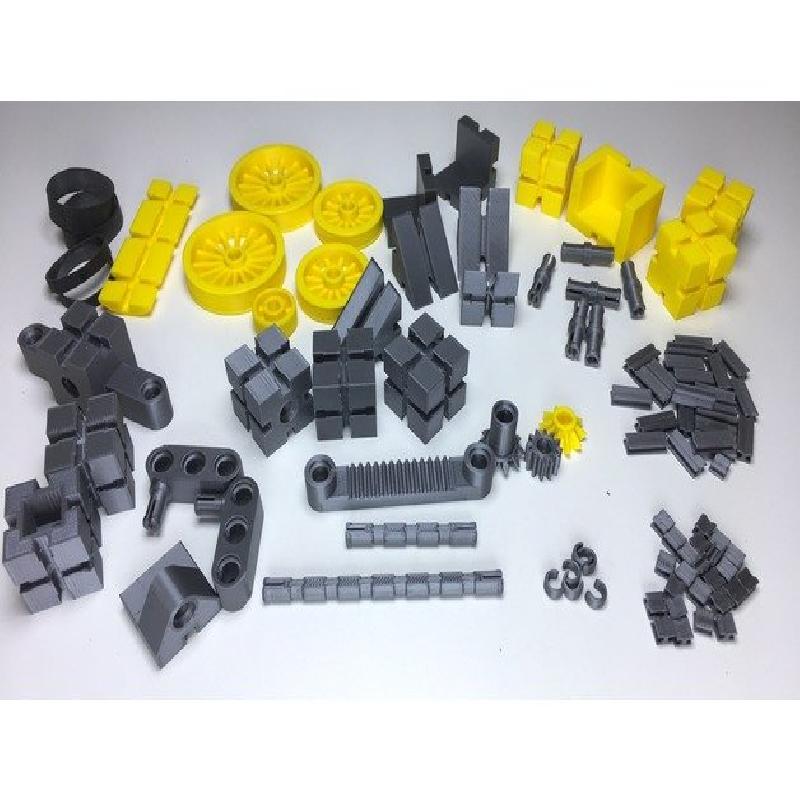

Refer to the kbricks construction system for print instructions and hints on removing embedded support. The following list shows number of instances, recommended color, and specific print settings for each of the parts that is making up the tractor:

• 2 x cube_basic.stl (silver, detect thin walls)

• 2 x cube_1hole.stl (silver, detect thin walls)

• 1 x cube_1hole_open.stl (silver, detect thin walls)

• 3 x cube_smooth.stl (yellow, detect thin walls)

• 2 x cube_l.stl (silver, detect thin walls)

• 4 x prism_45deg.stl (silver)

• 25 x connector_long.stl (silver, brim)

• 25 x connector_short.stl (silver, brim)

• 9 x peg.stl (silver, brim)

• 1 x plate_1hole_rounded.stl (silver)

• 1 x plate3x1_rounded.stl (yellow)

• 2 x beam3_peg_pos1.stl (silver, support on build plate only)

• 1 x axle4.stl (silver)

• 1 x axle7.stl (silver)

• 1 x spook_wheel2_locked.stl (yellow)

• 2 x spoke_wheel4_rim.stl (yellow)

• 2 x spook_wheel3_rim.stl (yellow)

• 1 x gear1.stl (silver)

• 1 x bevel_gear_90deg.stl (silver)

• 1 x bevel_gear_90deg_short.stl (yellow)

• 1 x gear_rack6.stl (silver)

• 1 x steering6.stl (silver)

• 1 x seat.stl (yellow, detect thin walls)

• 9 x axle_ring.stl (silver)
