Apollo 11 Command Module 阿波罗11号-指令舱
Smithsonian
Price£0 List:£0.35
Stand by Free Shipping(可下载)
SOLD0 [Comment0Article]
Apollo_11_Command_Module_Smithsonian.zip Click to download Downloads: 0

- +
Add to Cart
In Stock:99
Seller:Model City 模型城
Satisfaction Good rating0%
Rating:0
Service Attitude:0
Logistics:0
Recommended

by danlovy

Apollo 11 Command Module

The Smithsonian Museum has been digitizing and publishing some of their exhibit pieces.  These are high quality laser scans
https://3d.si.edu/

They produced a full scan of the actual Apollo 11 Command Module that is on display.  This scan includes both and interior and exterior views.
https://3d.si.edu/apollo11cm

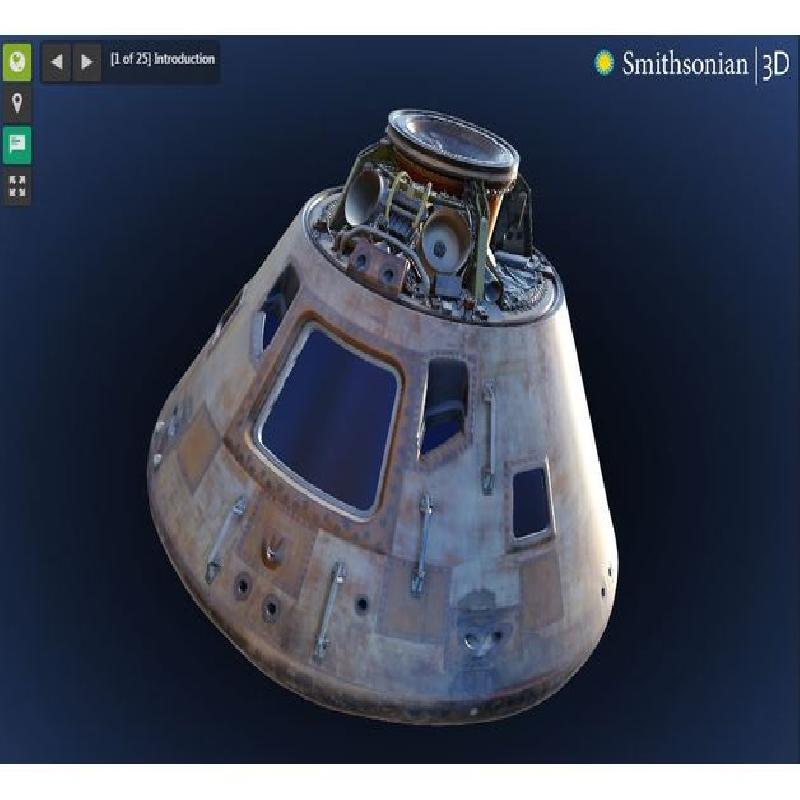

You can play with the exterior model here
https://3d.si.edu/apollo11cm_media/boxes/play-cm-2016-09-26/cm-exterior.html

Entry in the Smithsonian item database
http://collections.si.edu/search/results.htm?q=record_ID:nasm_A19700102000

Video about the digitization process
https://www.youtube.com/watch?v=Xyiy2fiV_Mc

It is exquisite in its detail.  I had to down load and print this.

What's included:

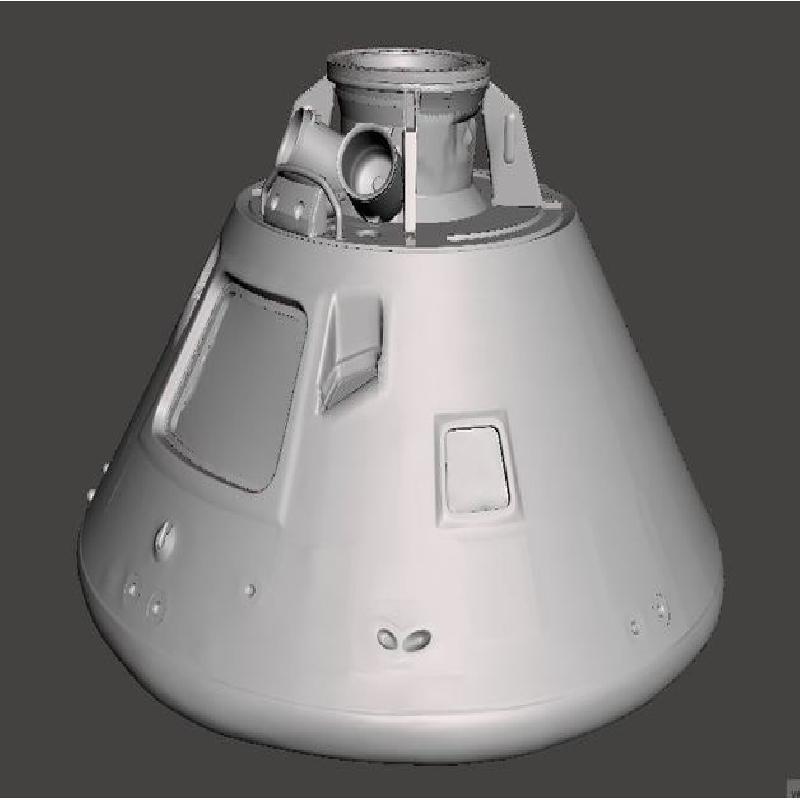

-- 2 different scales provided by the Smithsonian (1/20 and 1/40)
-- These models are tilted about 2 degrees off of perpendicular so I tipped the 1/40 model
-- I am a novice printer and I had trouble getting it to print without supports missing up the detail at the top or marring the heat shield.  I used Meshmixer to slice it into a cone section and heat shield section.  These can be printed with no supports.

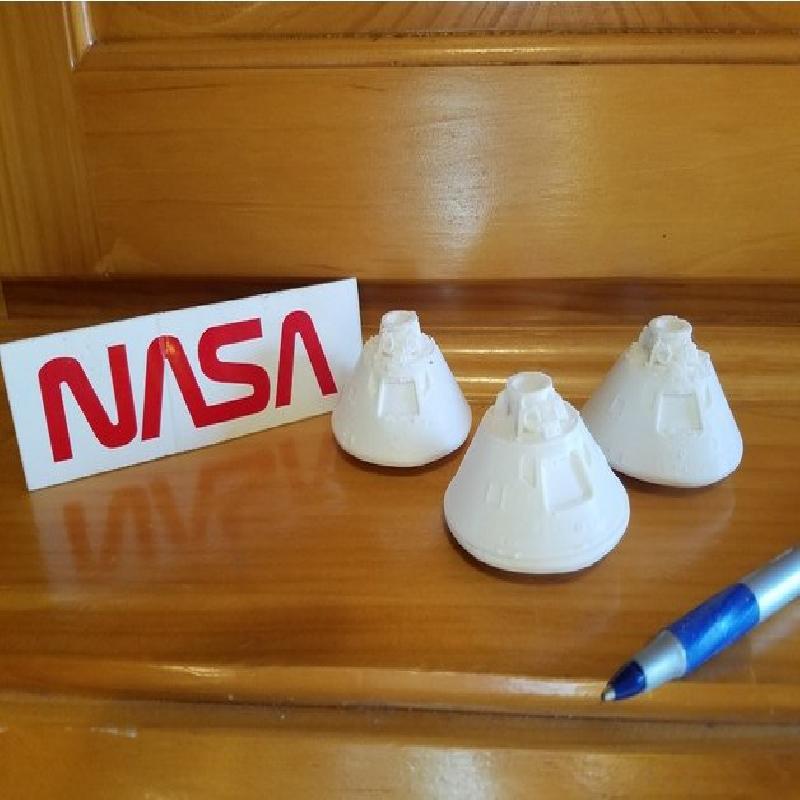

-- I have include pictures of my various attempts at 50% of the 1/40 (1/80).  I hope better skilled printers out there will post better versions.  I will post more once my skills improve.  Any advice is welcome and appreciated.
-- The Readme file from the Smithsonian.  PLEASE everyone, respect their guidance.  The models they are publishing are beautiful and credit should be given.

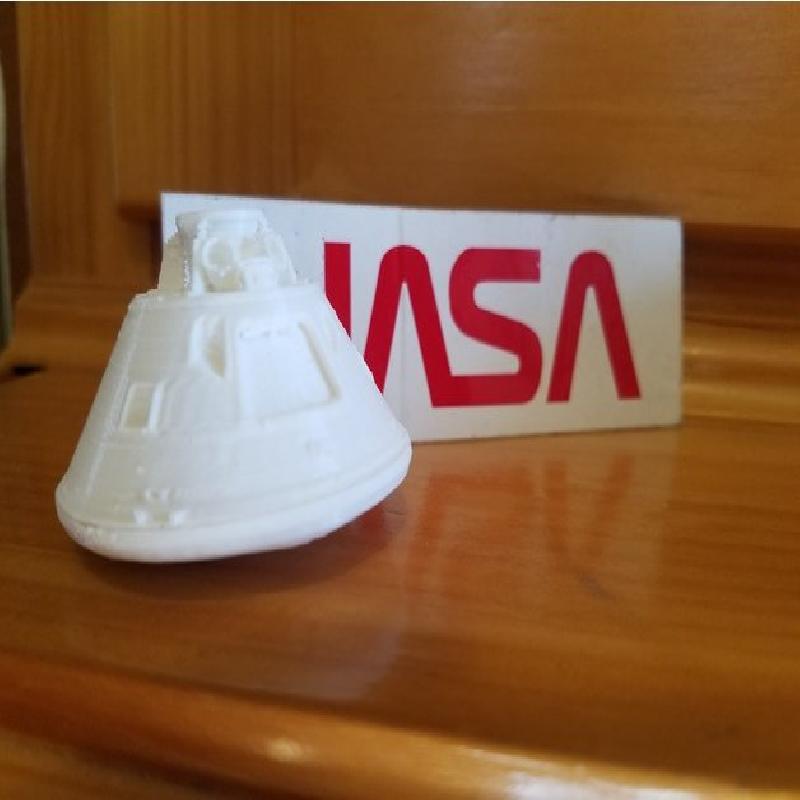

My tests were printed
-- 50% scale of the 1/40 model
-- .1mm
-- No infill
-- XYZ Printer White PLA
-- On the split version, I had a warping problem so I added a 10mm brim

Enjoy!

Print Settings

Printer Brand:

XYZprinting


Printer:

da Vinci Jr. 1.0 Pro


Rafts:

No


Supports:

No


Resolution:

.1mm


Infill:

0%


Filament:                                            XYZ Printing PLA                                        WHITE

Notes:

I used a brim to combat warping on the split version
