Print Settings

Printer Brand:

Ultimaker

Printer:

Ultimaker 2 Extended

Rafts:

Supports:

Yes

Resolution:

Adaptive Height Slicing. 0.05mm to 0.3mm

Infill:

100%

Filament: Innofil3d Abs Black and Silver

Notes:

Slow initial layer of black, silver and head,
Stop at height 11.88mm for filament exchange
Conical zig-zag support
Adaptive height slicing
Brim 8mm
Ironing
Other settings printer default

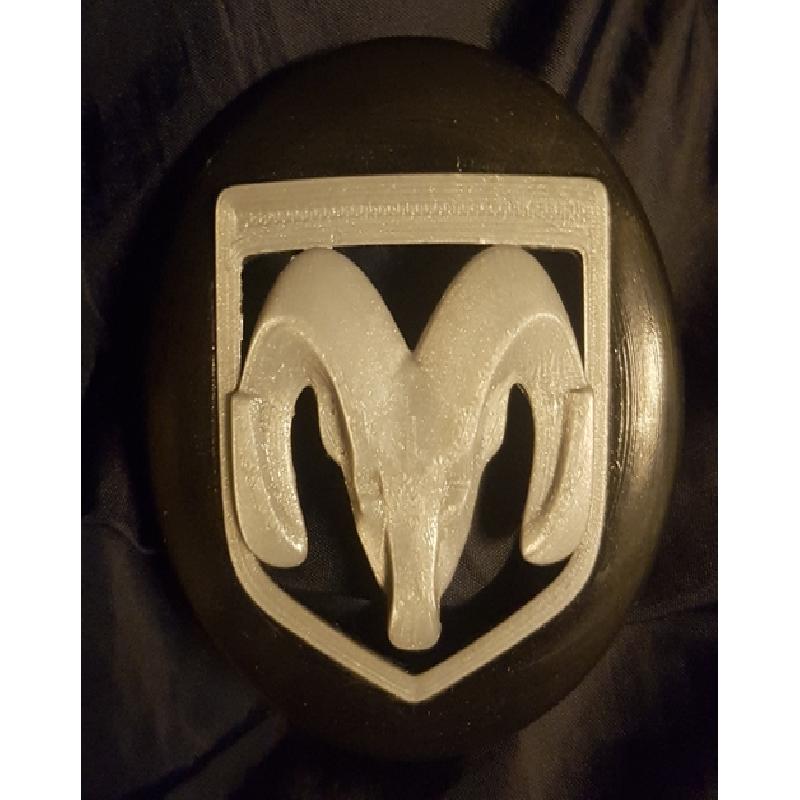

Post-Printing

Acetone drywipe polishing (3sec wetting)

How I Designed This

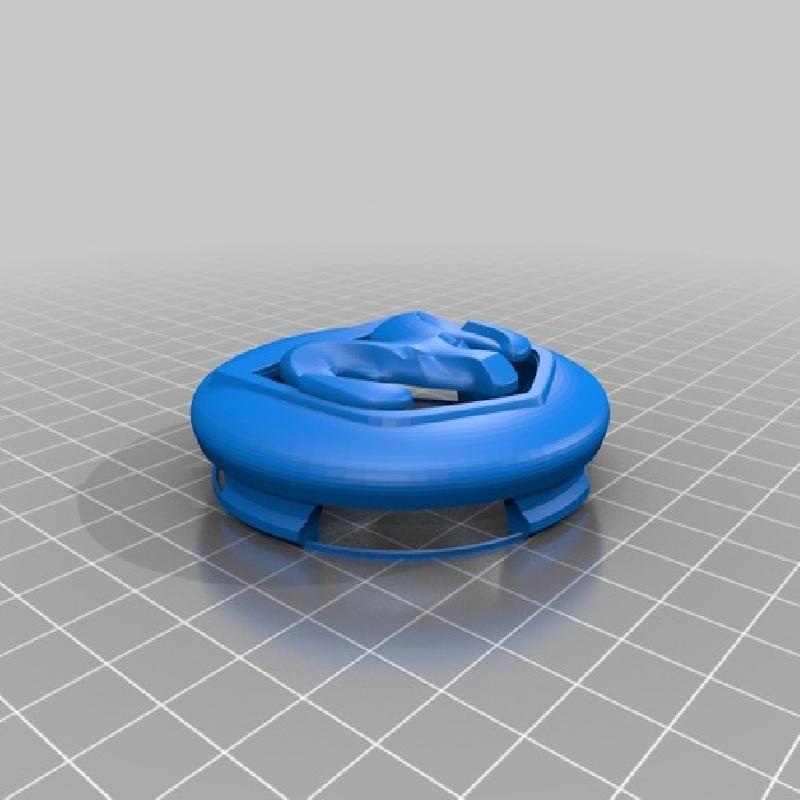

Step 1: Design cap without logo

Cones of specific heights
Add, subs, several times
Mitering
Create shape from surface
Miter again

Step 2: Remove emblem backside

Cube,
Campfer,
Campfer again
Subtract from Logo

Step 3: Merge both

-Remove the same bottomside, that also "freed-up" the Cap
-Create the hole using the Emblem-Backside remover (clone)
